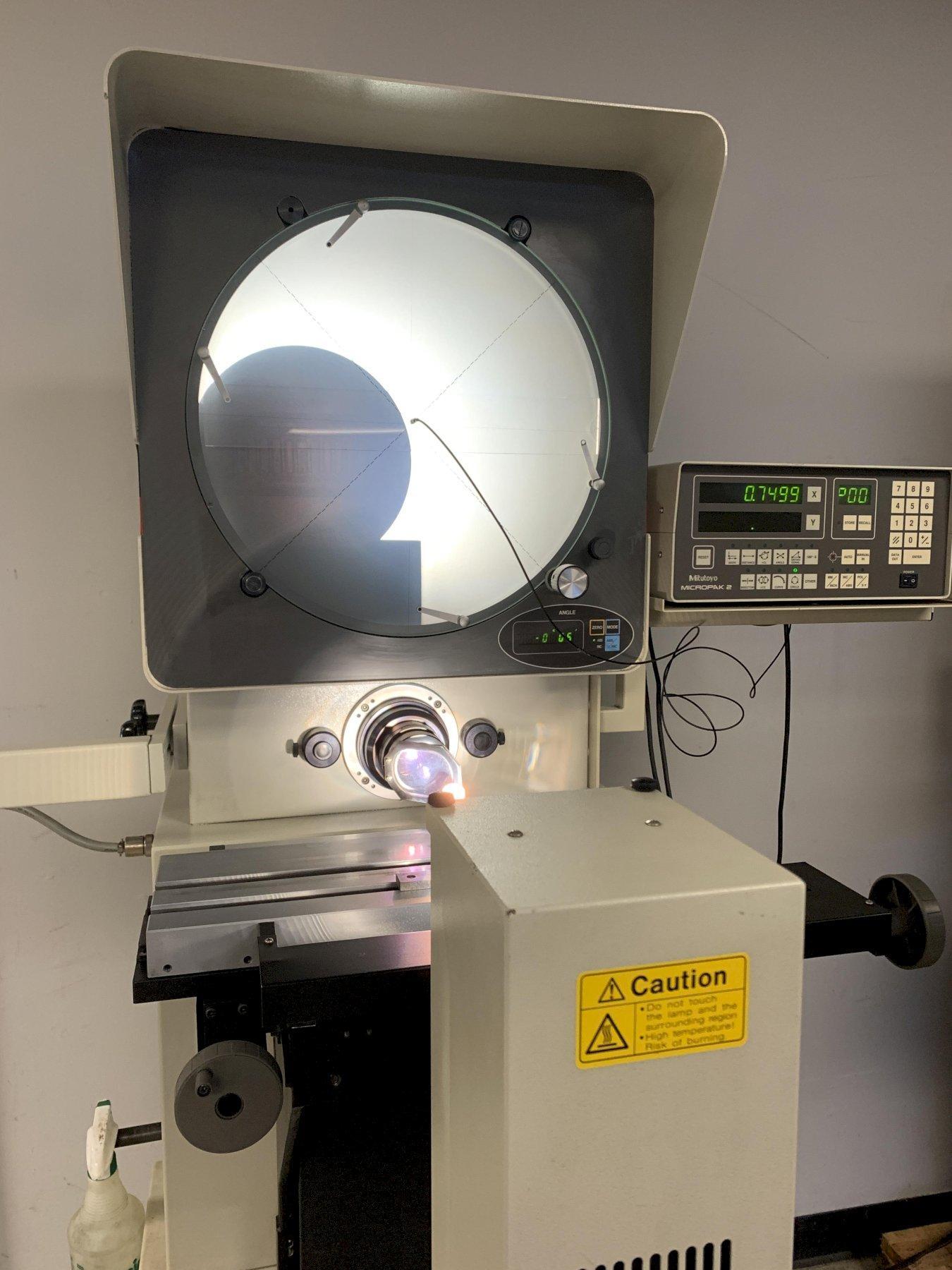

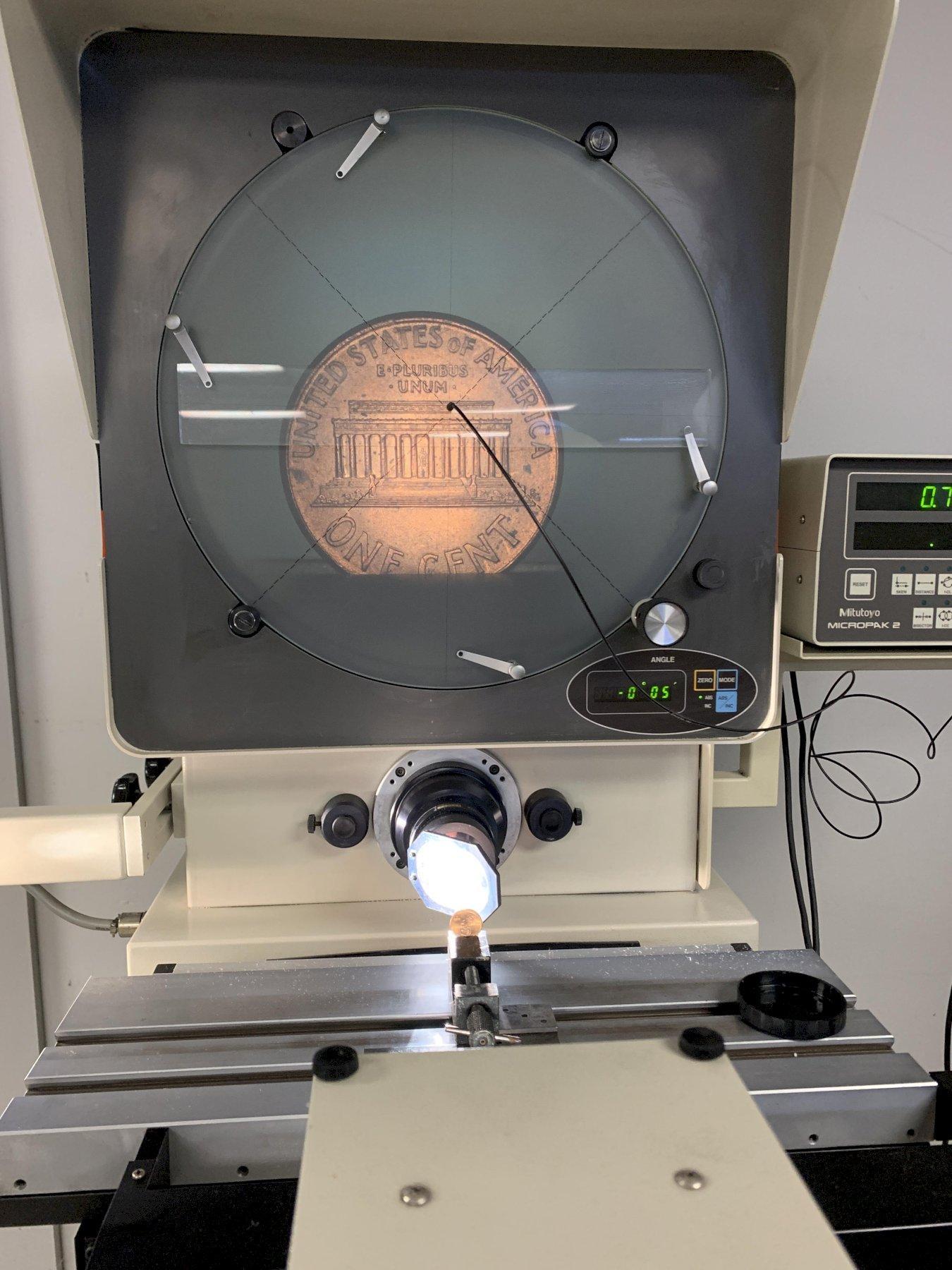

14" Mitutoyo #PH-3500, Bench Top Optical Comparator, digital read out

Specifications:
Screen Diameter - 14"
Table Size - 17.7" x 5.7"
Horizontal Travel - 10
Vertical Travel - 6"
Focus Travel - 2"
Table Swivel - +/- 10 Degrees
Table Load Capacity - 100 Lbs.
Electrics - 1/60/120 Volt
Image Type - Erect
Lens Mount - Single
Electrics - 1/60/110-120 V
Dimensions - 52" LR (w/DRO) x 45" FB x 46" H
Net Weight, Approx - 330 Lbs.
Shipping Weight, Approx - 700 Lbs. (including cabinet)

Equipped with:
Mitutoyo Micropak 2LA Computational Digital Readout
Opto-Eye Edge Sensing
Digital Angle Display
Tungsten Halogen Projection - 24 Volt, 150 Watt
Side Surface Attachment - 24 Volt, 150 Watt
(1) Lenses - 10X (other lenses may be available to sub or purchase)
Cabinet Base
Table Centers
Manuals included

Notes:
- Machine looks to be in good condition. Availability pending final checks and preparations.
- Note digital readout recently serviced and tested.
- Specifications subject to independent verification by the buyer.

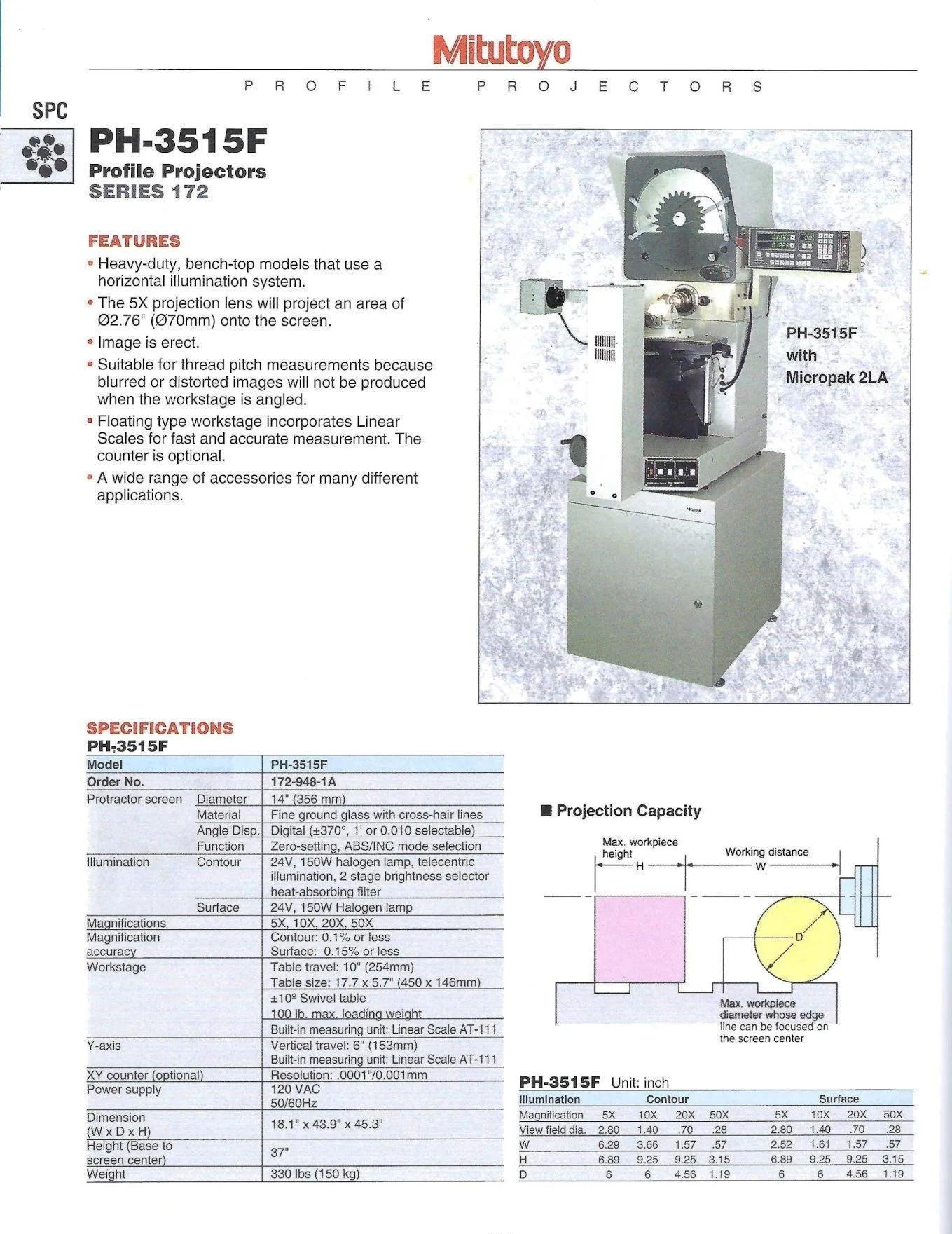

- Factory Literature is for reference only. There may be discrepancies.
- Buyer responsible for shipping. We can assist with quotes on request.
- Advanced Machinery past sales of Mitutoyo PH3500 comparators currently totals 17 machines.

* The Mitutoyo PH3500 represents outstanding value: renowned Japanese precision optics, generous stage capabilities, digital conveniences, and proven durability - all backed by our expertise in getting it shop ready. It's an investment in accurate, repeatable inspections that pays off quickly in reduced errors and faster throughput.
