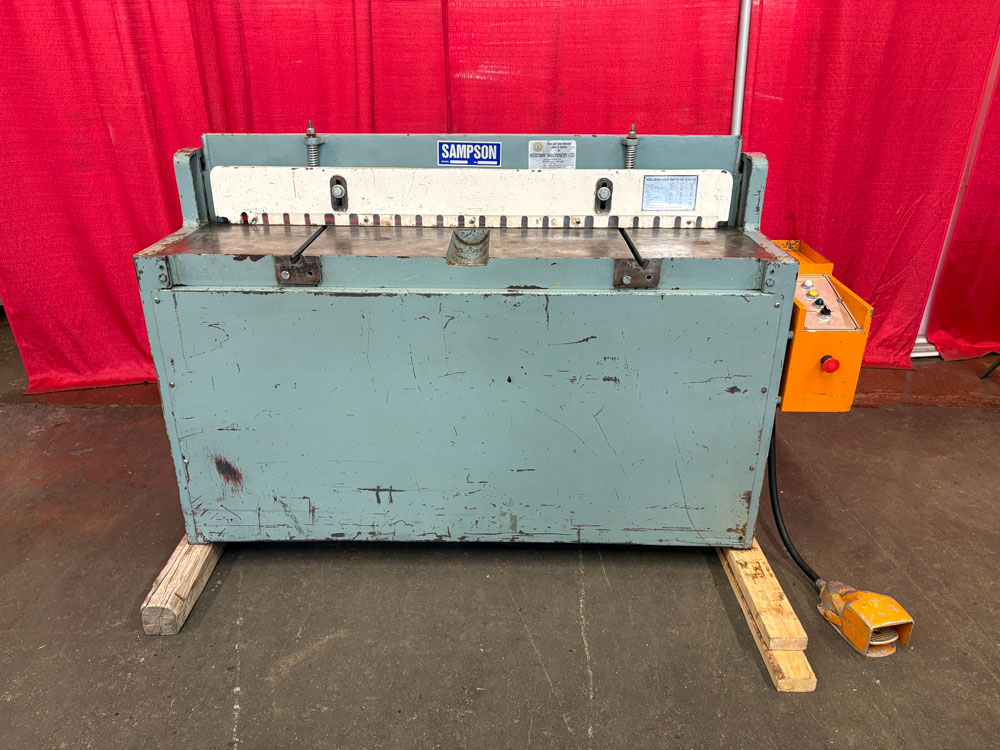

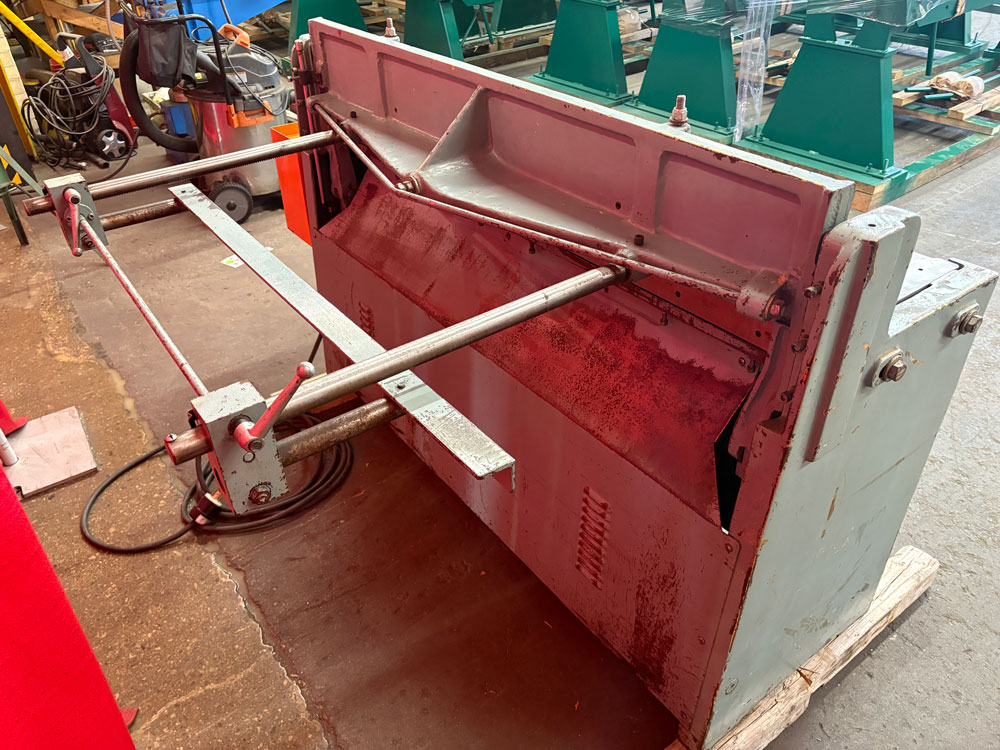

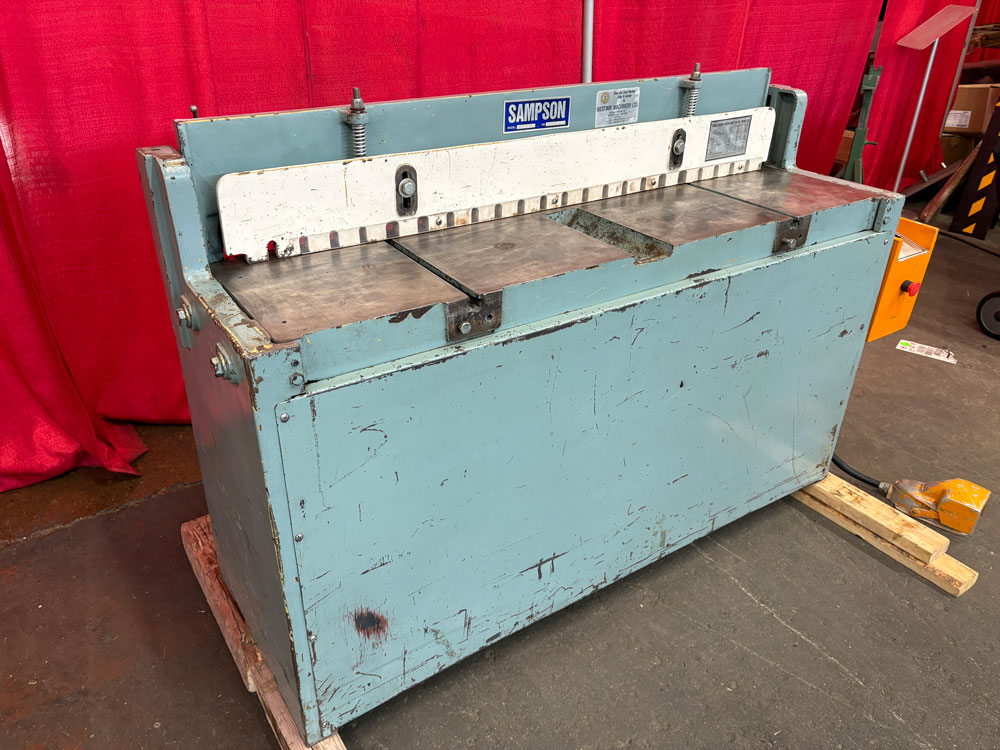

14 gauge x 4' Sampson #LB-414H, hydraulic power squaring shear, 24" Back Gauge, 40 SPM, 3 HP

FEATURES:

– Fast, smooth and quiet operation

– Heavy duty foot switch with safety guard

– Compact hydraulic unit

– Heavy cast steel shear head

– Sturdy cast iron construction

– Back operated back gauge

– Automatic hold downs

– Single and continuous stroke

– Stroke adjustment

– Easy access to hydraulics

– 10 gallon oil reservoir

EQUIPPED WITH:

– Motor & control hydro approved

– Finger guards, front gauge and arms

– Spring loaded hold down

– Back gauge 24”

– Graduated side gauge

– Remote foot switch

MODEL: LB-414H

SERIAL NO.: 11066

CUTTING CAPACITY – Mild Steel: 52” x 14 ga

CUTTING CAPACITY – Stainless Steel: 52” x 18 ga

BACK GAUGE RANGE: 24”

SPEED – Strokes/min: 40 SPM (at full stroke)

BLADES: HC-HC 2 edges top & bottom

MOTOR: 3 HP

SHIPPING WEIGHT: 1,826 lbs

DIMENSIONS (LxWxH): 70” x 26” x 43”
