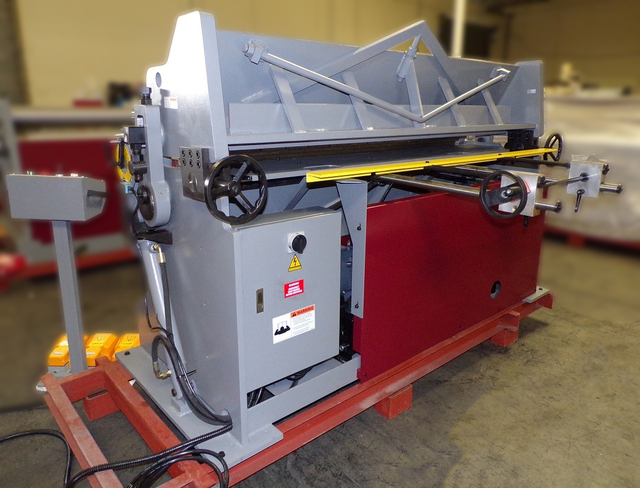

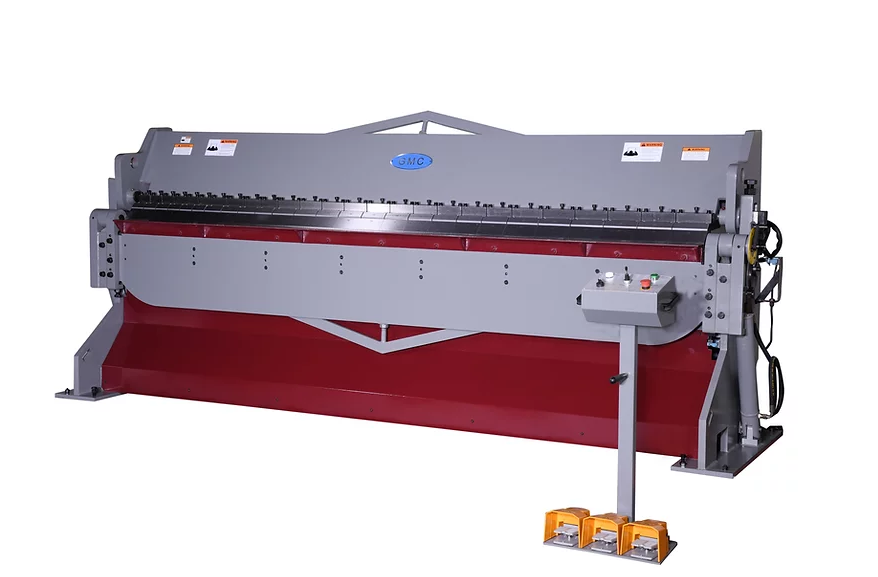

GMC 12′ x 14 Gauge Heavy Duty Hydraulic Box & Pan Brake
Inventory # 7231
Model: HBB-1214
Specifications:
Capacity:
Bending Length: 12′
Mild Steel: 14 gauge
Stainless Steel: 15 gauge
Bend Angle: 135°
Box Depth: 6″
Large Beam Opening: 3″
Oil Tank: 20 gallons
Motor: 10 hp / 220 v, 440 v / 3 ph
Standard Features:
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping of workpiece
1″ manual beam adjustment (front and back)
Heavy welded all steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Wide guide body ensures strong, stable, smooth, and accurate movement
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
Standard Equipment:
Assorted fingers
Angle set up dial
Hydraulic clamping system
Back Gauge
(2) Safety protection side guards
Foot pedal control for hydraulic clamping
Mechanical Specifications:
Overall Dimensions: 180″ L x 46″ W x 69″ H
Overall Weight: 8,350 lbs
FOB Factory – Contact us for availability
Optional equipment:
One-piece straight clamping bar finger instead of assorted fingers
Extra one-piece straight clamping bar finger
