Description

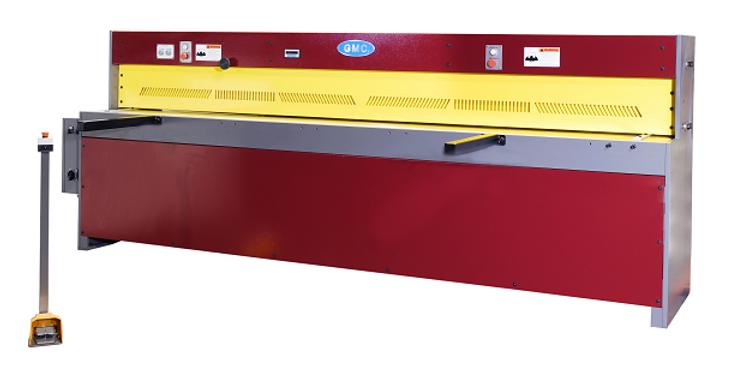

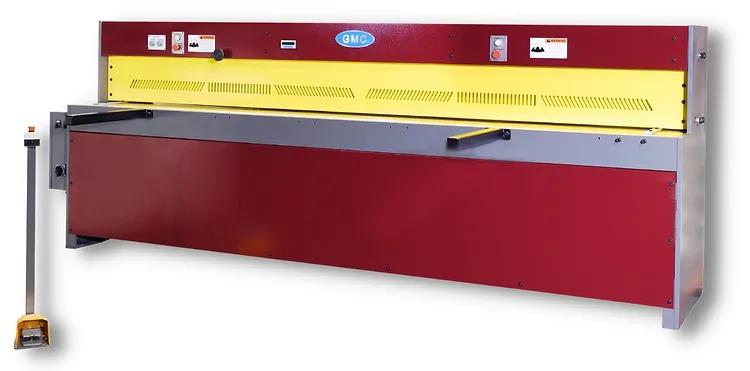

GMC 10' x 14 Ga. Mechanical Shear - Shearing Machine with 36" Electric Backgauge EPS-1014E ISO 9001 certified American design and Taiwan quality machine HD all steel construction for maximum rigidity Precision driven gearbox Full length 26 strokes per minute 60 long squaring arm with inch / mm scale spring hold-downs high grade carbon/chrome alloy steel blades and hardened to 62 hrc, 2-edge indexable upper blade and 4-edge indexable bottom blade Full length with full view finger guard Front supports and (2) side gauges Safety type foot pedal control Jog, single continuous auto operation modes One year warranty for parts 36 front operated power back gauge with German SIKO digital readout & fine adjustment wheel 60 long squaring arm with inch / mm scale, mounted on right side of the table Rear lifting support for thin sheet metal 2 each 24 front support arms full length finger guard Removable safety foot pedal control One set of upper & lower blades Cutting Capacity Mild Steel Stainless Steel soft aluminum min. thickness 10' x 14Ga. 10' x 18Ga. 10' x 10 Ga 26GA Blade Lenght 10'1" Strokes per minute 26 Worktable height 30-1/2" Front support arm 24" Back gauge Material front out tray (optional) 36" Power Back gauge 10' x 4'6" Blade Rake Angle 2.0 Degree Main Motor Motor for power back gauge 7 1/2HP, 220V/25A - 440V/15A, 3 Phase 3/4 HP, 220V/440V, 3 Phase Machine weight 7350 LBS Machine dimensions 147" x 57" x 53"
Shears, Mechanical120"14 Ga (Mild Steel), 18Ga. (Stainless Steel)121"2630.5"24"36" Power Back Gauge2.0 Degree7.5 HP, 3 Phase, 220 V / 25A (15A/440VAC optional)147" x 57" x 53"7,350 Lbs..
Strokes Per Minute (Adjustable) 26 Front Support Arm 24" Voltage 220/440V ~ 3 Phase Weight (Lbs.) 7,500 LBS. S: German Logic Quiet Hydraulic System Adjustable Stroke 60" Long Squaring Arm With Inch/mm Scale Work Light With Shadow Line.
14ga Capacity10ft Length5hp motor230 volt4500 lbs137″ x 66″ x 52″ dimensionsOptions or Upgrades, 24″ front op. man. back gaugeFront return sheet support system4 ft. squaring arm & sheet supportsBlades sharpened & set.
