Description

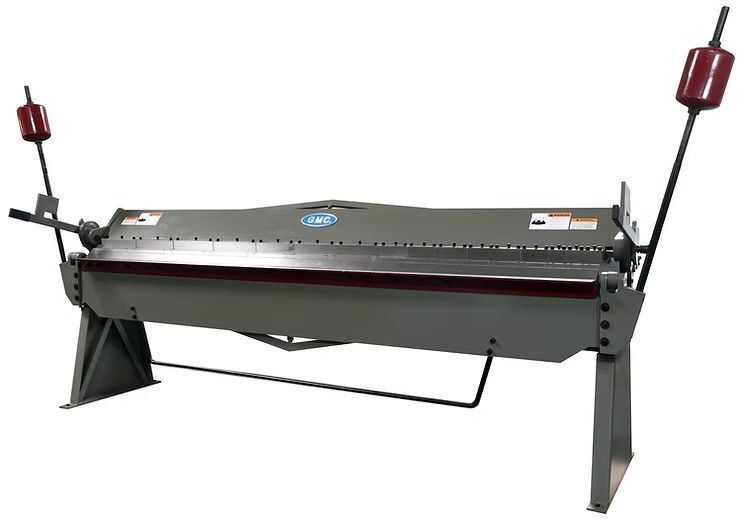

Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes. One Year Parts Only Warranty ISO 9002 certified 1-9/16 adjustable beam opening 1 beam adjustment (front and back) Capable of hemming light gauge material of 26 gauge or thinner Capable of straight bending material fully across Oilable bearings to maintain precision overtime 16 Total fingers assortment: 3/3pcs 5/3pcs 6/3pcs 10/3pcs 12/4pcs Adjustable stop gauge is included to allow the operator to perform repeat bends 2 - Adjustable counterweights to assist you at max capacity bends All steel heavy body construction with extra heavy tie rod for minimum deflection May require 2 or more people Some assembly is required Bending capacity in Mild Steel: 14 Ga. Bending capacity in Stainless Steel: Bending capacity in soft aluminum : 18 Ga. 10 Ga. Max. hemming thickness for mild steel: 26 Ga. Max. box depth 6" Bending length capacity 10 Bending angle, degree 0-135 Beam adjustment, front and back 1" Minimum reserve bend 1/2" Manual clamping Standard Beam opening 1-9/16" Net weight 3,250 lbs. Shipping weight: 3,350 lbs. Machine Dimensions: 159" x 32" x 77" Shipping Dimensions: 142 x 30 x 41
10′ x 14ga. ‘Chicago”(Dreis & Krump) full length finger brakewith Both sliding counterweights and original clamp handles., ON SALE RIGHT NOW! (Check out a new price from D&K), Only $6,499.00 USD! (shipping extra), As is, but warranted. (and no cracks or repair welds or frame bends etc.) ...more
SERIAL. 4175, MODEL. VH-1014-6, YEAR NEW. 2001, BENDING LENGTH. 120", CAPACITY MILD STEEL. 14 GA, CAPACITY STAINLESS. 18 GA, MAXIMUM DEGREE OF BEND. 0 TO 135 DEGREES, BEAM ADJUSTMENT. 1", REVERSE BEND. 1/2" MINIMUM, NUMBER OF 3" FINGERS. 6, NUMBER OF 4" FINGERS. 4, NUMBER OF 5" FINGERS. 10, NUMBER OF 6" FINGERS. 6 ...more
