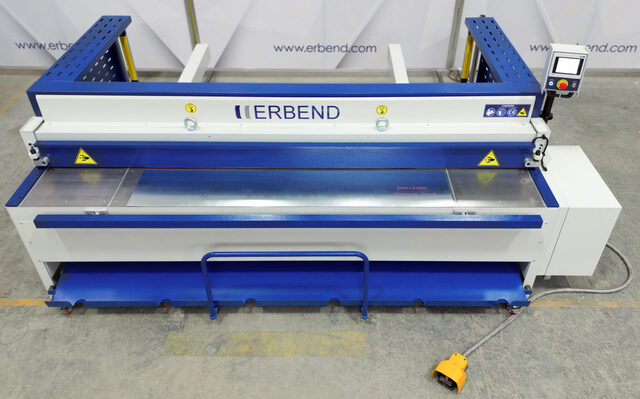

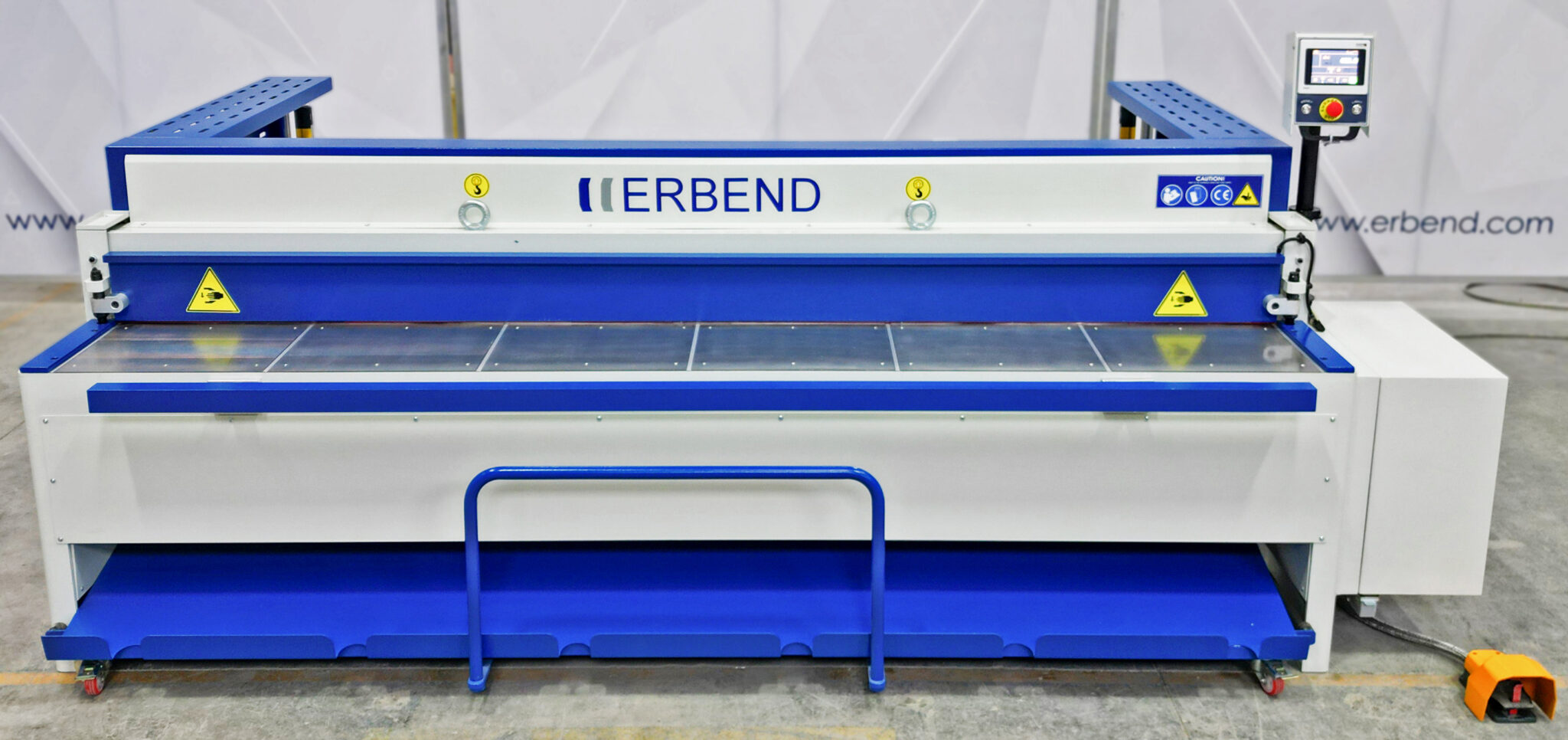

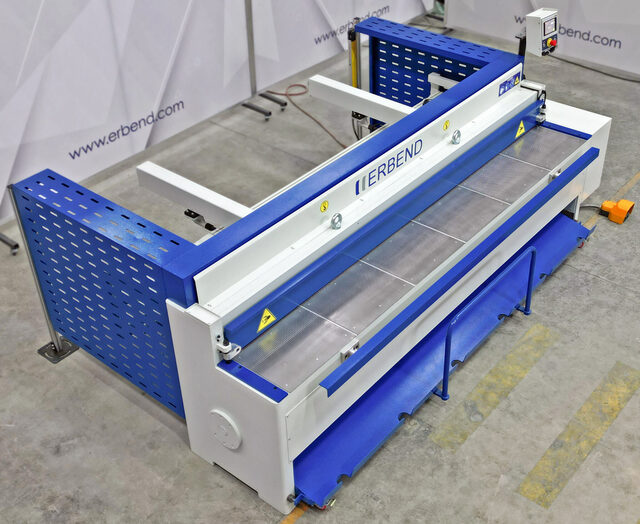

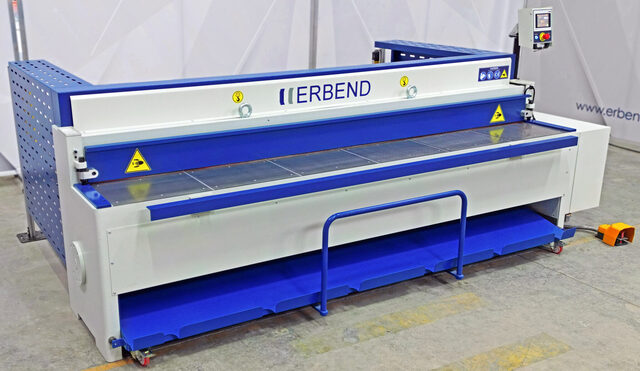

Erbend 10′ x 14 Gauge NC Motorized Shear, EMS 3220
Inventory # 9696
Model: EMS 3220
Made in Turkey
Specifications:
Cutting Length: 126″ (3,200mm)
Cutting Capacity:
Mild Steel: 14 Gauge (2mm)
Stainless Steel: 18 Gauge (1.2mm)
Aluminum: 11 Gauge (3mm)
Backgauge: 29 1/2″ (750mm)
Motor: 4kW (approx. 5 HP)
Standard Features:

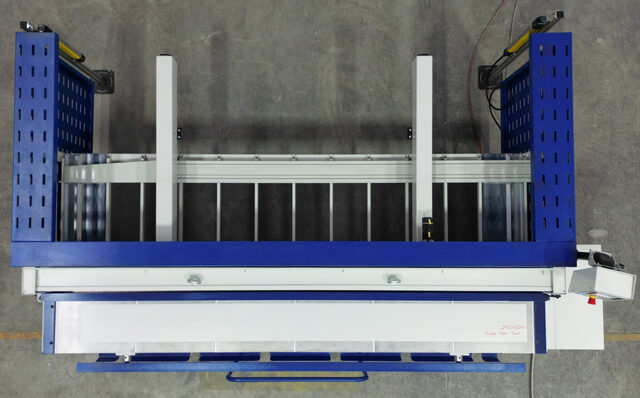

29 1/2″ (750mm) NC motorized back gauge system
Upper and lower blades
Backlight barriers and finger protection cover on front side

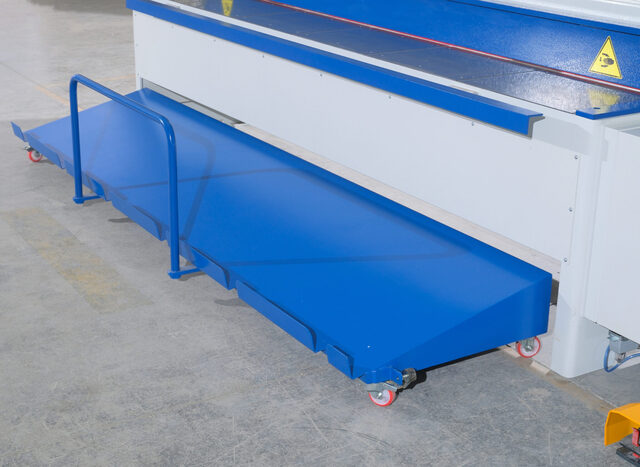

Sliding front sheet support arms
Shadow light and cutting line
Mechanical Specifications:
Dimensions: 147″ x 77″ x 63″ H
Weight: approx. 5,100 lbs.
FOB Factory – Contact us for Pricing and Availability
Optional Features:
39.4″ (1,000mm) NC motorized back gauge system
Side gauge extension to 78.7″ (2,000mm)
Variable angular cutting support
Laser cutting line indicator
Pneumatic sheet support as front or rear drop
Blade set as spares
Blank sheet wagon with wheels
