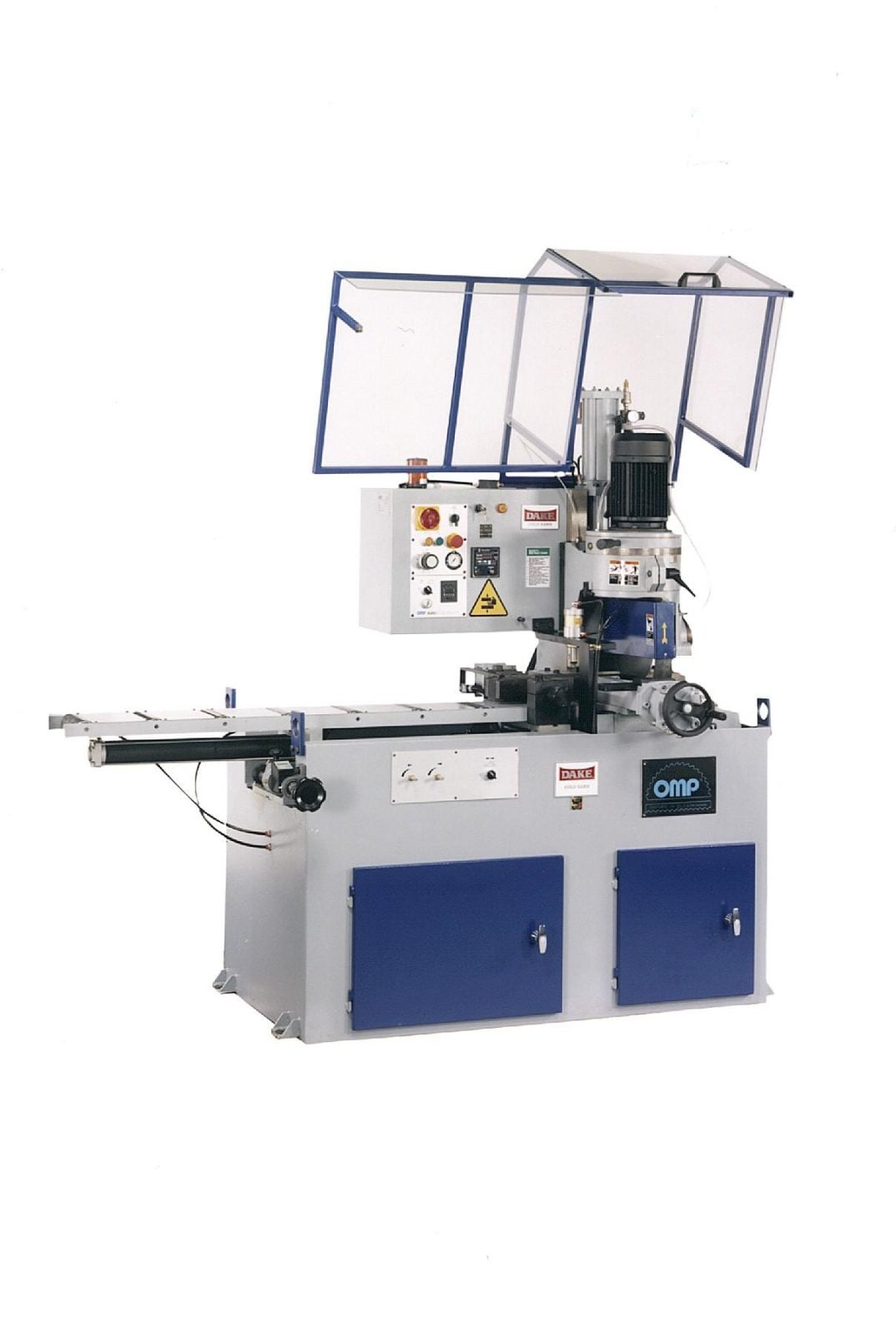

14.5" Dake #370PP, Automatic Cold Saw, 8.25" Vise Opening, 6.5" Feed Opening, 25/50 RPM, 3.5/4.5 HP, 220 V, new

Description

Dake 14 1/2″ “Euromatic” Automatic Cold Saw, 370PP

Inventory # 8464

Model: 370PP

P/N: 976208

Description:

The Euromatic 370PP Ferrous Automatic Cold Saw is user-friendly while offering aggressive precision and stamina.
Featuring two removeable surface wear plates, a head that rotates 45° right of center and up to 90° left of center

Specifications:

Capacity:

Solid Round:

@ 90°: 4″

@ 45°: 3 5/8″

Tube:

@ 90°: 5 1/16″

@ 45°: 5″

Square:

@ 90°: 4″

@ 45°: 3 7/8″

Rectangle:

@ 90°: 4″ x 7″

@ 45°: 4″ x 6″

Work Height: 35″

Cutting Ability: Ferrous / Non-Ferrous / Plastic

Max. Blade Diameter: 14 1/2″

Max. Vise Opening: 8 1/4″

Max. Feed Vise Opening: 6 1/2″

Max. Angle: 45° Left / 90° Right

Slotting: Yes

Speeds: 25 RPM / 50 RPM

Motor: 3.5 HP, 4.5 HP / 220v, / 3ph

Standard Features:

Head rotates 45° right of center for miter cutting and up to 90° left of center for miter cutting and slotting

Table features two removeable surface wear plates to support longer cut lengths

Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and
easy adjustment

Large automatic clamping vise features adjustable gib guides, removeable face plates, and an anti-burr arm

Minimum 6″ remnant drop piece size for maximum material use

Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute

Manual oiler to lubricate 1″ thick, hardened ways

3.5/4.5 HP motor has the muscle to drive a 14 1/2″ or 12″ blade quickly and quietly through solids

Clear acrylic hood has shock assists for raising and lowering and electrical interlocks

Swap cutting head to gain non-ferrous/ferrous option on same saw

Standard Equipment:

Blade

Coolant

Saw Blade Selector Calculator

Tools Kit for Changing Blades

Instruction and Service Manual

Mechanical Specifications:

Dimensions: 54″ x 83″ x 90″ H

Weight: approx. 1,720 lbs.

FOB Factory – Contact us for Availability
