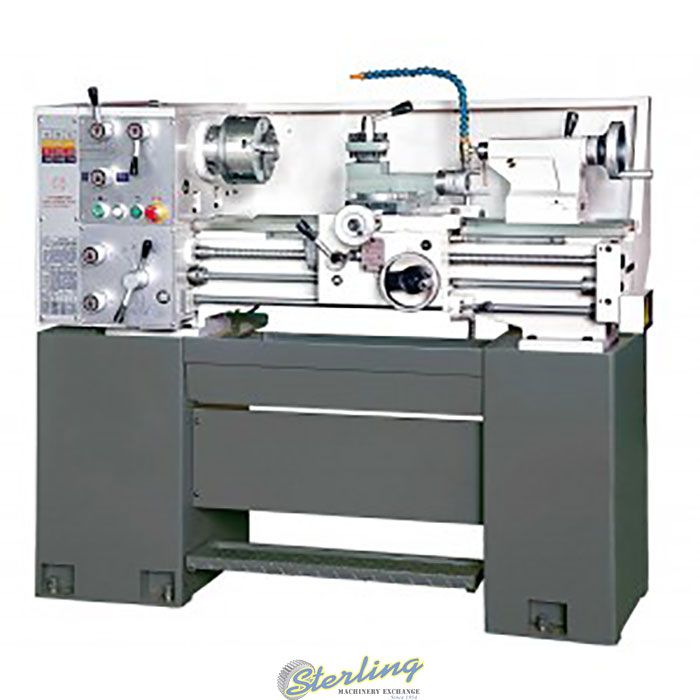

Click to zoom in
For Sale by Sterling Machinery Exchange - New Mach.
Surplus Record Dealer Since 1970
Location: South El Monte, CA
Contact Adam Mattes
Phone Number: 626...> Show Phone Number 626-444-0311
Let the seller know you found their listing on Surplus Record!
Description
DETAILED SPECIFICATION
| Swing Over Bed | 14" |
| Swing Over Gap | 20-3/4" |
| Swing Over Saddle | 8-3/4" |
| Distance Between Centers | 40' |
| Bed | |
| Width of Bed Ways | 7-9/16" |
| Top Slide Travel | 4" |
| Cross Slide Travel | 6-1/2" |
| Spindle | |
| Spindle Nose Mounting | STD: D1-4 |
| Spindle Bore | 1-1/2" |
| Spindle Nose Taper & Sleeve | Outer M.T. #5, Inner M.T. #3 |
| Range Of Spindle Speeds | 9 Speed Gear Change |
| Thread & Feed | |
| Range of Inch Threads | 4 to 56 T.P.I. (32 kinds) |
| Range of Metric Threads | 0.4 to 7.0 (30 kinds) |
| Range of longitudinal feeds | 0.0026" to 0.0638"/rev |
| Range of Crossfeeds | 0.0013" to 0.03919"/rev |
| Tailstock | |
| Quill Taper | M.T. #3 |
| Quill Travel | 4" |
| Motor | |
| Main Spindle Motor | 3 H.P |
| Coolant Pump Motor | 1/8 H.P. |
| Warranty | One Year Limited Warranty |
| Horsepower | 8.5 H.P. |
| Voltage | 208V to 230V (Max) ~ 3 Phase |
| Dimensions (L x W x H) | 73" x 30" x 58" |
Features
4 Way Tool Post
Steady Rest
Hardened & Ground Gears In Headstock
Rapid Foot Break
Tool Box & Kits
Rear Splash Guard
Precision Taper Roller Bearing
Feed Rod Is Equipped With Over Load Safety Clutch
Gap Bed
Apron Equipped With Interlocking Device To Prevent Feeding Inter-Gearing During Automatic Feeding
Complete Electric Control Unit
Change Gears
4 Jaw Independent Chuck 8"
Spindle Nose 1-1/2"
Floor Stand
Face Plate 10"
3 Jaw Scroll Chuck 6"
Hardened & Ground Bed Ways
