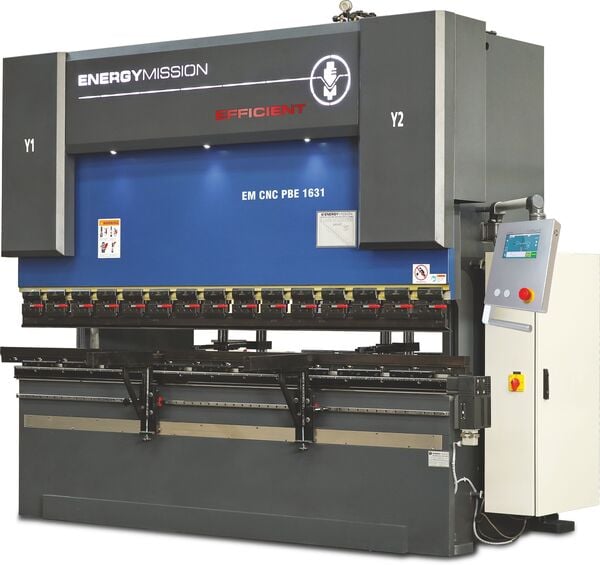

For Sale by Bud's Machine Tools
Description
Description
RANGE LENGTH
30 MT to 2000 MT
1250 mm to 10000 mm
Specifications
| Tonnage | 138 T |
| Type | HYD |
| # Axis | 3 |
| Bending Length | 200.79" |
| Table Width | 3.54" |
| Clear Pass | 177.17" |
| Ram Stroke | 11.8" |
| Open Height | 19.09" |
| Throat Depth | 15.75" |
| Approach/Pressing/Return Speed | 3.94/0.24/2.56 |
| Power | 12.75 hp |
| Control | CNC (Cybelec 8) |
| Dimensions | 216.54x82.68x118.11 |
| Weight | 30870 |
ACCURACIES
• Press Beam Depth Accuracy: ± 0.01mm
• Press Beam Depth Repeatability: ± 0.01mm
• Back Gauge Accuracy: ± 0.1mm
• Back Gauge Repeatability: ± 0.1mm
Equipped With
• 3 Axis machine with automatic, accurate & fast back gauge
• CybTouch 8PS Controller from CYBELEC Switzerland
• Rigid upper beam guide on 12-point roller bearings
• Ultrasonically & tensile tested IS:2062 grade steel structure ensures the rigidity & avoid deflection.
• The frame is machined on Floor Boring Machine ensuring single reference accurate machining.
• Quick release clamps
• Back gauge assembly included ball screw, AC Servo drive, LM guides & timer belt
• Back gauge fingers mounted on LM guide
• Quick V′ groove change over with self-centred die with rail.
• Hardened & grounded 2V′ / 4V′ die & semi gooseneck punch
• Front sliding sheet support with LM guides for easy movement
Get Your Price from Bud's Machine Tools!
Buyers Who Viewed This Listing Also Viewed:
150 Ton, Pacific #K150-16, hydraulic press brake, 16' overall, 192" between housing, 12" stroke, 24" throat, 17" open height
150 Ton, Pacific #K150-17.5, hydraulic press brake, 17.5' OA, 192" between housing

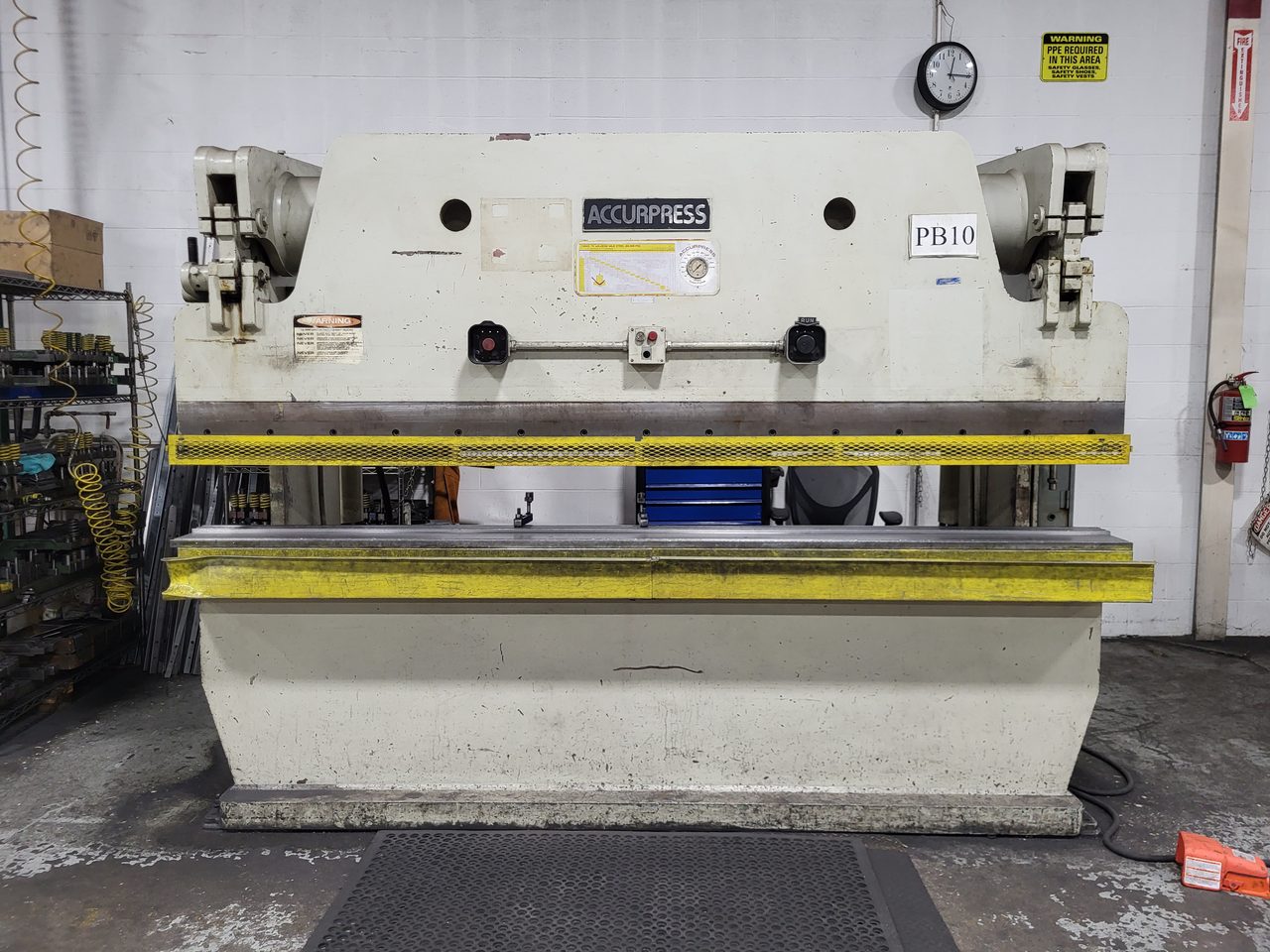

130 Ton, Accurpress #713010, press brake, 10' overall, 100" between housing, 8" stroke, 14" open height, 10" throat, 1985

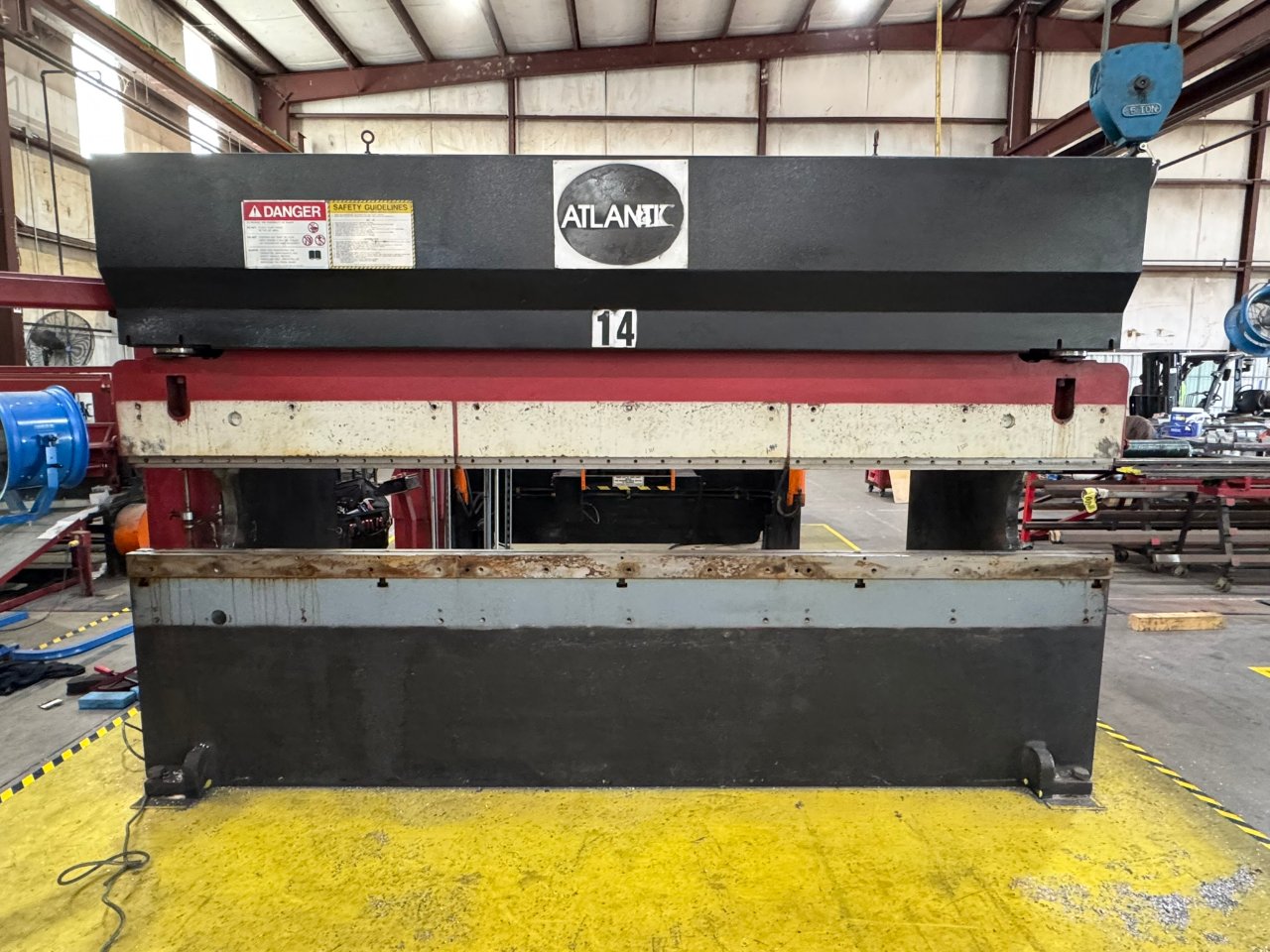

150 Ton, Atlantic #HDE.150.12, hydraulic press brake, 12' overall, 122" between housing, 4.72" stroke, 9.8" throat
