Manufacturer: Pacific
Model: 1350D-10/80
Year: 2010
Ton: 1350.0
Stroke: 48.0
Daylight: 66.0
Stock # 12597
1 / 10
Click to zoom in
1 / 10
For Sale by Universal Press & Machinery (UPM)
Surplus Record Dealer Since 1977
Location: Ferndale, MI
Contact Sales Dept.
Phone Number: 248...> Show Phone Number 248-268-1603
Let the seller know you found their listing on Surplus Record!
Description

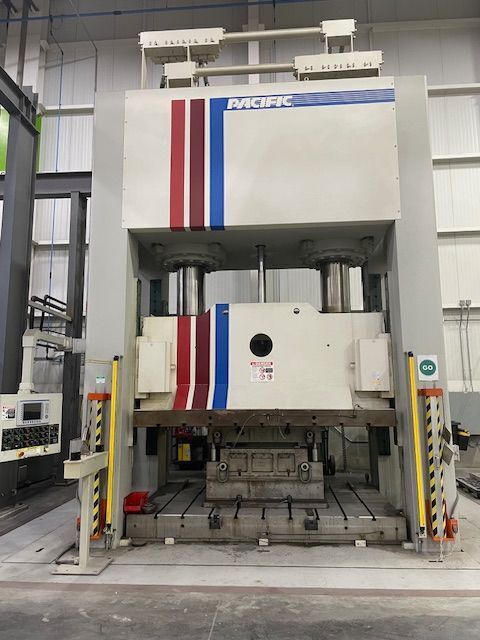

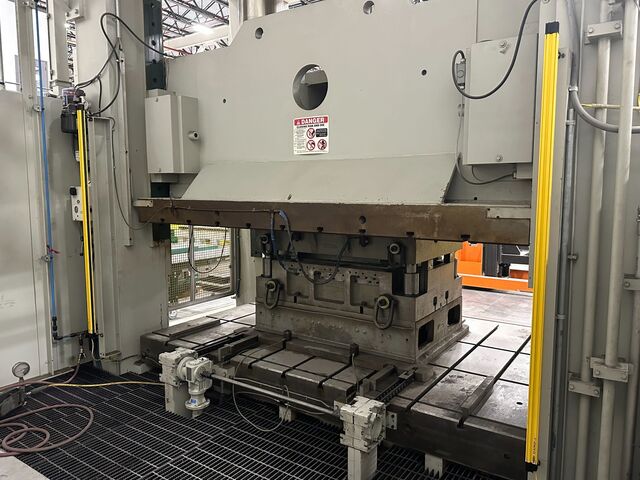

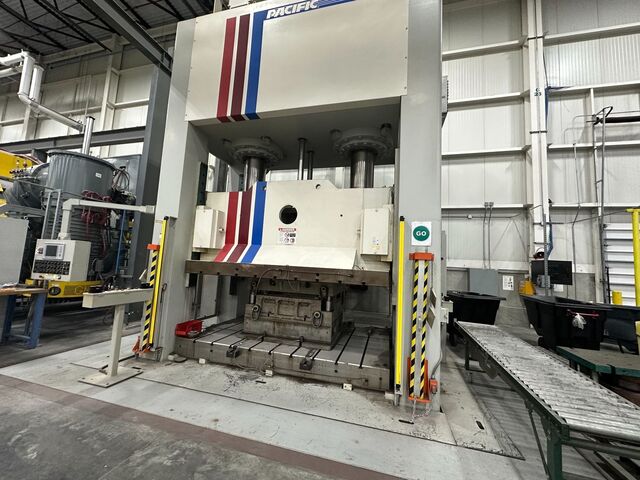

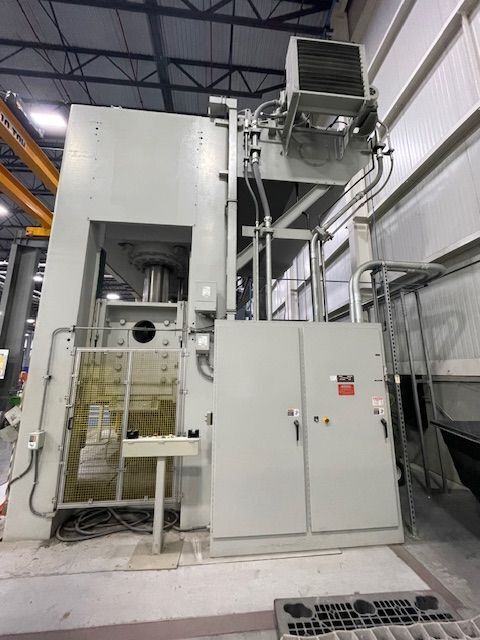

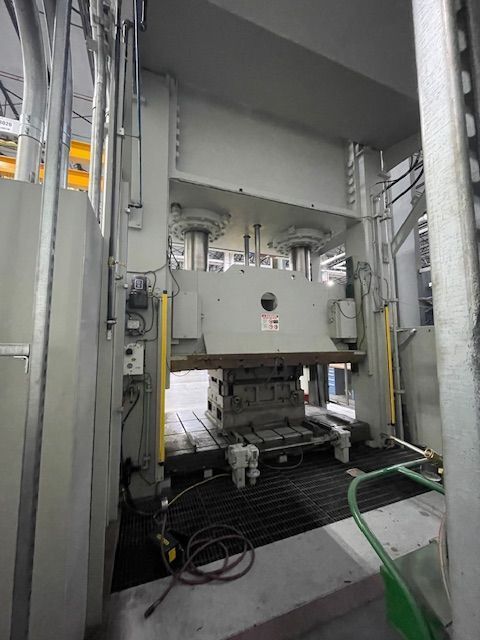

For sale: Used 1350 Ton Pacific Model 1350 D-10/80 Straight Side Hydraulic Press, 2010. Includes cushion. Specs: 1350 T, 120x80 in bed, 48 in stroke, 66 in daylight. Features 2x125 HP motors, 1650-gallon reservoir, and more.
Capacity:
Forming: 1350 Ton
Punching: 900 Ton
Stroke: 48"
Daylight Opening: 66"
Closed Height: 18"

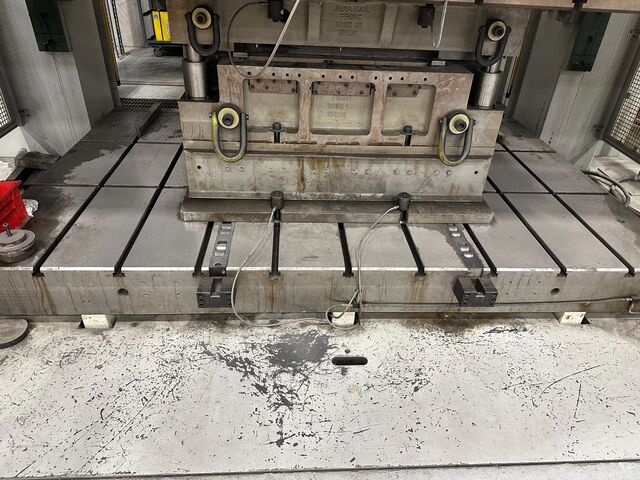

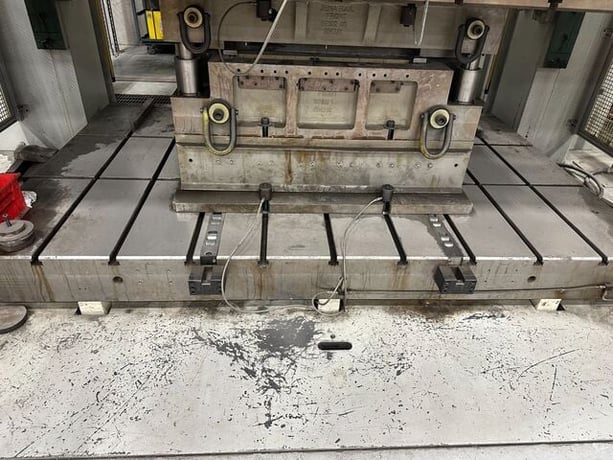

Bed Area: 120" lr x 80" fb
Bolster Thickness: 12"
Speeds:
Rapid Advance: 326 IPM
Fast press (@400 tons) 123 IPM
Normal Press: 47 IPM
Fast Return: 199 IPM
Normal Return: 77 IPM
Main Motors: (2) 125 HP
Reservoir Capacity: 1650 Gallons
Die Cushion:
Capacity: 100 Ton
Stroke: 24"
Pin Pad: 90.5" lr x 54.25" fb
Approx Floor Space: 107" fb x 197" lr
Approx Height: 252" above floor / 98" below floor (8" bed height)
Approx Weight: 325,000#
*all specification subject to verification*
