For Sale by Generation Machine Tools
Surplus Record Dealer Since 2018
Location: Sarasota, FL
Contact Matthew Schulman
Phone Number: 800...> Show Phone Number 800-638-8888
Let the seller know you found their listing on Surplus Record!
$5,950 USD
Description
Description

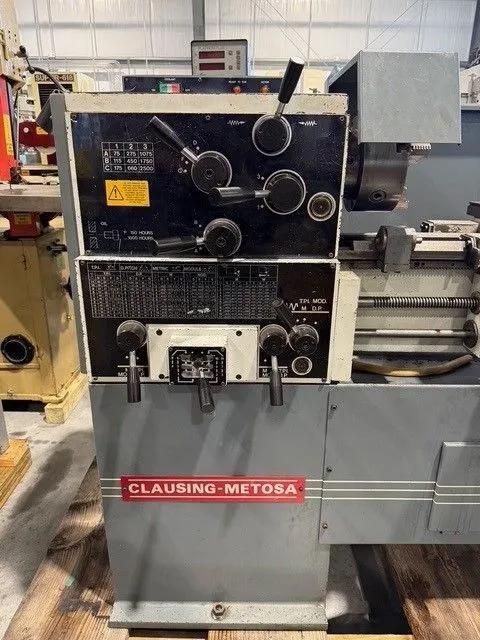

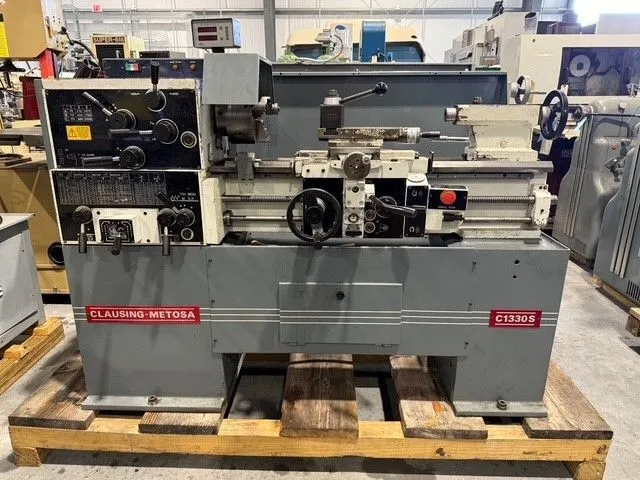

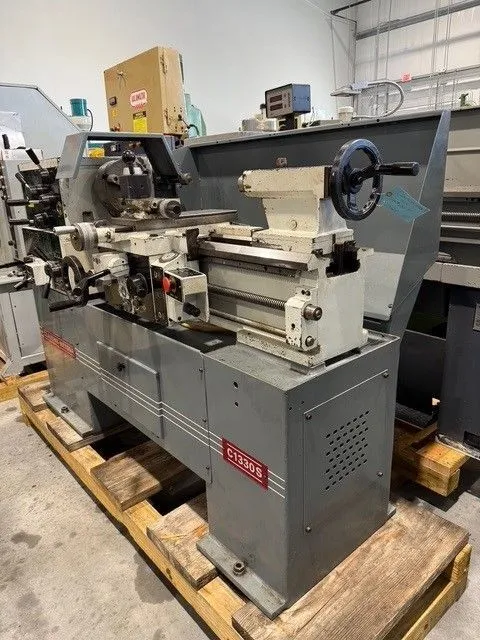

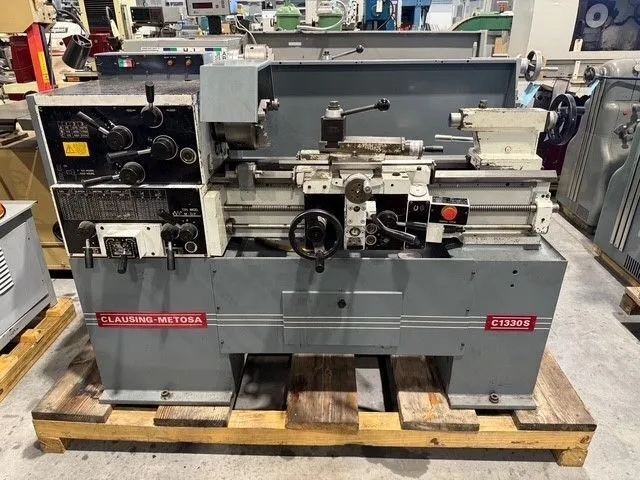

CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612
Specifications
Equipped With
***Machine came out of a tech training school***

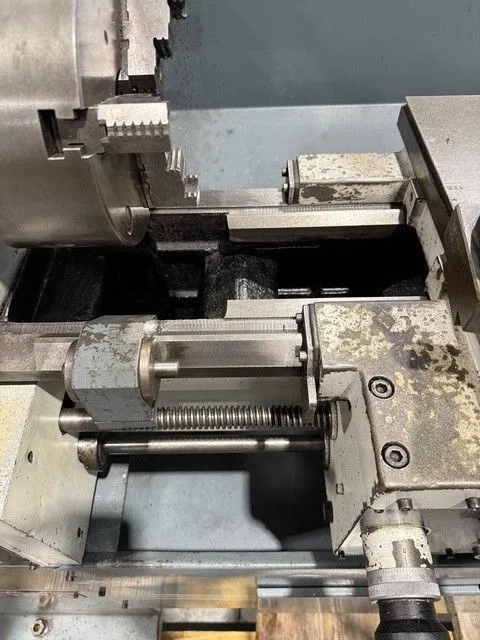

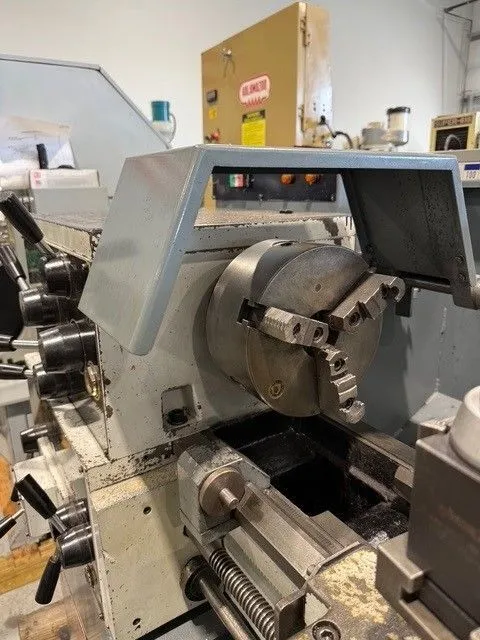

8” BISON 3-Jaw chuck

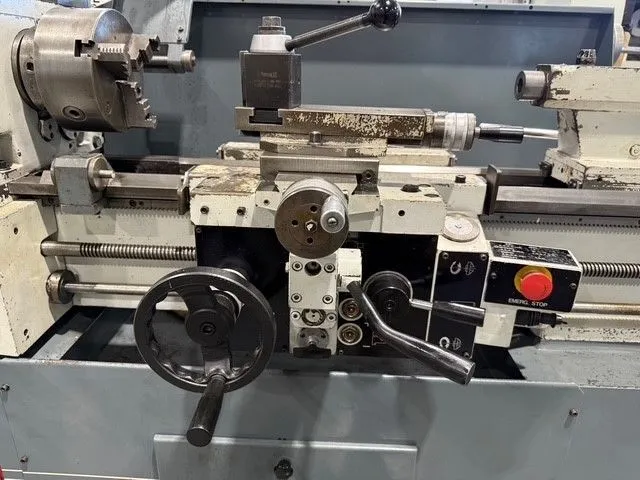

Carriage stop
Threading dial
Inch / metric hand dials
3 H.P. Motor
Machine is wired for 230 Volt / 3 phase / 60 HZ
Machine weight- 2250 Lbs.
Machine dimensions- 73” L x 32” W x 67”H
Machine location- F.O.B. Sarasota, Florida
CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612
Specifications
| Swing | 13" | 330.2 mm |
| Centers | 30" | 762 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Swing Over Cross Slide | 6.89" | 175.01 mm |
| Dimensions | 73” L x 32” W x 67”H | 73” L x 32” W x 67”H |
| Weight | 2250 Lbs. | 2250 Lbs. |
CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612
Reference # 7612
Model # C1330S
Serial # 28177
Swing over bed- 13-3/16”
Swing over carriage- 12-3/16”
Swing over cross slide- 6-7/8”
Bed width- 10”
Spindle bore- 1-5/8”
Spindle taper- D1-5 Camlock
Spindle Morse taper - #4 Morse
Longitudinal feeds- (44) .0018” - .026”
Cross feeds- (44) .0005” - .0076”
Metric threads- .5mm – 7.5mm
Whitmore threads- 60 – 4 T.P.I.
Modular threads- .25 -3.75
Diametral threads- 120 – 8
Cross slide travel- 9-5/8”

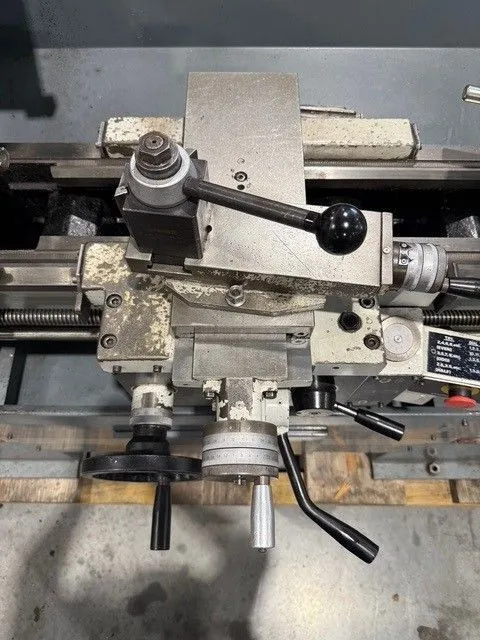

Tool post slide travel- 4-3/4”

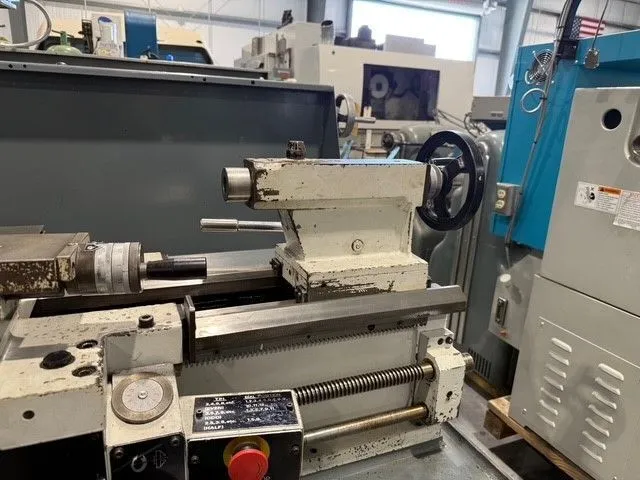

Tailstock quill diameter- 1-7/8”
Tailstock quill travel- 5-1/2”
Tailstock taper- #3 Morse
Spindle speeds- (9) 75 – 2500 R.P.M.
Equipped With
***Machine came out of a tech training school***
8” BISON 3-Jaw chuck
Carriage stop
Threading dial
Inch / metric hand dials
3 H.P. Motor
Machine is wired for 230 Volt / 3 phase / 60 HZ
Machine weight- 2250 Lbs.
Machine dimensions- 73” L x 32” W x 67”H
Machine location- F.O.B. Sarasota, Florida
Inquire Further with Generation Machine Tools!
