Description

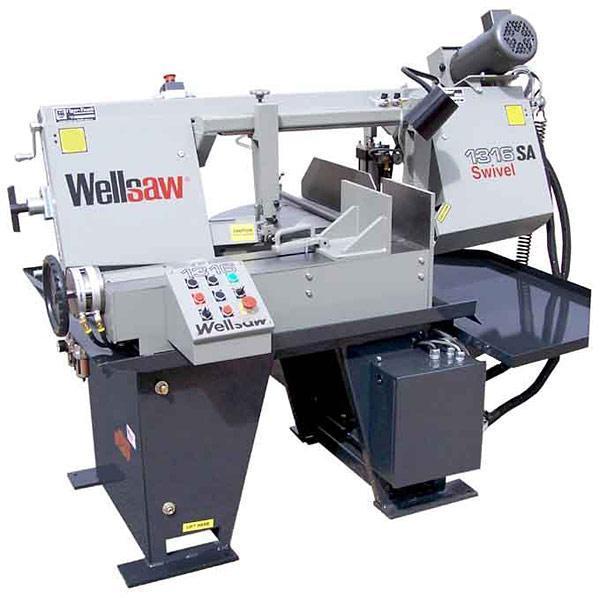

(NEW) WELLSAW SEMI-AUTOMATIC SWIVEL HEAD HORIZONTAL BAND SAW
MODEL: 1316S-EXT-SA
FACTORY SPECIFICATIONS
Saw Head Swivels On Precision Ball Bearings
Miter To 60 Degrees, No Need To Swivel The Stock
Large Protractor For Accurate Angle Selection
Capacity, Rectangular, 90 Degrees: 13"H x 18"W
Capacity, Rectangular, 45 Degrees: 13"H x 18"W
Capacity, Rectangular, 60 Degrees: 13"H x 14-1/2"W
Capacity, Rounds, 90 Degrees: 13"
Capacity, Rounds, 45 Degrees: 13"
Capacity, Rounds, 60 Degrees: 13"
Blade Size: 1" x .035" x 15'6"
Blade Speeds, Infinitely Variable: 70 - 375 FPM
Band Wheels: 15" Diameter Cast Iron
Stock Stop Projection: 25"
Bed Height: 35"
EQUIPPED WITH
3 HP Motor 230/460/60/3 (2 HP Single Phase Motor Optional)
PLC Controlled, Full Cycle Semi-Automatic
Full Function Control Panel For Manual Control Of All Functions
Variable Hydraulic Downfeed Control
"Rite-Tension" Blade Tensioning Device
Wet Cutting System w/Full Surround Pan
Powered Blade Brush
Spring Loaded Carbide Guides With Rollers
Quick Acting Vise/Air Powered
Precision Ground Bed and Vise Jaws
Adjustable Stock Stop/Back Gauge
Auto Shut-Off At End Of Cut
Magnetic Starter w/Overload and Under Voltage Protection
Work Light
5' x 18" Infeed Roller Conveyor
Floor Area: 110"W x 89"L (Including Infeed Conveyor)
Approximate Weight: 1800 Lbs.
F.O.B. Kalamazoo, Michigan
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
MODEL: 1316S-EXT-SA
FACTORY SPECIFICATIONS
Saw Head Swivels On Precision Ball Bearings
Miter To 60 Degrees, No Need To Swivel The Stock
Large Protractor For Accurate Angle Selection
Capacity, Rectangular, 90 Degrees: 13"H x 18"W
Capacity, Rectangular, 45 Degrees: 13"H x 18"W
Capacity, Rectangular, 60 Degrees: 13"H x 14-1/2"W
Capacity, Rounds, 90 Degrees: 13"
Capacity, Rounds, 45 Degrees: 13"
Capacity, Rounds, 60 Degrees: 13"
Blade Size: 1" x .035" x 15'6"
Blade Speeds, Infinitely Variable: 70 - 375 FPM
Band Wheels: 15" Diameter Cast Iron
Stock Stop Projection: 25"
Bed Height: 35"
EQUIPPED WITH
3 HP Motor 230/460/60/3 (2 HP Single Phase Motor Optional)
PLC Controlled, Full Cycle Semi-Automatic
Full Function Control Panel For Manual Control Of All Functions
Variable Hydraulic Downfeed Control
"Rite-Tension" Blade Tensioning Device
Wet Cutting System w/Full Surround Pan
Powered Blade Brush
Spring Loaded Carbide Guides With Rollers
Quick Acting Vise/Air Powered
Precision Ground Bed and Vise Jaws
Adjustable Stock Stop/Back Gauge
Auto Shut-Off At End Of Cut
Magnetic Starter w/Overload and Under Voltage Protection
Work Light
5' x 18" Infeed Roller Conveyor
Floor Area: 110"W x 89"L (Including Infeed Conveyor)
Approximate Weight: 1800 Lbs.
F.O.B. Kalamazoo, Michigan
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
