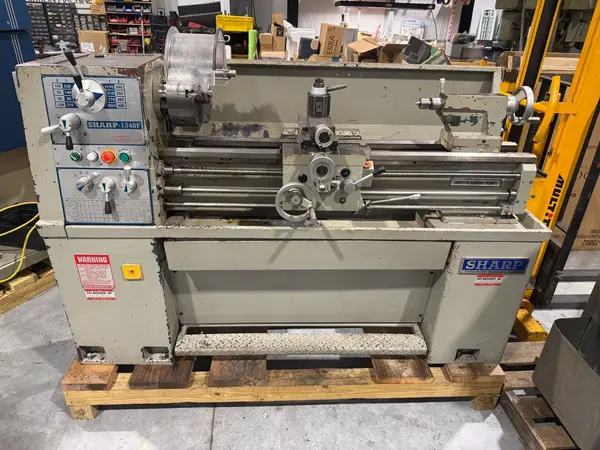

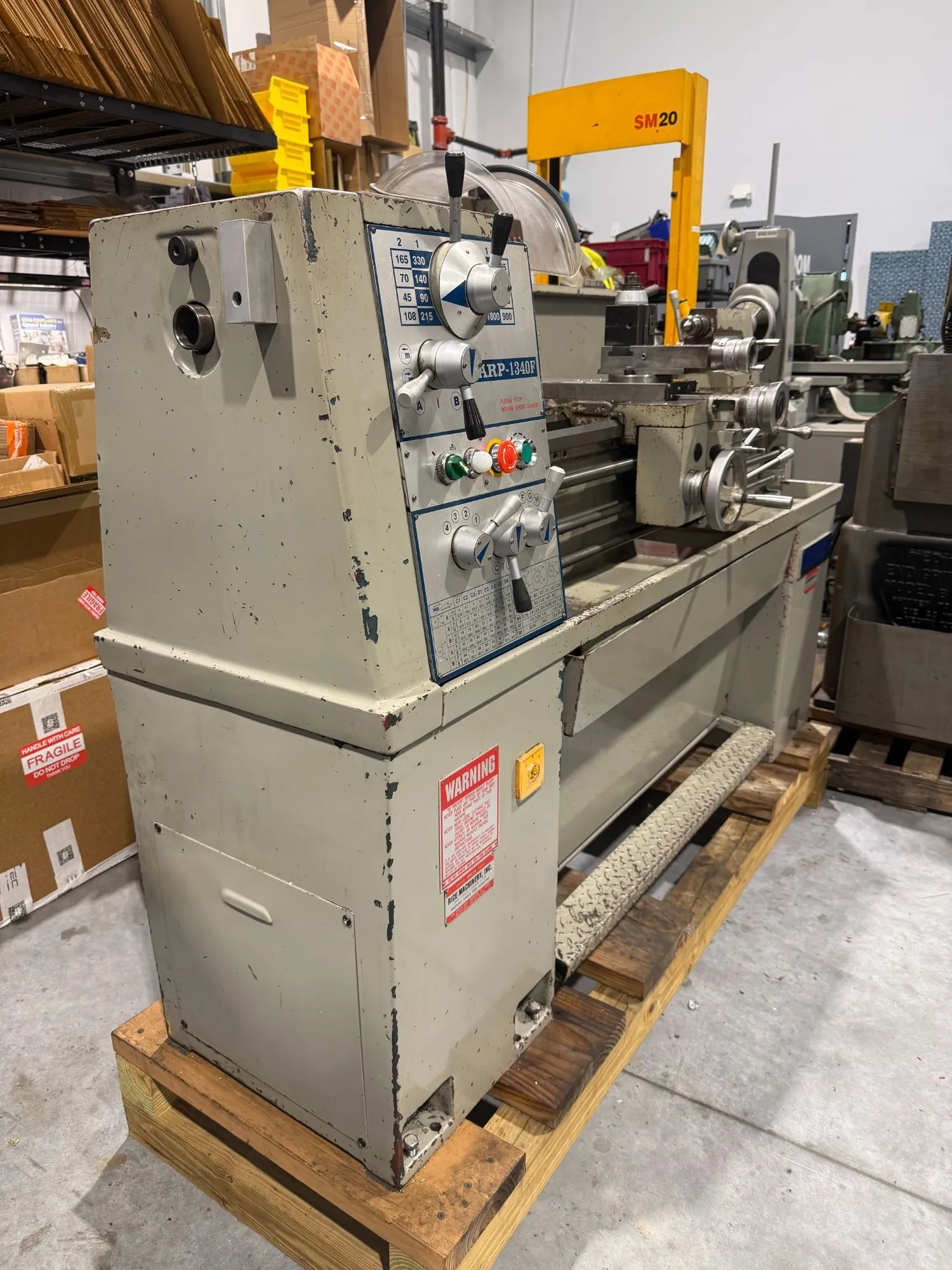

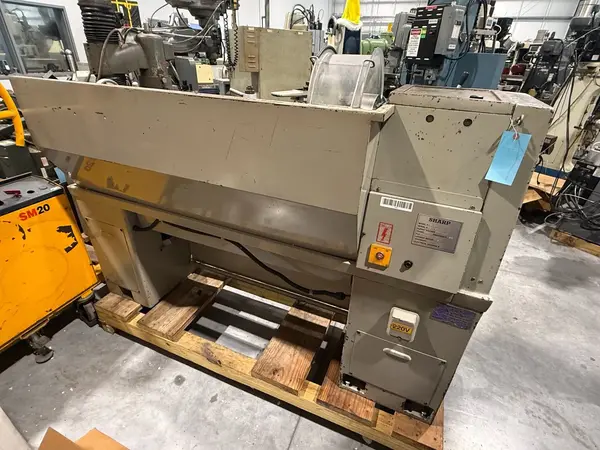

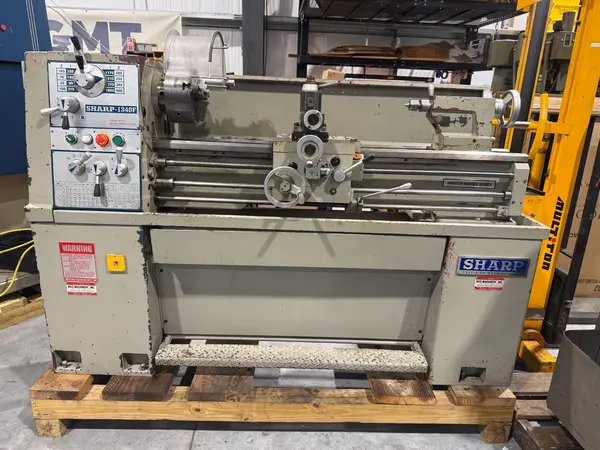

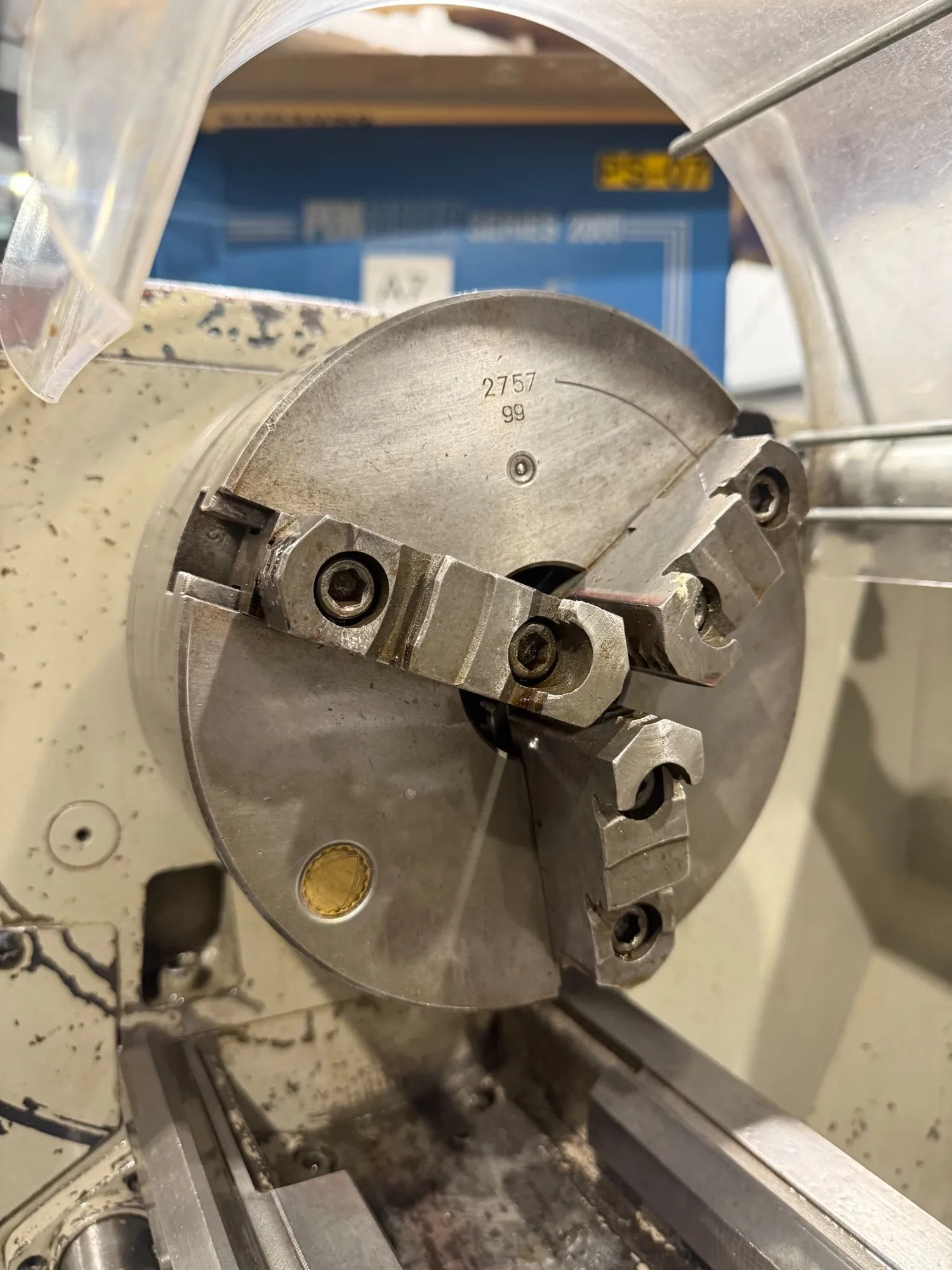

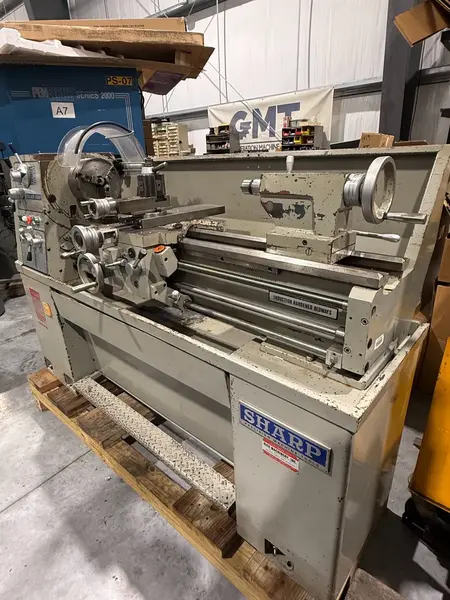

13"/19" x 40" Sharp #1340F, precision gap lathe, 8" Bison 3-jaw chuck, 1-1/2" bore, 1800 RPM, D1-4, 2001

SHARP 1340F 13”/19” x 40”cc Precision Gap Lathe 2001’ #8520
Reference #8520
Model # 1340F
Serial # 23863
Year of manufacture- 2001’
Swing over bed- 13”
Swing in gap- 19”
Distance between centers- 40”
Spindle bore- 1-1/2”

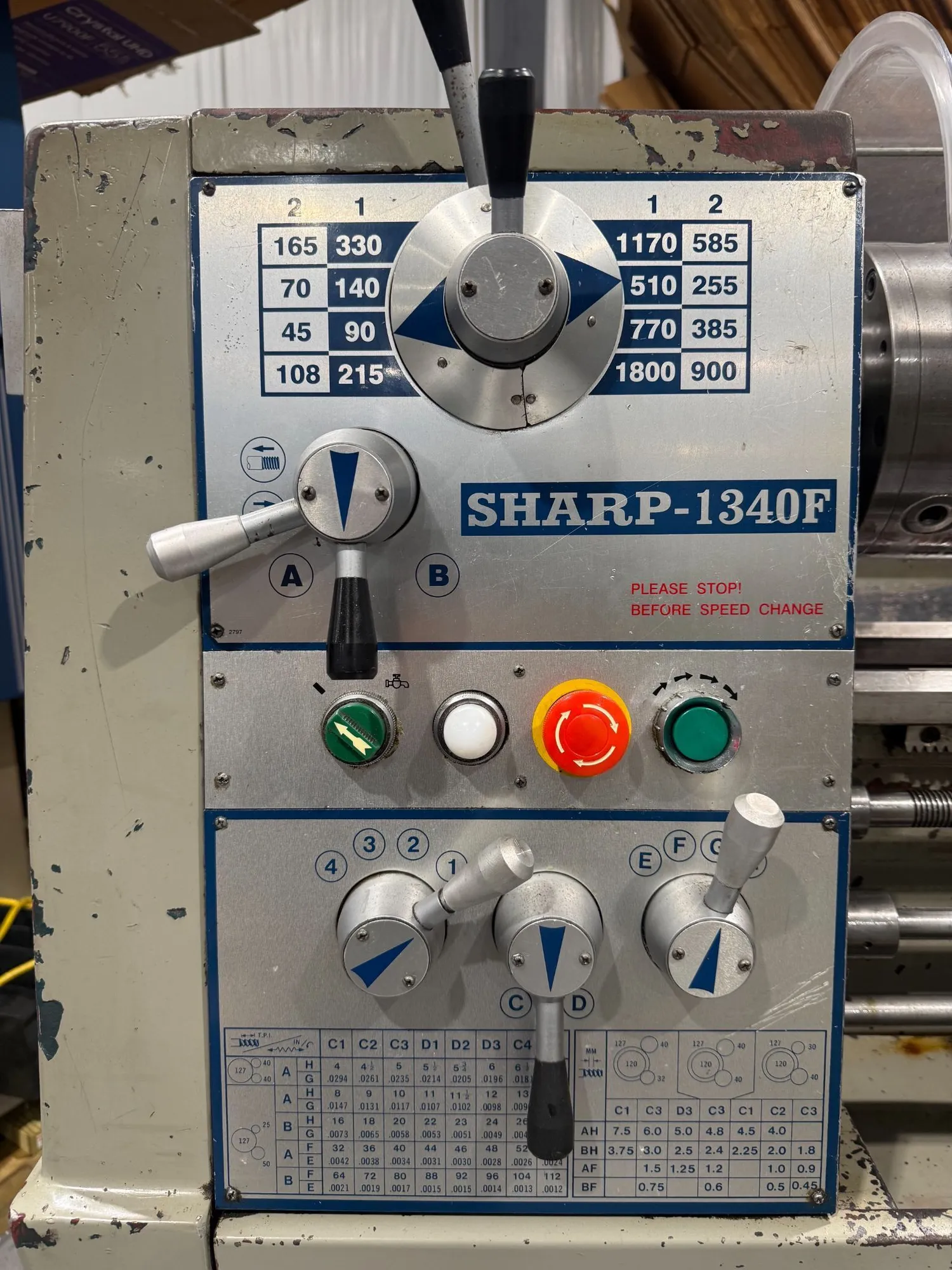

Spindle speed- 1,800 R.P.M.
Spindle nose- D1-4
Swing over cross slide- 7”
Inch threads- 4 – 112 T.P.I.
Metric threads- 0.45 – 7.5 mm
Longitudinal feeds- 0.0012 – 0.01 I.P.R.
Cross feeds- 0.0003 – 0.01 I.P.R.

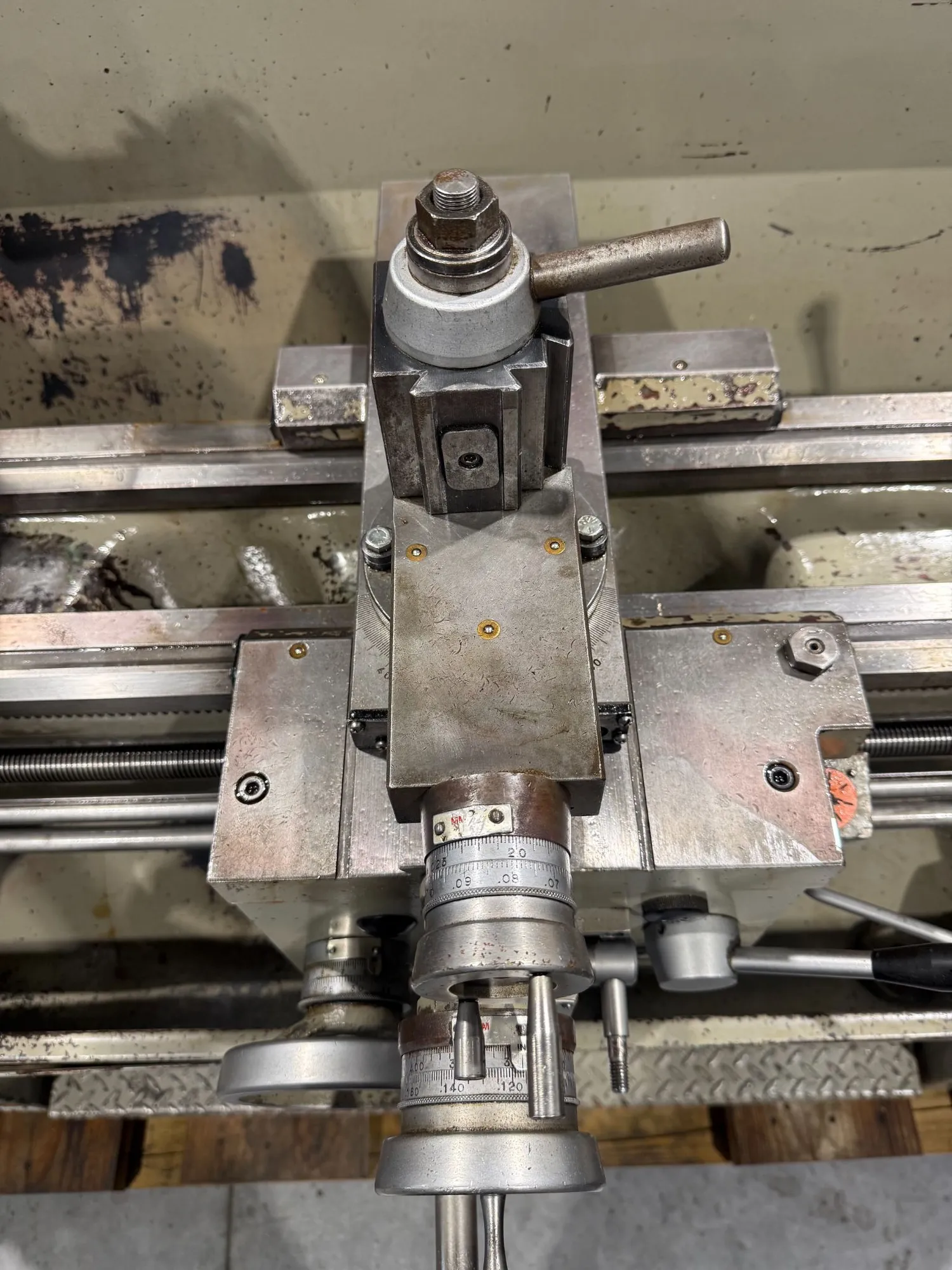

Cross slide travel- 6.6”
Compound travel- 4”
Compound width- 3.5”
Tailstock quill diameter- 1.75”
Tailstock quill travel- 4.5”
Tailstock taper- #3 Morse
