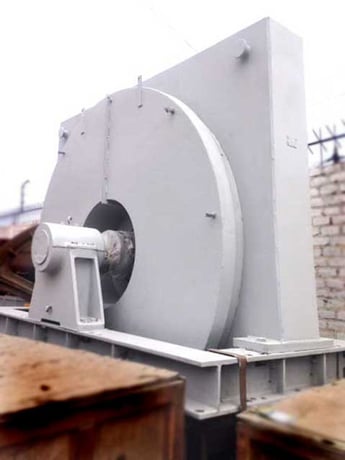

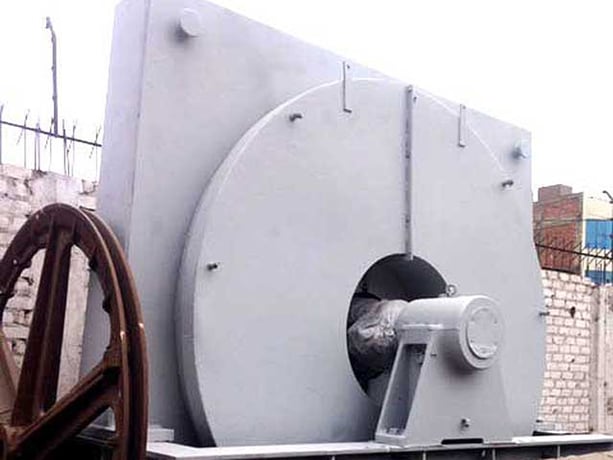

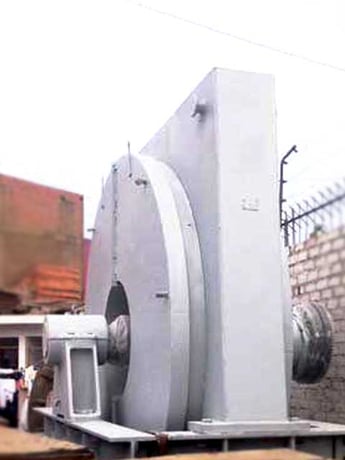

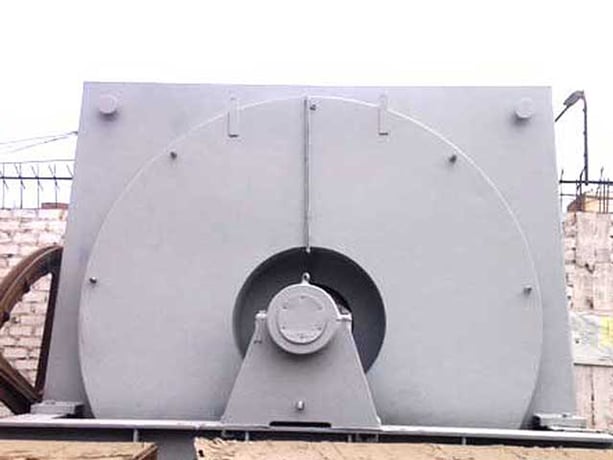

1250 HP 200 RPM General Electric #6524L, Frame 6524L, 1.0 PF, 4000V., 1978

1250hp (930 kW) General Electric Synchronous Motor

- 200rpm, 4000V

- 250 excitation volts, 144 amps armature, field 35, PF 1.0, Frame 6524L

- Manufactured USA 1978, Model# 6524L

- Height to CL of shaft from frame bottom: 35in

- Outside length of motor frame: 68in

- Overall length of motor (shaft length): 98in

- Outside width of motor frame: 140in

- Shaft overhang (drive end beyond bearing): 20in

- Shaft (bearing) overhang (other end): 5in

- Shaft diameter at coupling: 9.5 in, 7/8" x 12" keyway

- Height of motor below frame bottom: 28in

- Height of motor above frame bottom: 104in

- Base is constructed from heavy 12x12 H-beam

(All measurements are approximate)

- Weight 37,000 lbs.
