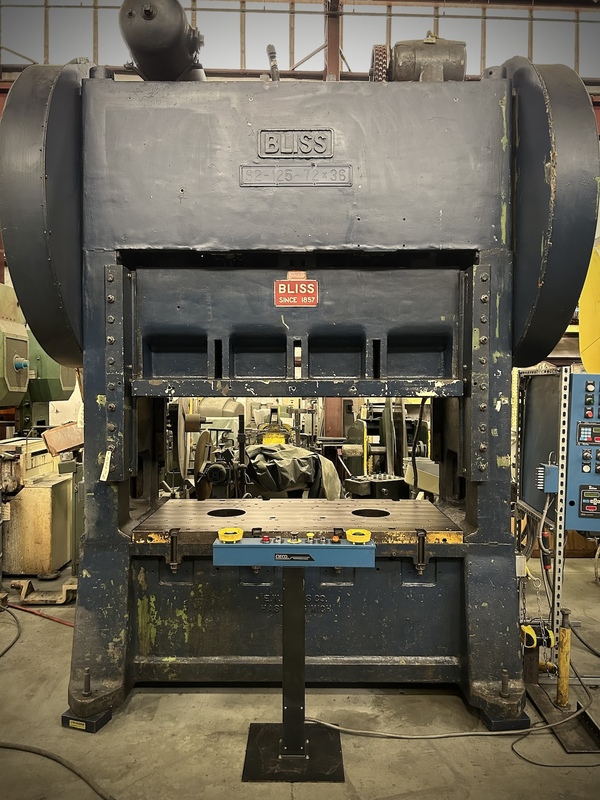

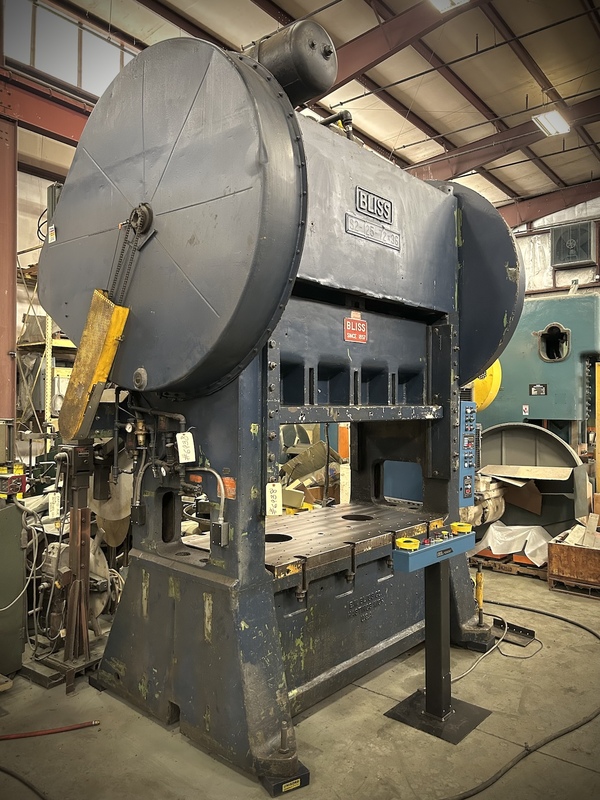

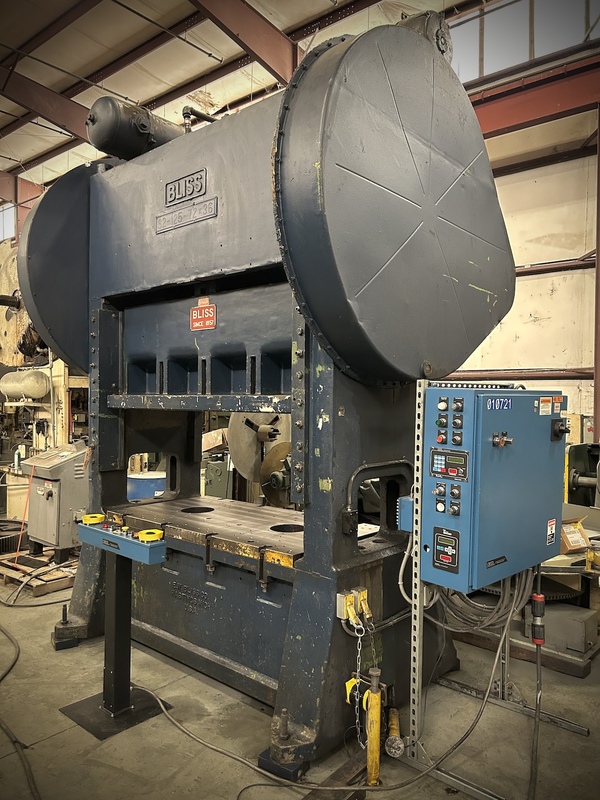

Manufacturer: Bliss
Model: S2-125-72-36
Year: 1965
Ton: 125
Stroke: 10.0
Shut Height: 22.5
Stock # 6938
1 / 10
Click to zoom in
1 / 10
For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Location: Columbia, TN
Contact Ken King
Phone Number: 615...> Show Phone Number 615-369-7788
Let the seller know you found their listing on Surplus Record!
Description

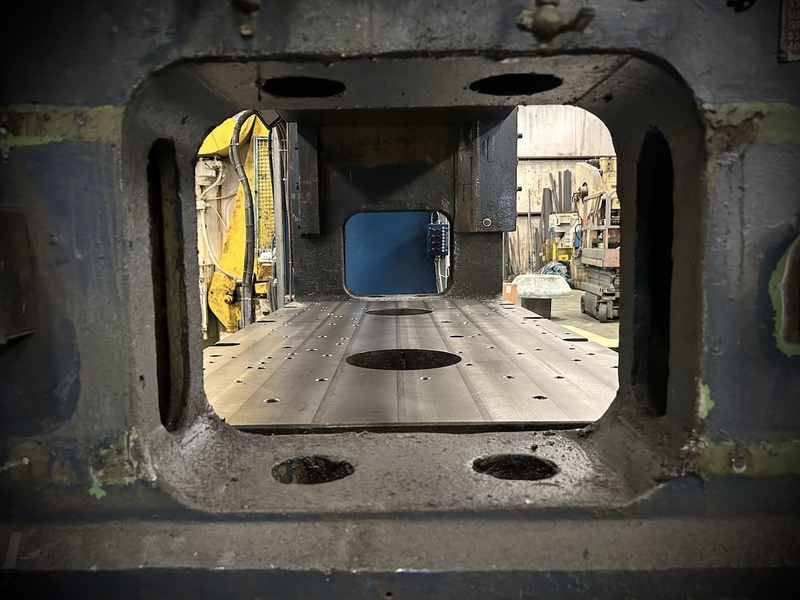

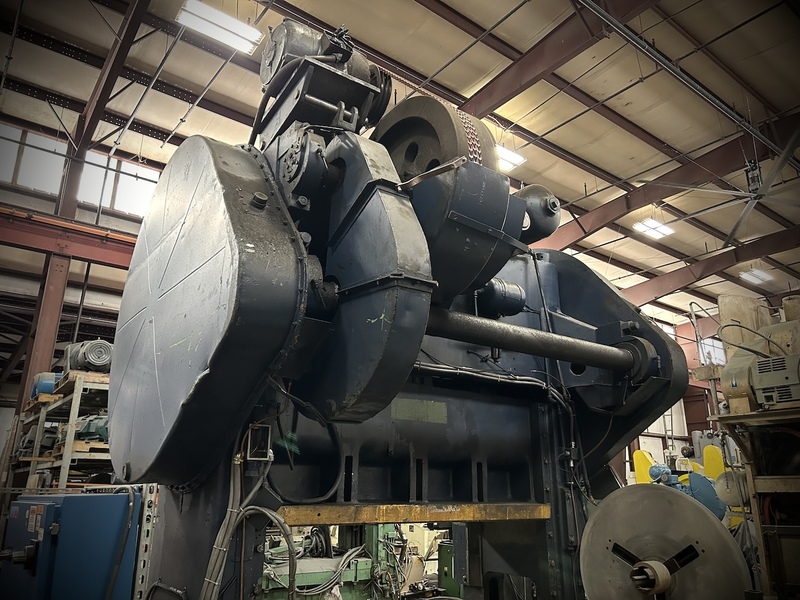

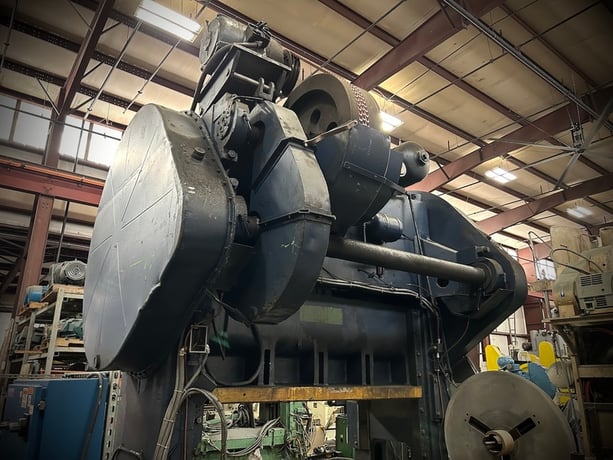

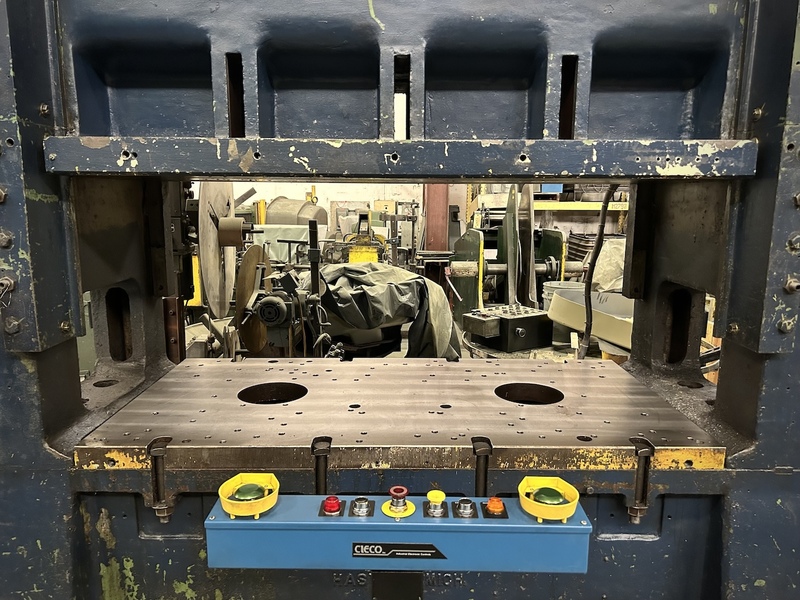

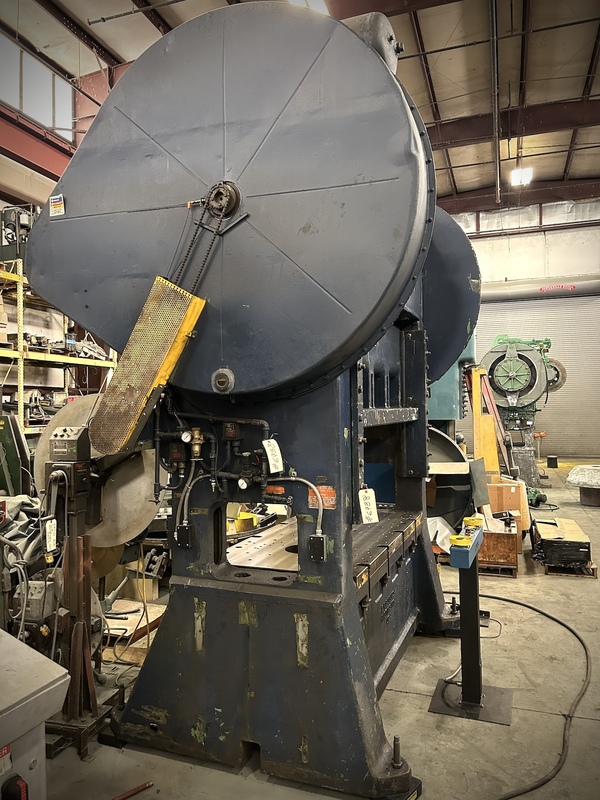

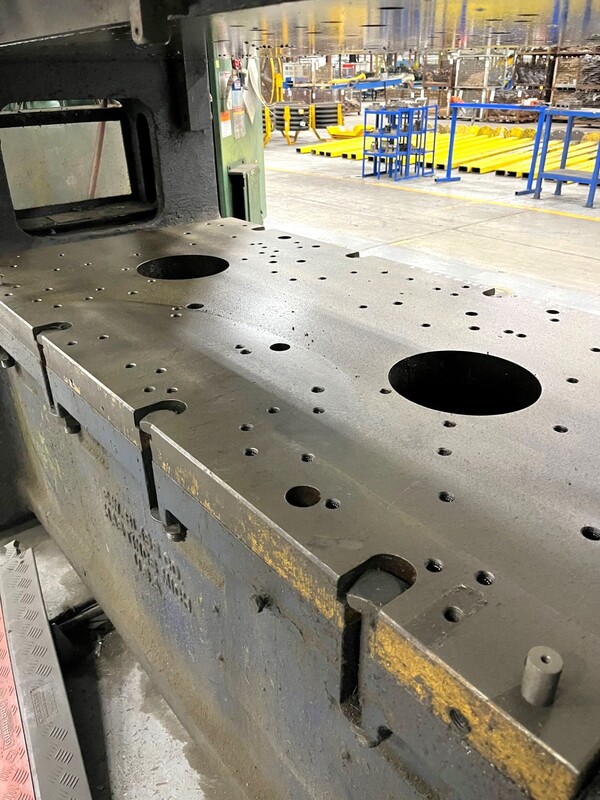

125 Ton, Stroke: 10", Max Shut Height to Bed: 22.5" (SDAU), Bed Area: 72" RL X 36" FB, Speed: 20 SPM, Slide Adjustment: 8" Motorized, Slide Area: 72" RL X 36" FB, Bolster Plate: 3" X 72" RL X 36" FB - Solid, Distance Between Uprights: 77.5", Distance Floor to Bed: 32", Window Size: 18.5" W X 15" H, Clutch: Bliss Air Clutch / Brake Combination, Floor Standing Base, Twin Drive, Double Back Geared w/ Gears in Oil, Air Counterbalanced Ram, Tie Rod, Cast Iron Frame Construction, Grease Lubrication System.

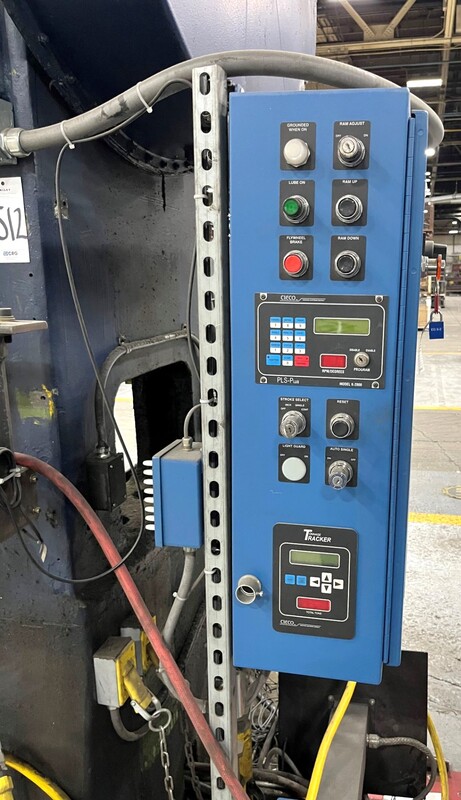

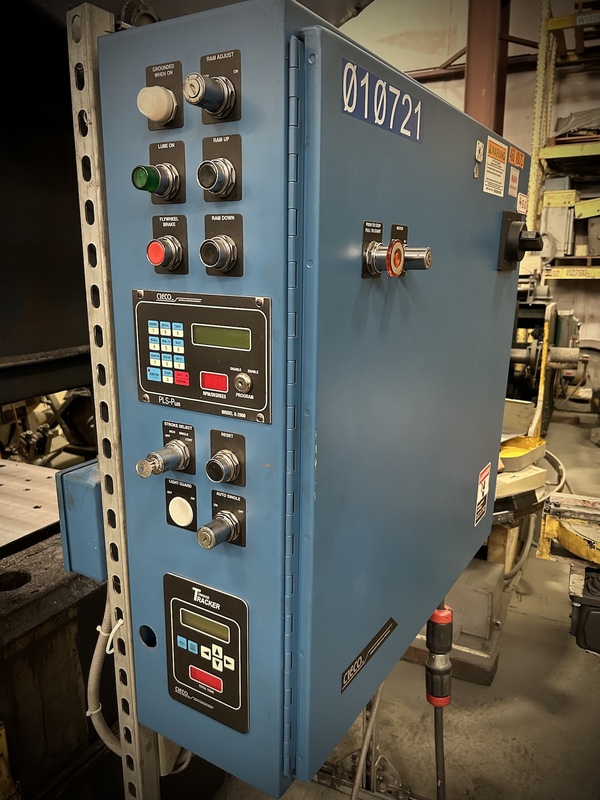

Electrics: 15 HP 1150 RPM 240/480V-3-60 Motor & Existing Cieco PLS Plus Press Control.
Approx Dimensions 13' HX 10' RL X 7' FB
Approx Weight 36,000 Lbs.
Electrics: 15 HP 1150 RPM 240/480V-3-60 Motor & Existing Cieco PLS Plus Press Control.
Approx Dimensions 13' HX 10' RL X 7' FB
Approx Weight 36,000 Lbs.
