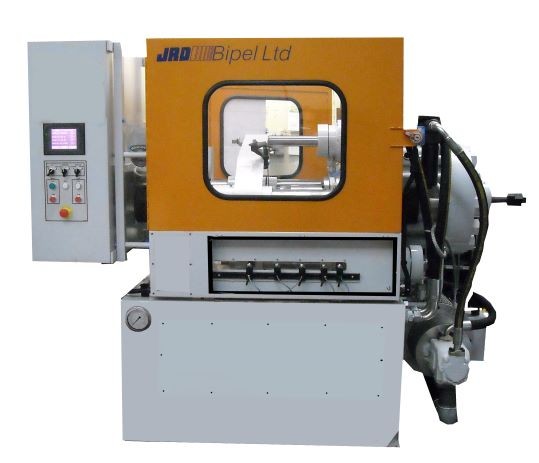

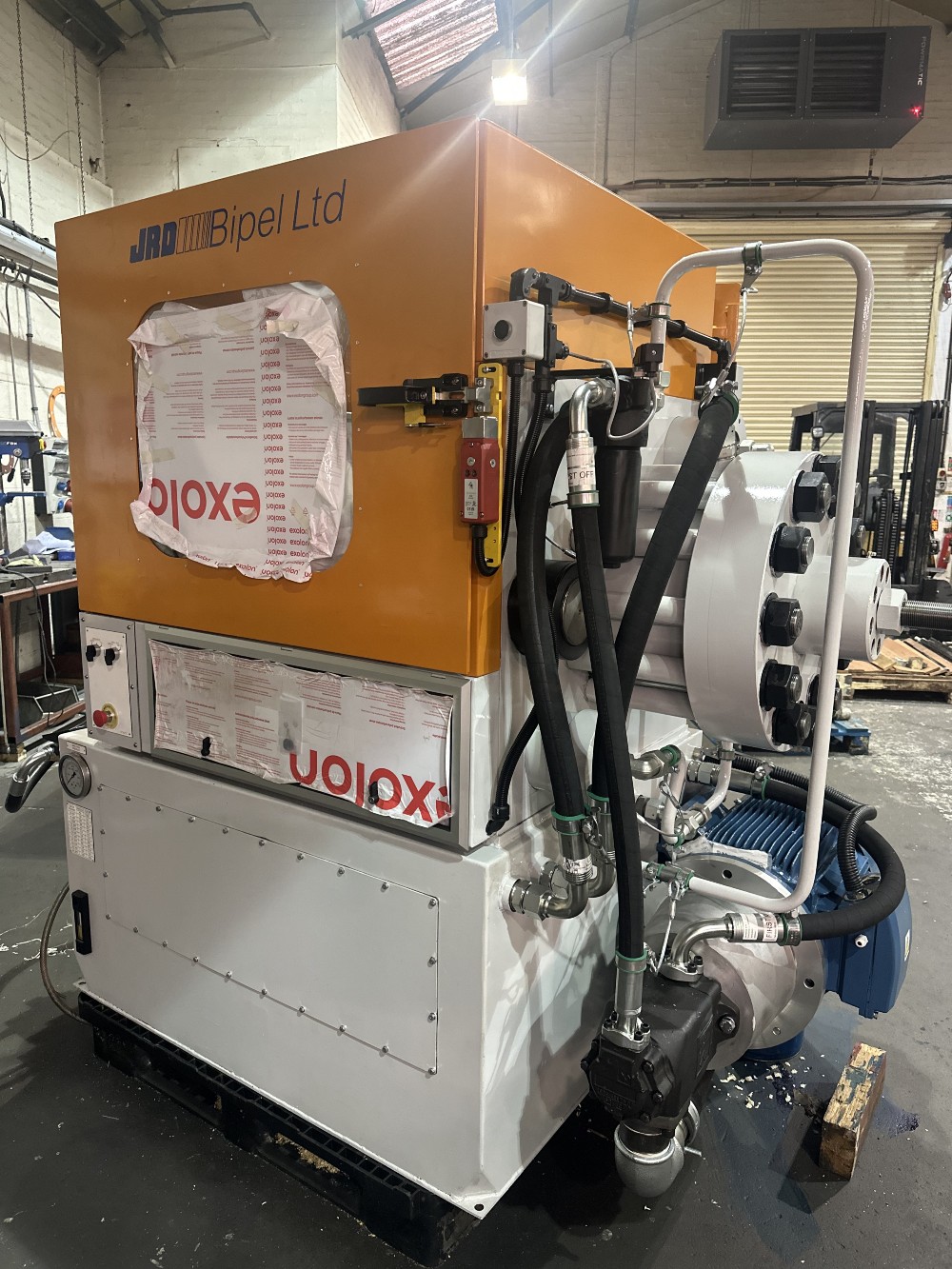

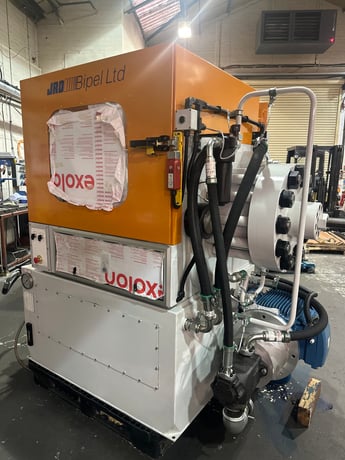

125 Ton, Bipel, Pelleter

BIPEL 125 tonne pelletiser/ preformer

Built on 50 years of relentless engineering refinement, the JRD BIPEL 125 Tonne Pelletiser is not a product; it’s a high-force, configurable solution. This machine will produce the highest specification tablets from virtually any material that compacts under pressure, serving as the powerful foundation for your custom requirements.

Configurable Performance Baseline

• Use horizontal pressing action creates high output.
• Can produce round tablets from 10mm to 120mm diameter
• Close tolerance tablet weight to +/-1%
• Consistent tablet density
• Jam prevention
• Double load breakage eliminated

BIPEL Pelletisers are in use in many industries:

• Plastics – Preform pellets from thermoplastics, phenolics, ureas and melamine.
• Foundry – Foundry flux tablets. Compaction of metallic powders prior to melting.
• Leisure – Swimming pool chlorination and chemical treatment blocks.
• Pyrotechnic – Rocket propellant tablets. Smoke grenade tablets.
• Agricultural – Salt lick tablets for cattle.
• Nuclear – Compaction of radio active powder.
• Carbon – Compaction of fine carbon powders.
• Motor – Pre-compaction of brake pad materials.

Technical Specifications:

• Model Designation 1250 kN PELLETER
• Modes of Operation Automatic
• Configuration Single Station
• Design Self-contained
• Direction of pressing Horizontal
• Material loading Automatic
• Material Unloading Semi-automatic
• Drive Self-contained
• Main Ram Pressing Force (max) 1250 kN 125 Tons
• Main Ram Pressing Force (min) 125 kN 12.5 Tons
• Main Ram Stroke (max) 105 mm 4.13 ins
• Max Hopper & Die Stroke 270 mm 10.63 ins
• Max Fill Length 120 mm 4.72 ins
• Min Fill Length 25 mm 1 ins
• Hydraulic Oil Specification ISO VG46HM
• Oil Tank Capacity 300 Ltrs 66 Galls
• Hydraulic Working Pressure 254 Bar 3683 PSI
• Water Flow (max 20 C incoming) 45 L/min 10 gal/min
• Machine Overall Height 2100 mm 82.7 ins
• Machine Overall Width 2410 mm 94.9 ins
• (with doors closed)
• Machine Overall Depth 1150 mm 46 ins
• (with doors closed)
• Machine Weight (approx) 4.25 Tonnes 4.25 Tons
• Electrical Motor 30 kW
• Electrical Supply 380/400 v 3PH 50Hz
• Max Electrical Current 70 amps per phase

This unparalleled breadth of applications—from Nuclear materials to Motor brake pads—proves our engineering team’s ability to tackle any material challenge, no matter how specialised. We customise all critical elements, including tooling geometry, material loading systems, and control sequencing, to meet your exact specifications.

Contact our technical sales team today. Let us engineer a bespoke 125-tonne Pelletiser solution to meet the exact production rate and high-quality specifications of your unique material.
