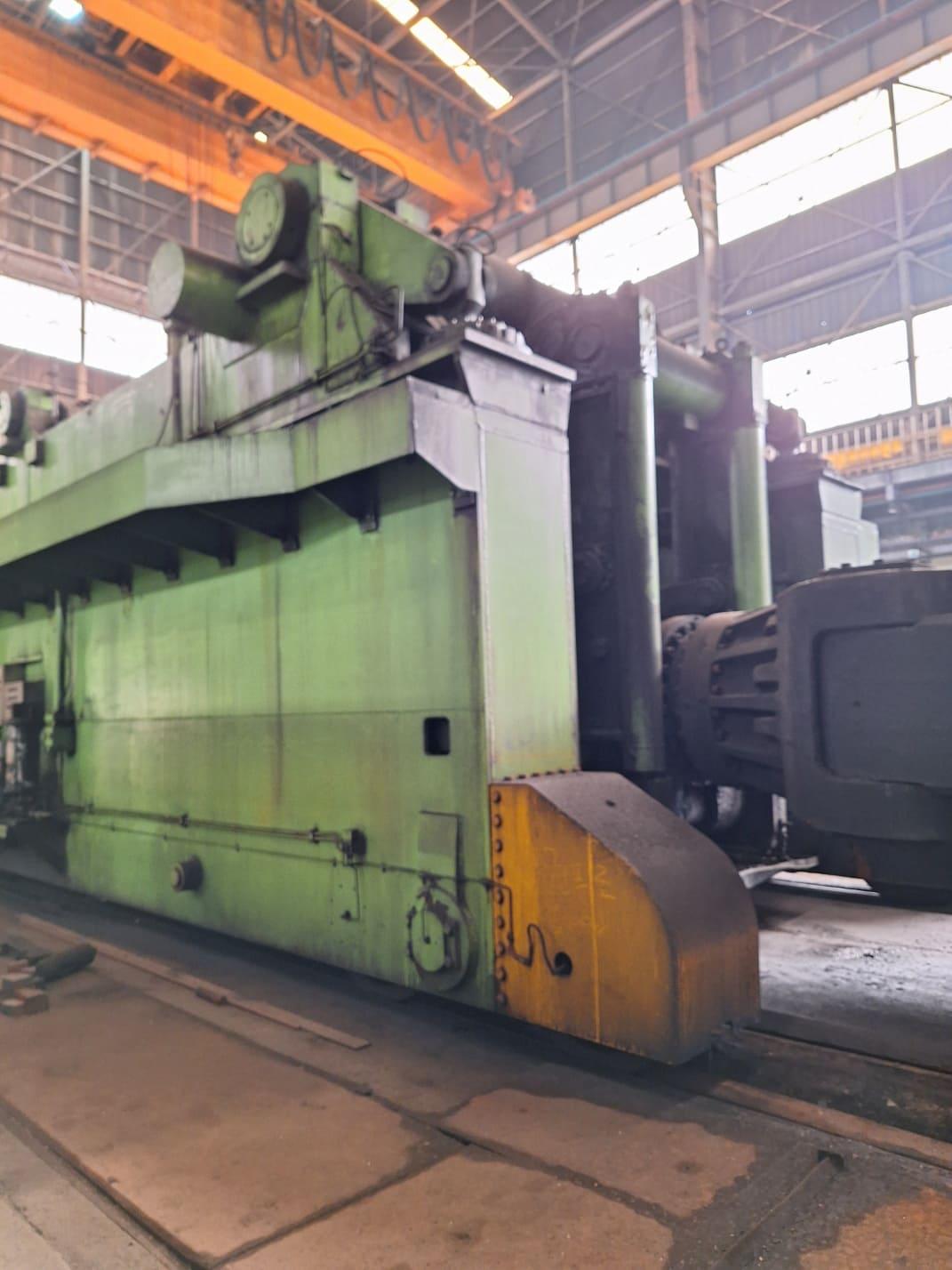

6500 Ton, HJ & Seonam (Korean make), open die forging press x 2 units, 2006/2008

At present we have for sale as follows :

6500ton Open Die Forging Press x 2units Manufacturer: HJ (Korean make) / Seonam (Korean make)

Installation: 2006/2008

Press Type: Four column push down Oil hydraulic system Nominal force (static working pressure of 320 bar): 5,000 Tons

Up-setting force (static working pressure of 420 bar): 6500 Tons Daylight: 5,200 mm

Stroke of Movable cross head: 2,700 mm Main Ram dia. (Center cylinder): 1 set - ￠950 mm Side Ram dia. (Side cylinder): 2 sets - ￠750 mm

Return cylinder Ram dia: 2 sets - ￠300 mm

Moving Table Width: 2,600×Length 6,600 mm Moving Table stroke (center to both side 2,750mm): 5,500 mm Approaching speed: 300 mm/sec

Main cylinder Forging speed (2,200 tons/ 320 bar): 163 mm/sec All cylinder Forging speed (5,000 tons/ 320 bar): 73 mm/sec

Up-setting Forging speed (6,500 tons/ 420 bar): 10 mm/sec Return speed: 270 mm/sec Hydraulic Main pump: 12 sets Rexroth Plunger Pump (A7VO+A2FO) Electric Main Motor: 12 sets 300Kw 6p 3.3KV – 3,600 Kw, HYUNDAI Main Tank
