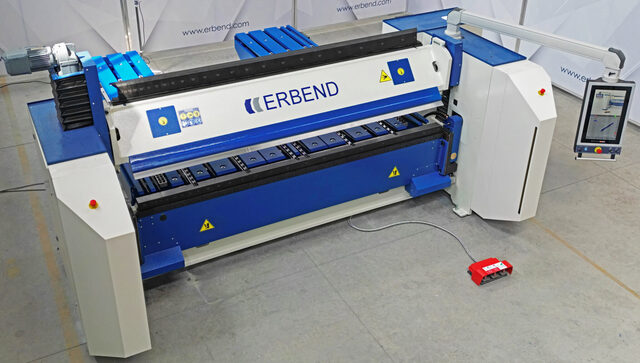

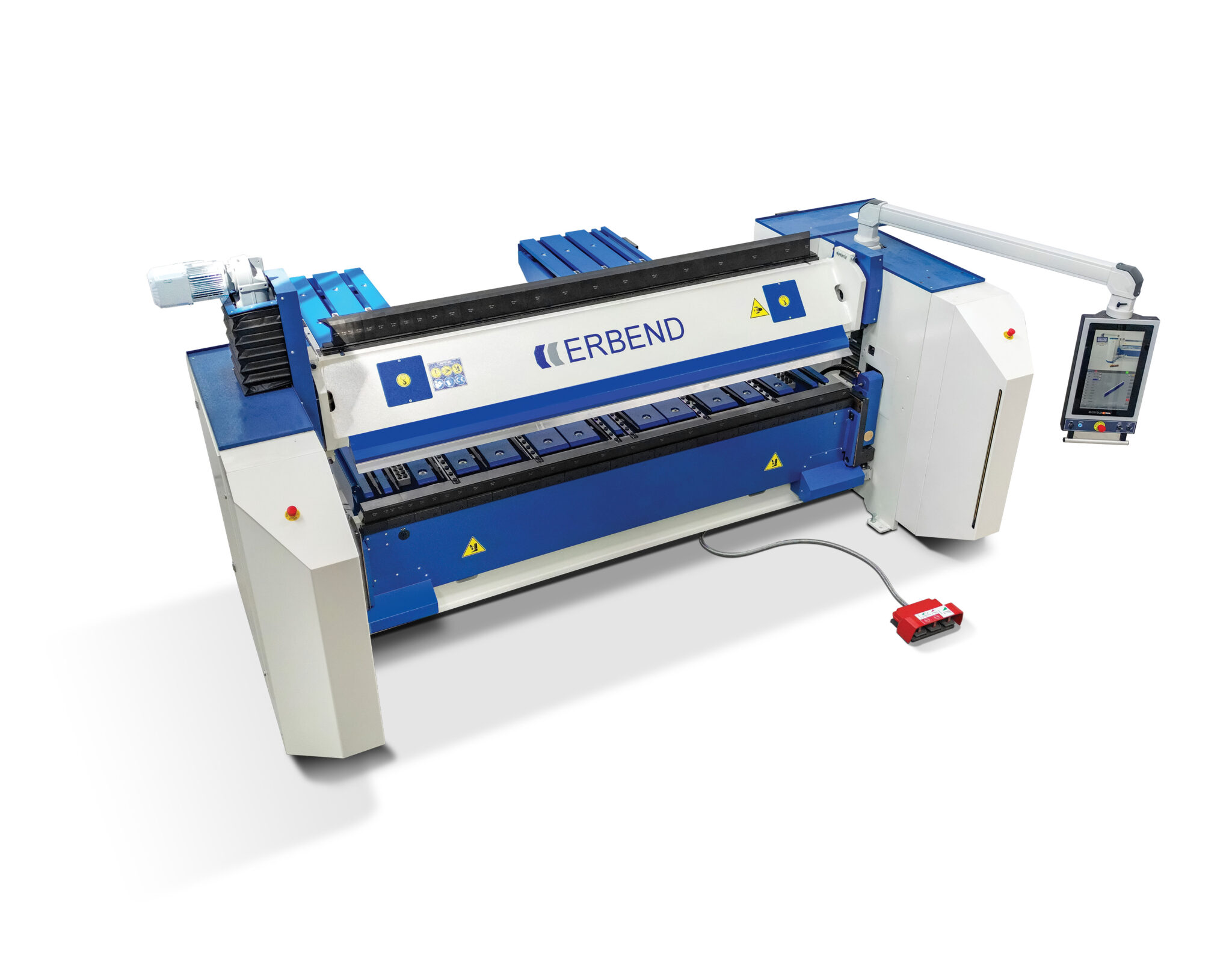

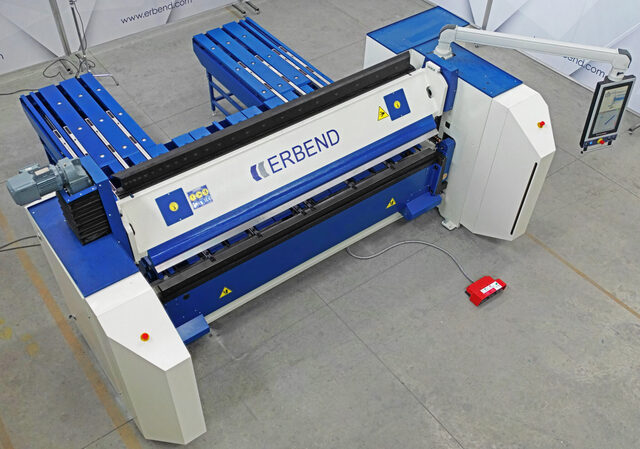

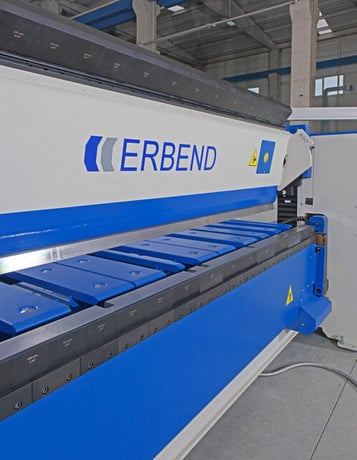

125.98" Erbend #MFA-3230, CNC Servo Combi Folder, 11 gauge, 9.84" Open Height (No Tools), 3.15" Beam Adjustment, new

Description

Erbend 10′ x 11 Gauge CNC Servo Combi Folder, MFA 3230

Inventory # 9703

Model: MFA 3230

Made in Turkey

Specifications:

Max. Sheet Length: 125.98″ (3,200mm)

Capacity:

Mild Steel: 11 Gauge (3mm)

Stainless Steel: 14 Gauge (2mm)

Aluminum: 9 Gauge (4mm)

Clamping Beam (Z-Axis, Dual Servo):

Open Height, No Tools: 9.84″ (250mm)

Clamping Speed: 2.36″ /Sec.

Folding Beam (Y-Axis, Dual SEW Eurodrive AC 4kW):

Folding Angle: 0 – 150°

Folding Speed: 85° /Sec.

Folding Beam Adjustment (A-Axis, Dual Servo):

Adjustment Height: 3.15″ (80mm)

Adjustment: Servo Motorized

Backgauge System (X-Axis, Servo):

Speed: 9.8″ /Sec.

Gauging: 0.078″ Min. – 51.15″ Max.

Rotation of Clamping Beam (C-Axis, AC):

Rotational Speed: 20° /Sec.

Standard Features & Equipment Included:

Dual SEW Eurodrive, 4kW AC Motors – X-Axis Folding Beam

Servo Motor Drives for Y, Z, A-Axis (Clamping, Folding Adjustment, Backgauge)

SEW Eurodrive for C-Axis (Clamping Beam Rotation)

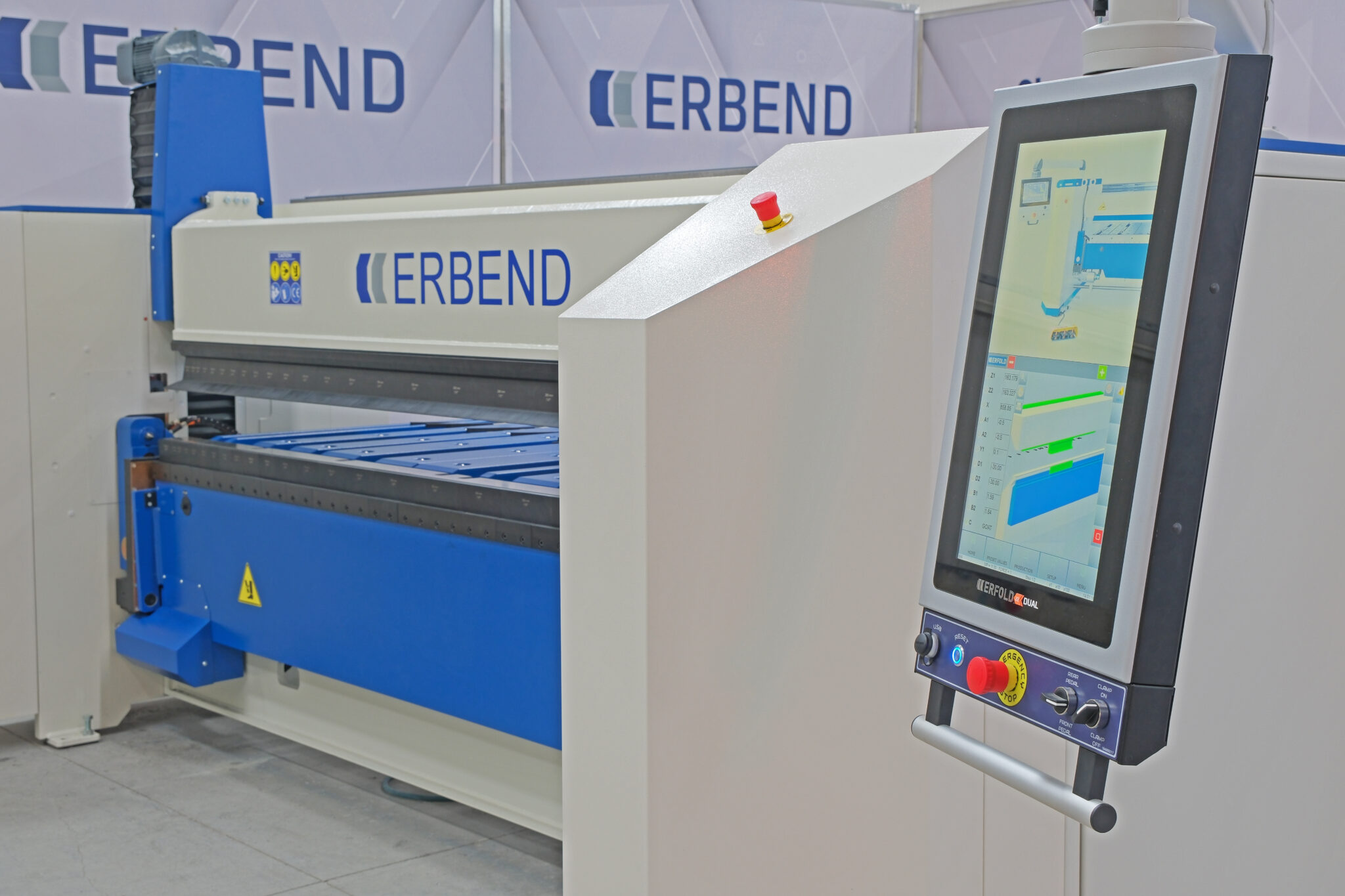

ERFOLD Basic CNC Software with 15.6″ Touchscreen Controller

Radius Bending and Hemming Function

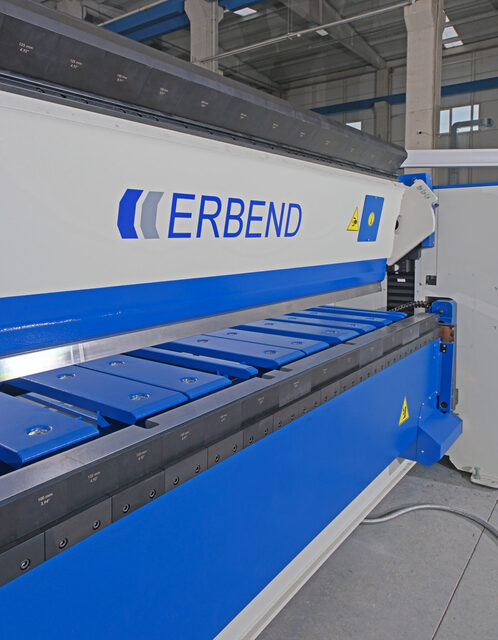

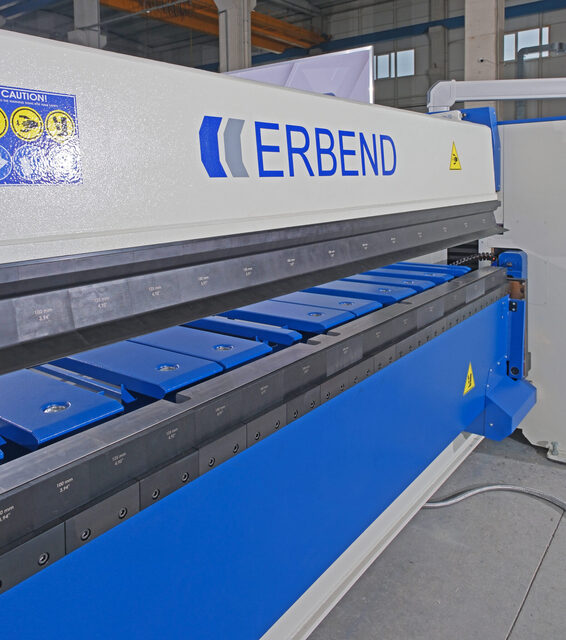

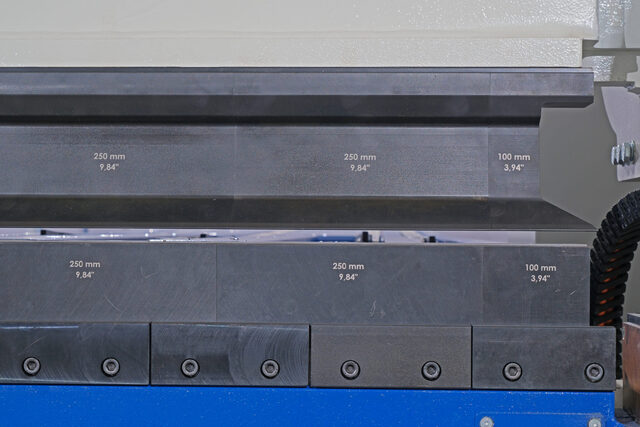

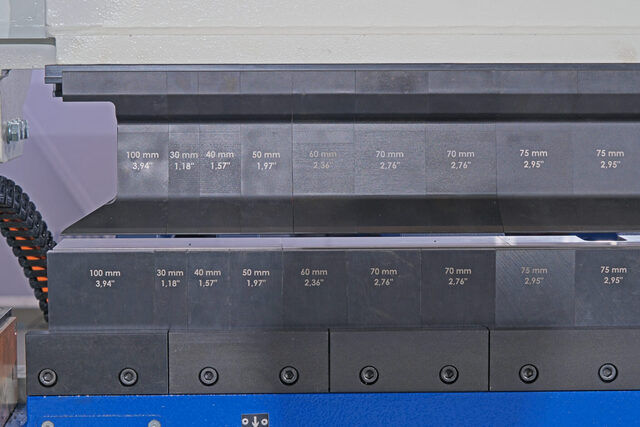

Combi Clamping Beam with Two Programmable Tooling Stations

9.84″ (250mm) Clamping Beam Open Height without Tools

4.72″ (120mm) Goats Foot Tools on Station One

30° – R1.5 Sharp Nose Clamping Beam Tools on Station Two

Folding Beam Tools: 10mm, 25mm, and 35mm

Servo Motorized Folding Beam Adjustment, 3.14″ (80mm, A-Axis)

Mechanical Crowning System

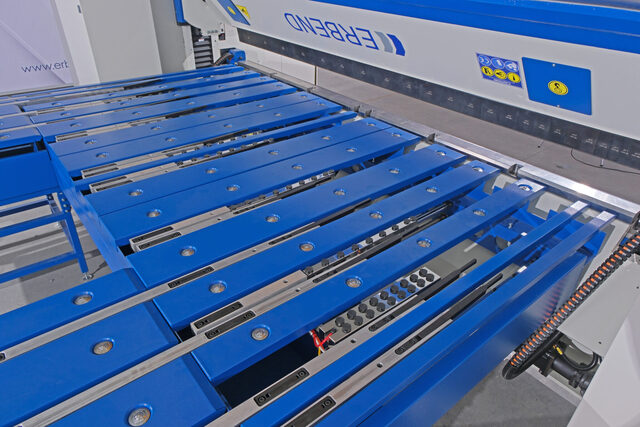

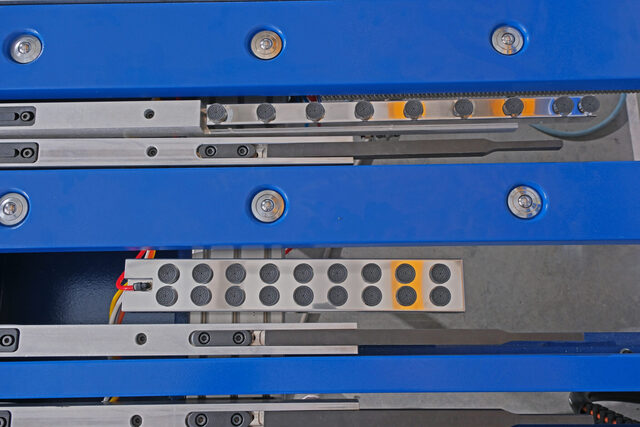

0.23″ (6mm) to 51.18″ (1,300mm) Servo Motorized Backgauge Sheet Support Table with Casters

Front Light Barriers

LED Function Lights as Red, Green, and Blue

Emergency Switch Foot Pedal with Three Stations

EU Safety Light Curtains

Feather Grooves and Solid Lower Beam without Channels

Mechanical Specifications:

Dimensions: 187″ x 98″ x 83″ H

Weight: approx. 15,625 lbs.

FOB Factory – Contact us for Pricing and Availability
