For Sale by Aleco Machinery Sales
Description

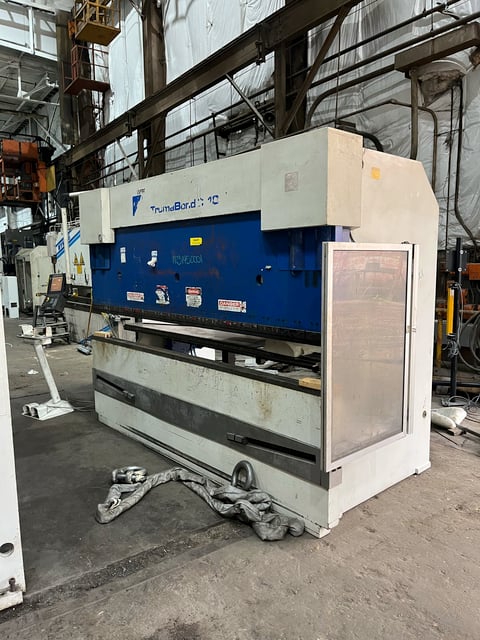

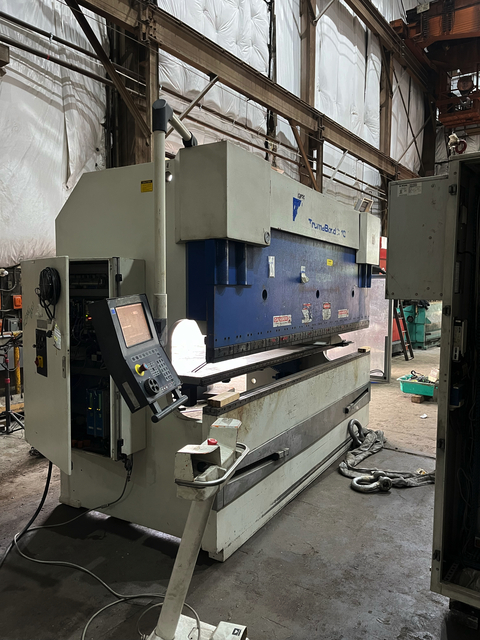

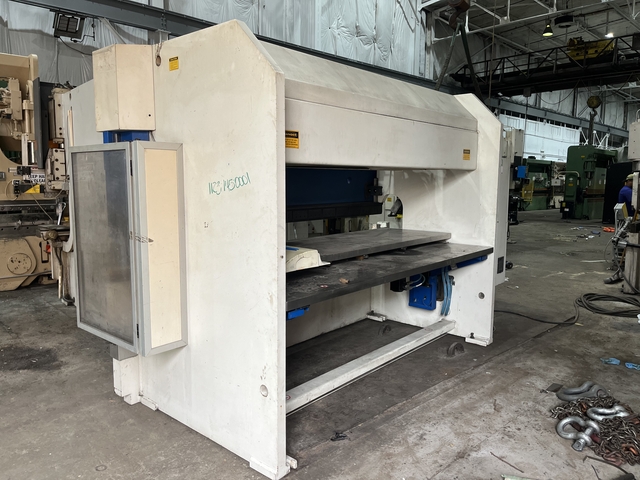

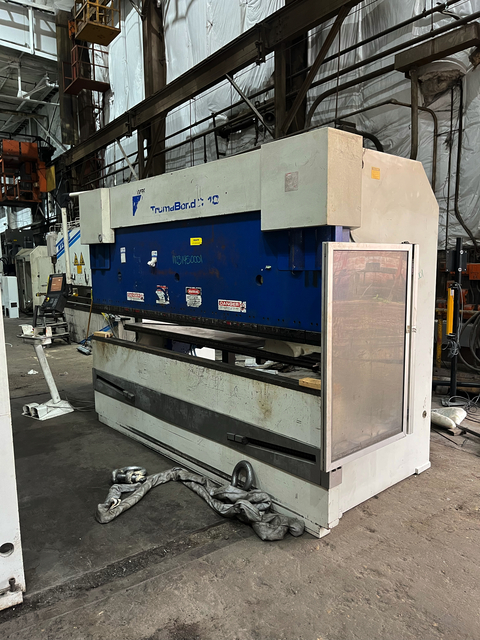

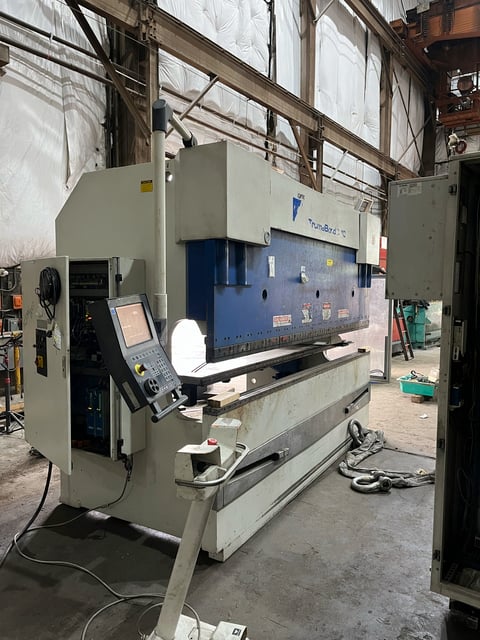

Pre Owned Trumpf Trumabend C110 CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 121 TONS
Overall Length of Bed and Ram 122”
Distance Between Housings 105.9”
Stroke 7.87”
Max Open Height 17”
Effective Open Height 13.46
Ram Inclination +/- 0.11”
Throat Clearance 16.5”
Speeds
Approach 472” Per Minute
Form 2-24” Per Minute
Return 320” Per Minute
Distance Floor to Top of Bed 34”
Width at Top of Bed 3.9”
Operating Height 39.3”
Oil Capacity 66 US Gallons
Main Motor Horsepower 25 230/460/3/60
CONTROL FEATURES
Trumpf Delem DA-65TW Multi-Axis Control (Y1,Y2,X,R Z1, Z2)
Off Line Capable
Programmable Forming Speeds
Programmable Ram Opening
Programmable Reversal
Programmable Tonnage Displayed Through CRT
Control Diagnostics
Graphic Programming
BACK GAGE FEATURES
X-Axis
Max Distance 34.6”
Travel 19.6”
Max Speed 13” Per Min
R-Axis
Travel 13.3”
Max Speed 3.9”
2 Back Gage Finger Supports
EQUIPPED WITH
Ram Inclination in Y1 –Y2
Self-Active Crowning
Self Centering Tooling Adaptor
Precision Ram Leveling with Dual Linear Glass Scale Encoders
Oil Cooler
Electric Foot Switch
Approximate Overall Weight 16976 lbs.
Approximate Overall Dimensions 133” L X 64.7”W X 94” H
Get Your Price from Aleco Machinery Sales!
Buyers Who Viewed This Listing Also Viewed:
121 Ton, Trumpf #TrumaBend-C110, 10.2'OA, 106" between housing,Delem 6-Axis CNC, 2002, #32164
110 Ton, Energy Mission #PBR-1030, press brake, 10' overall, 100" between housing, 6" stroke, 13" open, 7" Shut Height, 8" throat, 10 HP, Wila beam, 2024

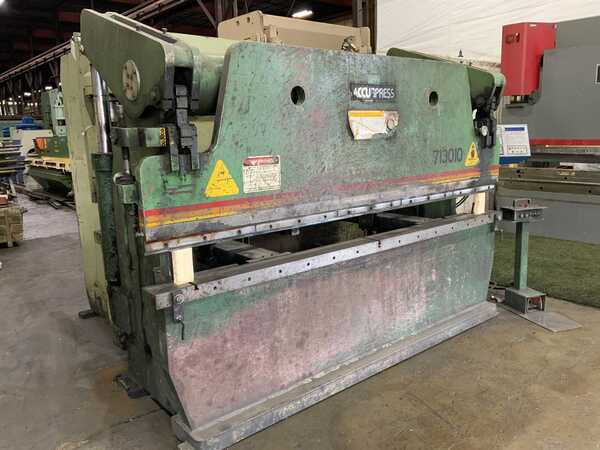

130 Ton, Accurpress #713010, hydraulic press brake, 10' overall, 102" between housing, 8" stroke, 10" throat, 20 HP
