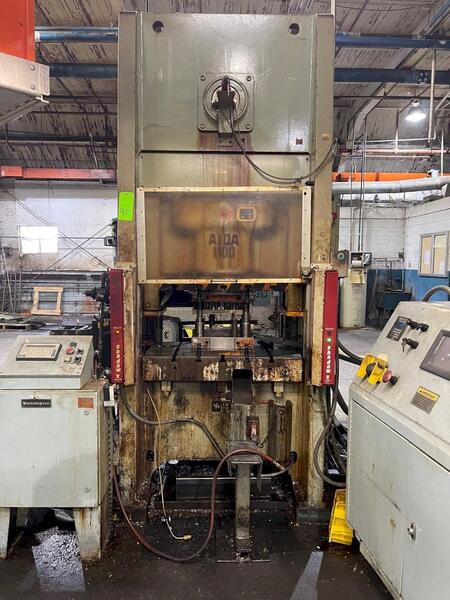

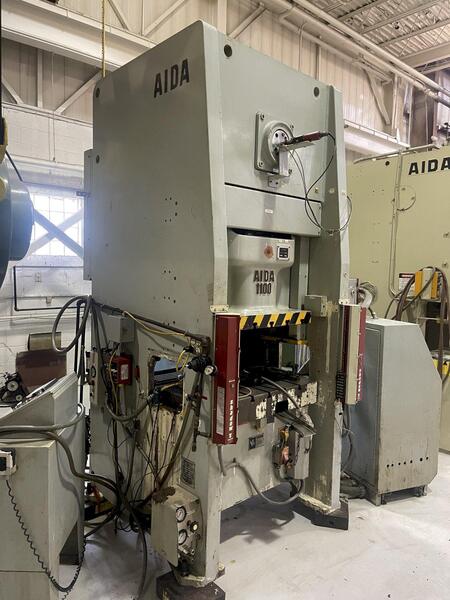

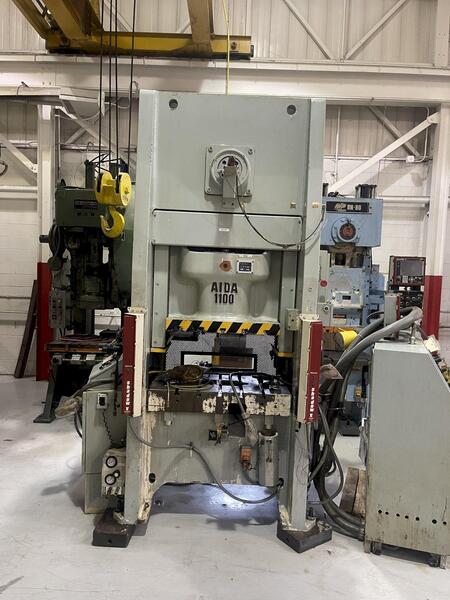

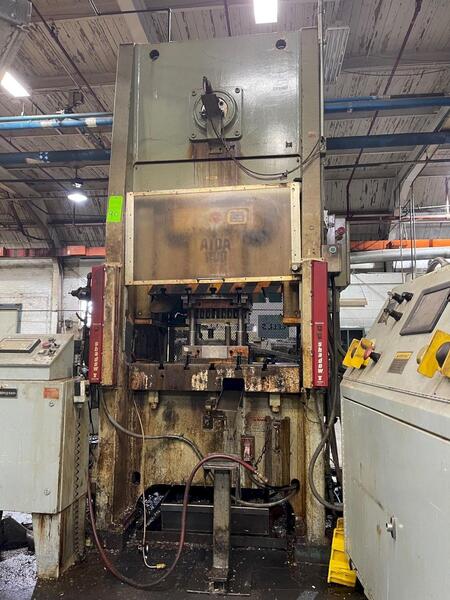

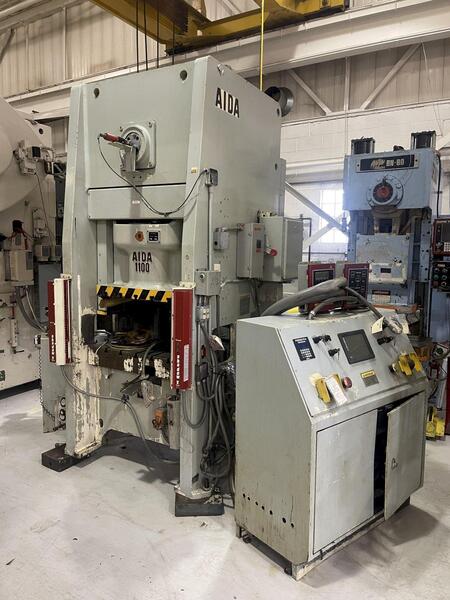

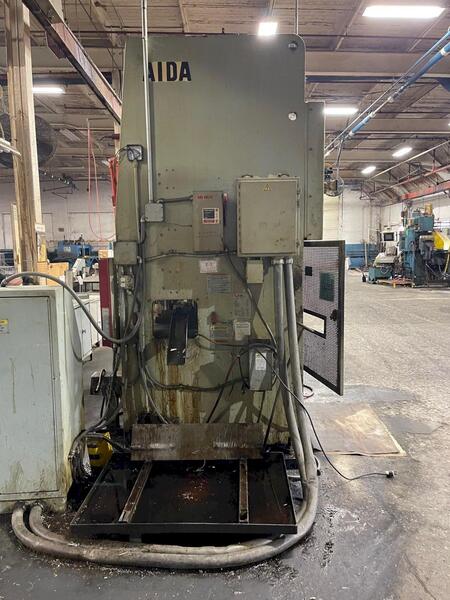

121 Ton, Aida #NS1-1100, single point eccentric geared straight side press, 4.3" stroke, 2001

110

4.33 inches

18.6 inches

3.54 inches

39.4" x 20.5

31.5" x 20.5

50-100

Standard Specifications
Aida NS1-1100 Single Point Eccentric Geared Straight Side
110 ton Capacity (Metric)
121 ton Capacity (US Ton)
4.33" Stroke
12.6" Die Height On Bolster
3.54" Motorized Adjustment
39.4" LR x 20.5" FB Bed Area
31.5" LR x 20.5" FB Slide Area
50-100 VSPM

Equipment and Features
Aida Wet Clutch and Brake
Air Counterbalances
Hydraulic Overloads
19.6" Wide Windows
6.1" Thick Bolster Plate
Max Upper Die Weight 770 lbs.
15 HP Main Motor
Floor Standing

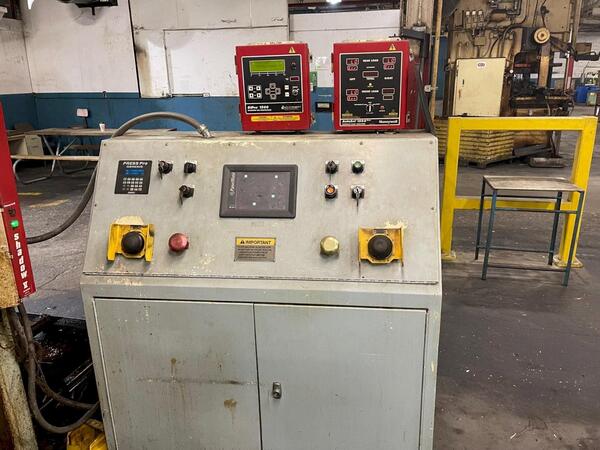

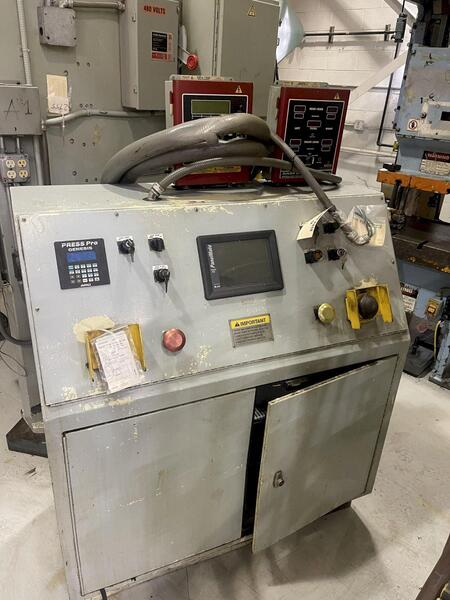

Wintriss Die Pro 1500
Wintriss Autoset 1504 load analyzer
Palm Buttons
Shadow V Light Curtains

This used Aida Straight Side Mechanical Metal Stamping Press Can Be Seen Under Power in the S & G Press Warehouse!

This high-precision 110-ton Aida NS1-1100 single point eccentric geared press offers a robust solution for high-speed metal forming and progressive die applications. Delivering a 121-ton (US) capacity, this used Aida mechanical press features a 4.33" stroke, variable speeds from 50–100 VSPM, and a 39.4" x 20.5" bed area. Engineered for safety and accuracy, it is equipped with an Aida wet clutch, Wintriss Die Pro 1500 controls, and Shadow V light curtains. This floor-standing unit includes hydraulic overloads and a Wintriss Autoset 1504 load analyzer for real-time monitoring. Increase your stamping efficiency with this reliable, 15 HP industrial press—available for immediate inspection in a professional production environment.
