Description

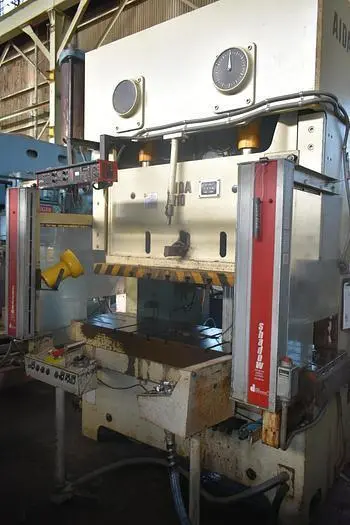

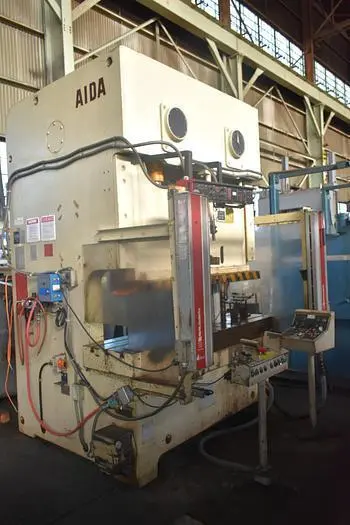

THIS AIDA MODEL NC2-110(1) IS A 121 TON DOUBLE-CRANK GAP FRAME PRESS, CLASSIFIED UNDER FABRICATING/PRESSES. KEY PERFORMANCE SPECIFICATIONS INCLUDE A MAXIMUM TONNAGE OF 121 T AND A STROKE LENGTH OF 4.33 INCHES. THE PRESS IS POWERED BY A 15 HP MOTOR. THE BED DIMENSIONS ARE 74 INCHES WIDE AND 20.4 INCHES LONG. OPERATIONAL SPEED IS SPECIFIED AS 59,100 STROKES PER MINUTE (SPM). THE PRESS SYSTEM INCORPORATES AN AIR CLUTCH AND BRAKE. ADDITIONAL EQUIPMENT INCLUDES A VARIABLE SPEED DRIVE, POWER SLIDE ADJUSTMENT, AND HYDRAULIC OVERLOAD PROTECTION.
, Explore precision with the 121 TON AIDA "NC2-110(1)" double-crank gap-frame press. air clutch, variable speed drive, and hydraulic overload protection. : 121T, 15 HP, 74"x20.4" bed. Available now at our Cincinnati warehouse., Spec Sheet:, 121 TON AIDA DOUBLE-CRANK GAP FRAME PRESS, Serial No 00511-1422, Model NC2-110 ...more
121 TON AIDA DOUBLE-CRANK GAP FRAME PRESS, Serial No 00511-1422, Model NC2-110 (1), 121 TON AIDA DOUBLE-CRANK GAP FRAME PRESS, Serial No 00511-1422, Model NC2-110 (1), Air Clutch & Brake, Variable Speed Drive, Power Slide Adjustment, Hydraulic Overload Protection, CATALOG :, Tonnage Capacity, Tons 110 TON, Tonnage ...more
