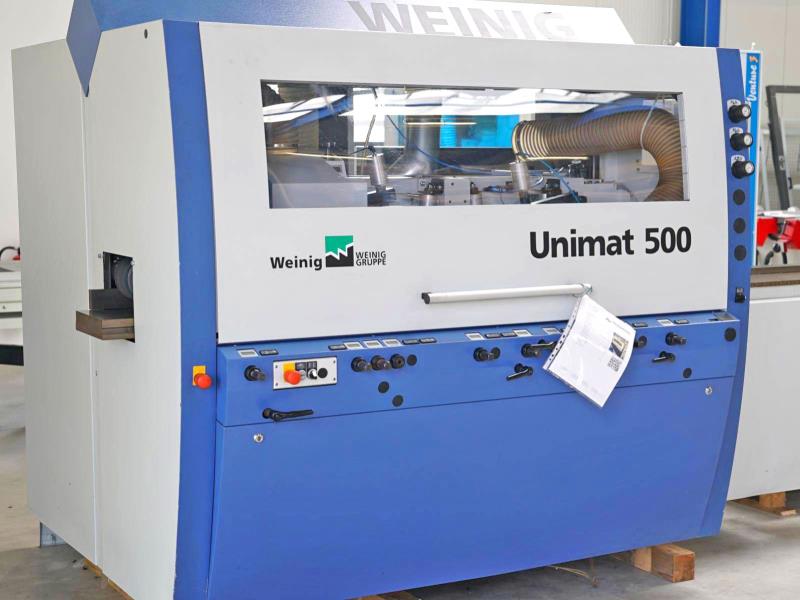

Weinig #Unimat-500, feed through moulder, 5-heads, 9-1/16" x 4-3/4" capacity, 1-9/16" spindle, variable speed, 2007

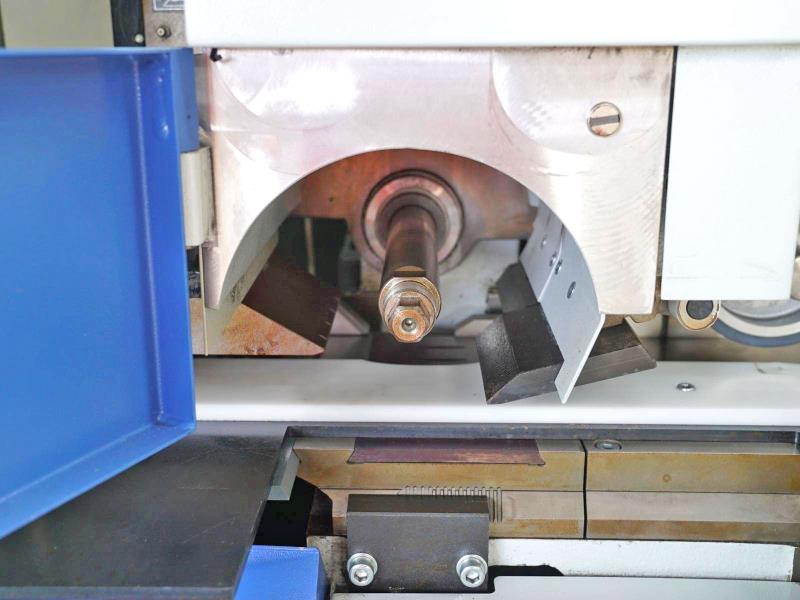

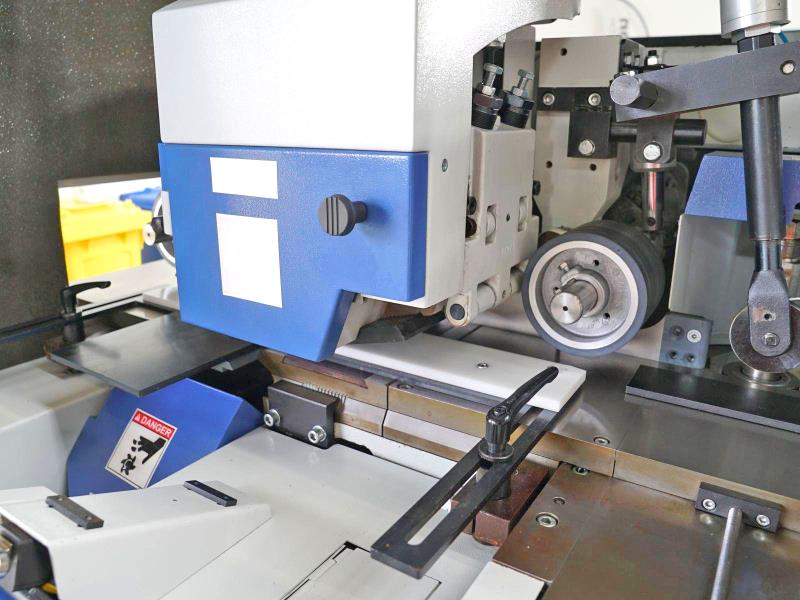

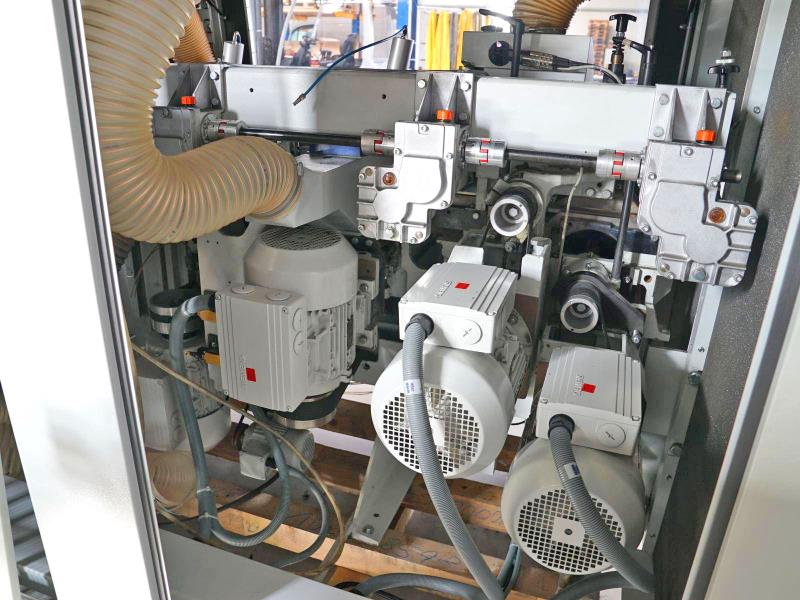

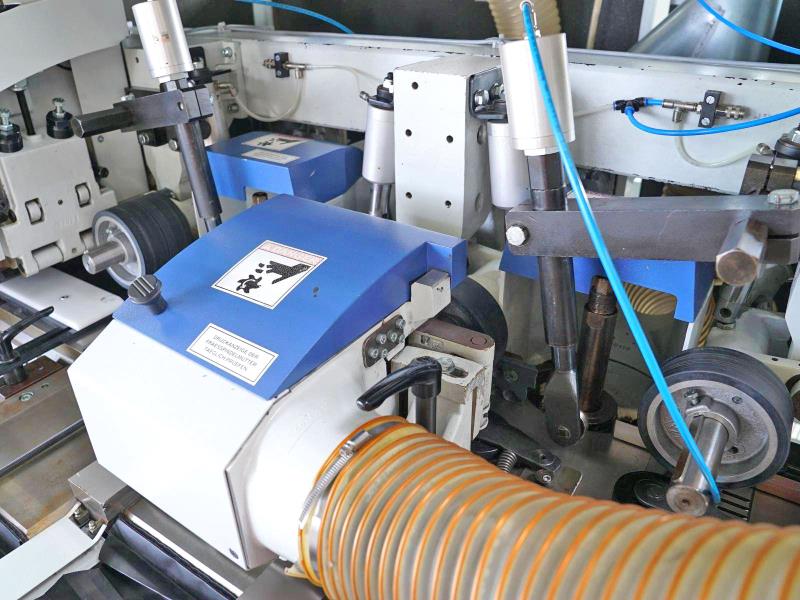

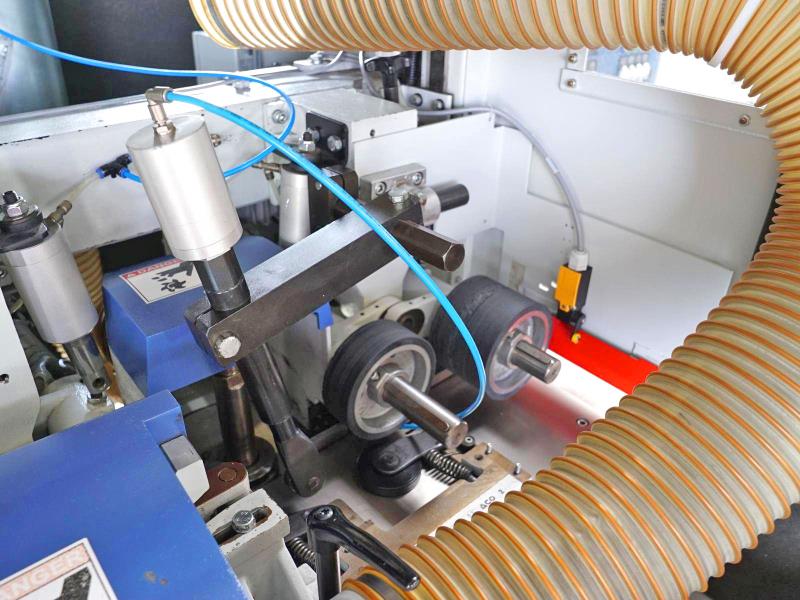

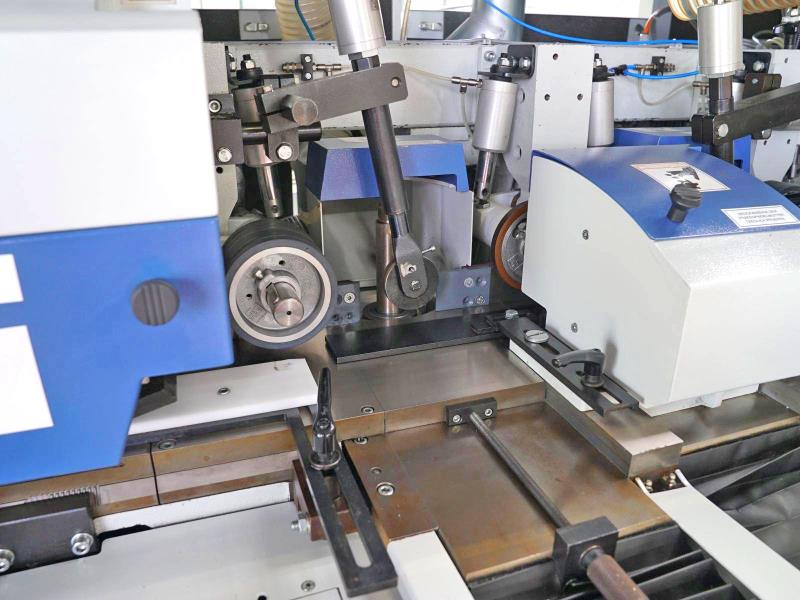

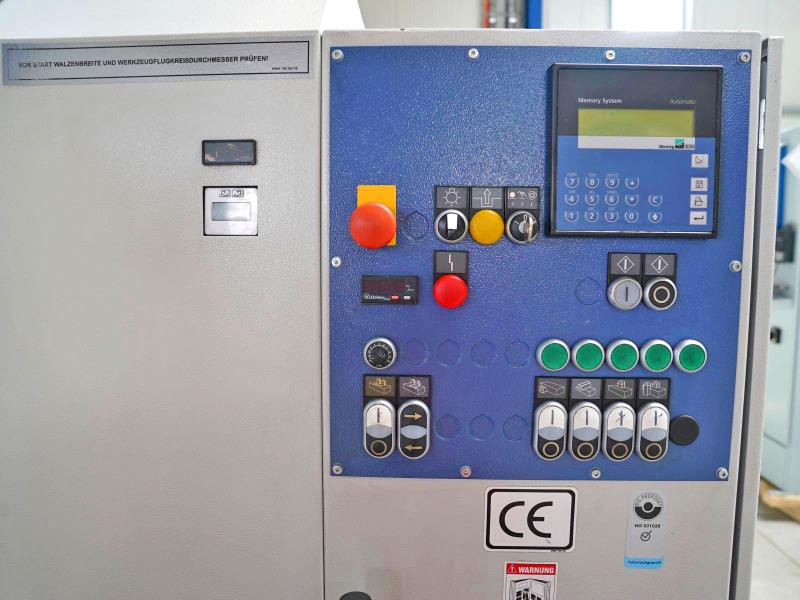

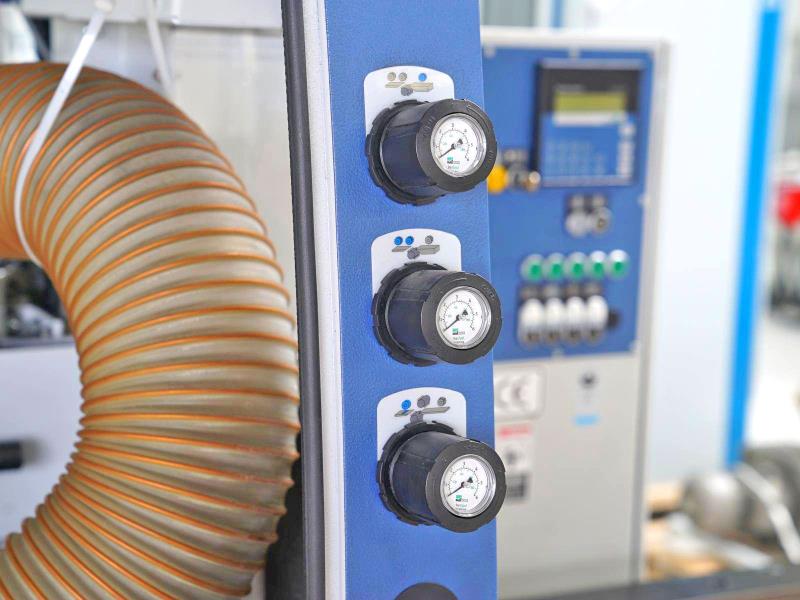

WEINIG Unimat 500 Feed Through Moulder; Heavy-Duty cast-iron construction - reduces vibrations for better surface quality5-Heads, (R-L-R-T-B), working capacity 230 x 120 mm (9-1/16" x 4-3/4"). -- Head Sequence: 1. right & 2. left share 5.5kW (7.5 HP) motor, 3. right 5.5 kW (7.5 HP), 4. top 5.5 kW (7.5 HP), and 5. bottom 4 kW (5.5 HP) motor. -- Spindles: Dia. 40 mm (1-9/16") with cutter head speed of 6,000 RPM; digital readouts on spindle adjustments in combination with the WEINIG MEMORY-SYSTEM. Motorized height & width adjustment of spindles. Tool diameter 1st spindle min/max 125-145 mm (4-15/16" - 5-11/16"), other heads 112-200 mm (4-7/16" - 7-7/8"). -- Motorized feed beam adjustment with independent adjustment of top head, receding chip breakers on left and top heads. -- Variable feed speed 5 to 30 m/Min (16-98 FPM), driven by 4 kW (5.5 HP) motor. Overhead feed wheels with pneumatic pressure. Cardan drive, chainless & maintenance-free. -- Machine Tables: Made of hardened steel. Infeed straightening table is 2,000 mm (6.5') with adjustable fence & adjustable outfeed table. -- Complete with: ● WEINIG MEMORY-SYSTEM - reduces set-up time by storing spindle positions and tool radii. ● Central lubrication. ● Full sound/safety enclosure with illumination inside. ● Manual lubrication pump. ● Automatic star delta starters. ● CE Compliance. ● (3) Emergency stop buttons. Actual model is WEINIG Unimat 500 Feed Through Moulder; 6-HeadsNote: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
