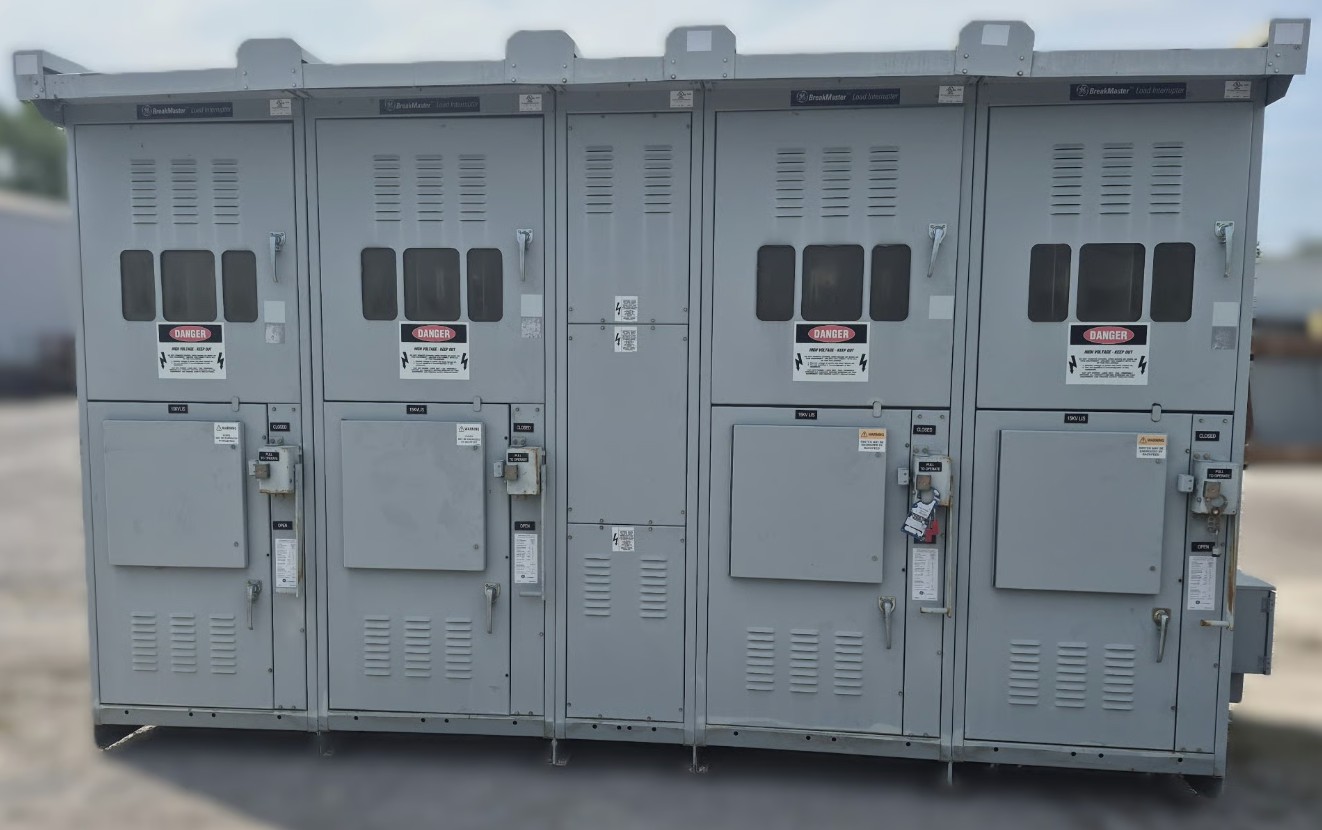

1200 Amp. General Electric, Breakmaster, 15 KV, Fused Outdoor Load Interrupter Switch, 95 KV BIL, 61 kA momentary, 2015, (4 units)

GE BREAKMASTER 15KV 1200A LOAD INTERRUPTER SWITCH – OUTDOOR

CONDITION: USED – WORKING TAKE-OUT

Manufacturer: GE Energy Management
Product: Breakmaster Load Interrupter Switch
Request Number: S109114670
Factory Order Number: 150099632-10
Switch Serial Number: 87854-6, 87854-5, 87854-3, 87854-8
Manufacture Date: 04/23/2015

ELECTRICAL SPECIFICATIONS

• Rated Maximum Voltage: 15 kV

• Impulse Withstand (BIL): 95 kV

• Normal Frequency Withstand: 36 kV

• Frequency: 60 Hz

• Continuous Current: 1,200 A Symmetrical

• Load Interrupting Current: 1,200 A Symmetrical

• Momentary Current: 61 kA Asymmetrical

• Short-Time Current: 38 kA Symmetrical

• Short-Time Duration: 2 Seconds

• Fault Closing Current: 61 kA Asymmetrical

Unit 1:

• Serial Number: 87854-6

FUSE INFORMATION

• Fuse Rating: 540

• Fuse Catalog Number: (2)15RBA4300E

• Integrated Switch & Fuse Short Circuit Current: 47 kA Asymmetrical

• Fuses Included: YES

ENCLOSURE / BUS INFORMATION

• Enclosure Type: Category B – Outdoor

• Main Bus Ampacity: 1200 A

• Main Bus Bracing: 61 KA Asymmetrical

Unit 2:

• Serial Number: 87854-5

FUSE INFORMATION

• Fuse Rating: 540

• Fuse Catalog Number: (2)15RBA4300E

• Integrated Switch & Fuse Short Circuit Current: 47 kA Asymmetrical

• Fuses Included: YES

ENCLOSURE / BUS INFORMATION

• Enclosure Type: Category B – Outdoor

• Main Bus Ampacity: 1200 A

• Main Bus Bracing: 61 KA Asymmetrical

Unit 3:

• Serial Number: 87854-3

FUSE INFORMATION

• Fuse Rating: N/A

• Fuse Catalog Number: N/A

• Integrated Switch & Fuse Short Circuit Current: 61 kA Asymmetrical

• Fuses Included: NO

ENCLOSURE / BUS INFORMATION

• Enclosure Type: Category B – Outdoor

• Main Bus Ampacity: N/A

• Main Bus Bracing: N/A

Unit 4:

• Serial Number: 87854-8

FUSE INFORMATION

• Fuse Rating: N/A

• Fuse Catalog Number: N/A

• Integrated Switch & Fuse Short Circuit Current: 61 kA Asymmetrical

• Fuses Included: NO

ENCLOSURE / BUS INFORMATION

• Enclosure Type: Category B – Outdoor

• Main Bus Ampacity: N/A

• Main Bus Bracing: N/A

DESCRIPTION

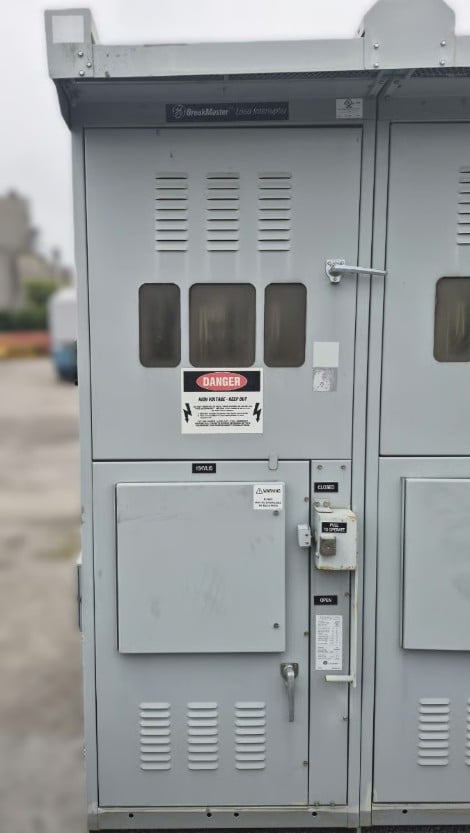

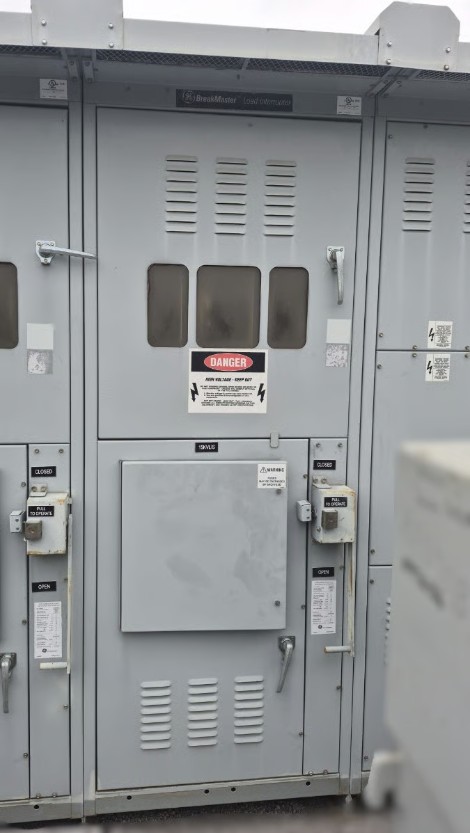

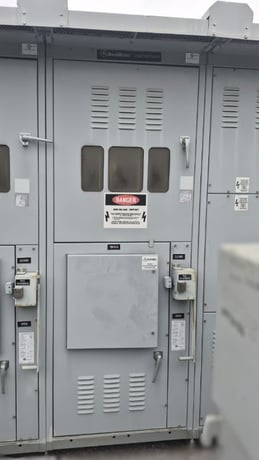

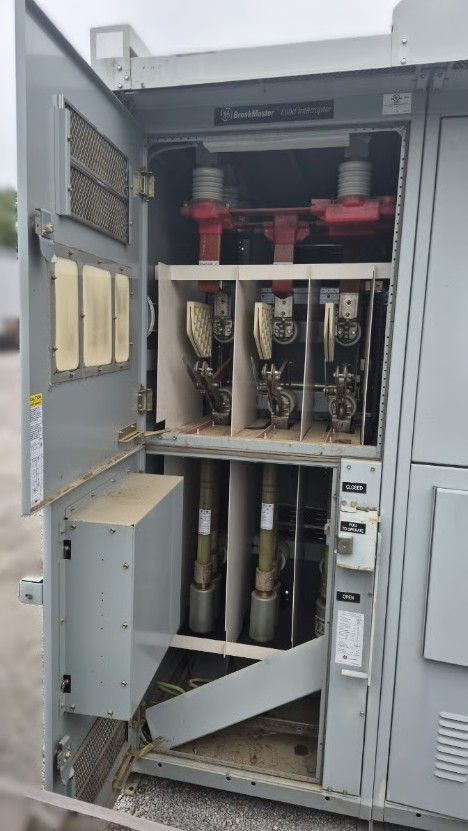

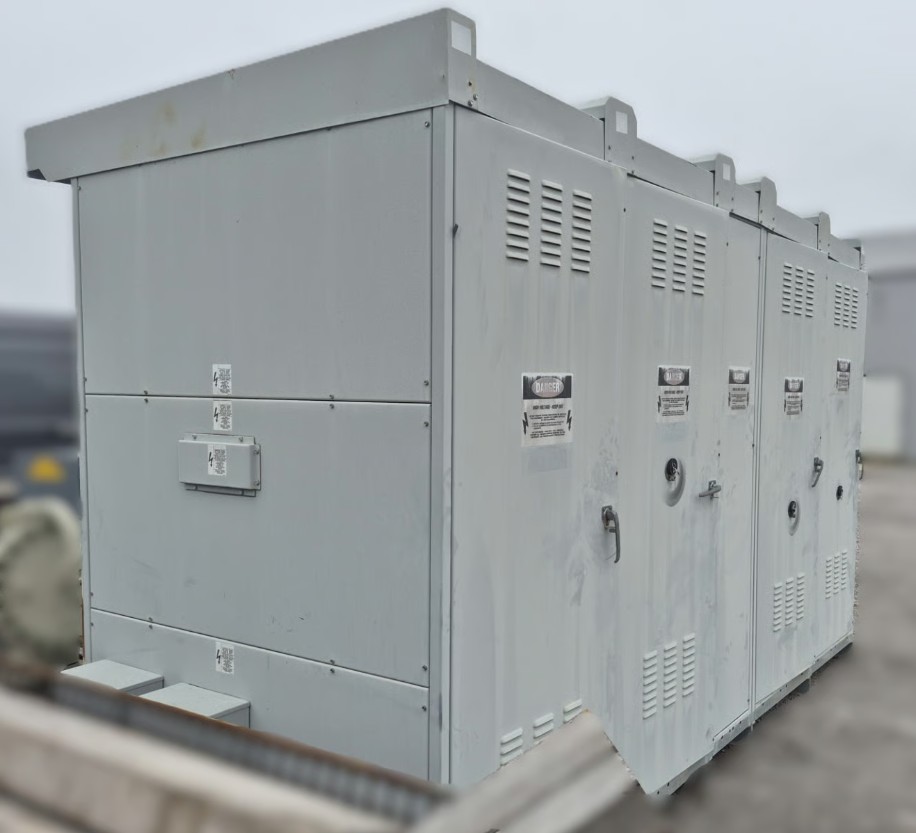

GE Energy Management Breakmaster Load Interrupter Switch rated for 15 kV maximum voltage and 1,200 amps continuous current. This outdoor-rated medium-voltage switch is designed for industrial and commercial electrical distribution applications requiring dependable load switching and isolation.

The unit features a 95 kV BIL rating, 61 kA asymmetrical momentary current rating, and 38 kA symmetrical short-time current rating for 2 seconds.

No fuses are included with this unit.

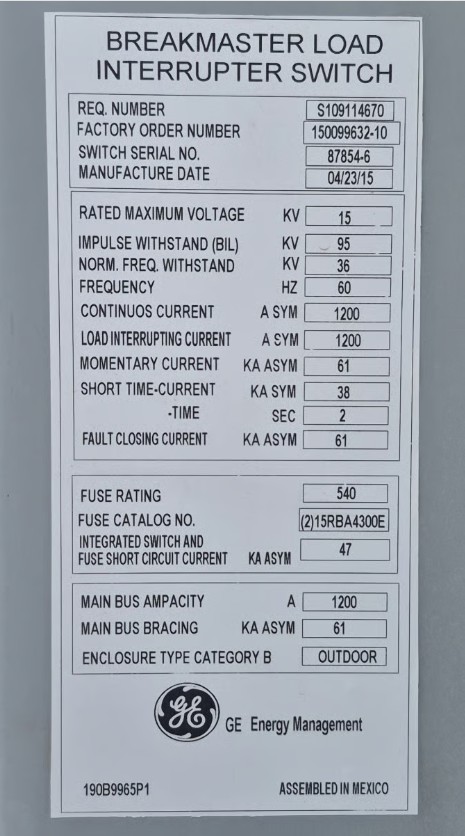

NAMEPLATE IDENTIFICATION

GE Part/Label Number: 190B9965P1
Request Number: S109114670
Factory Order Number: 150099632-10
Serial Number: 87854-6, 87854-5, 87854-3, 87854-8

FOB: Green Industrial, 281 Commerce St, Belgium, WI 53004
