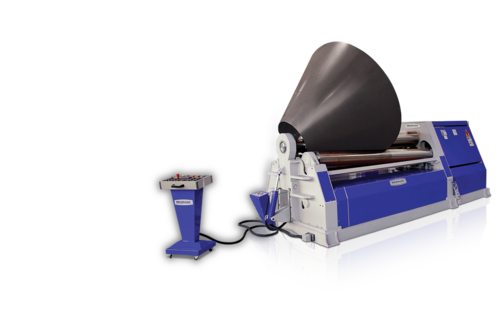

120" x 5/16" Bendmak #CY4R-HHS-190-20/08, 4-roll plate roll, cone bending device, 10 HP

5/16” X 6’ Four-Roll Hydraulic Plate Roll with Cone Bending Device, Induction Hardened Rolls, Digital Display for Side Rolls, Fully Welded Steel (St-52) Construction Body, Separate Moving Control Panel, Two Rolling Speeds, Electro-Hydraulic Calibration, all Rolls are Mounted in Roller Spherical Roller Bearings, Safety Equipment Around the Machine, Central Rolls are Driven by Hydraulic Motors and Planetary Gearboxes, Dual Voltage, Side and Top Support Ready, Variable Speed of Rotation.

GENERAL SPECIFICATIONS

• Working Length: 6’
• Max. Thickness: Pre-Bend ¼” Bending 5/16”
• Number of Rolls: 4
• Motor Power: 4 HP
• Top Roll Ø: 7.48”
• Bottom Roll Ø: 6.69”
• Side Roll Ø 5.9”
• Dimensions: 159” X 49.4” X 54.33”
• Weight: 7,606 LBS.

INCLUDES: Cone Bending Device, Induction Hardened Rolls, Digital Display for Side Rolls, Fully Welded Steel (St-52) Construction Body, Separate Moving Control Panel, Two Rolling Speeds, Electro-Hydraulic Calibration, all Rolls are Mounted in Roller Spherical Roller Bearings, Safety Equipment Around the Machine, Central Rolls are Driven by Hydraulic Motors and Planetary Gearboxes, Dual Voltage, Side and Top Support Ready, Variable Speed of Rotation.
