For Sale by Southern Fabricating Mchy Sales
Description

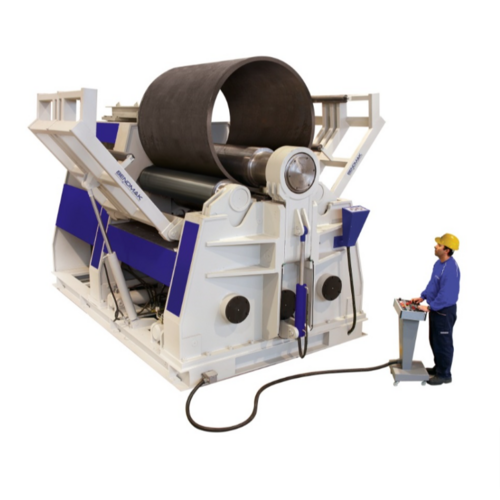

1-” X 10’ Four - Roll Plate Roll with AK 400 CNC Control System, Cone Rolling Device, Induction Hardened Rolls, Two Rolling Speeds and Oil Cooler.
GENERAL SPECIFICATIONS
Working Length: 10’
Pre - Bending Thickness: 1-”
Rolling Thickness: 1-”
Number of Rolls: 4
Motor Power: 30 HP
Top Roll Diameter: 16.9”
Bottom Roll Diameter: 15.4”
Side Roll Diameter: 13”
Machines Dimensions: 20’ X 7.2’ X 7.2’
Weight: 49,780
INCLUDES: AK 400 CNC Control System, Cone Rolling Device, Induction Hardened Rolls, Two Rolling Speeds and Oil Cooler.
***All Price, Location and Specifications Subject to Change without Notice***
