120" width x 96" H Oven Empire Manufacturing #OEMB-10-08 series, Batch Oven, double doors, 7 models, 10'-30' L options, NEW

Estimated monthly payment valid upon approved credit.

Request Formal Quote

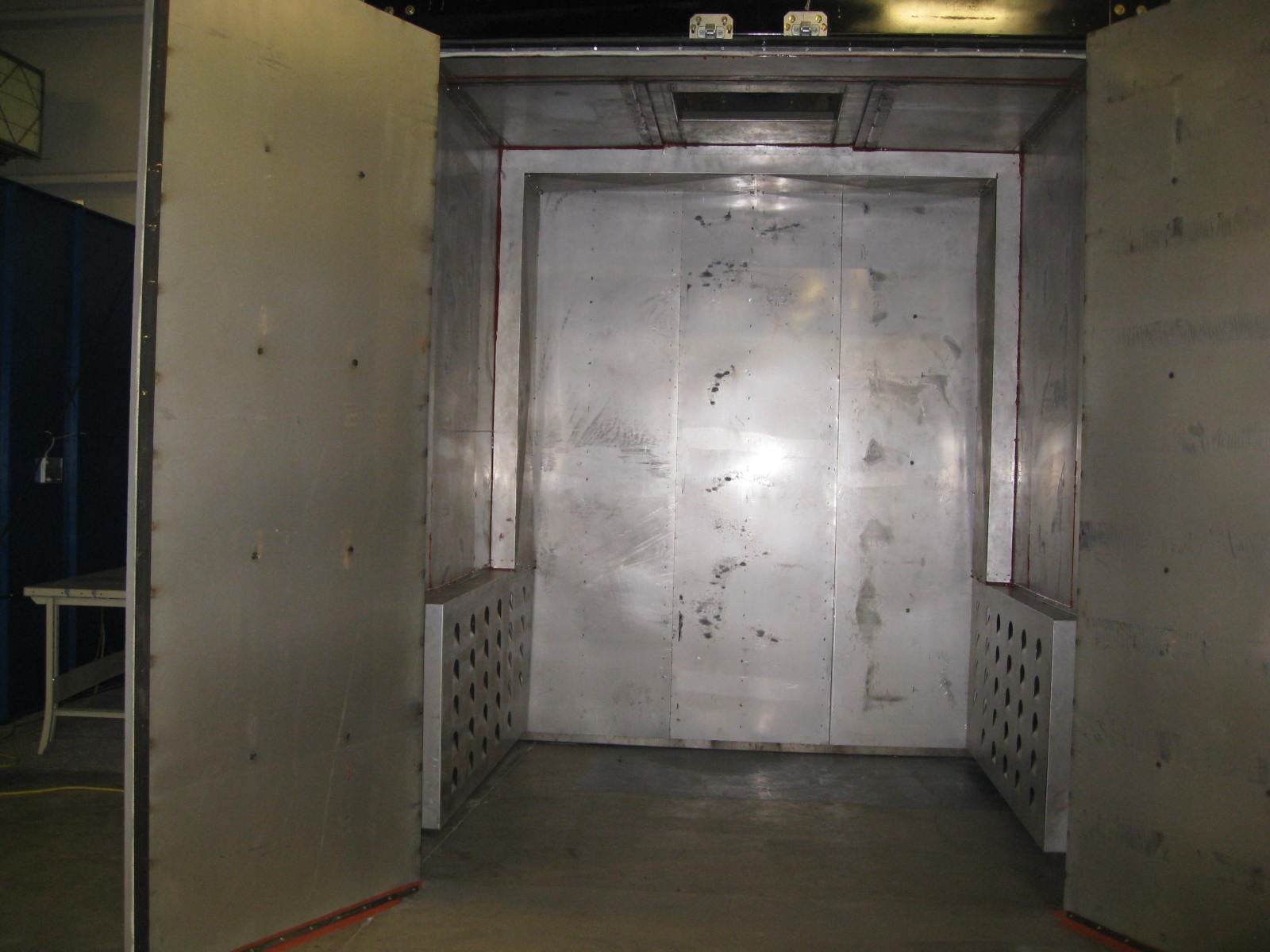

10'w X 8'h X 10'l Batch Oven by Oven Empire Manufacturing designed for curing at 250 to 450 degrees F.
Industrial Oven with Double Doors on One End and Top Mount Burner Box

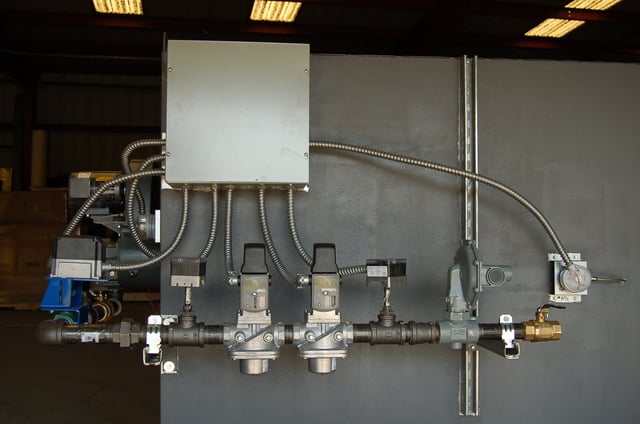

- Top Mounted Burner Box
- Fully modulating burner with 8:1 turndown ratio
- Heavy Duty recirculating fan w/ approx 5 air changes per minute (fan size & CFM depends on oven size)
- Ductwork on both sides of the oven w/ adjustable louvers for balancing
- 4 Insulated Tongue / Groove Oven Panels are made of 18ga. aluminized steel for maximum corrosion and heat resistance
- Oven Panels are slotted with thermal breaks to MINIMIZE HEAT TRANSFER
- Support Structure is used for Top Mounted Burner Boxes to keep weight off of the oven panels
- 10 x 8 Heavy Duty Insulated Doors with explosive venting latches - NFPA REQUIREMENT

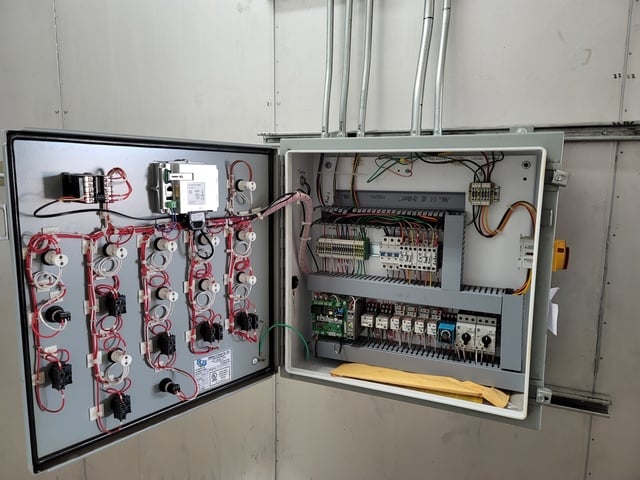

- UL LISTED Control Panel with flame safety monitoring

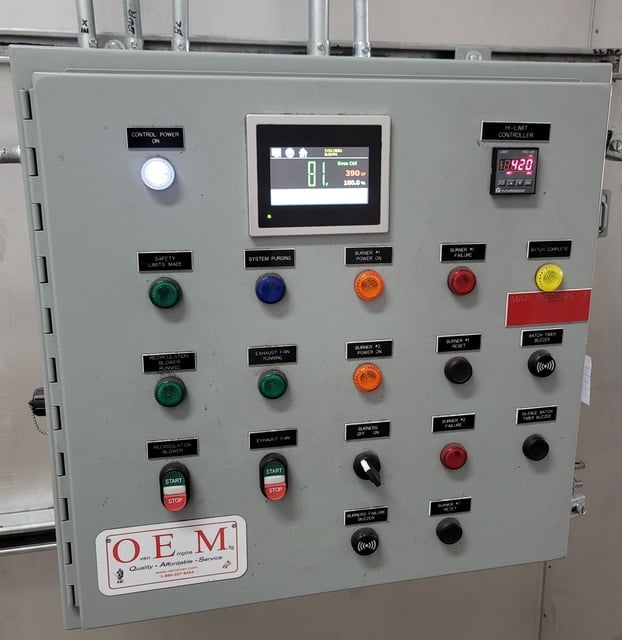

- 4.3 LCD Touchscreen with the following features:
- Batch Timer - starts when oven reaches temperature (this is set by the operator)
- End of Shift Mode - burner shuts off at the end of batch & blowers shut down when oven temp is below 200F
- Network Interface - works with Email/SMS, FTP, Web, VNC
- Data Logging USB or Network access for information
- Ramp/Soak Controlled Heating for certain processes or when the doors open
Options Available:
Rear Mounted Burner Box
2nd Set of Oven Doors
Conveyor Notches in the door header
Single Phase Electrical
Mechanical Installation
Electrical Installation
