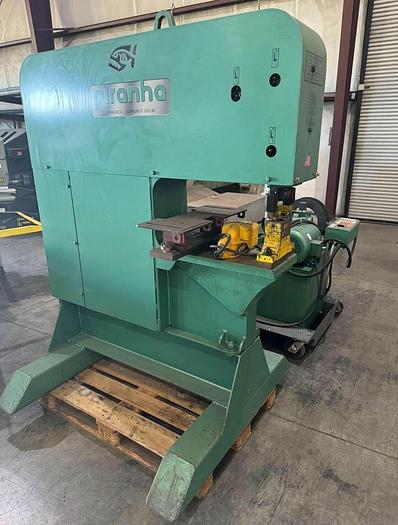

SEP-120 Single-End Hydraulic Punch The SEP-120 is the most cost effective 120 ton single end punch manufactured in America. The machine features a 21.5 throat that allows the use of a wide range of tooling and useful attachments.
Piranha 120 Ton Single End Punch Press, Model SEP-120, SKU# 2726001, Throat Depth 21.5″ Coper-Notcher (Tons), (Max.) N/A Open Height 12-1/4″ Bending Attach. (Optional) 18″ Closed Height, w/o Die Block 10-1/4″ Punch End, Strokes Per Minute 16 @ 1″ Stroke Length 2″ Work Station ...more
MODEL: SEP-120, SERIAL #: SEP120-145, 120 TON PUNCH, 1-1/2" HOLE THROUGH 1" MAXIMUM MATERIAL, 5" MAXIMUM HOLE THROUGH 1/4" MATERIAL, 2" STROKE, 21.5" THROAT DEPTH, 12-1/4" OPEN HEIGHT, 10-1/4" CLOSED HEIGHT WITHOUT DIE BLOCK, 20" FB x 10" LR PLATEN TABLE, 16 SPM @ 1", SOME TOOLING, 10 HP MOTOR, 48" x 60" x 72" OVERALL ...more
, Manufacturer: Mubea, Model Number: HP 1000/760, Stock Number: 13882, s:, Foot pedal control, Tonnage — 110, Capacity — 1-3/8” through 15/16”, Throat depth - 30”, Channels in flange —4-15”, Beams in flange — 4-15”, Channels in web — 4-15”, Beams in web ...more
110 Ton Single End Punch with 30” Throat Depth., Tonnage: 110 Tons, Throat Depth: 30”, Diameter Hole: 1.375” in 15/16”, Working Height: 44”, Stroke: 0 - 2.75, Full Stroke Per Min.: 12, Voltage: 220 / 440, Hyd. Oil Capacity: 24 Gal, Dimensions: 76” X 30” X 78” H, Weight: ...more
