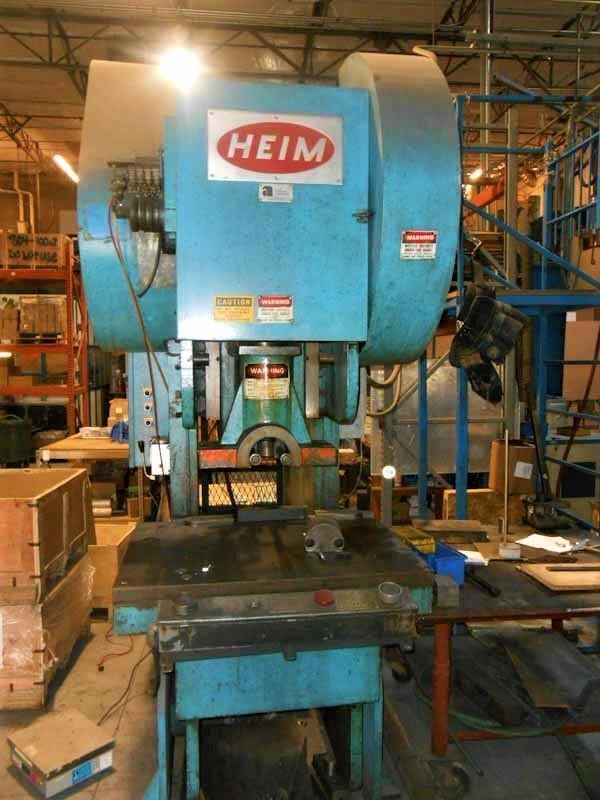

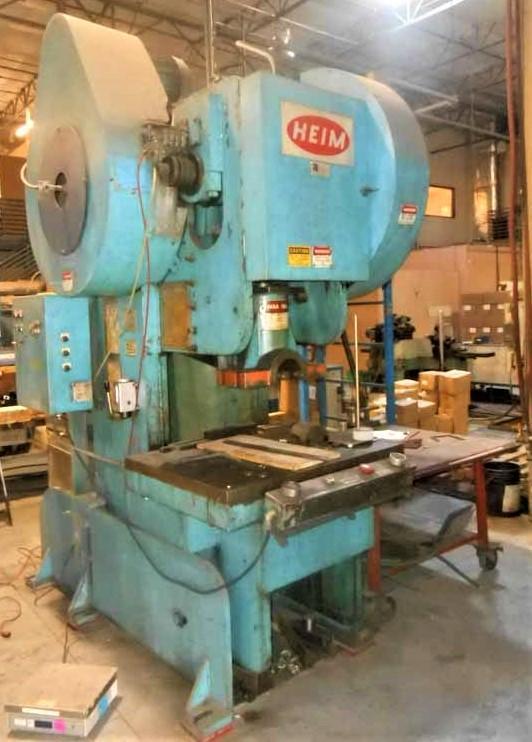

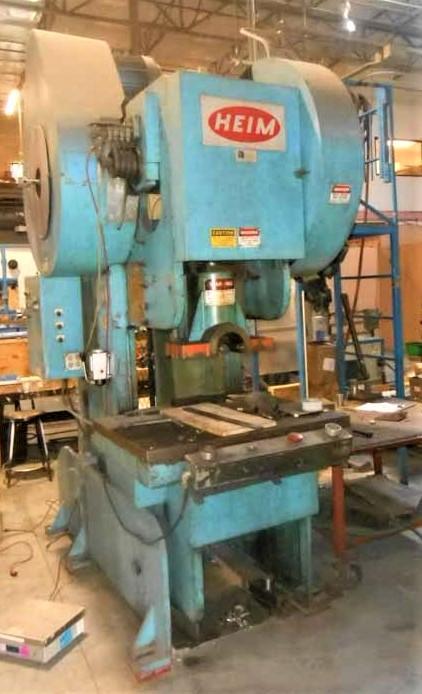

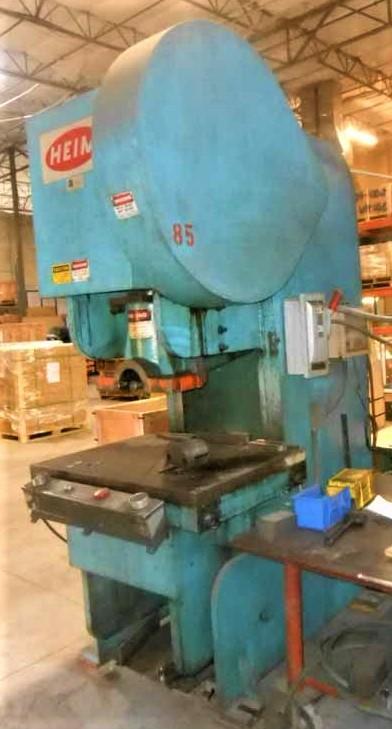

Manufacturer: Heim
Model: 12-OBI-BG
Year: 1982
Ton: 120
Stroke: 3.0
Shut Height: 14.00
Air Clutch: Yes
Stock # PPH12X
1 / 4
Click to zoom in
1 / 4
For Sale by Adams Machinery
Surplus Record Dealer Since 1924
Location: Libertyville, IL
Contact Mark Sonneborn
Phone Number: 847...> Show Phone Number 847-673-0556
Let the seller know you found their listing on Surplus Record!
Description
SPECIFICATIONS
EQUIPPED WITH
Air Clutch and Brake. Dual Palm Buttons. E-Stop. Controls for Inch-Single and Continuous Operation. 1 shot Lubrication. 2” Thick Bolster Plate. Brake Monitor.
The 120-Ton Press is represented as being in good operating condition and can be inspected under power.
| Capacity | 120 tons |
| Stroke | 3 inches |
| Shut Height of Bed (SDAU) | 14 inches |
| Ram Adjustment | 4 inches |
| Bed Area | 30" x 40" |
| Face of Ram | 14" x 18" |
| Speed | 45 SPM |
| Width of Opening in Back | 20 inches |
| Hole in Ram | 2.5 inches |
| Main Motor | 10 HP |
| Electrics | 3/60/230/460v |
| Approximate Dimensions | 64"LR x 97"FB x 118"H |
| Approximate Weight | 16500 pounds |
EQUIPPED WITH
Air Clutch and Brake. Dual Palm Buttons. E-Stop. Controls for Inch-Single and Continuous Operation. 1 shot Lubrication. 2” Thick Bolster Plate. Brake Monitor.
The 120-Ton Press is represented as being in good operating condition and can be inspected under power.
Get Your Price from Adams Machinery!
