For Sale by KD Machinery
Description

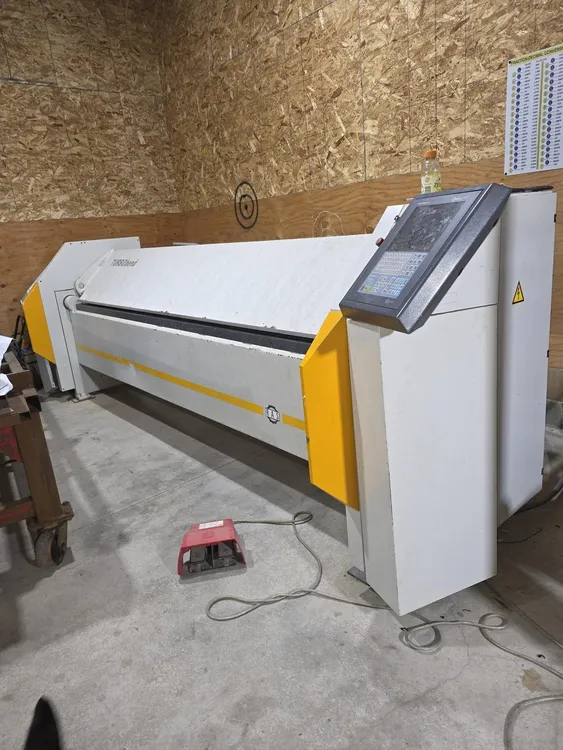

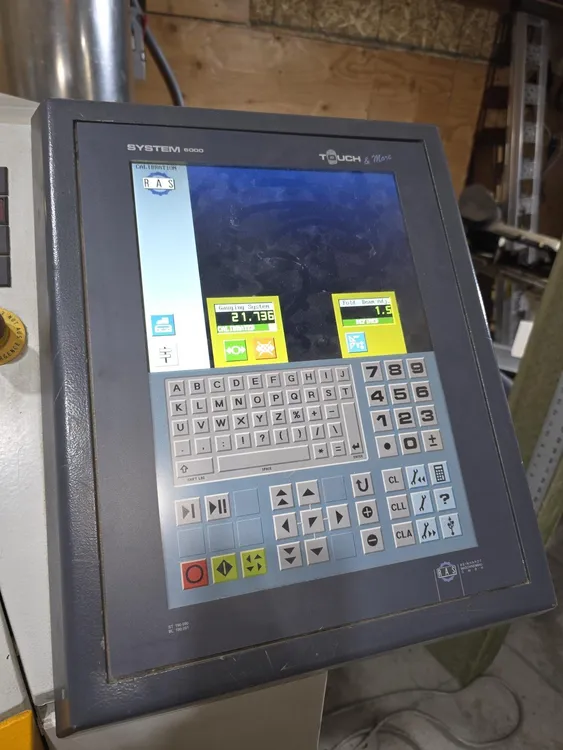

Used RAS TurboBend 61.31 (2011) Folding Machinery for Sale. This CNC folder runs the System 6000 control with a maximum working length of 124″ and an overall length of 10′, handling material up to 16 gauge. Folding beam adjustment ranges from 0″ to 0.217″, with folding beam speed of 180 degrees/sec and program controlled sheet thickness adjustment. Back gauge depth is 0.236″ to 39.4″, accurate to .004″, moving 0.4″ to 39.3″ in 1.9 seconds. Upper beam drive is 1 HP/.75 kw and the folding beam drive is 1.5 HP/1.1 kw. Equipped with an eccentric drive clamping system, standard J-shape backgauge, side stop / squaring arm, movable foot pedal on rail, extra table-side foot pedal, two foot pedal emergency switches, and tooling. Available to be seen under power for inspection. See more CNC folding machinery, Activate Pricing, or Request a Quote.
| Max Thickness | 16 Gauge |
|---|---|
| Overall Length | 10' |
| Control | CNC (System 6000) |
| Folding Beam Adjustment | 0 0.217 |
| Maximum Length | 124 |
| Motor Drive Power Upper Beam | 1 HP/.75 kw |
| Back Gauge Depth | 0.236 39.4 |
| Motor Drive Power Folding Beam | 1.5 HP/1.1 kw |
| Folding Beam Speed | 180 degrees/sec |
| Back Gauge Speed | (0.4 to 39.3) 1.9 sec |
| Back Gauge Accuracy | .004 |
