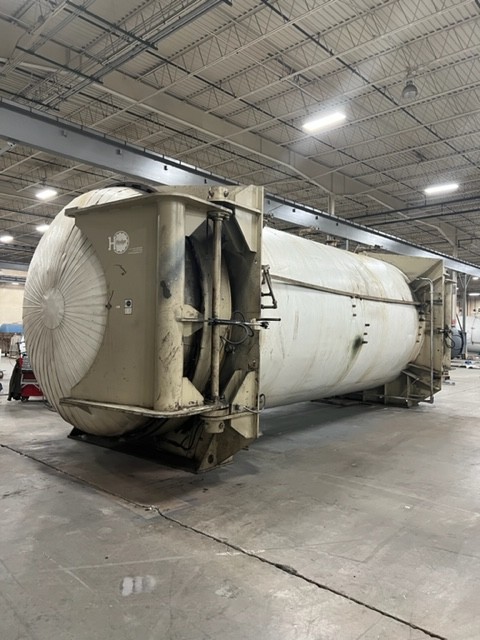

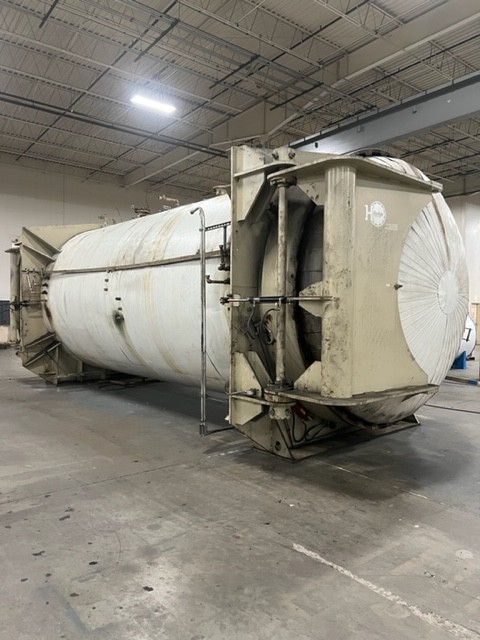

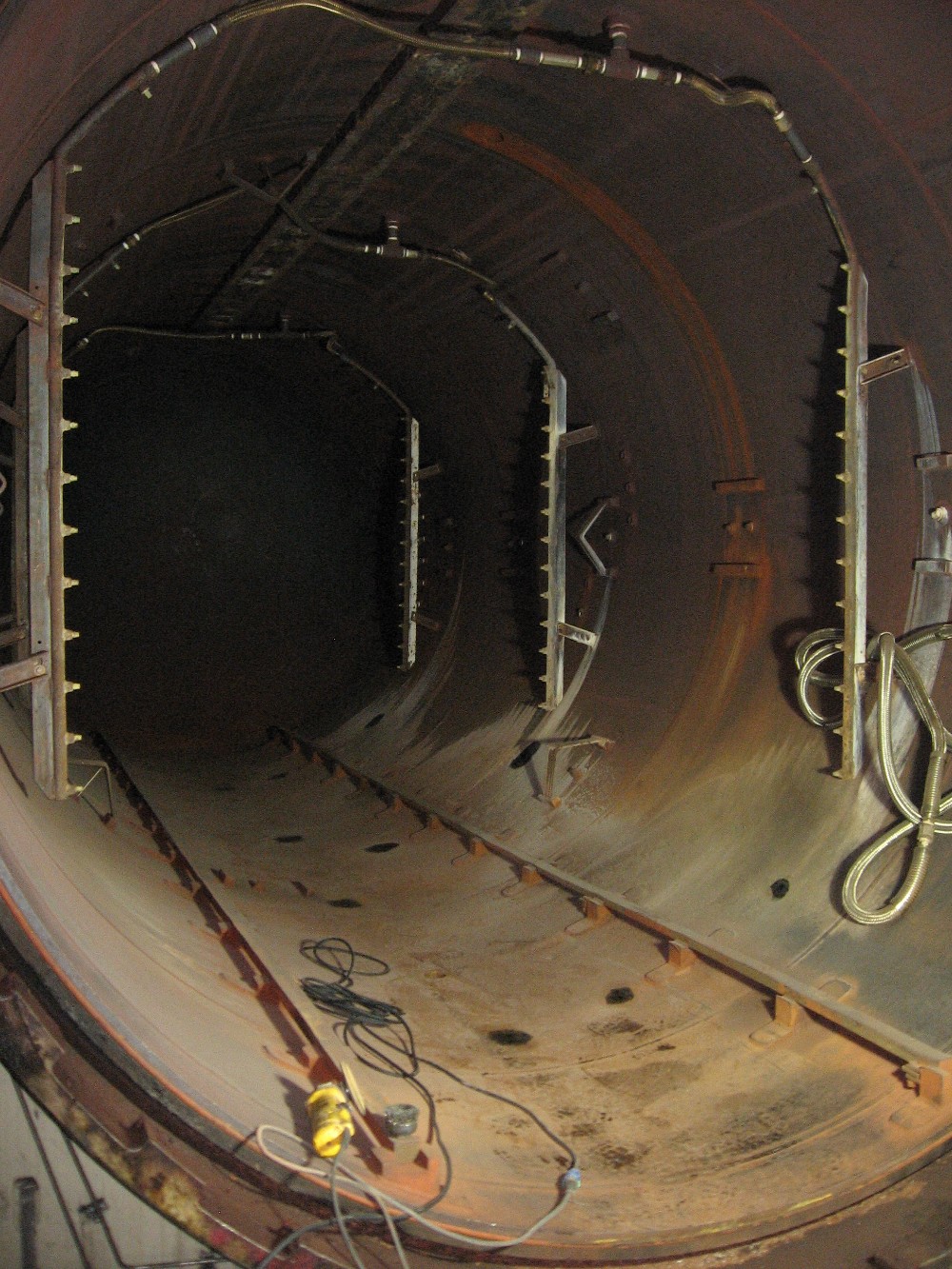

120" ID x 288" Long Bondtech Double Door Steam Vulcanizer Autoclave

$265,000 USD

Request Formal Quote

Purchase Price of 10x24 DD Autoclave (as-is, where-is)

Including below mentioned items:
120” ID x 24’ long Autoclave with the following parameters:
- Quick Opening Double Door
- Design Pressure: 150 PSIG Full Vacuum
- Design temperature: 366 Deg. F
- Carbon Steel
- Vulcanizer nozzle set per Dwg# C57854
- Track supports
- 1/8” Corrosion Allowance
- Approx weight: 75,000lbs

Includes Allen Bradley CompactLogix PLC controls:
- Electrical Control Panel
- Controlled Heated Ambient – 330 Deg. F.
- Total Automatic Control of Cycle Sequences from Beginning to End
- Operator Controls for Locking Door
- Process Complete and Ready to Open Door Indicator Lights
- Temperature and Pressure Safety Back Ups
- Full Program Editing and Storage Capabilities
- 17” Fanless Touch PC w/ Intel Atom 1.6 Ghz HMI with Wonderware Intouch Software
- Proportional Steam Valve
- Steam Traps
- 2” External Insulation with White Aluminum Covering

Note: Controls will provide a Saturated Wet Steam Environment in the autoclave
