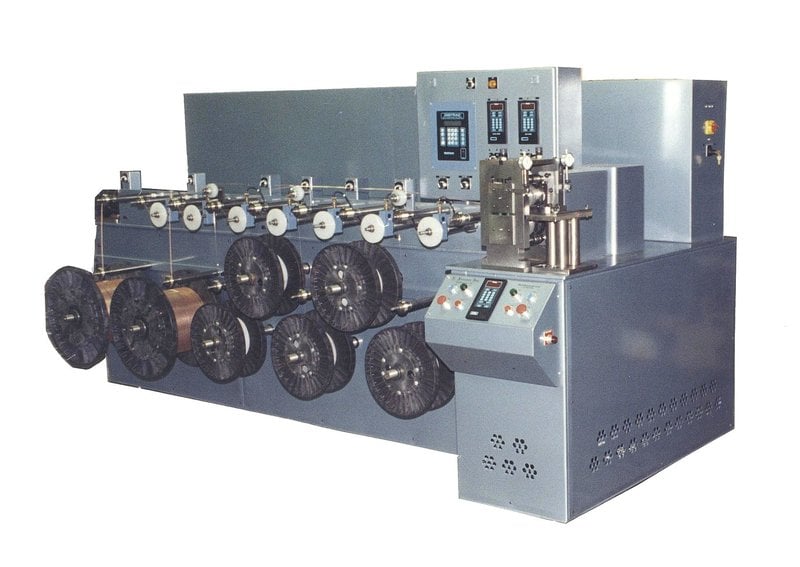

12" x 4" N Ferrara #2187/4SH-75-5TR-V-R29-0107, 4" hi precision slit.line w/traverse winder

-Material: Gold, Silver, Steel, Brass, Wire Mesh, Copper
-Traverse Winder: 203,000' Cap. Max.
-Starting Width: 3'' Maximum
-Thickness Range: .012"Wide min 0.002''/0.020''
-Weight Capacity: 90 lbs Maximum per coiler
-Speed Range: 0-500 F.P.M.
-Volts: 220
-PH: 3
-CY: 60
Uncoiler with plates, capable of handling up to 1000 lbs. by 12" wide coils. The unit will be welded of structural steel.
Felt faced wipers, fully adjustable guide.
Assembly includes precision ground 2.187 diameter by 4" long alloy steel arbor. High precision, anti-friction roller bearings are proportioned to take loads in excess of normal requirements and provide zero end float.
Housing frame of steel in triple arrangement for maximum precision. Arbor parallelism is not disturbed when the outboard is removed for set up purposes.
Ring set up with two rolls for bottom and two rolls for top.
5 Traverse winder recoiler with load cell
Rated for 90 lbs. each by 4" wide coil. It is mounted to the base extension of the machine and maintains perfect alignment between recoiler shaft and slitter head assembly. Recoiler shaft is keyed and complete with clutch drum. Stand installation comprising a welded steel "L" shape base of heavy plate construction enclose the drive chain, the slitter head and uncoiler/recoiler assembly.
The Scrap Winder will be mounted on same slitter base.
40 HP motor with gear reducer complete with electrical system, push button, plus emergency stop.
N. Ferrara Slitting Lines are available in a variety of different sizes and models and can be custom built to meet specific customer requirements. Please feel free to contact our sales team for additional information.
