For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Location: Pomona, CA
Contact Dan Wheeler
Phone Number: 909...> Show Phone Number 909-348-5610
Let the seller know you found their listing on Surplus Record!
$1,950 USD
Description

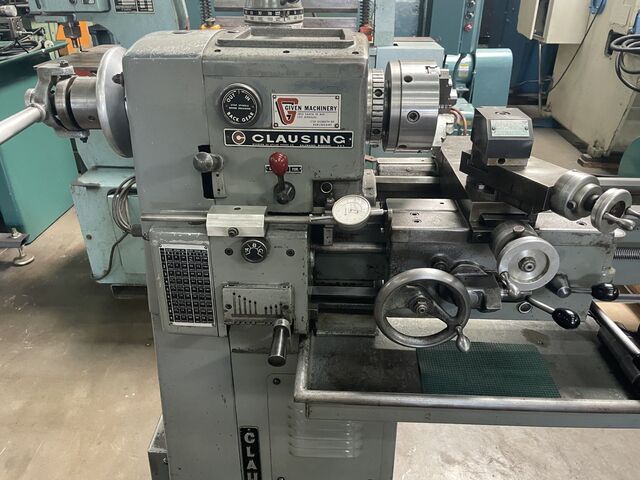

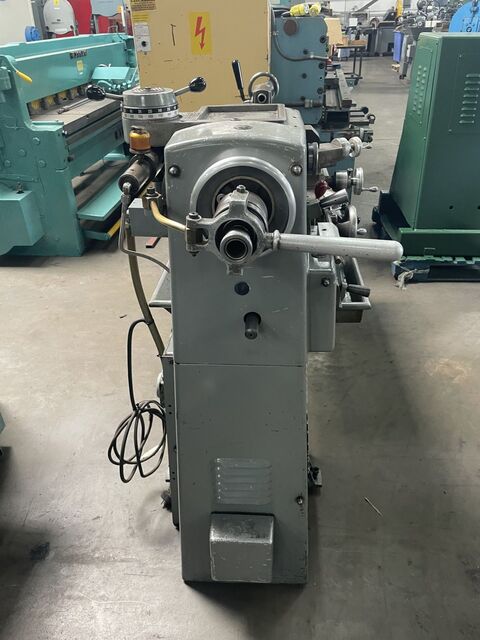

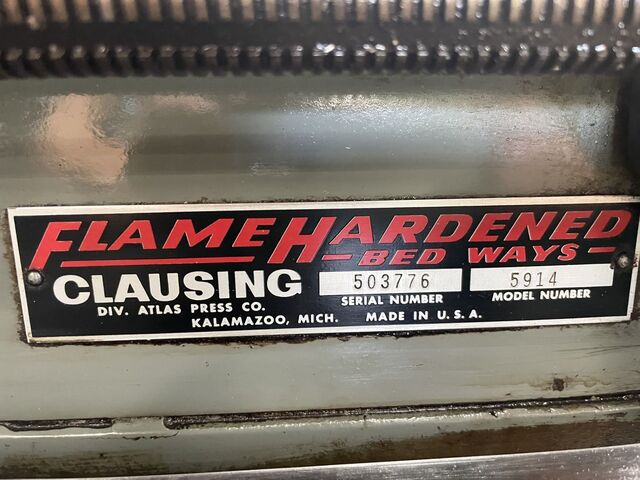

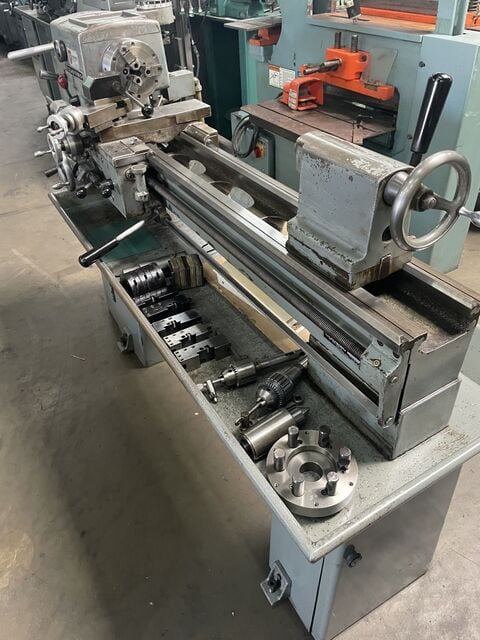

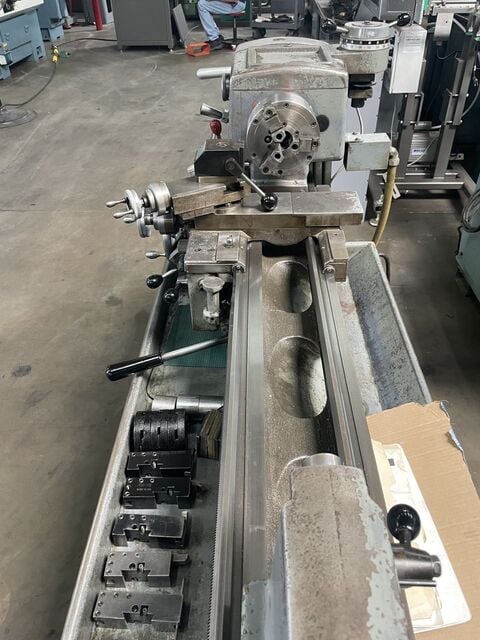

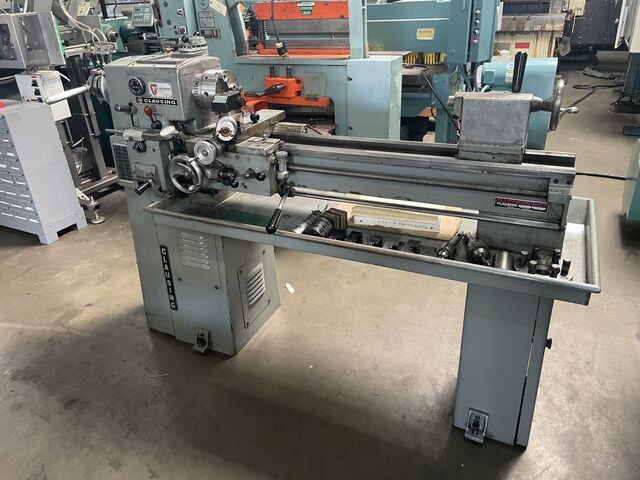

CLAUSING 5914 ENGINE LATHE 12" x 36" #8351 #1
SPECIFICATIONS:
SWING OVER BED 12.5"
SWING OVER CROSS SLIDE 8"
DISTANCE BETWEEN CENTERS 36"
SPINDLE SPEEDS (VARIABLE) 52 - 2000 RPM
SPINDLE MOTOR 3 HP (DIRECT DRIVE)
SPINDLE BORE 1.50"
POWER FEEDS BOTH CROSS & LONGITUDINAL
CROSS-SLIDE TRAVEL, PLUNGE 4.7"
TOP COMPOUND REST TRAVEL 2.5"
QUILL TRAVEL, TAILSTOCK 3.5"
TAILSTOCK TAPER No. 3 MT
DIMENSIONS, APPROX. 72"L x 32"W x 50"H
WEIGHT, APPROX. 2000 LBS
EQUIPPED WITH:
NIX QUICK CHANGE TOOL POST
TAILSTOCK
3-JAW CHUCK
SPECIFICATIONS:
SWING OVER BED 12.5"
SWING OVER CROSS SLIDE 8"
DISTANCE BETWEEN CENTERS 36"
SPINDLE SPEEDS (VARIABLE) 52 - 2000 RPM
SPINDLE MOTOR 3 HP (DIRECT DRIVE)
SPINDLE BORE 1.50"
POWER FEEDS BOTH CROSS & LONGITUDINAL
CROSS-SLIDE TRAVEL, PLUNGE 4.7"
TOP COMPOUND REST TRAVEL 2.5"
QUILL TRAVEL, TAILSTOCK 3.5"
TAILSTOCK TAPER No. 3 MT
DIMENSIONS, APPROX. 72"L x 32"W x 50"H
WEIGHT, APPROX. 2000 LBS
EQUIPPED WITH:
NIX QUICK CHANGE TOOL POST
TAILSTOCK
3-JAW CHUCK
Inquire Further with Wheeler Machinery Sales!
