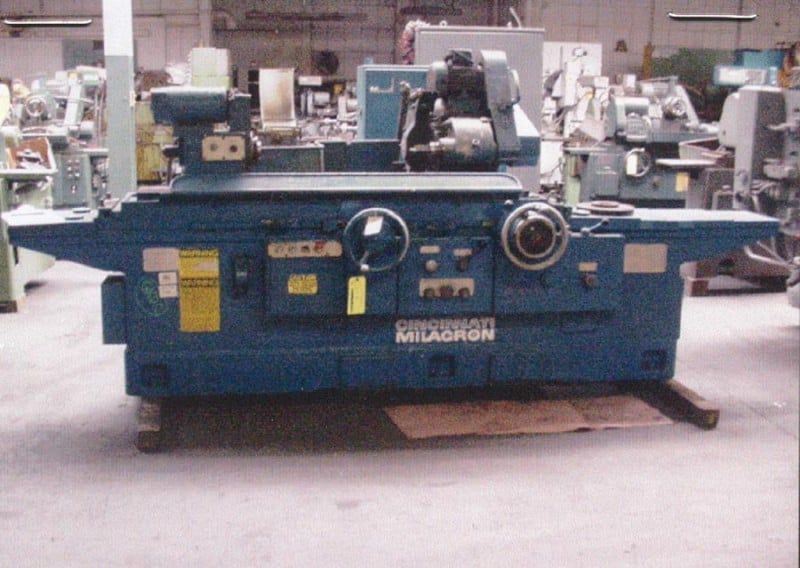

12" x 36" Cincinnati, universal cylindrical grinder, 14" diameter x 1.5" width x 5" hole grinding wheel, 3-220 IPM, 3 HP, 1976

12" x 36" Cincinnati Universal Cylindrical Grinder, 14" x 1 1/2" Grinding Wheel, Swing Down Internal Attachment, Rapid Feed, Pick Feed, As Is.
12 x 36CINCINNATIMILACRON UNIVERSAL CYLINDRICAL GRINDER
S/N 35323D76-0002Year:1976
STANDARD SPECIFICATIONS
Swing over table……………………………………………………12
Distance between centers………………………………………….. 36
GRINDING WHEEL
Swivel range - lower swivel, right and left……….……………….. 90'
-upper swivel, right and left………………….…….. 30'
Grinding wheels (diameter x face x hole)…………………………. 14 x 11/2 x 5
CROSS FEED
Automatic in feed at table reversal (diameter reduction)…….….….0002 to .005
Pick feed - right end only, left end only..….………………...…….. Yes
-right and left ends....……..………………………..…… Yes
Wheel head movement per turn of cross feed:
Hand wheel -low…………………………………………………... .050
-high……..……………………………………………..200
Minimum in feed increment in terms of diameter reduction………....000050
HEAD STOCKFOOTSTOCK
Range of work rotation speeds,RPM
( /- 10% allowable inf.variable)..…………………………….…… 50 to 500
Head stock swivel - toward wheel head….………….…………..…. 90'
-away from wheel head….…………………….. 30'
TABLE
Range of table traverse speeds, inches per minute inf. var..………..…3 to 220
Accuracy of table reversal at all traverse rates…………………….…..004
Independent right-hand and left-hand tarry adjustments……………… 0 to 5 seconds
Mechanical hand table traverse per revolution of
Hand wheel -rapid………………………………………………….… 15/16
-slow…….………………………………………….…… .0.2
POWER REQUIREMENTS
Wheel head motor..……………………………………………….…... 3 HP
Head stock motor….………………………………………………..… 1 HP
Internal grinding attachment motor………………………………….... 2 HP
EQUIPMENT FEATURES
Swing down internal grinding attachment.
Rapid feed.
Coarse and fine feed.
Pick feed.
Live and dead center head stock.
Gap eliminator.
Table dresser.
Free standing electrical panel.
Splash guards and manuals.
Call G.C.H. for all your grinding requirements.Many options available.
Specifications are deemed accurate, however, subject to verification or prior sale.
