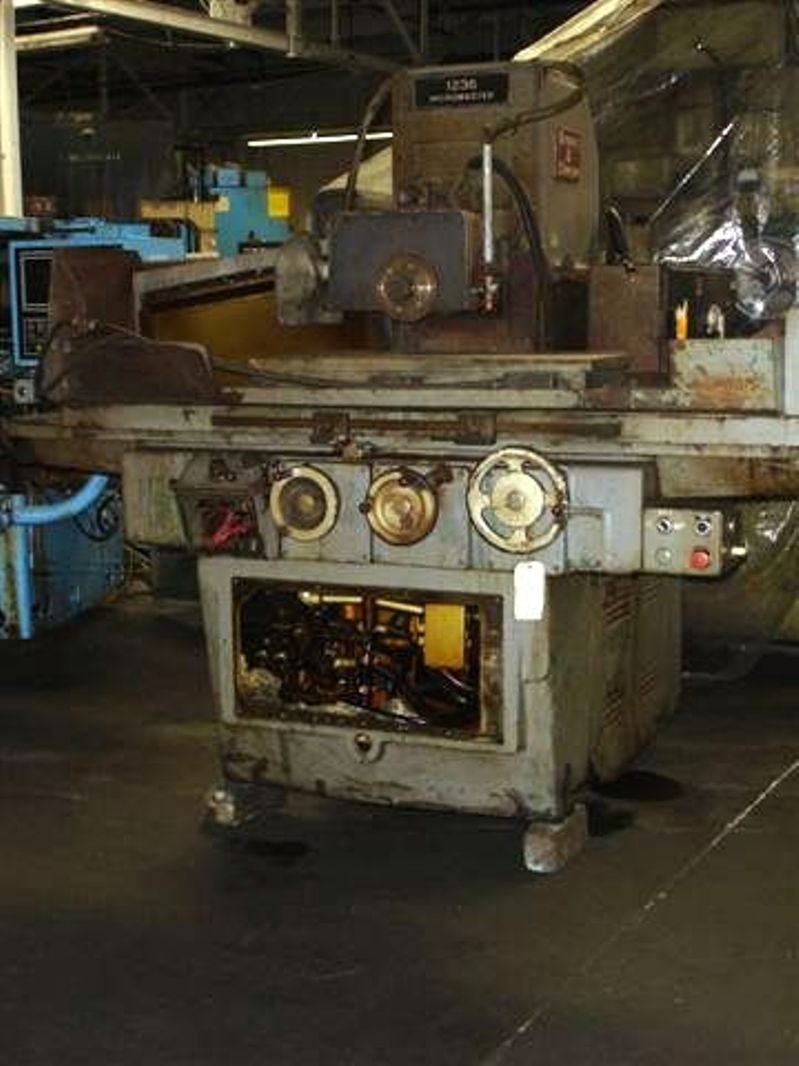

12" x 36" Brown & Sharpe #Micro-Master, 19" Height capacity, 12" x 1"-1.5" wheel, 10-90 FPM, 5 HP, 1800 RPM, 1976

12 x 36 Brown & Sharpe Micromaster Surface Grinder, Coolant Tank & Pump, Incremental Down Feed, Above the Wheel Dresser, 5 H.P. Spindle, As Is
12 x 36 BROWN SHARPE MICROMASTER
HYDRAULIC SURFACE GRINDER
S/N 523-1236-345 Year: 1976
STANDARD SPECIFICATIONS
Grinding capacities……………………………………………..….. 12" x 36"
Height under wheel……………………………………………..….. 19"
Spindle speed………………………………………………….…… 1800 RPM
Wheel size…………………………………………………….……. 12" x 1" to 1 1/2"
Longitudinal feed rate……………………………………………… 10 to 90 FPM
Cross feed rate……………………………………………………… 0.10 to 0.500
Power wheel truing…………………………………………...……. 10/min.
Rapid traverse positioning…………………………………...…….. 150/min.
Rapid vertical power positioning…………………………...……… 40/min.
Net weight (approximate)……………………………………..…… 5200 pounds
Spindle motor horsepower…………………………………...…….. 5 H.P. direct drive
EQUIPPED WITH
12"x 36" Electromagnetic chuck and neutrofier.
Incremental down feed.
Coolant tank and pump.
Above the wheel dresser.
Attached electrical panel.
5 H.P. Spindle.
Specifications are deemed accurate, however, subject to verification or prior sale.
