For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description
| Center width | 31.89 in |
| Turning diameter over bed | 12 in |
| Turning- over support | 7 in |
| Turning diameter over gap bridge | 17 in |
| Bed width | 7 in |
| Travel X-axis | 6.1 in |
| Travel Z1-axis | 4 in |
| Swing range of top slide | 60 |
| Spindle speed | (9) 60 - 1,550 rpm |
| Spindle bore | 1 in |
| Spindle mount | Camlock D1-4 |
| Spindle taper | MT 5 |
| Feed X-axis | 0.00055 - 0.01496 in/R |
| Feed Z-axis | 0.00205 - 0.0548 in/R |
| Tapping, metric | (26) 0,4-7 mm |
| Tapping, withworth | (34) 4-56 TPI |
| Tailstock quill diameter | 1 in |
| Tailstock taper | MT 3 |
| Tailstock quill stroke | 4 in |
| Tailstock traverse adjustment | 0.5 in |
| Motor rating main drive | 1.5 Hp |
| Overall dimensions (length x width x height) | 63x30x50 in |
| Weight | 1,144 lbs |
| Part No. | 300809 |
- Hardened and ground headstocks gears
- Gap bridge
- Headstock with Camlock D1-4" mount, bore diam. 1.5 in, run in 2 adjustable tapered roller bearings
- Adjustable headstock bearing

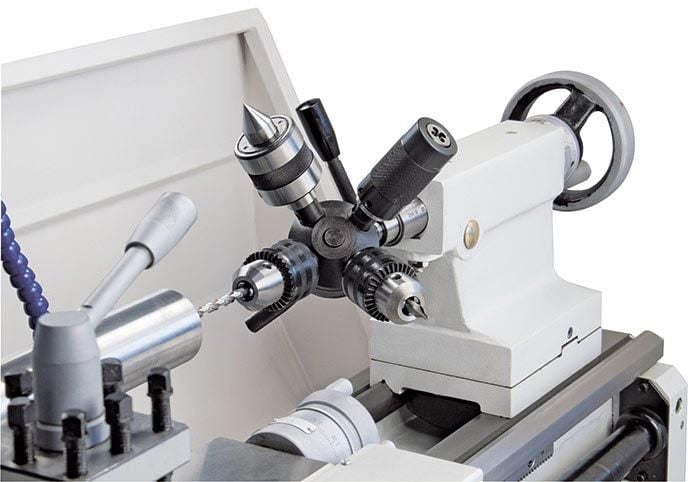

- Tailstock can be moved 0.4 in for taper turning
- Reversing gear reversing gearbox for changing the feed direction
- Guides are adjustable via tapered gibs
- Cast-iron bed, double v-guide, hardened and ground
3-axis position indicator
- More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
- 3-axis position indicator
- 3-jaw chuck 6"
- 4-jaw face plate chuck 8" (not for Basic 180 V)
- face plate 10"
- quick change tool holder WAD 1675
- quick change tool holder head WA
- steady and follow rests
- chip tray
- fixed splash guard (wall)
- chuck guard
- base
- change gears
- reducing sleeves
- dead center
- thread gauge
- operating tools
- operator instructions
Get Your Price from Blumberg Machinery Co!
