Description
Description

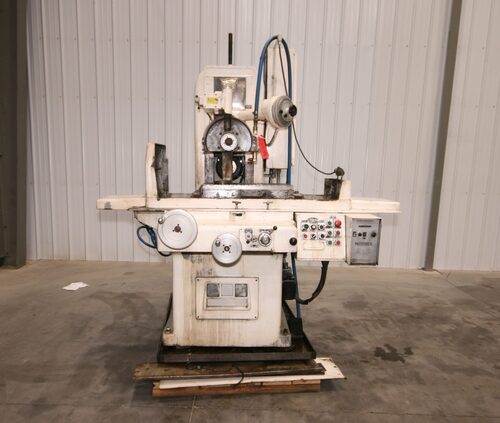

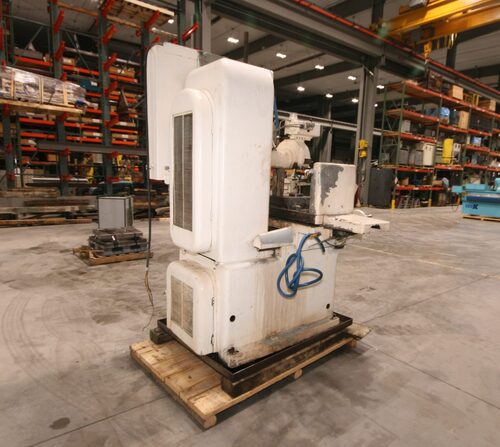

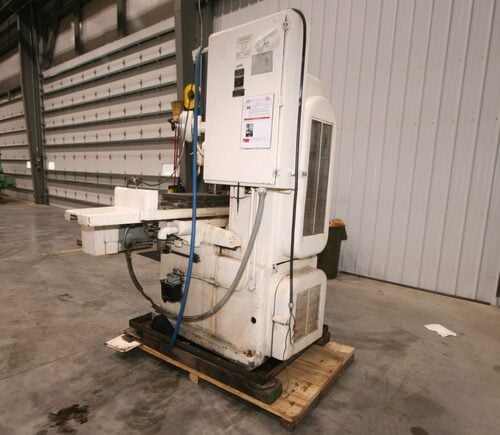

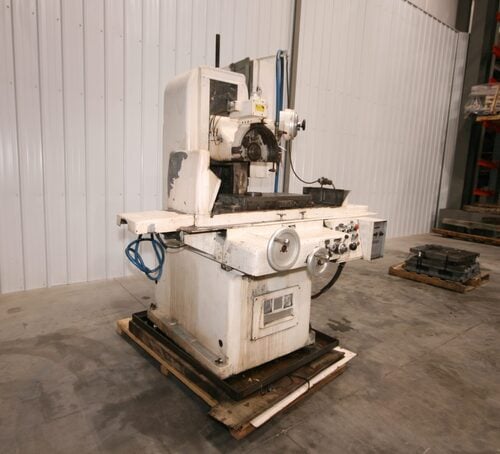

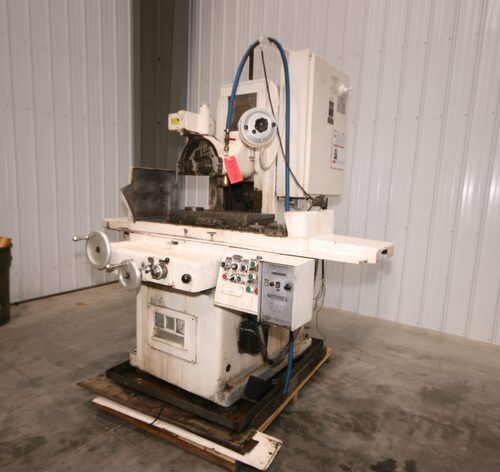

Gallmeyer & Livingston 12″ x 24″ Hydraulic Surface Grinder, Model 373
Serial # 373424 Asset # 13334
Specifications:
Working surface of table 12”x24” Longitude table speed 3” to 150 FPM Longitude-hydraulic table travel-max 29 ½” Transverse hydraulic table-max 13 ¼” Standard wheel size 12”x1”x3” Vertical movement of wheel head 19” Max distance wheel to table 15” Distance center of spindle to bottom of housing 2 ½” Standard spindle speeds 2000-2400 RPM Standard spindle motor (1750 RPM) 3 Hp Standard hydraulic pump motor (1200 RPM) 1 ½ Hp Approx floor space 73”x110” Approx weight 5200 lbs.
Grinder is equipped with incremental downfeed and Electromagnetic chuck control.
Preliminary Specifications – Subject to Verification
12" X 24" GALLMEYER… LIVINGSTON…"GRAND RAPIDS" "MADE IN USA" - BEAUTIFULLY MADE 3-AXIS AUTOMATIC PRECISION HYDRAULIC SURFACE GRINDER WITH EXTRA VERTICAL CAPACITY *** ENTIRELY ORIGINAL, VIRTUALLY UNUSED CONDITION FROM AN R… D SHOP - HOLY COW!! ** ...more
Inventory No. 0526-028-0002 Manufacturer Okamoto Model No. ACCUGAR-124N Name Hydraulic Surface Grinder Arrival Date 05-27-2026 Dimensions L x W x H (inches) 110 x 70 x 80 Capacity 12" X 24" Electrical 3/60/230/460 Weight (lb.) 4775 Category Machine Tools Condition Used Available Quantity 1 Item Electro Matic-magnetic ...more
Reciprocating surface grinder, used. Table: 12"x24", max load: 1200 lbs, spindle to table: 23.5", wheel: 14"x1.25", spindle speed: 1750 RPM, 5 HP, Walker electro-magnetic chuck, auto power down feed, and coolant system., Table Working Surface W x L. 12" x 24", Grinding Width Capacity Maximum. 12", Grinding Length ...more
12" x 24" Fine Line Electro-Magnetic Chuck with Controls. DX Pre Select Feeds. Cylce Selector. MPG Wheel Head Positioning. Over the Wheel Dresser. Coolant System with Magnetic Drum Filtration., Nominal Grinding Capacity 12" x 24", Maximum Height Under 12" Wheel 13.7", Table Speed, Infinitely Variable up to 82 FPM ...more
