Manufacturer: Gallmeyer & Livingston
Model: 373
Year: 2000
Width/Cross: 12.0
Length/Longit.: 24.0
Stock # 168894
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

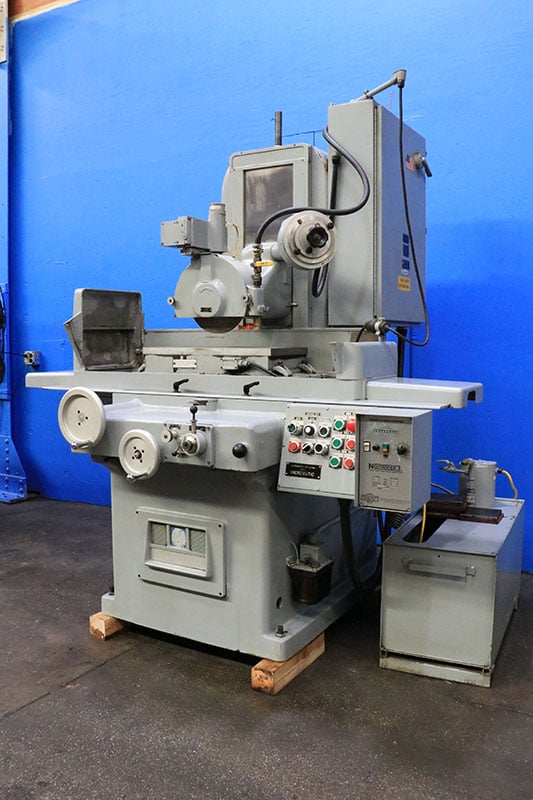

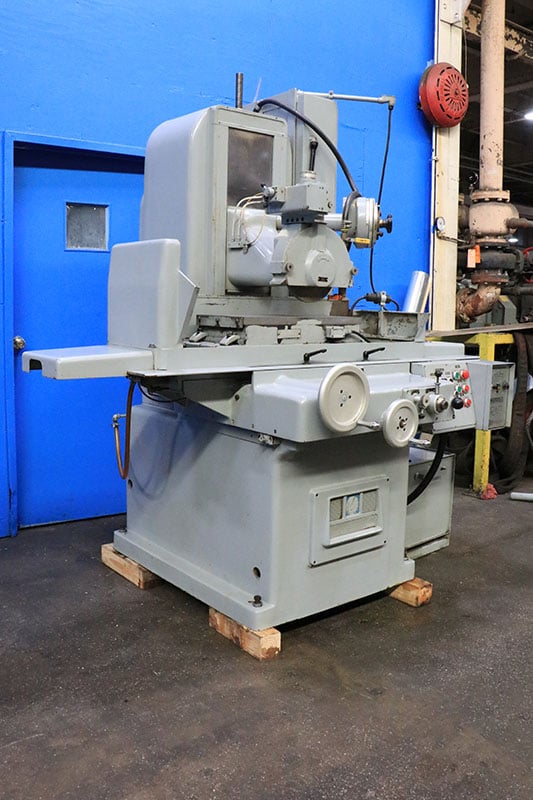

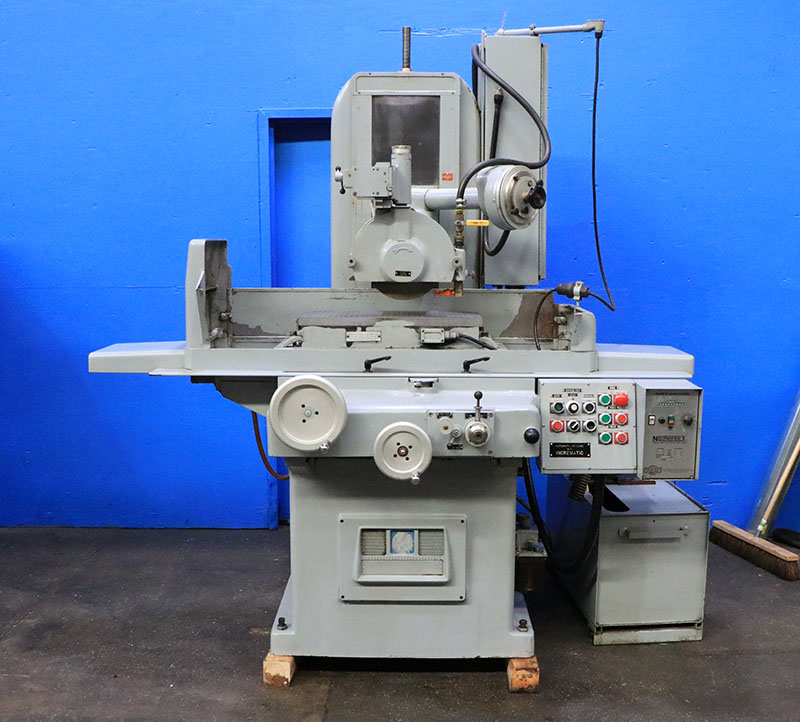

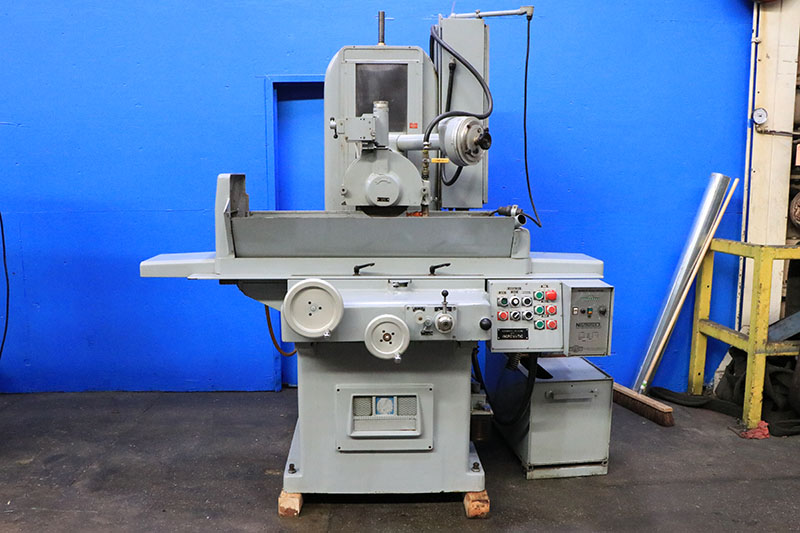

12" X 24" GALLMEYER… LIVINGSTON…"GRAND RAPIDS"
"MADE IN USA" - BEAUTIFULLY MADE
3-AXIS AUTOMATIC PRECISION HYDRAULIC SURFACE GRINDER
WITH EXTRA VERTICAL CAPACITY
*** ENTIRELY ORIGINAL, VIRTUALLY UNUSED CONDITION
FROM AN R… D SHOP - HOLY COW!! **
MODEL:″73… S/N:″73-489… NEW: 2000
WORKING SURFACE OF TABLE ................. 12" X 24"
HYDRAULIC TABLE TRAVEL, LONGITUDINAL…hellip;….... 29-1/2"
HYDRAULIC TABLE TRAVEL, CROSS ............ 13-1/4"
WHEEL SIZE ............................... 12" X 1" X″"
GRINDING WHEEL SPEEDS (2) ................ 2000… 2400 RPM
LONGITUDINAL TABLE SPEEDS ................″" - 150" IPM
AUTO CROSS FEED TO TABLE PER STROKE ...... 0.01" TO 1/2"
CONTINUOUS CROSS SPEED ................... 120" IPM
AUTO INCREMENTAL DOWNFEED INCREMENTS ..... 0.001" TO .0001"
MAX. TOTAL DOWNFEED FEED AMOUNT .......... 0.050"
VERTICAL MOVEMENT OF WHEELHEAD ........... 19"
MAXIMUM DISTANCE FROM WHEEL TO TABLE ..... 18"
APPROXIMATE FLOOR SPACE ............... 109"W x 73"D x 93"H
APPROXIMATE WEIGHT ....................... 5,700 LBS
EQUIPPED WITH:
EXTRA″" VERTICAL CAPACITY, HIGHER COLUMN, NOT A RISER BLOCK

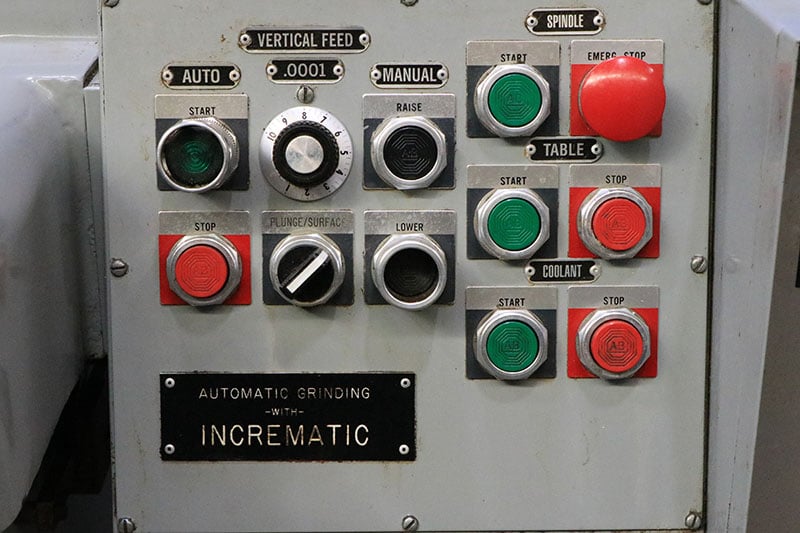

AUTOMATIC GRINDING WITH…"INCREMATIC" (SEE SCANNED LITERATURE)
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE& PLUNGE)
AUTO WHEEL RETRACTION @ COMPLETION OF GRIND CYCLE
AUTO TABLE LOAD POSITION
SPARKOUT TIMER ADJUSTABLE 0 TO 99 PASSES
HYDRAULIC LONGITUDINAL AND CROSS FEEDS
POWER RAPID WHEELHEAD POSITIONING
POWER RAPID CROSS POSITIONING
SADDLE LOCK
12" X 24"…"HEAVY HOLDING POWER" ELECTRO-MAGNETIC CHUCK

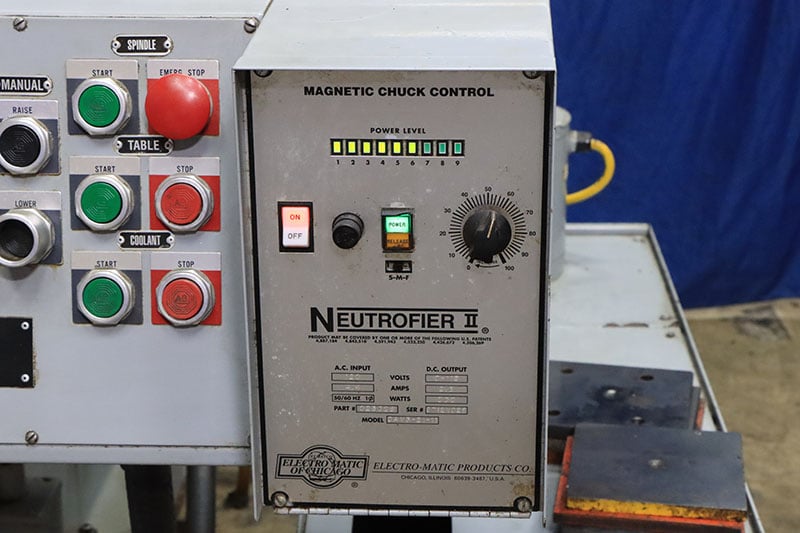

"ELECTRO-MATIC…"NEUTROFIER II" VARIABLE HOLD NEUTROFIER CONTROL,
300 WATT POWER SUPPLY
POWER OVER-THE-WHEEL DRESSER
COOLANT SYSTEM W/TANK/PUMP/SPLASH GUARDS
WORK LIGHT
SELF-CONTAINED HYDRAULIC SYSTEM MOTOR
3 HP″/60/230-460 VOLT SPINDLE DRIVE
MACHINE IS PRESENTLY WIRED FOR″/60/460 VOLTS
LINK TO VIDEO: https://youtu.be/ifMkwLCPJ8o?si=yDbijsYMMocLa9y7
** ABSOLUTELY BEAUTIFUL - SUPERIOR CONDITION… APPEARANCE… **
** - ORIGINAL PAINT - INCREDIBLY LOW USEAGE!!**
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
