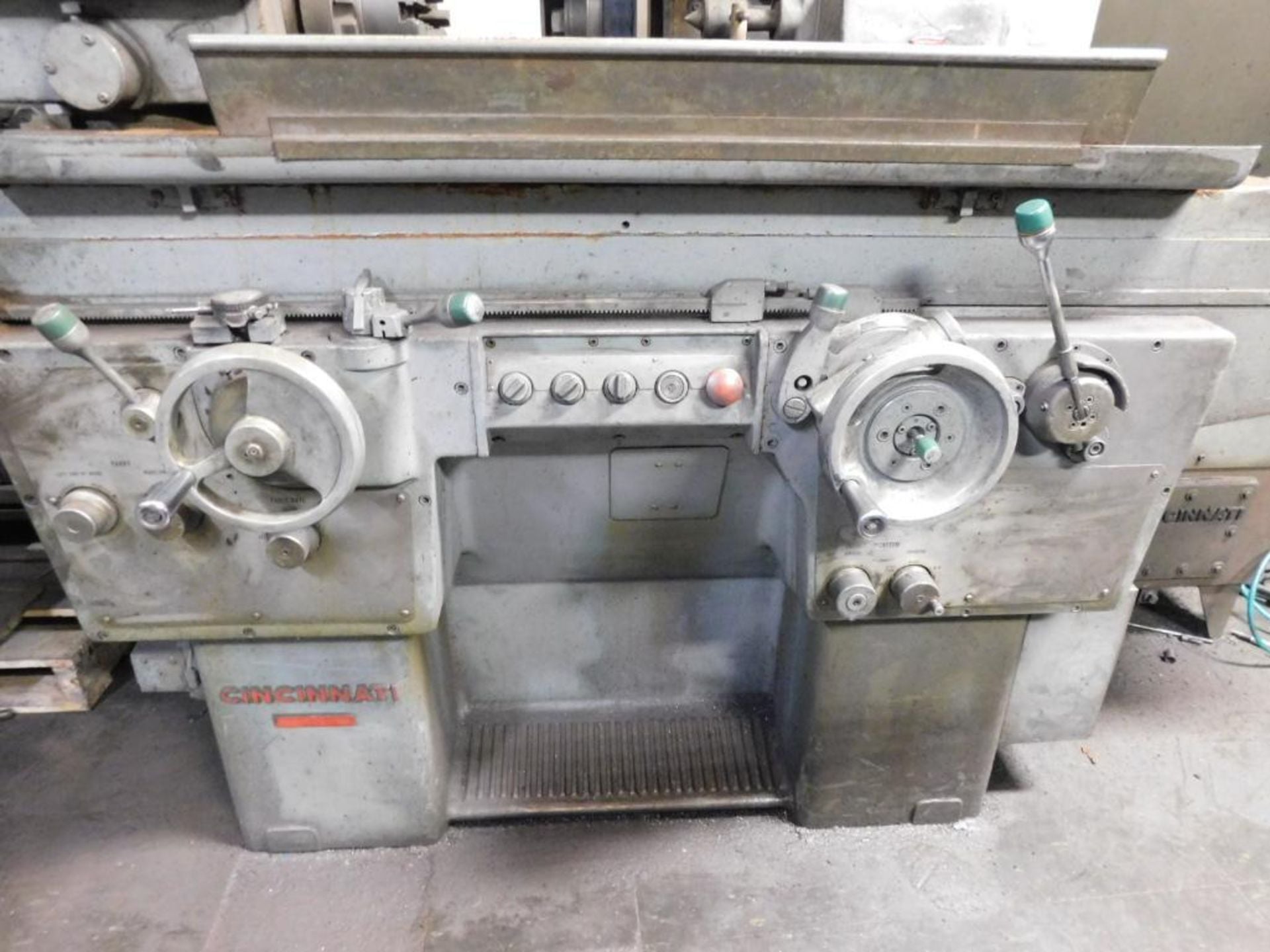

12" x 24" Cincinnati Milacron #DH, internal attach, tailstock, wheel dresser, 3-jaw chuck, pickfeed

$8,950 USD

Request Formal Quote

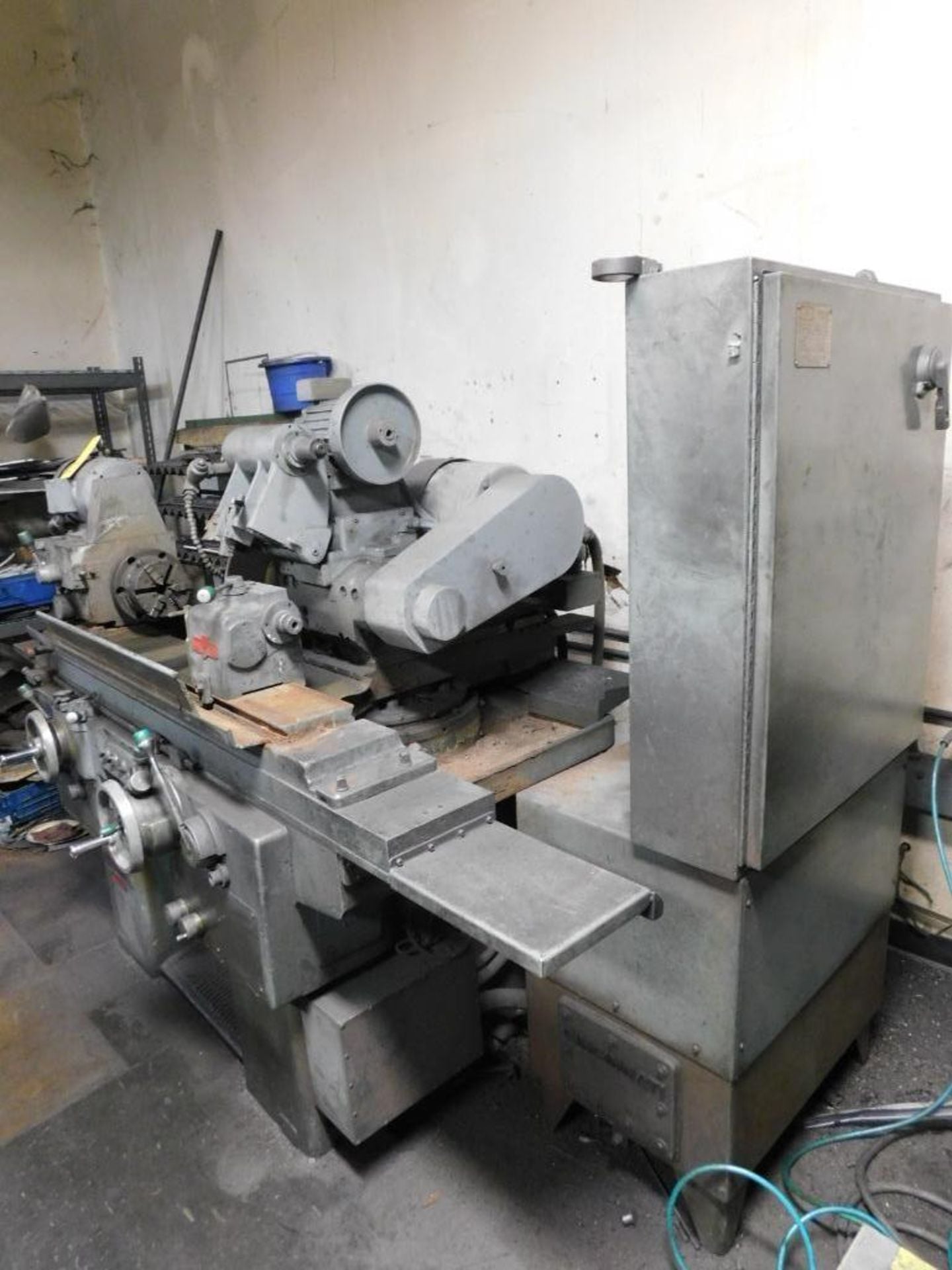

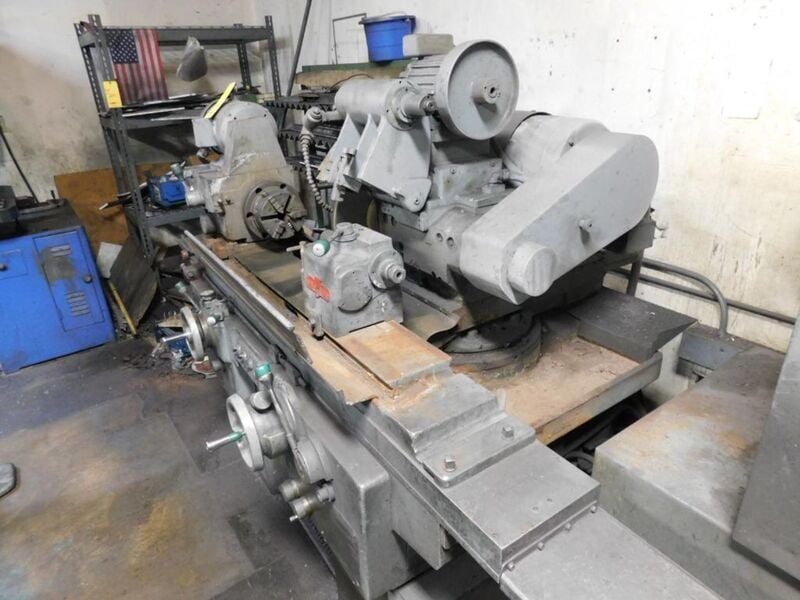

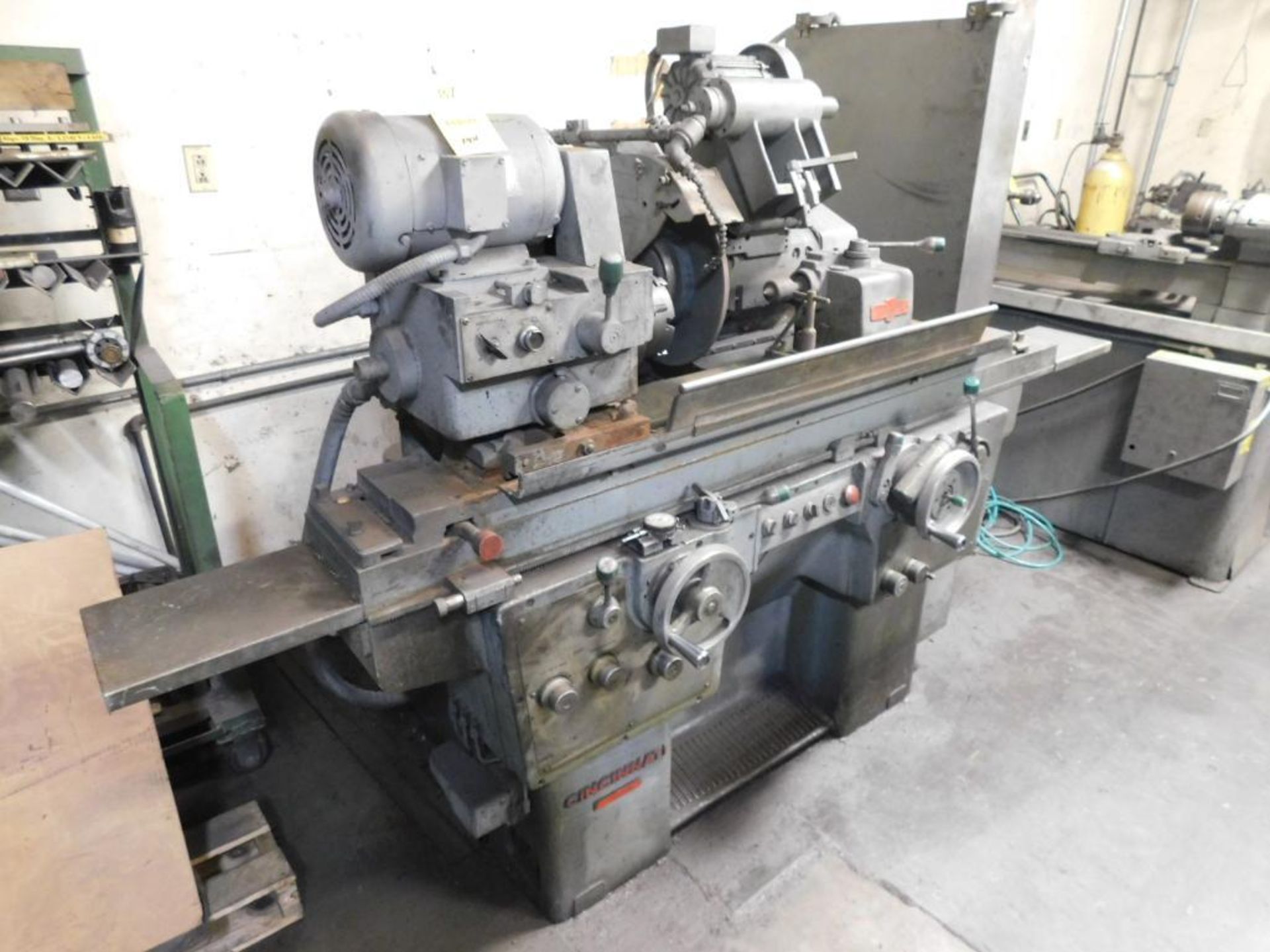

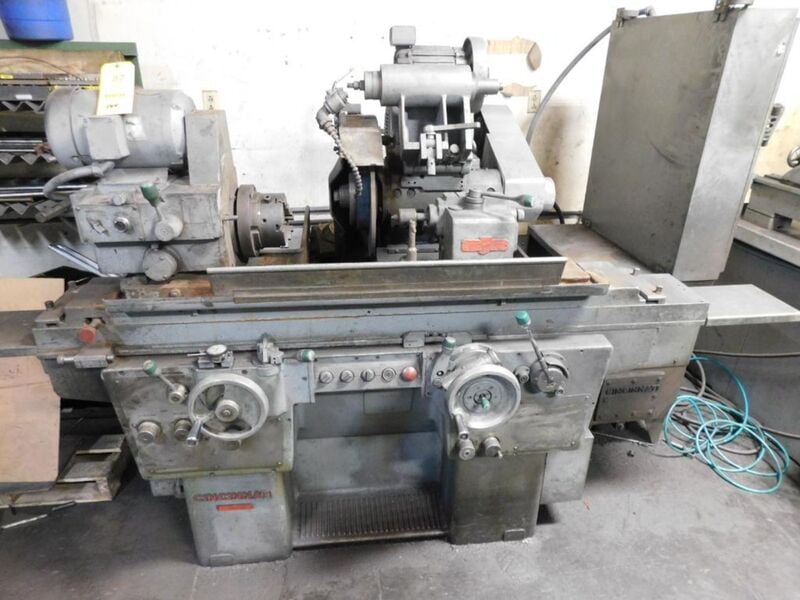

10" X 24" CINCINNATI-MILACRON UNIVERSAL
CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No. 35252B5T-0047, Model DH
10" X 24" CINCINNATI-MILACRON UNIVERSAL
CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No. 35252B5T-0047, Model DH
EQUIPPED WITH:

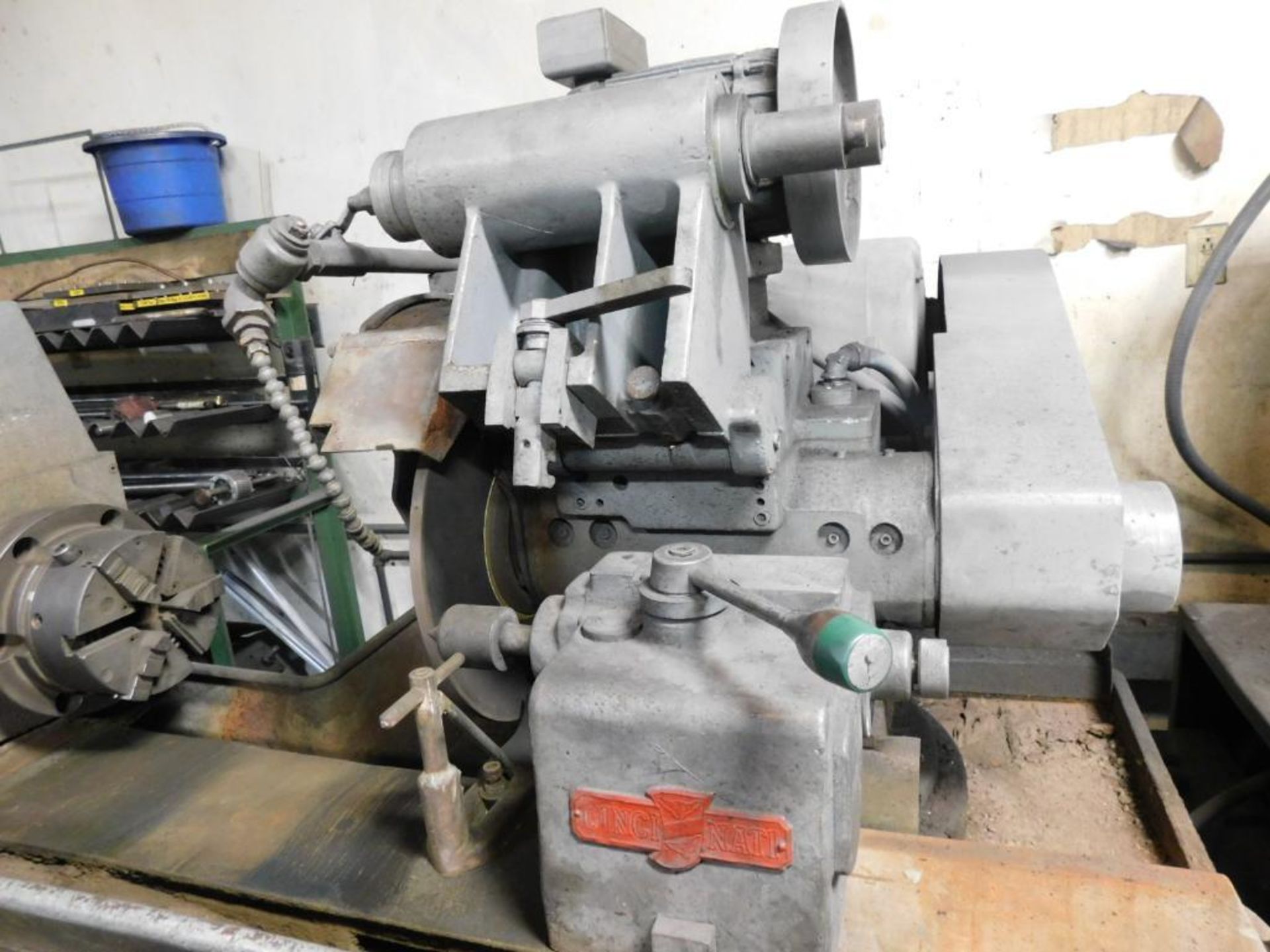

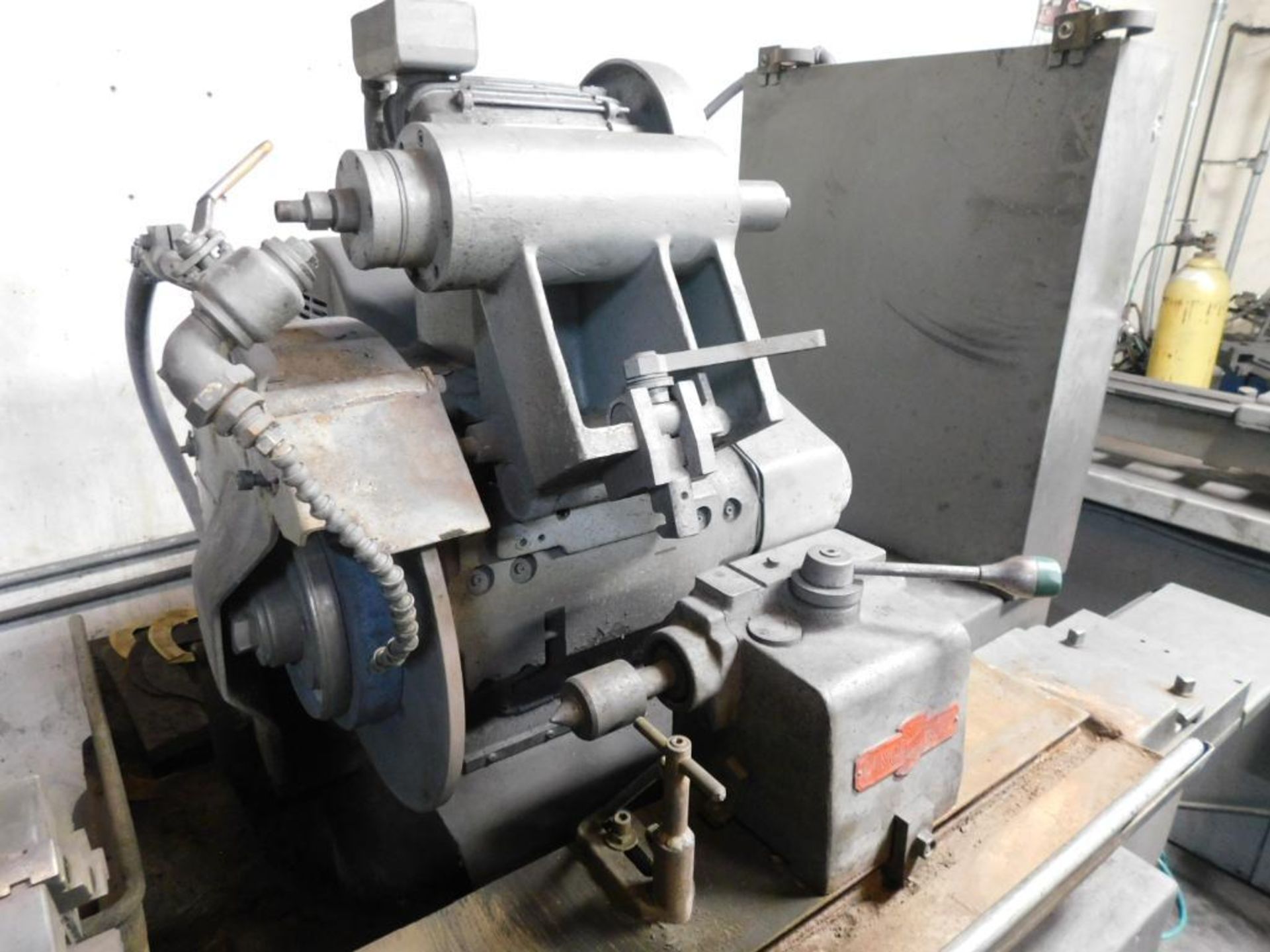

Swing Down Internal Grinding Spindle

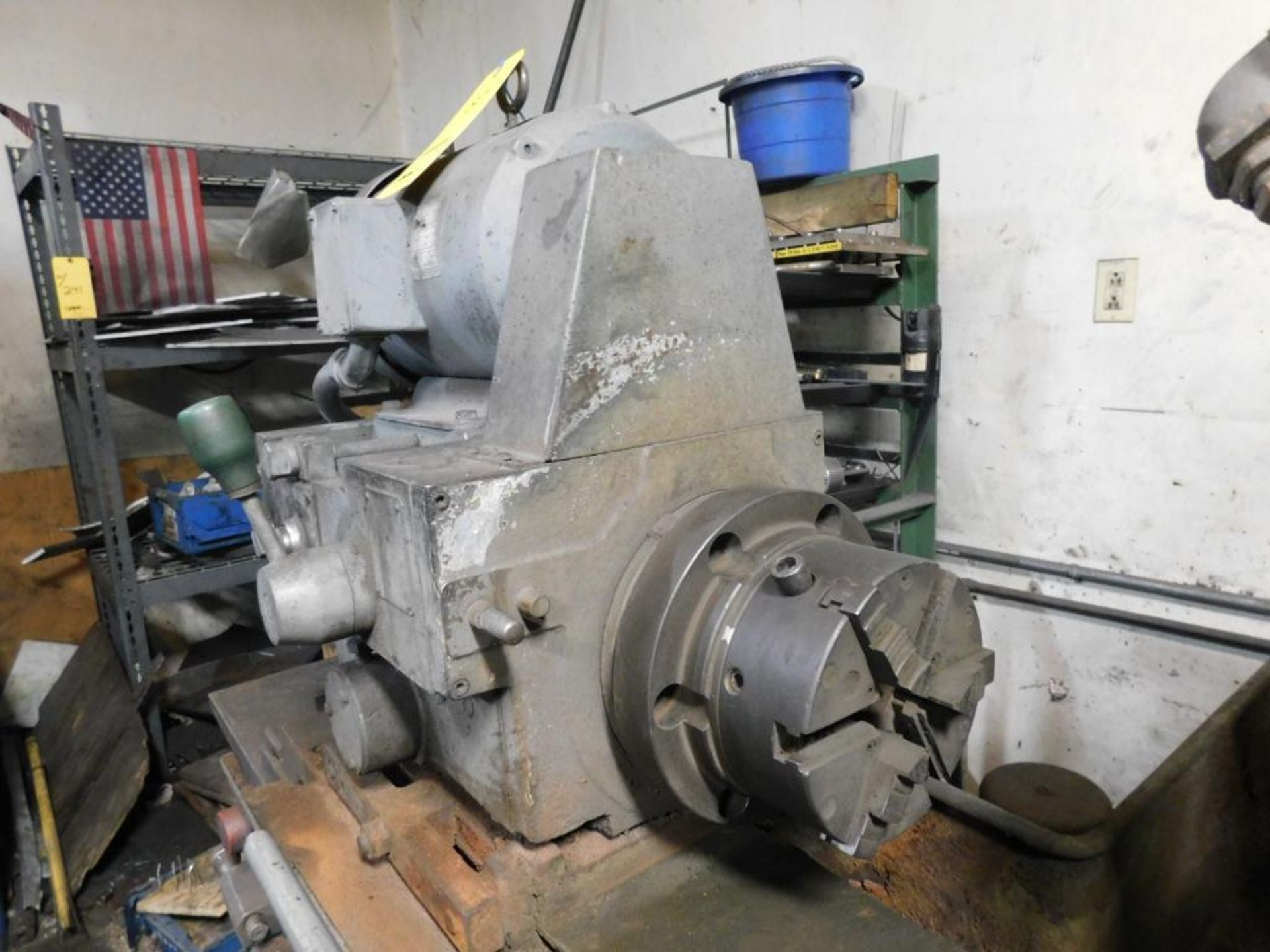

Universal Headstock w/Live & Dead Spindle Selection
Tailstock - Table Mounted Wheel Dresser
Pickfeed - 6" 3-Jaw Chuck w/Jaws
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum .......... 10"
Grinding Diameter, w/Full Wheel .......... 10-15/16"
Distance Between Centers, Maximum .......... 24"
Grinding Wheel, Standard Diameter .......... 12"
Grinding Wheel, Minimum Diameter .......... 10"
Grinding Wheel, Hole .......... 5"
Headstock Swivel Toward Wheelhead .......... 90-DEGREES
Headstock Swivel Angle Away Wheelhead .......... 30-DEGREES
Lower Grinding Wheelhead Swivel Range .......... 110-DEGREES
Upper Grinding Wheelhead
Swivel Range, Right .......... 90-DEGREES
Swivel Range, Left .......... 30-DEGREES
Workhead & Tailstock Center Tapers .......... #7 JARNO
12" Grinding Wheel Speed .......... 2060 RPM
10" Grinding Wheel Speed .......... 2480 RPM
Workhead Spindle Speeds, Infinite .......... 50 to 600 RPM
Table Longitudinal Feeds, Infinite .......... 3 to 220 IPM
Grinding Wheelhead Spindle Motor .......... 3 HP
Internal Grinding Spindle Motor .......... 1 HP
Workhead Motor, Horsepower .......... 3/4 HP AC
Electrical System .......... 230-460/3/60
Floor Space Required, L x D .......... 10'9" x 5'3"
Weight, Approximately .......... 5700 LBS
F.O.B. OUR WAREHOUSE
Swing Over Table, Maximum: 10"
Grinding Diameter, w/Full Wheel: 10-15/16"
Distance Between Centers, Maximum: 24"
Grinding Wheel, Standard Diameter: 12"
Grinding Wheel, Minimum Diameter: 10"
Grinding Wheel, Hole: 5"
Headstock Swivel Toward Wheelhead: 90-DEGREES
Swivel Range, Right: 90-DEGREES
Swivel Range, Left: 30-DEGREES
12" Grinding Wheel Speed: 2060 RPM
10" Grinding Wheel Speed: 2480 RPM
Workhead Spindle Speeds, Infinite: 50 to 600 RPM
Table Longitudinal Feeds, Infinite: 3 to 220 IPM
Grinding Wheelhead Spindle Motor: 3 HP
Internal Grinding Spindle Motor: 1 HP
Workhead Motor, Horsepower: 3/4 HP AC
Electrical System: 230-460/3/60
Weight, Approximately: 5700 LBS
