For Sale by Turners Machinery Inc
Surplus Record Dealer Since 1980
Location: Santa Paula, CA
Contact Al Van Wagner
Phone Number: 805...> Show Phone Number 805-525-2171
Let the seller know you found their listing on Surplus Record!
$11,500 USD
Finance for as low as $233/mth
Description

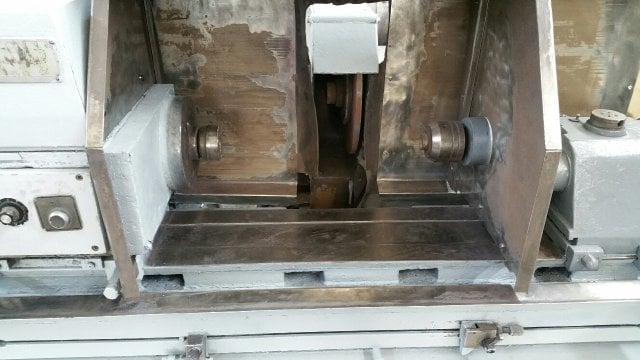

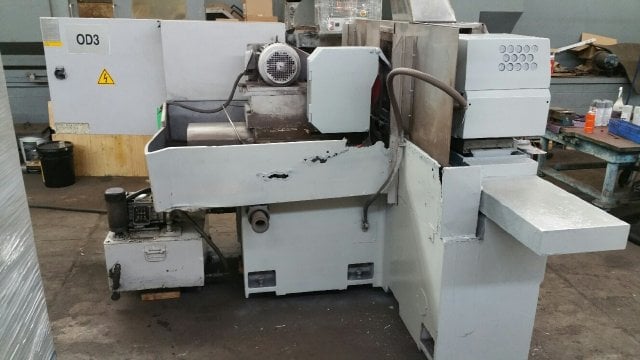

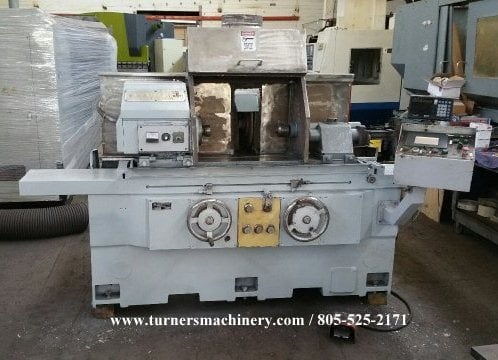

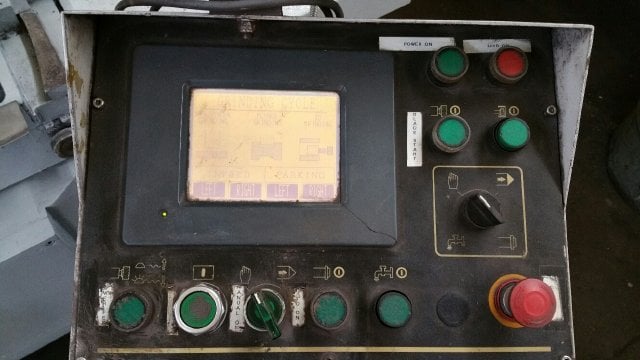

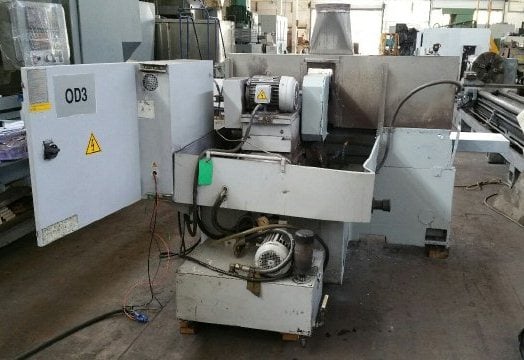

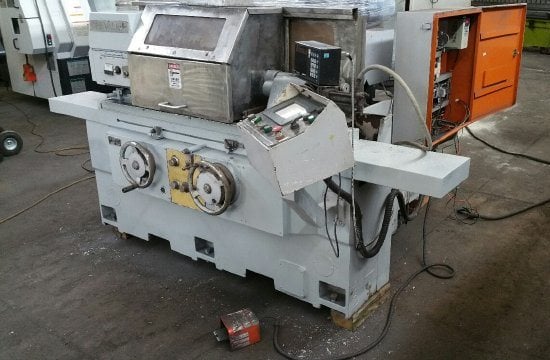

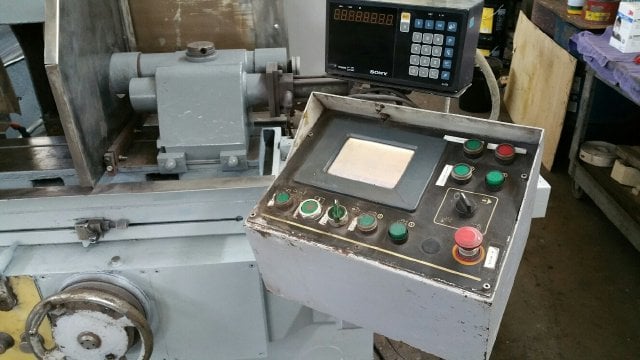

12" x 24", CHEVALIER, No. CG-1224-A CYLINDRICAL GRINDER
MAKE: CHEVALIER MDL: CG-1224-AS/N: GF-30005SWING OVER BED: 12.59"CENTERS: 24"SPINDLE SPEED: 350 RPMSWIVEL HEAD: 90 DEGREESSPINDLE CENTER: MT4TABLE SPEED: 2-155 RPMTABLE HANDWHEEL, PER REVOLUTION: 0.5"TABLE SWIVEL ANGLE: 9 DEGREESTABLE MINIMUM TRAVERSE LENGTH: 0.03"GRINDING WHEEL SIZE: 16" X 2" X 5"GRINDING WHEEL SPEED: 1650 RPMMAXIMUM PERIPHERY SPEED: 6480 FPMMAXIMUM INFEED TRAVEL: 9.64"RAPID ADVANCE & RETRACT MAX TRAVEL: 1.77"MAXIMUM GRINDING WHEEL TRAVEL: 7.87"WHEELHEAD MAXIMUM SWIVEL: 30 DEGREESINFEED HANDWHEEL PER REVOLUTION: DIA. 0.1"INFEED HANDWHEEL PER GRADUATION: DAI. 0.0005"QUILL TRAVEL: 1"WHEELHEAD MOTOR: 5HPWORKHEAD MOTOR: 2HPHYDRAULIC MOTOR: 2HPCOOLANT PUMP MOTOR: 1/4HPRATED POWER: 10HP***MISSING COOLANT PUMPMACHINE DIMENSIONS: 97"L, X 73"W, X 75"HAPPROX WEIGHT: 6600 LBSPRICE: $11500.00SPECIFICATION SHOWN ABOVE ARE TO BE USEDAS A GUIDELINE ONLY. IT IS THE CUSTOMERSREPONSIBLITY TO CHECK SIZES AND FEATURESBEFORE PURCHASING. WE WILL NOT BE RESPONSIBLE FOR ERROR OR OMISSIONS.
MAKE: CHEVALIER MDL: CG-1224-AS/N: GF-30005SWING OVER BED: 12.59"CENTERS: 24"SPINDLE SPEED: 350 RPMSWIVEL HEAD: 90 DEGREESSPINDLE CENTER: MT4TABLE SPEED: 2-155 RPMTABLE HANDWHEEL, PER REVOLUTION: 0.5"TABLE SWIVEL ANGLE: 9 DEGREESTABLE MINIMUM TRAVERSE LENGTH: 0.03"GRINDING WHEEL SIZE: 16" X 2" X 5"GRINDING WHEEL SPEED: 1650 RPMMAXIMUM PERIPHERY SPEED: 6480 FPMMAXIMUM INFEED TRAVEL: 9.64"RAPID ADVANCE & RETRACT MAX TRAVEL: 1.77"MAXIMUM GRINDING WHEEL TRAVEL: 7.87"WHEELHEAD MAXIMUM SWIVEL: 30 DEGREESINFEED HANDWHEEL PER REVOLUTION: DIA. 0.1"INFEED HANDWHEEL PER GRADUATION: DAI. 0.0005"QUILL TRAVEL: 1"WHEELHEAD MOTOR: 5HPWORKHEAD MOTOR: 2HPHYDRAULIC MOTOR: 2HPCOOLANT PUMP MOTOR: 1/4HPRATED POWER: 10HP***MISSING COOLANT PUMPMACHINE DIMENSIONS: 97"L, X 73"W, X 75"HAPPROX WEIGHT: 6600 LBSPRICE: $11500.00SPECIFICATION SHOWN ABOVE ARE TO BE USEDAS A GUIDELINE ONLY. IT IS THE CUSTOMERSREPONSIBLITY TO CHECK SIZES AND FEATURESBEFORE PURCHASING. WE WILL NOT BE RESPONSIBLE FOR ERROR OR OMISSIONS.
Inquire Further with Turners Machinery Inc!
