Description

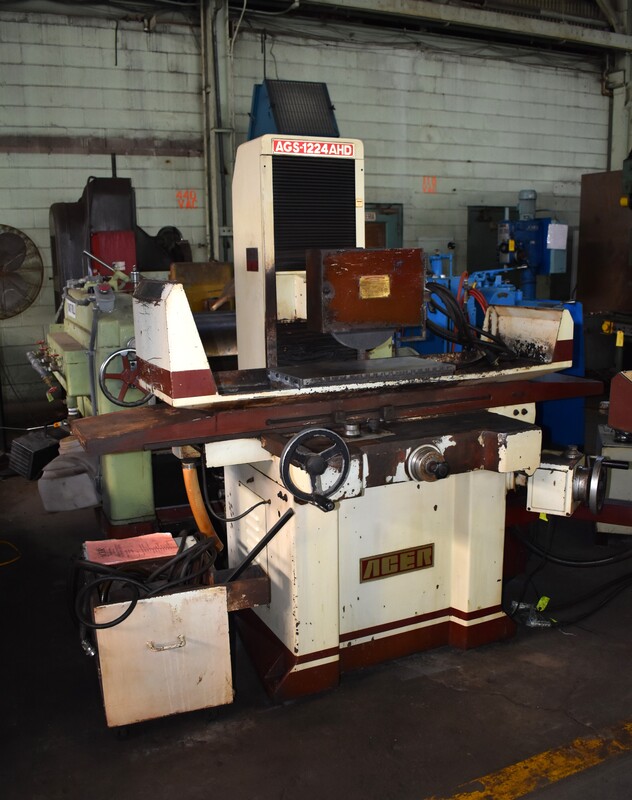

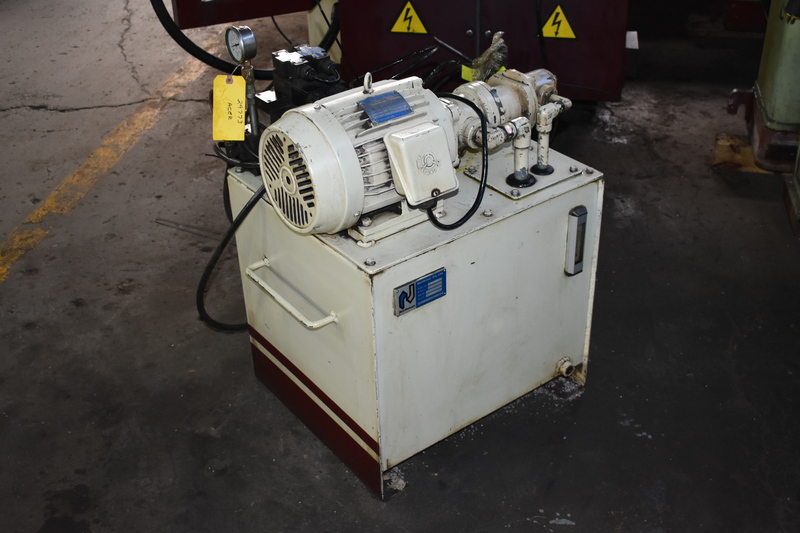

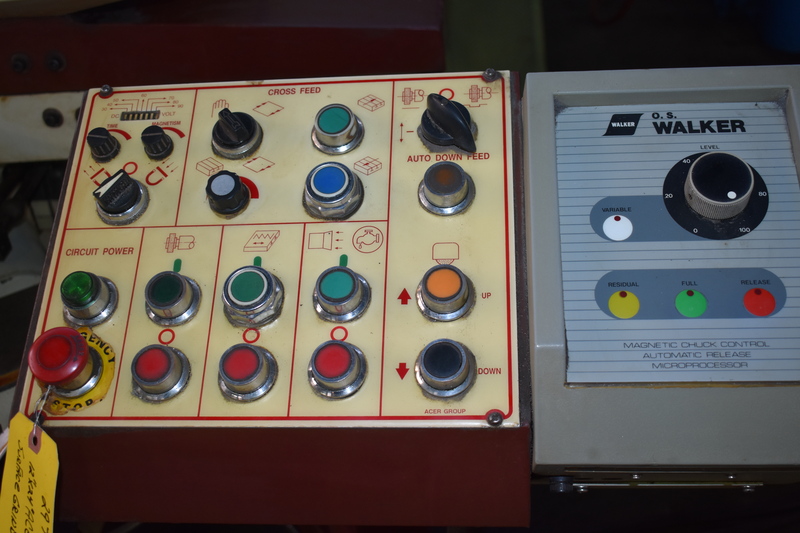

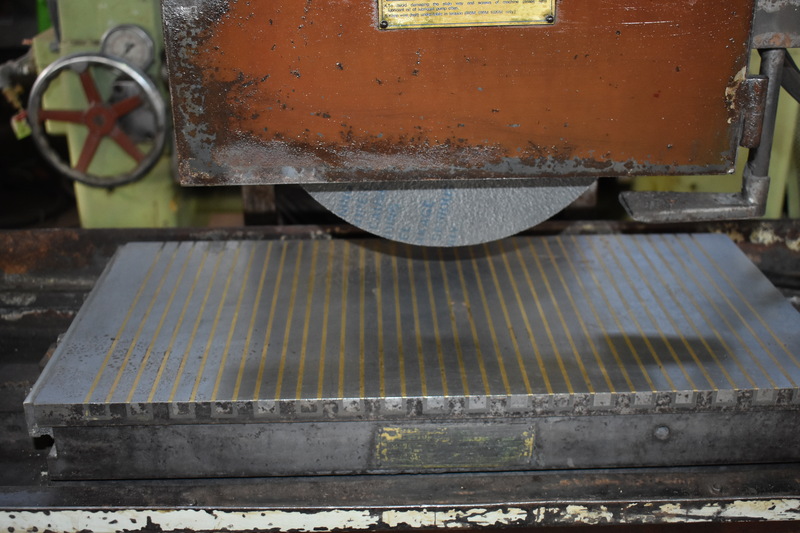

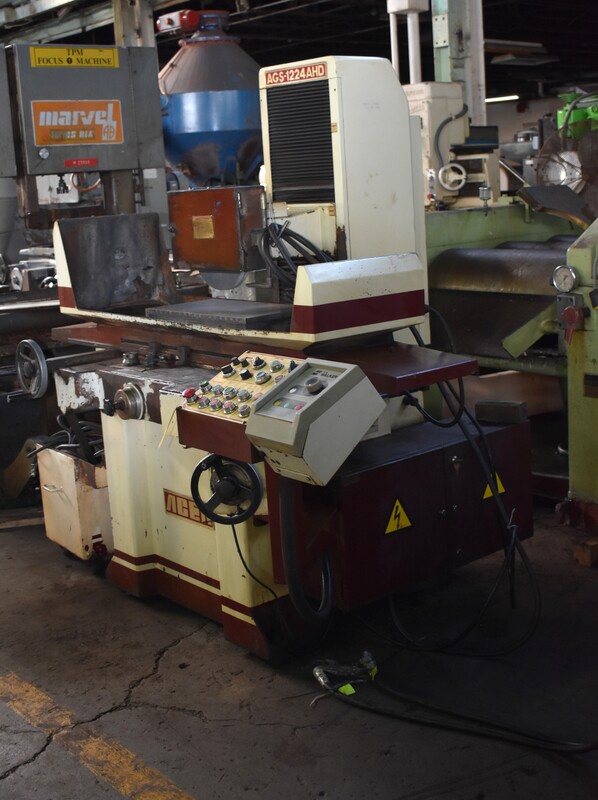

12" x 24" ACER AUTOMATIC HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER Serial No 97070737, Model AGS-1224AHD, 12" x 24" ACER AUTOMATIC HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER Serial No 97070737, Model AGS-1224AHD, EQUIPPED WITH: Walker Electro-Magnetic Chuck & Controls Automatic Power Down Feed Coolant System (Tank & Pump) CATALOG SPECIFICATIONS: Table Working Surface W x L .......... 12" x 24" Grinding Width Capacity Maximum .......... 12" Grinding Length Capacity Maximum .......... 24" Height Spindle Center to Table Maximum .......... 23-1/2" Table Load Capacity .......... 1200 LBS Table Longitudinal, Power .......... 24-1/2" Table Cross Travel .......... 14" Grinding Wheel Diameter Standard .......... 14" Grinding Wheel Width Standard .......... 1.25" Grinding Wheel Hole Diameter .......... 5" Grinding Spindle Speed .......... 1750 RPM Table Longitudinal Feeds Range .......... 16 to 80 FPM Crossfeed Travel Feeds Automatic .......... 0 to 1" Spindle Auto Downfeed Range .......... .0001 to .01 IPR Spindle Horsepower .......... 5 HP Hydraulic Motor Horsepower .......... 2 HP Floor Space Required .......... 5'6" x 6' Weight, Approximately .......... 4840 LBS F.O.B. OUR WAREHOUSE
Reciprocating surface grinder, used. Table: 12"x24", max load: 1200 lbs, spindle to table: 23.5", wheel: 14"x1.25", spindle speed: 1750 RPM, 5 HP, Walker electro-magnetic chuck, auto power down feed, and coolant system., Table Working Surface W x L. 12" x 24", Grinding Width Capacity Maximum. 12", Grinding Length ...more
Explore precision with the used ACER AGS-1224AHD automatic surface grinder. Featuring an 11" x 23" table and a horizontal spindle with a 5 HP motor, it is a 1.25" wide, 14" diameter grinding wheel for efficient operations., Table-W 11" 279.4 mm Table-L 23" 584.2 mm Horz/Vert Horz Horz Power 5 hp 3.7 kW ...more
