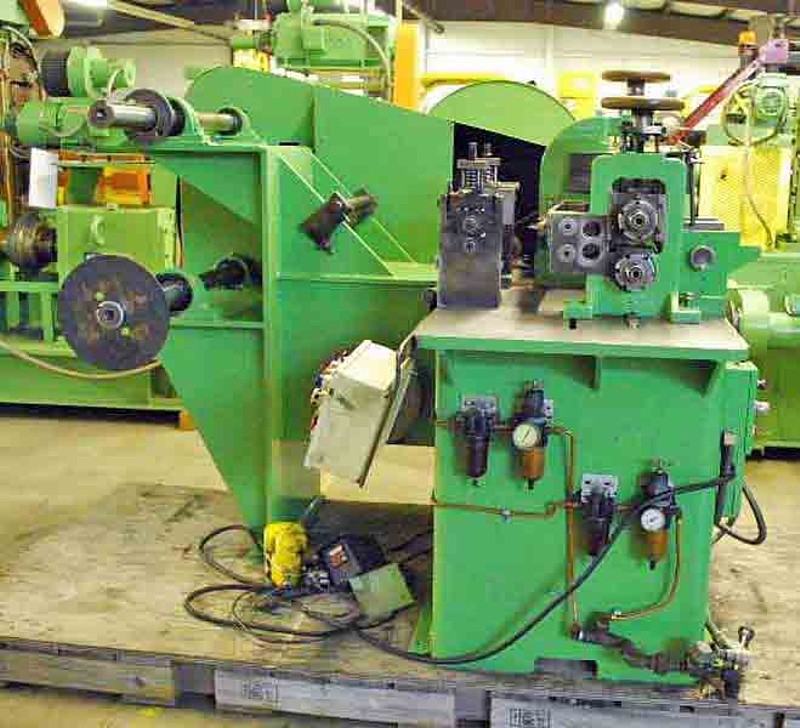

12" x 2.5" Ruesch #76, slitting line, 1000 lb., scrap winder, dual recoilers

-Ruesch Model Number: 76 (N1966)
-Type Slitter: Pull Through, Finger Set-Up
-Line Direction: Right to Left

Material:
Type: Beryllium Copper, High Carbon and Stainless Steel
Width: 2" to 12" (50mm - 305mm)
Thickness: Per Original Specs: 0.001" - 0.020" (0.025mm - 0.508mm)
As Used: 0.003" - 0.025" (0.076mm - 0.625mm)
No. of Cuts (approx.): 0.003" - 11 Cuts
0.025" - 9 Cuts
Coil Size:
Minimum I.D.: 6" (152mm)
Maximum O.D.: 16" (406mm) Approx.
Max. Coil Weight: Per Original Specs: 600 lbs. (270 KG)
As Used: 1,000 lbs. (450 KG)

Consisting of the following:

-Note: Payoff to be supplied by the purchaser

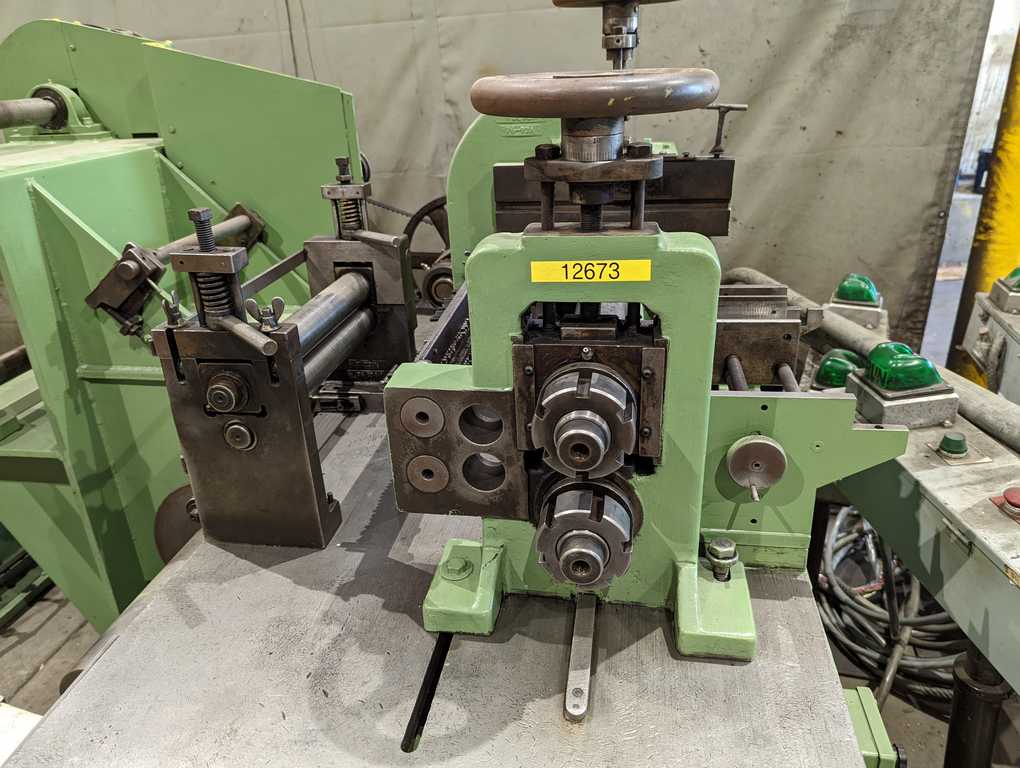

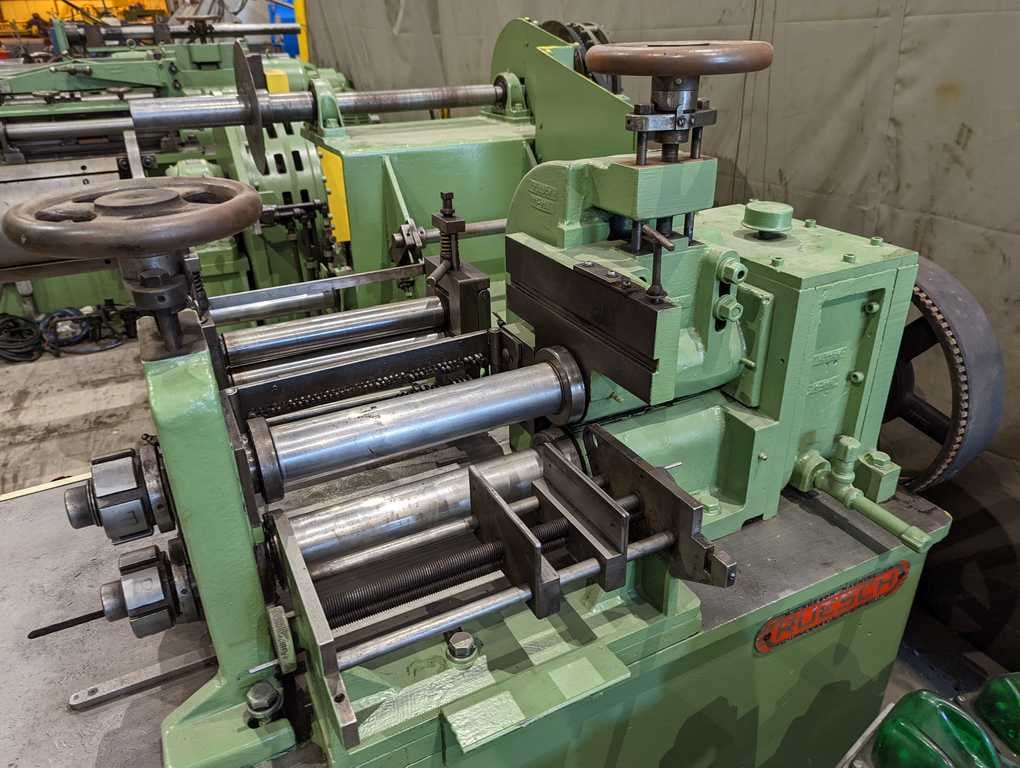

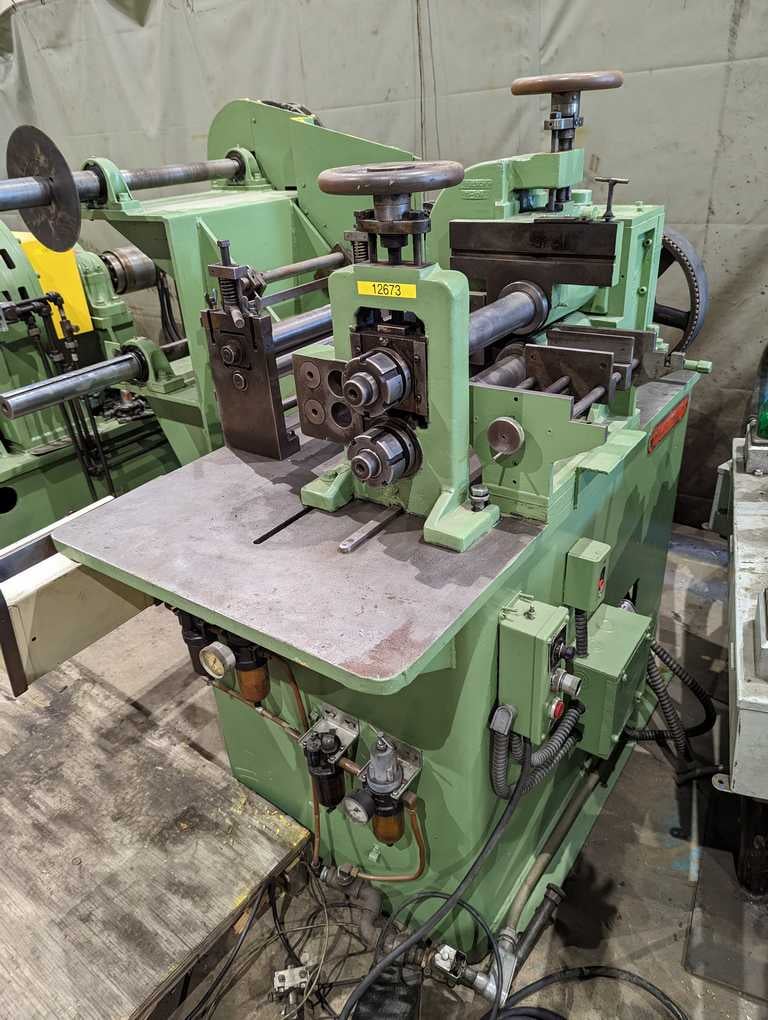

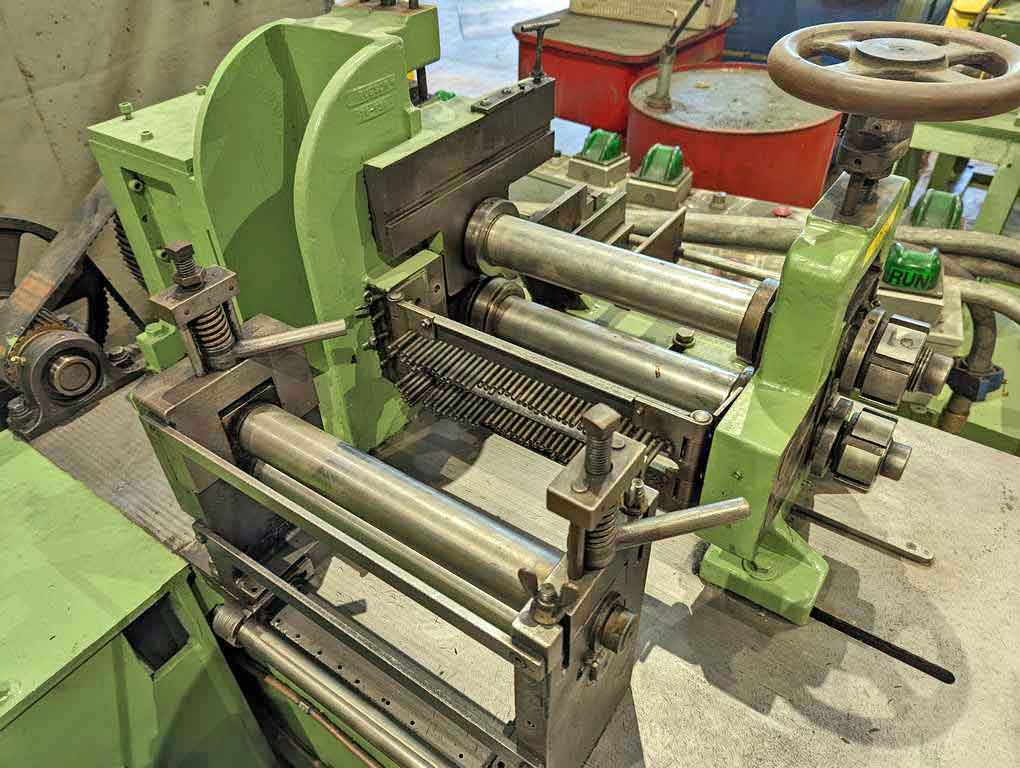

-Slitter Head:
Arbor Size: 2.50" (63.5mm) Dia. x 13" (330mm) Face Width
Knife Diameter: 5.50" (140mm) Max.
Spacer Diameter: 3.750" (94mm)
Slitting Speed: 0 - 250 FPM (0 - 76M/Min.)
Number of Cuts: 15 in 0.020" (0.050mm) Thick Material @ 250 FPM (76M/Min.)
Maximum Stock Width: 12" (305mm)
Passline Height: 41" (1041mm) Approx.
Entry Side Guides: Manual Adjustment
Slitter Housing: Ruesch 76-93A

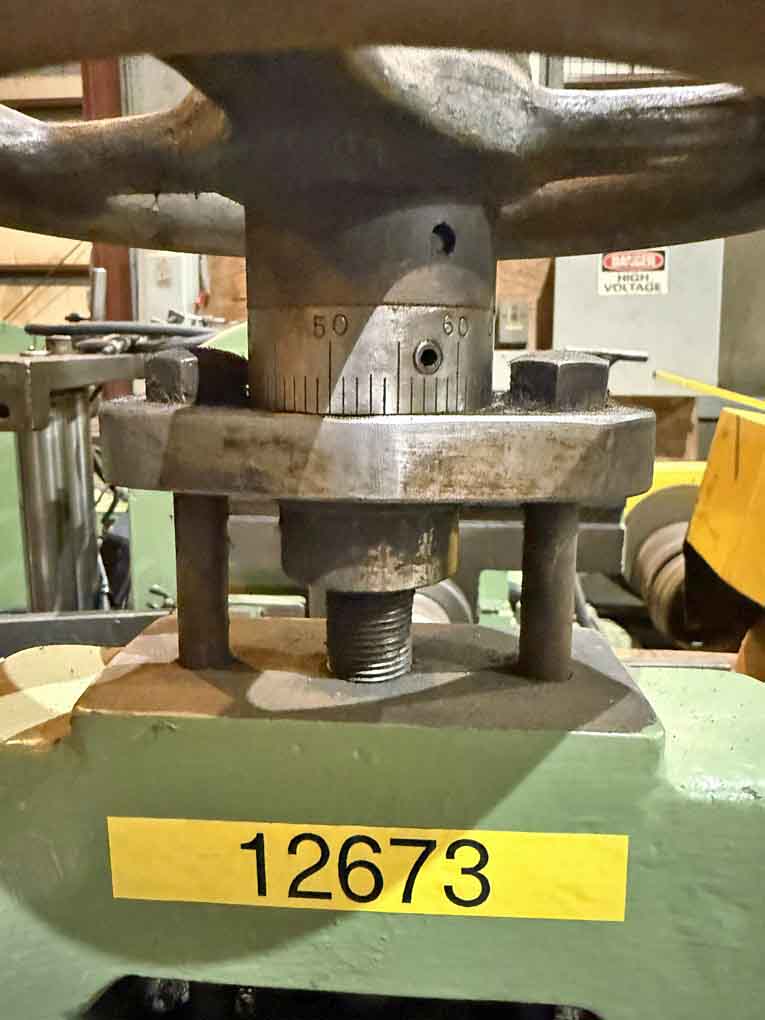

Dual Handwheels for Top Arbor Adjustment, w/Scales
Wooden Fingers
Finger Stabilizer: Screw Type
Digital Counter: Red Lion
Drive Motor: 7.50 HP, 1745 RPM, 440 V., 3 PH, 60 HZ, Variable Speed
With Eaton Dynamatic Adjustospeed Drive
Exit Burr Masher: 2" (50mm) Dia. x 13" (330mm) Width

-Scrap Winder:
Drum Diameter: 5.50" (140mm)
Drum Width: 14.50" (368mm)
Driven from Main Drive

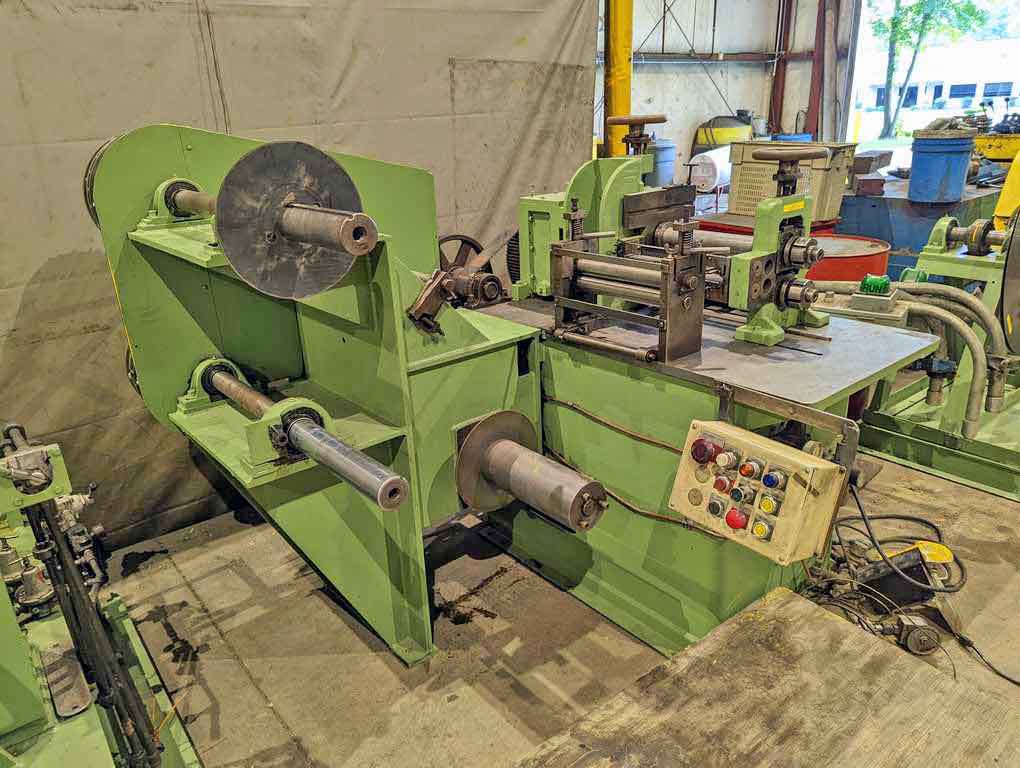

-Recoiler:
Quantity: 2
Shaft Diameter: 2.875" (71.12mm)
Shaft Width: 16" (406mm)
Chain Driven from Main Drive

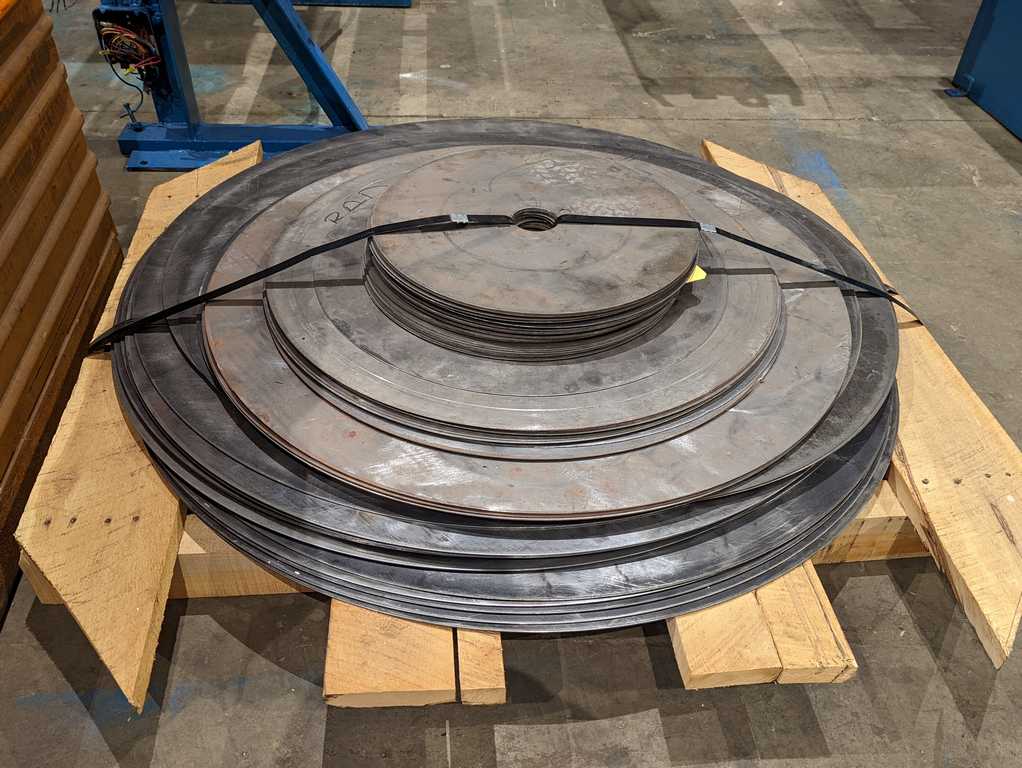

Uses Separator Disks

-Overall Size: 77" L x 73" W x 59" High

-Approx. Weight of Machine: 2,200 lbs. (1000 KG)

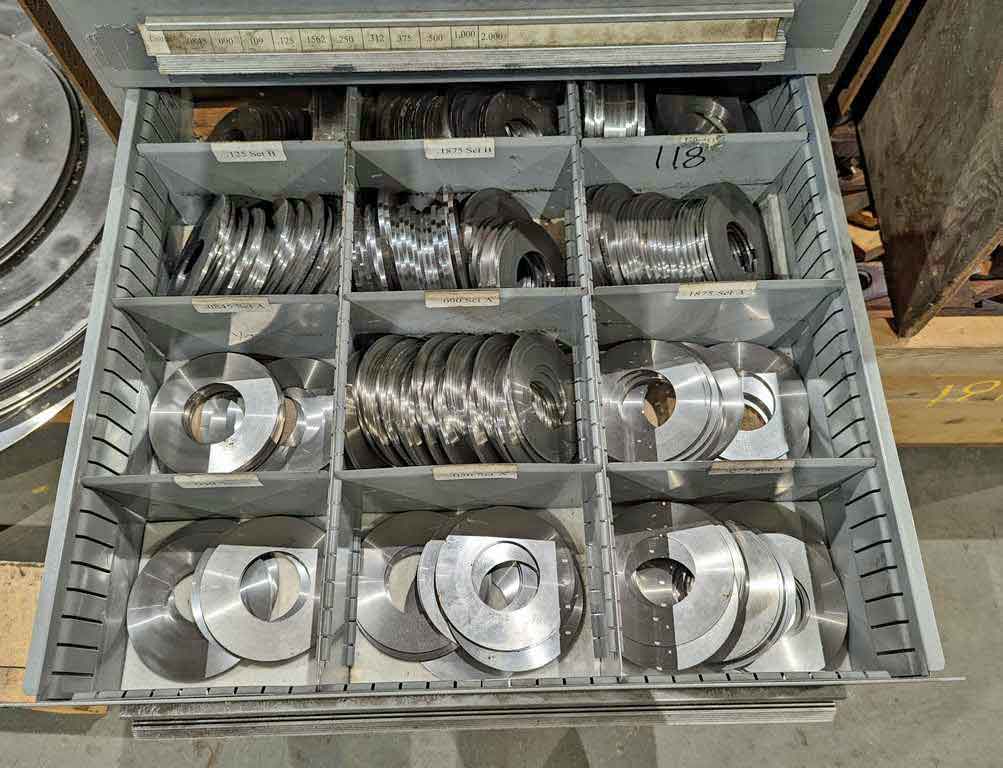

-Large Quantity of Tooling Available

-In Storage: Toledo, OH
