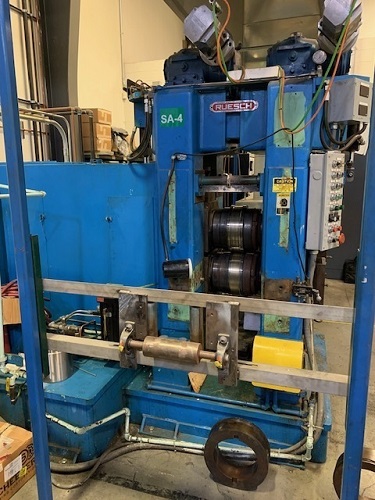

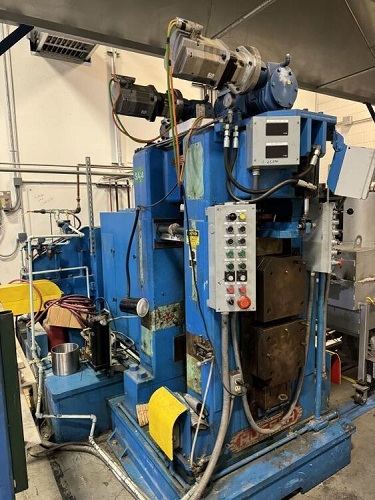

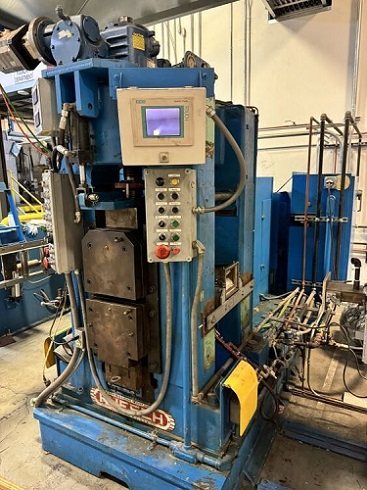

12" x 12" Ruesch, 2Hi Reversing Rolling Mill, variable speed, 80 FPM, 230/460 V.

Specifications:
Manufacturer: Ruesch

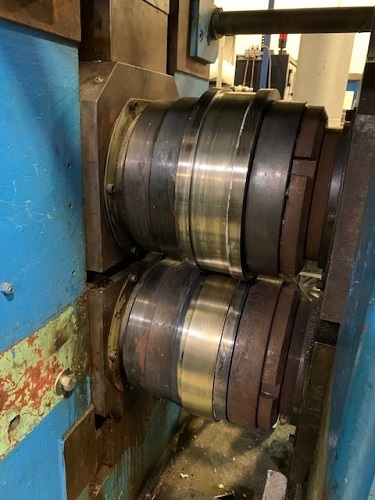

Roll Size: 12” Dia. x 12” Face
Roll Bearings: Roller Bearing
Screwdowns: Electro-Mechanical
Maximum Roll Opening: 4.25”
Mill Stand Cross Section: 9” x 10”
Window Width: 13-1/4” x 41” High
Direction Of Travel: Right To Left If Used As Cladding Mill. Reversing Capability As Stand-Alone

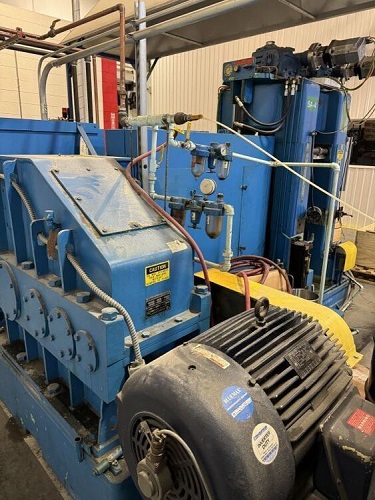

Mill Stand Drive Motor: 50 HP, 230/460 Volts, 1750 RPM, 3 Phase, 60 Hz Variable Speed
Gear Box: Horsburgh & Scott Ratio 137.45 To 1
Mill Speed: 0 to 80 FPM

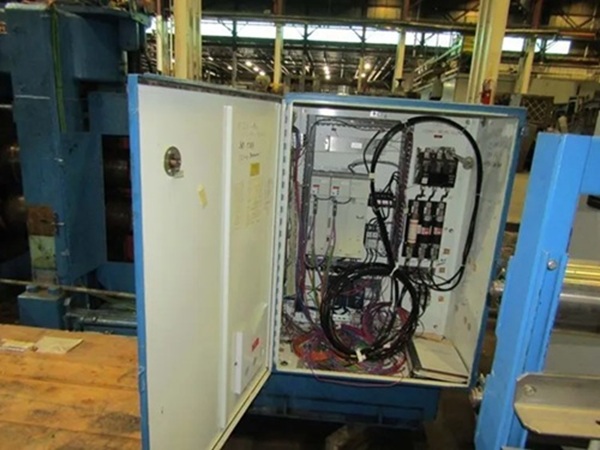

A.C. Variable Speed Drive: Parker A.C. Integrator 690+ Series With HTTL Encoder
Payoff: Buyer Must Supply
Rolling Mill: As Per Specs Above
Winder:
Entry Strip Side Guides
Pneumatic Strip Hold-Down Rolls
Winder Mandrel: 2-1/2” Diameter x 9” Wide
Variable Speed Controls
No. Of Rolls:
Flat Rolls: 1 Spare Set
Shell Rolls: 1 Set In Mill
Floor Space:
Mill Stand Alone: 124” Wide x 138” Deep
*Previous Use: Breakdown Mill For Gold And Silver, Intermediate Mill For Copper, Steel, Aluminum, Cladding / Bonding Mill For Dual Strip
