12" x 10" Roll-in Saw #HW1212, Horizontal Wet Miter Saw, 70/140/270 SFPM, 11" 8" x 1" x .035" Blade, 1 HP, 110/220 V, new

Description

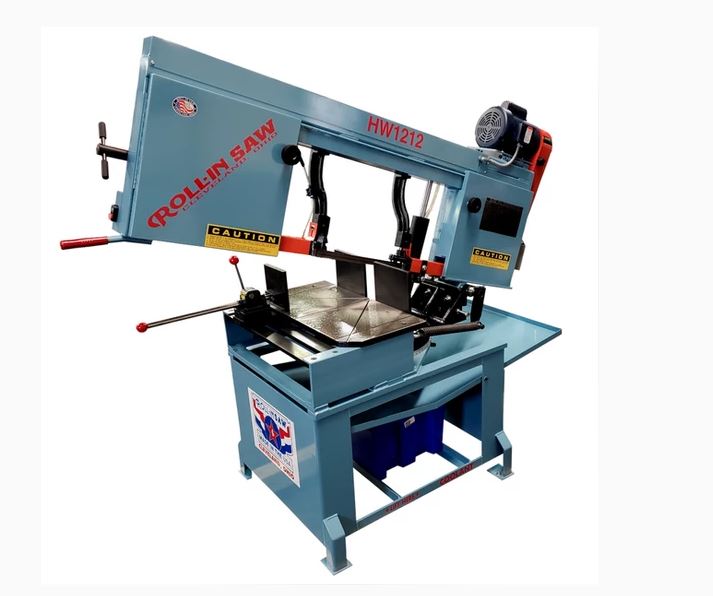

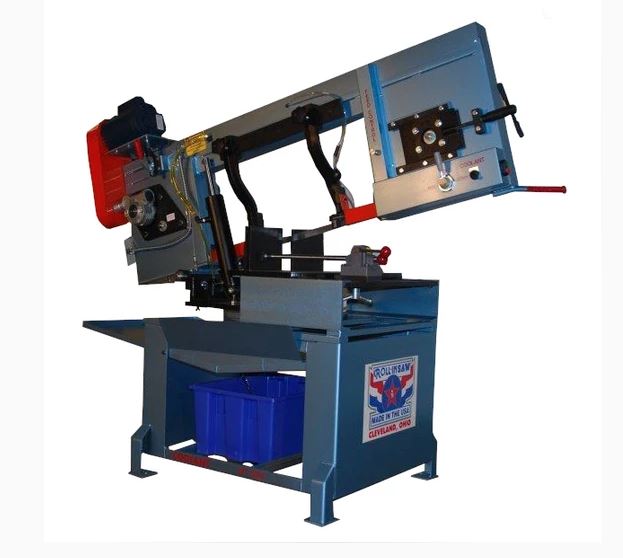

Roll-in Saw 12″ x 10″ Horizontal Wet Miter Saw, HW1212

Inventory # 8877

Model: HW1212

Description:

The HW1212 takes the dependable base of the HM1212 and adds a built-in coolant system. This reliable saw features a hydraulic feed system for controlled feed rate and a frame that quickly swivels 60° in either direction for precise cutting for up to 12″ material

With a quick clamp that can be moved to either side of the 12″ x 26 1/2″ table, material can be fed from either direction, allowing more versatility. The built-in coolant system has side splash panels, an 8 gallon coolant reservoir, and 3.5 GPM pump. This HW1212 built-in coolant system provides you a cleaner system that provides extended life of the blade

Specifications:

Feed System: Hydraulic cylinder for controlled feeds

Blade Travel: 12″

Cutting Capacity @ 90°:

Round: 12″

Rectangle: 12″ x 10″

Cutting Capacity @ 45°:

Round: 9″

Square: 9″

Cutting Capacity @ 60°:

Round: 6″

Square: 6″

Miter Cut Angle Range: 0° – 60°

Capacity Under Guides: 12″

Blade Size: 11′ 8″ x 1″ x .035″

Blade Size: (Accepted Widths) 1″

Blade Speeds: 70 / 140 / 270 SFPM

Table: Precision Ground Steel Table: 13″ x 26 1/2″

Table Height: 30″ from Floor (No Casters)

Motor: 1 HP / 110v, 220v / 1ph

Standard Features:

Fast accurate cut on materials up to 12″ thick

Saw easily swivels up to 60″ in either direction, allowing for precise angled cuts

The weighted/hydraulic feed coupled with the automatic stop switch allows for large production and unsupervised cuts

Built-in coolant system enables faster cuts and extends the life of the saw blades

Mechanical Specifications:

Shipping Dimensions: 96″ x 41″ x 56 1/2″ H

Shipping Weight: approx. 1,000 lbs.

Contact us for pricing and availability

FOB Factory
