For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

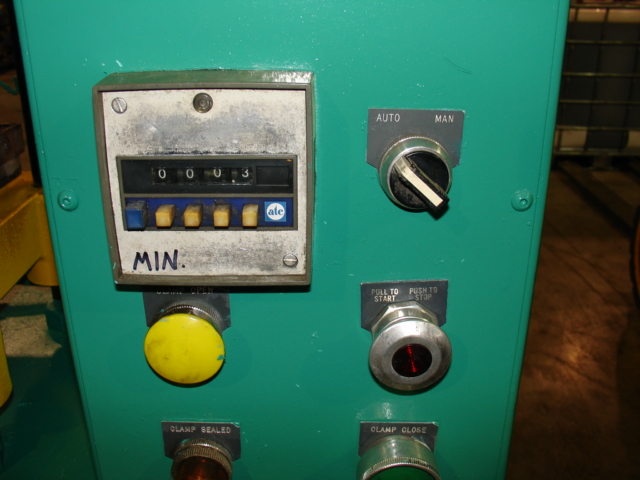

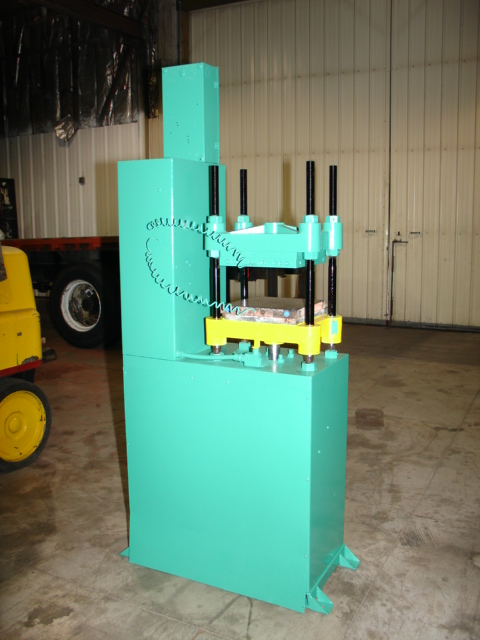

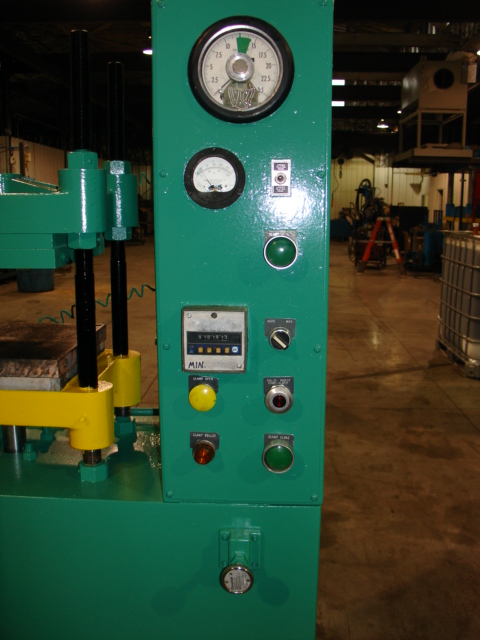

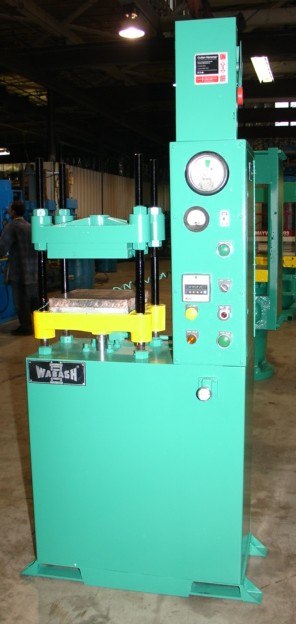

MODEL 12-12-STMBAC. SERIAL #5947. CLEARANCE BETWEEN POSTS IS 13.75" L TO R AND 7.75" F TO B. TWO 12" X 12" X 1.25" STEAM/OIL PLATENS WITH 1" INSULATION UNDER EACH PLATEN. ADJUSTABLE DAYLIGHT FROM 4" TO 13" (IF PLATENS ARE REMOVED IT WOULD BE 8.25" TO 17.25"). CYLINDER IS 4" BORE, 1.75" ROD AND 6" STROKE. FULLY GUIDED ON 1.25" DIAMETER POSTS. 45" OPERATOR HEIGHT WITH PLATEN. SELF-CONTAINED HYDRAULIC SYSTEM: 1 HP; 230/460 VOLTS (WIRED FOR 460 V); 60 HZ; 3 PHASE. CONTROLS INCLUDE: TONNAGE GAUGE, TEMP GAUGE WITH TOGGLE SWITCH TO SELECT TOP OR BOTTOM PLATEN, 2 CLOSE BUTTONS, OPEN BUTTON, TIMER, AUTO/MANUAL SWITCH, STOP BUTTON, "CLAMP SEALED" LIGHT, CLAMP PRESSURE CONTROL KNOB, 30 AMP/600 VOLT DISCONNECT. OVERALL DIMENSIONS: 36" X 22" X 83" TALL. APPROX 1500 LBS. (ITEM #1530)
Get Your Price from Icon Industries, Inc!
