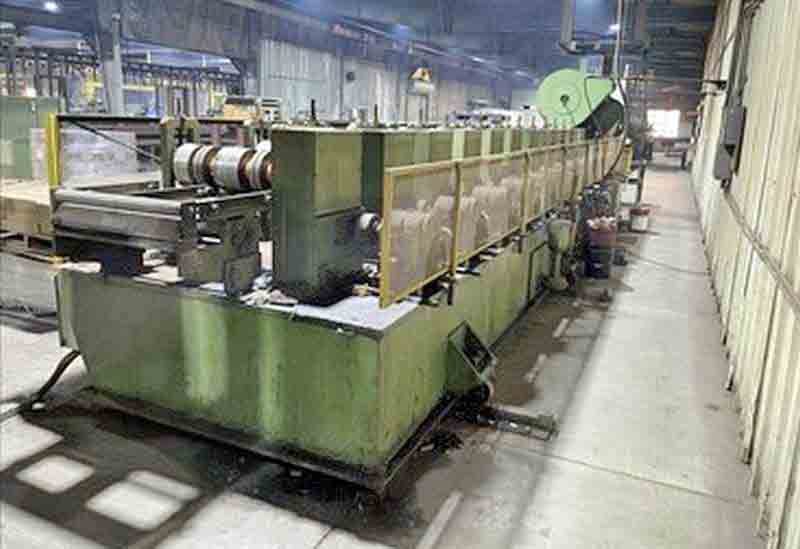

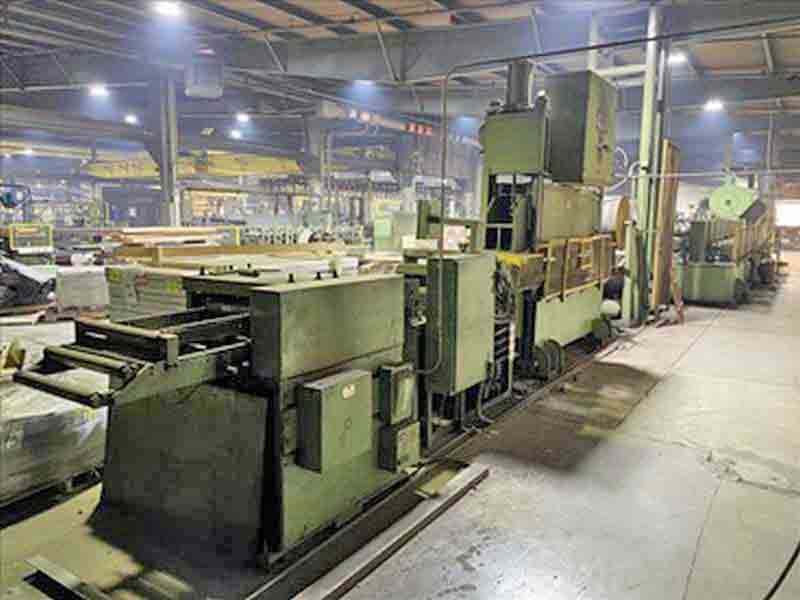

12 Stand, Bradbury Rollforming Line, 4" arbor, 30" roll space, 80 FPM, 110' overall, 60" outside dimension, RL, 1977

Specifications:
Manufacturer: Bradbury
Material Thickness: 12 Ga to 16 Ga (per tooling sets)
Maximum Material Width: 25”
Roll Space: 30”
Number Of Stands: 12
Arbor Diameter: 4”
Vertical Adjustment: 7” to 13.5”
Horizontal Center Distance: 28”
Line Speed: 80 FPM
Overall Line Length: 110’
Line Direction: Right To Left
Drive Motor (Rollformer): 60 HP, 1750 RPM
Transmission: 4 Speed (2.6 / 1.9 / 1.33 / 1.00 : 1)
Cutoff Press Capacity: 70 Tons
Punch Press Capacity: 100 Tons
Coil Capacity: 10,000 Lbs
Entry Width Capacity: 36”
O.D. Capacity: 60”
Zee Purlin Tooled
Gear Driven Rollforming Line
Tooling:
9" H x 2.75" Flange "Zee Purlin" Tooling - 12 Ga. - 16 Ga. Thick
6.5" H x 2.50" Flange "Zee Purlin" Tooling - 12 Ga. - 16 Ga. Thick
Consisting of the following:
Bradbury Entry Coil Car:
Hydraulic Lift and Travel
Bradbury Powered Uncoiler:
Model: 420-36
Coil Capacity: 10,000 lbs.
Coil Width: 36"
Expansion Range: 17.5" - 25"
Hydraulic Link-Type Expansion
60" O.D. Capacity
Pneumatic Holddown Arm
Loop Control
15 HP Main Drive with Electric Brake

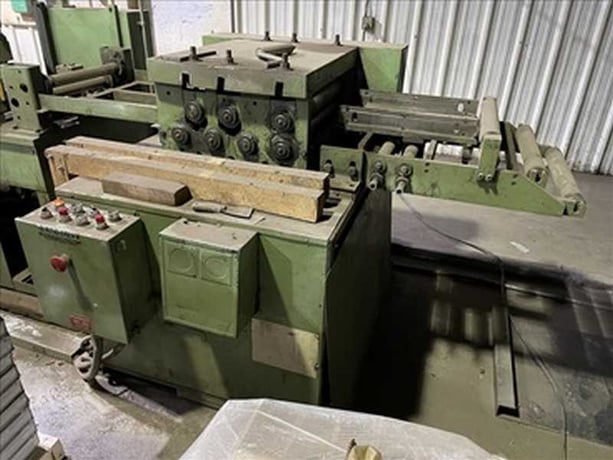

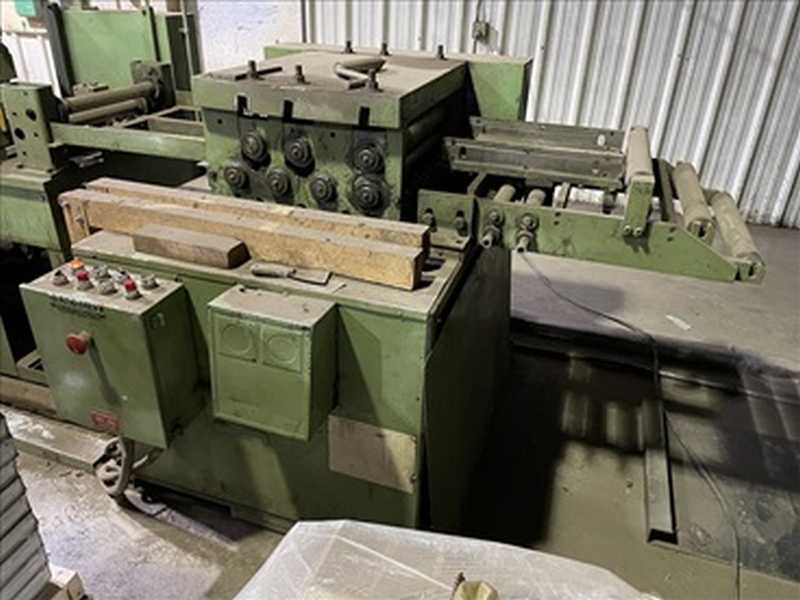

Bradbury Powered Straightener:
Model: RS4-25-5
Number of Rolls: 5
Powered Driven Pinch Rolls
4" Diameter Straightening Rolls
25" Maximum Material Width
2 Speed Reducer
7.5 HP Main Motor
Digital Length Control:
2 Presets, One for Length and Batch

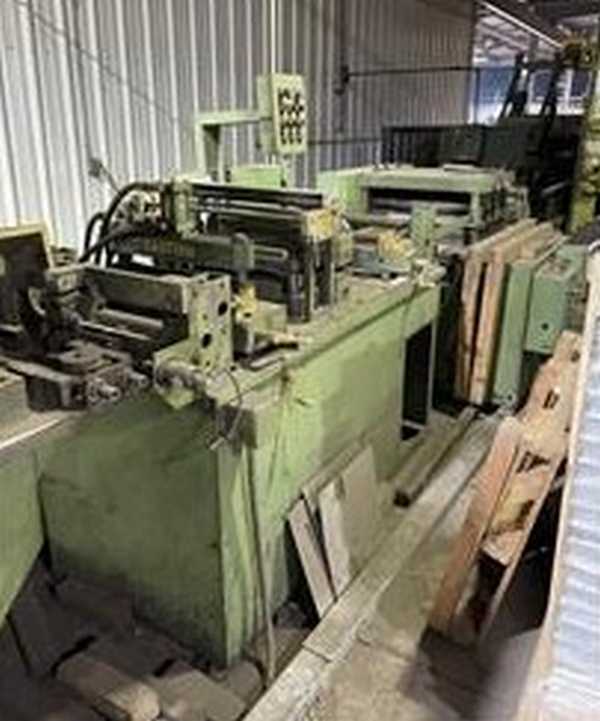

Lee Schafer Shear End Welder:
Model: H40F
0.028" - 0.134" Thickness Capacity
Hydraulic Squaring Shear and Welding Clamps
Auto Tig Weld Cycle
Adjustable Side Guides

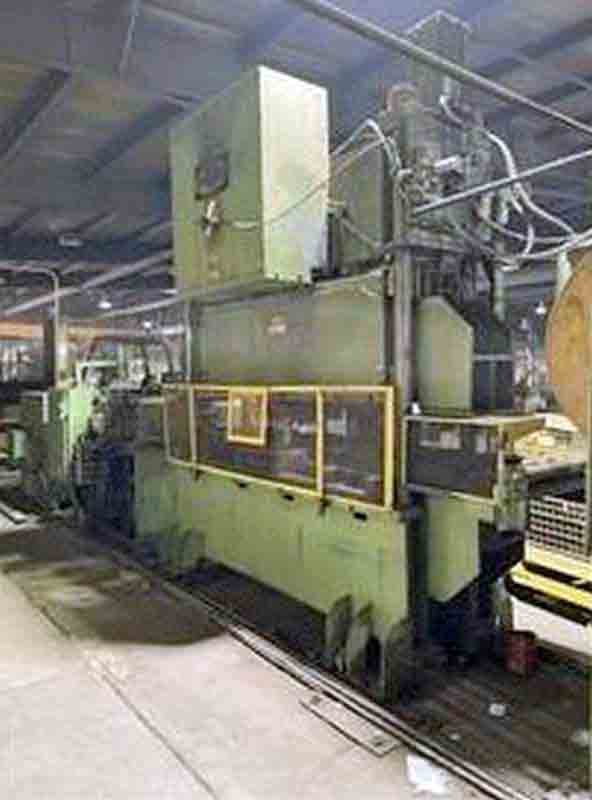

Heim S100-30-80 Straight Side Notch and Pre-Punch Press:
Capacity: 100 Tons
Bed Area: 80" x 30"
10 HP Main Motor
Punch Die with Manual Gauges to change pattern
Air Clutch
3 Drum Air Actuated Accumulator:
Allows Rollformer to run continuous during punching sequence.

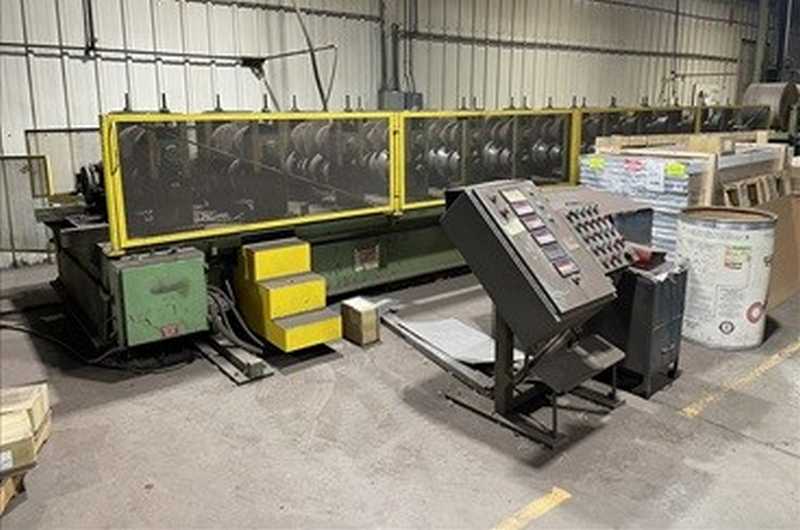

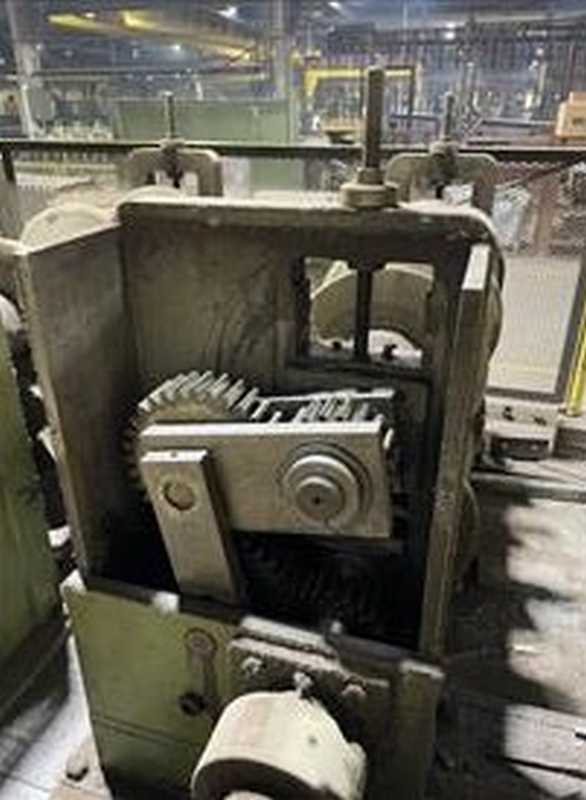

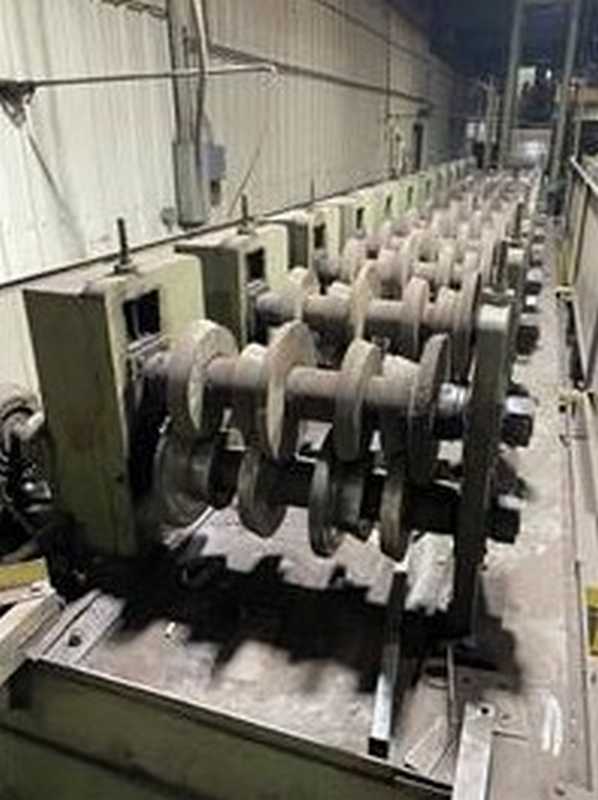

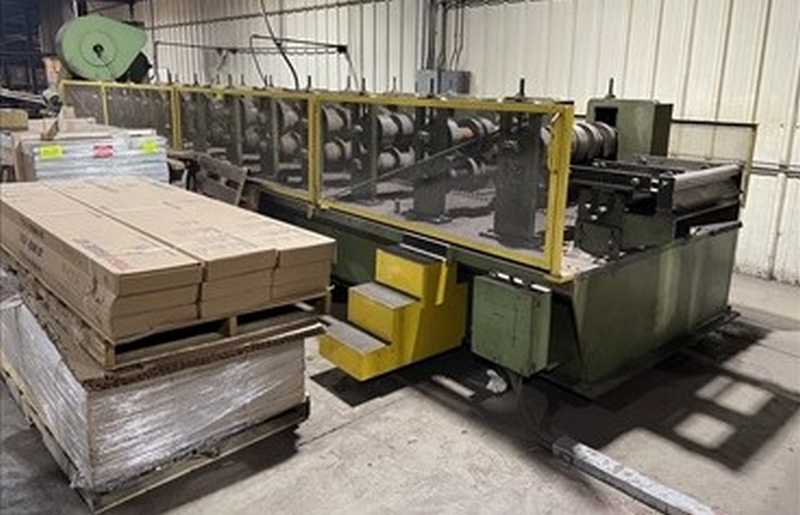

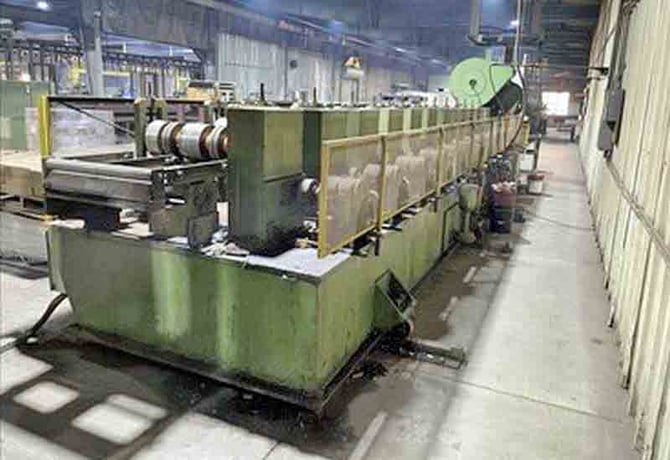

Bradbury Rollformer:
Model: D3-30-12
12 Stands
30" Roll Space
4" Dia. Arbors
7" - 13.50" Vertical Adjustment
28" Horizontal Center Distance
60 HP Drive Motor, 1750 RPM
4 Speed Transmission 2.6/1.9/1.33/1.00:1
Air Clutch/Brake
All Lower Arbors Power Driven
Upper Arbor Stands #1, 2, 11, 12 are Power Driven

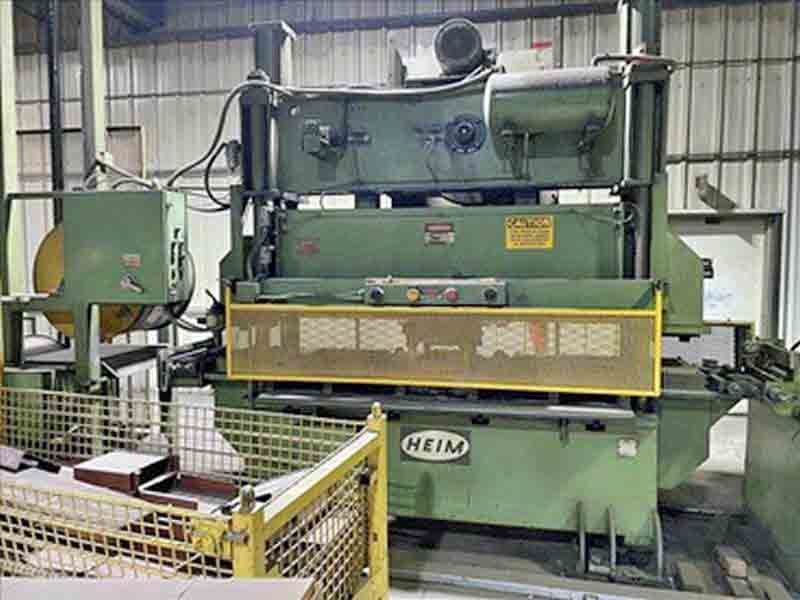

Heim 7A Cutoff Press:
70 Ton OBI
Tooled with Flying Cutoff Die
Air Cylinder Die Return
4 Total Dies
30' Runout Conveyor:
Dump Section with pins
Complete control system with operators desk
