Description
Specifications

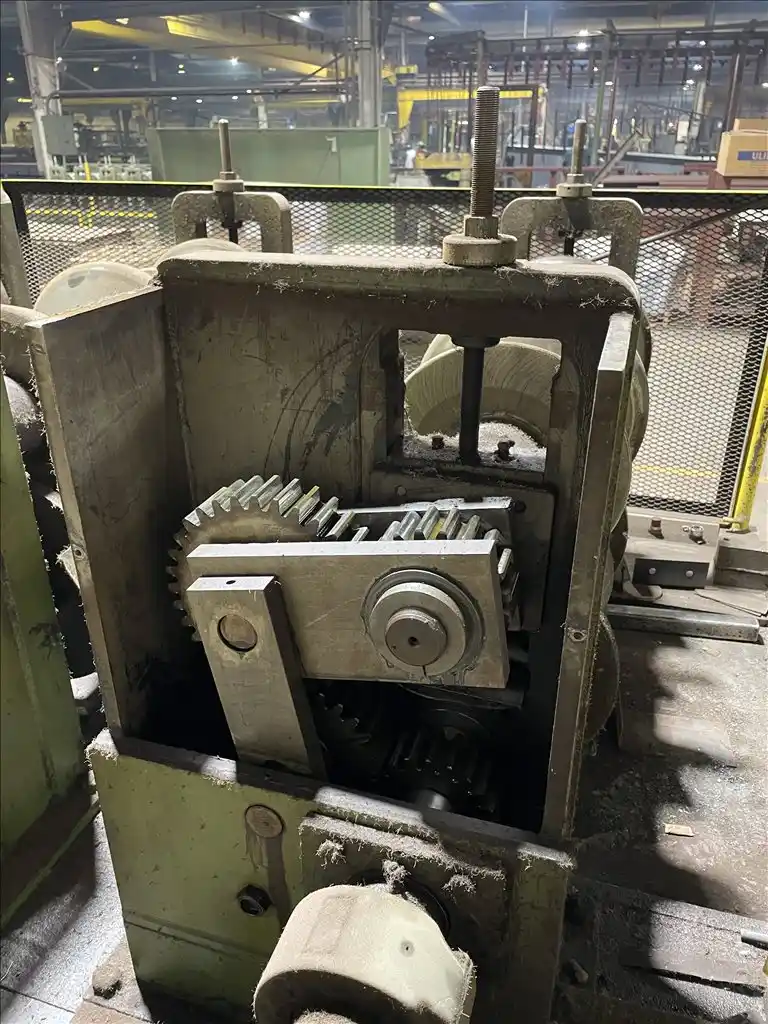

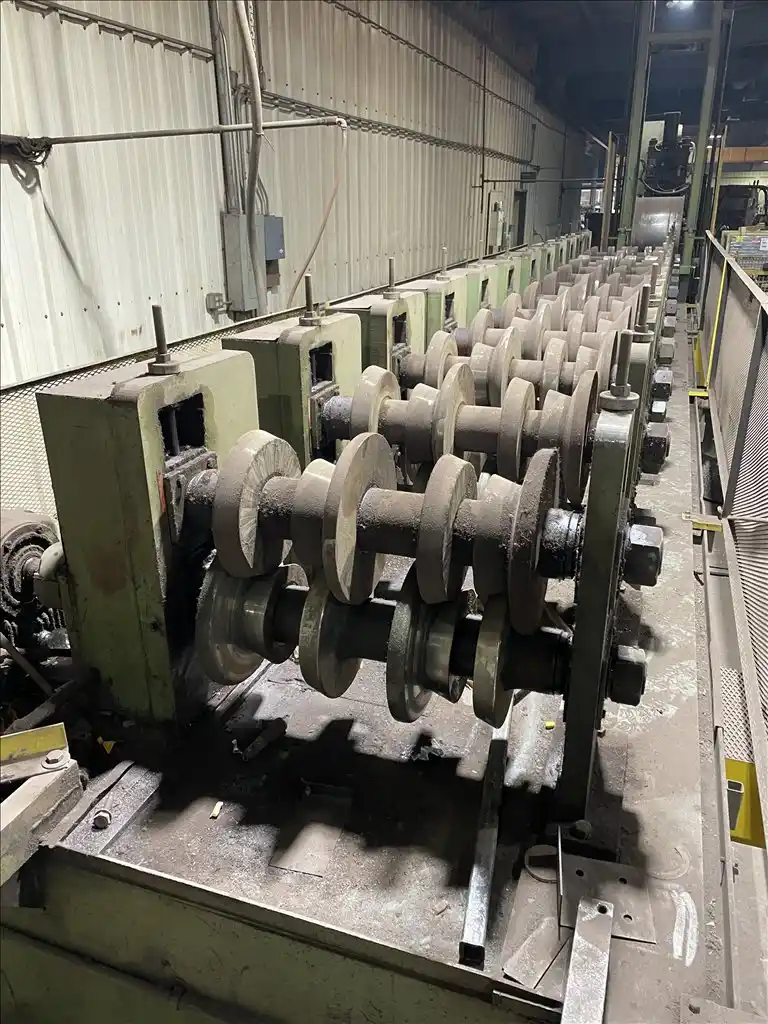

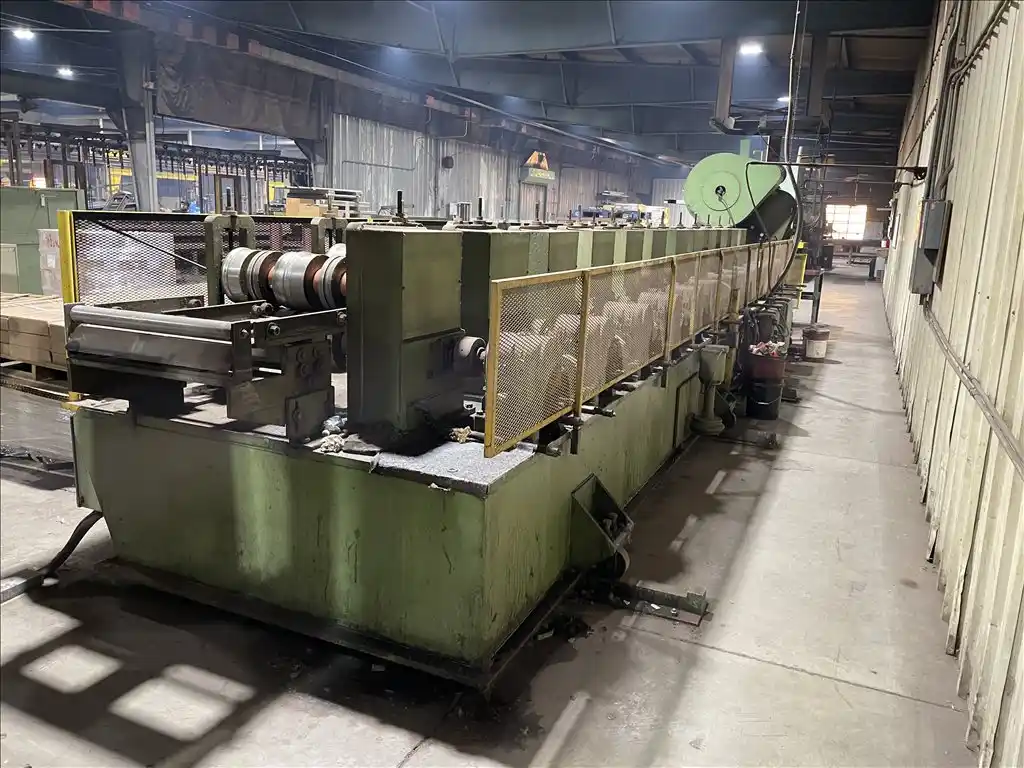

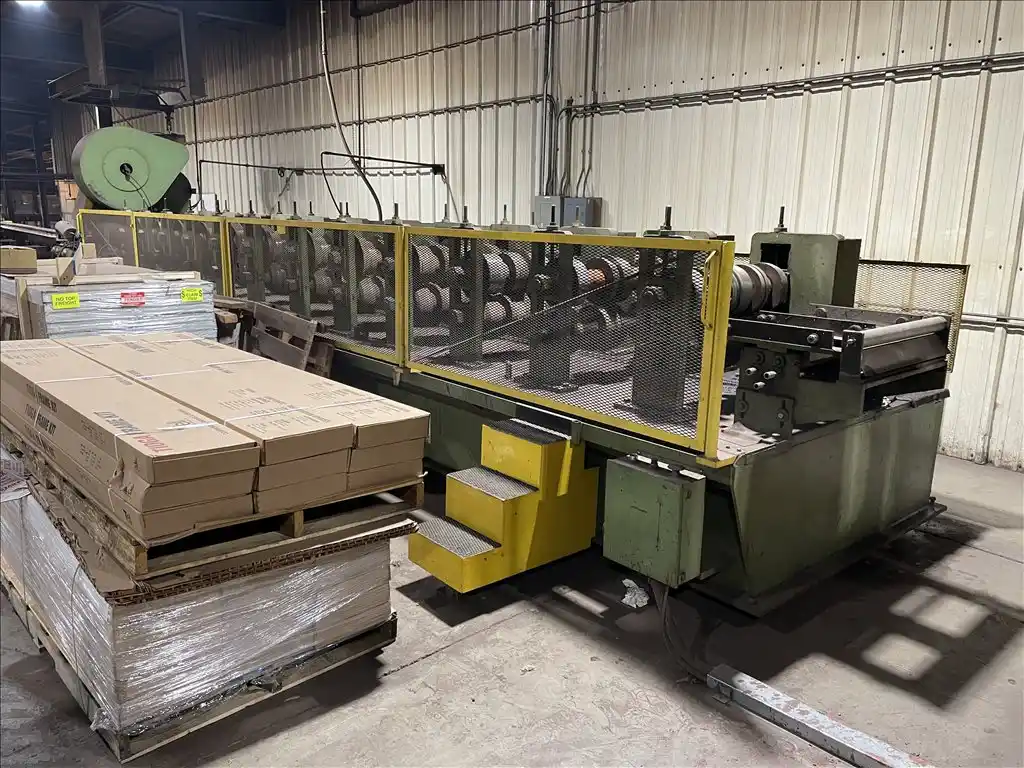

- Bradbury D3-30-12 Roll Forming Line Specifications
- Number of Stands: 12
- Roll Space: 30"
- Arbor Diameter: 4"
- Arbor Center to Center Distance: 28"
- Upper Arbor Adjustment: 6.5"
- Vertical Adjustment: 7" - 13.5"
- Line Speed: 80 FPM
- Overall Line Length: 110'
- Line Direction: L-R
- All Lower Arbors Power Driven
- Upper Arbor Stands 1, 2, 11, 12 Power Driven
- 60 HP Main Drive Motor
- 9" H x 2.75" Flange "Zee Purlin" Tooling: 12 Ga. - 16 Ga. Thickness
- 6.5" H x 2.5" Flange "Zee Purlin" Tooling: 12 Ga. - 16 Ga. Thickness

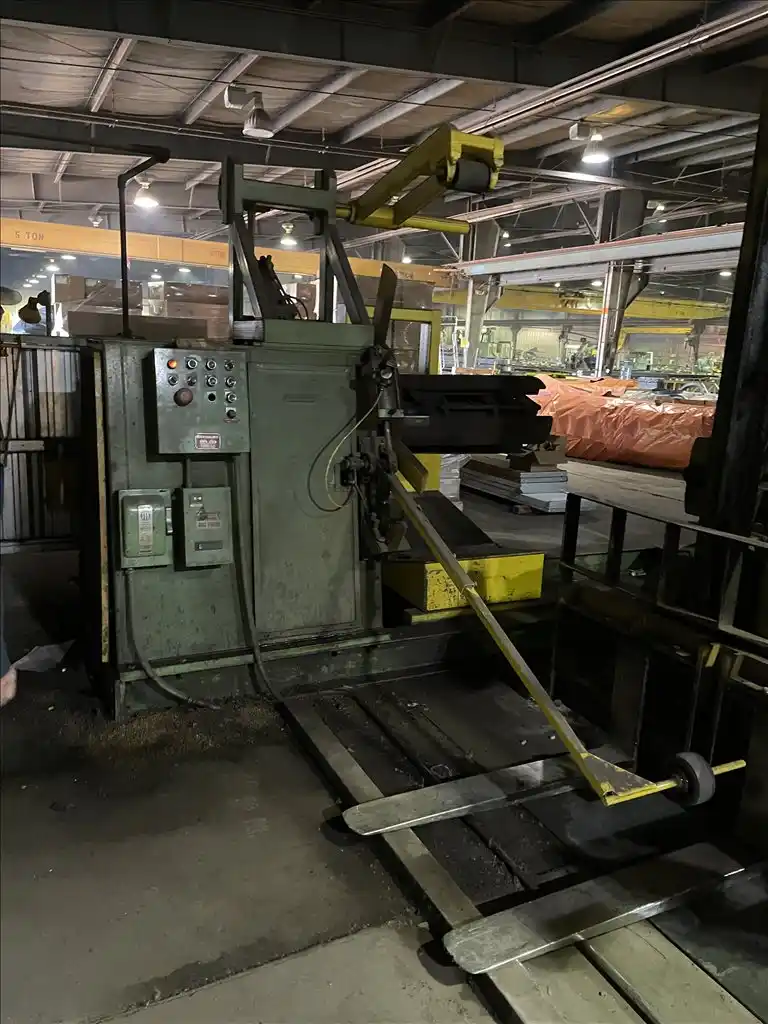

- Bradbury 420-36 Powered Uncoiler w/ Coil Car
- Coil Capacity: 10,000 lbs
- Coil Width: 36"
- Coil I.D. Range: 17.5" - 25"
- Coil O.D.: 60"
- Pneumatic Hold Down
- Loop Control
- 15 HP Main Drive w/ Electric Brake
- Sliding Base
- Hydraulic Expansion
- Hydraulic Lift & Travel

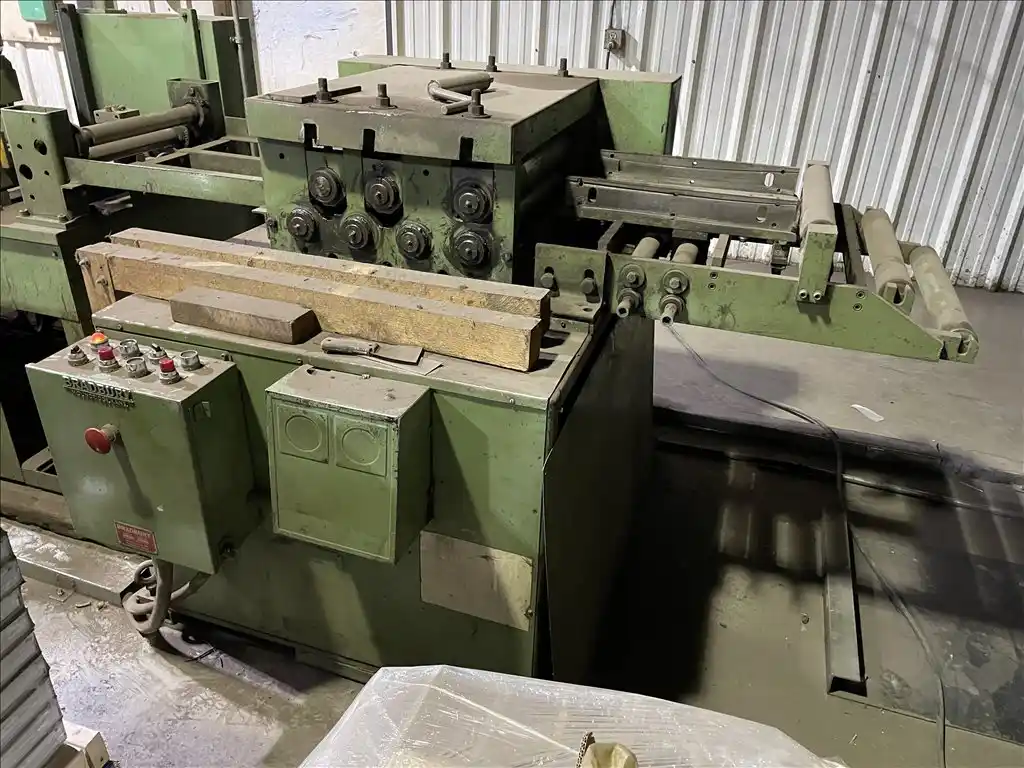

- Bradbury RS4-25-5 Powered Straightener
- Number of Rolls: 5
- Straightening Rolls Diameter: 4"
- Max. Width: 25"
- Main Motor: 7.5 HP
- 2-Speed Reducer
- Powered Driven Pinch Rolls

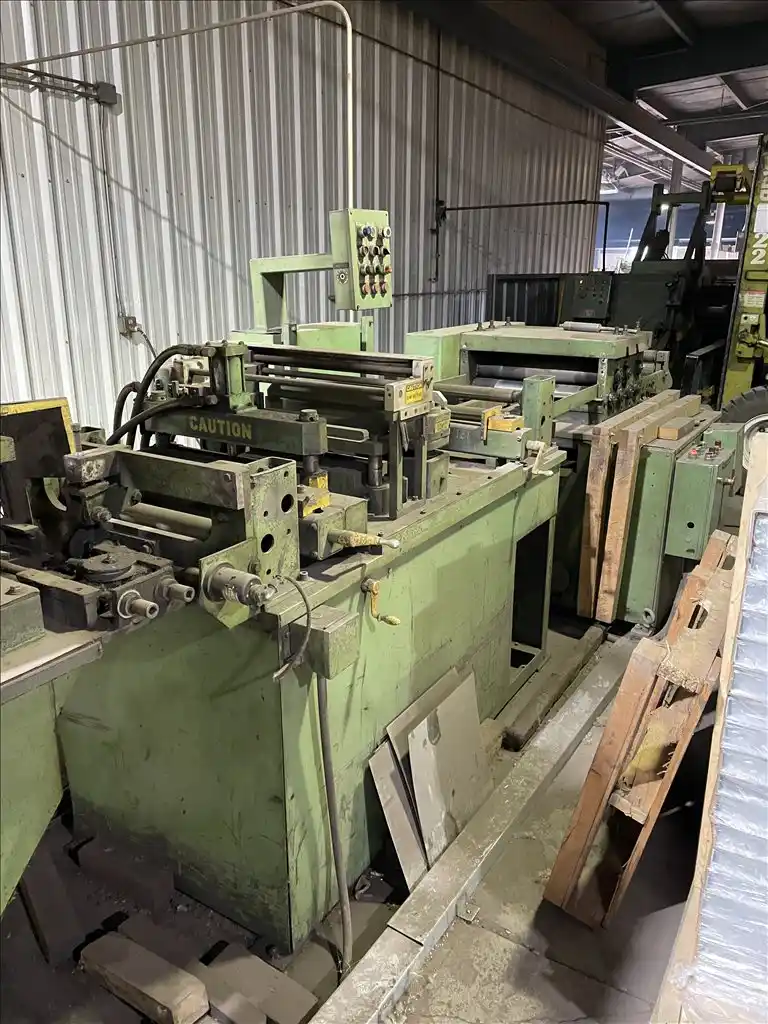

- Lee Schafer H40F Shear End Welder
- Thickness Capacity: 0.028" - 0.134"
- Hydraulic Squaring Shear & Welding Clamps
- Auto Tig Weld Cycle
- Adjustable Side Guides

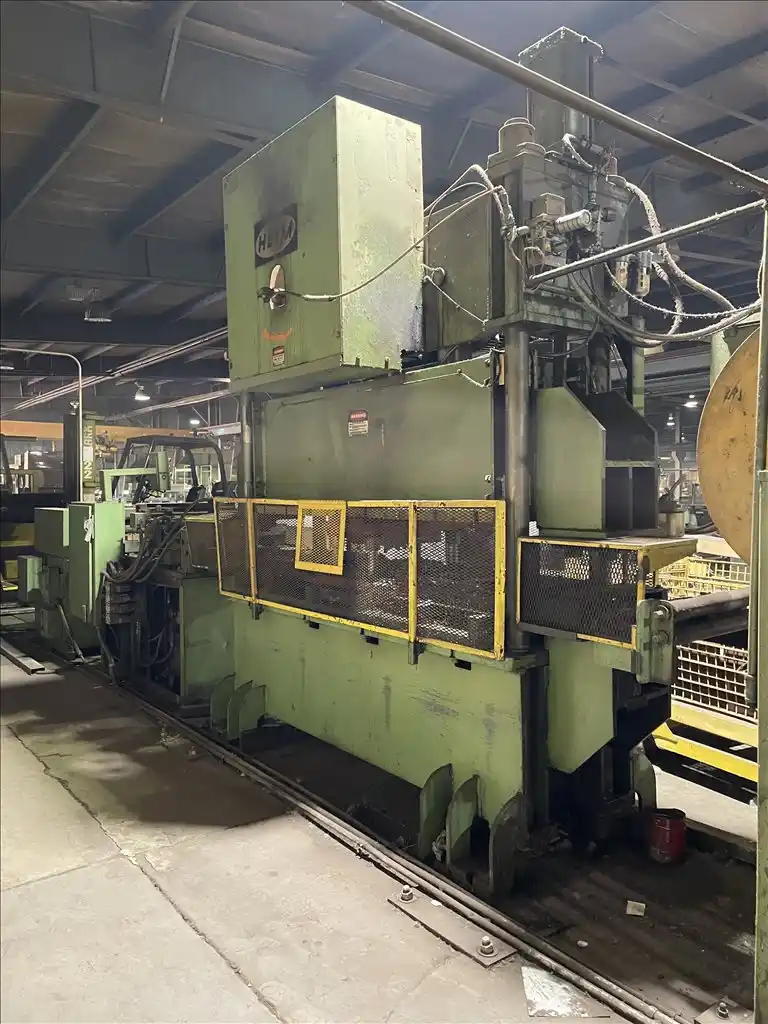

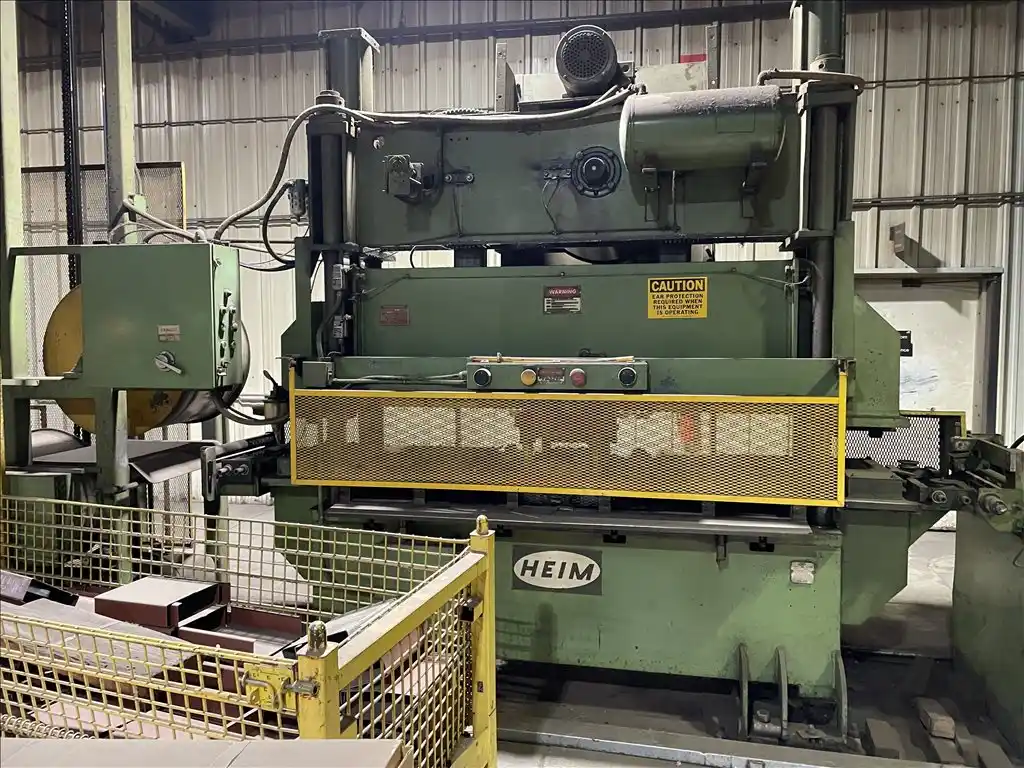

- Heim S100-30-80 Straight Side Notch & Pre-Punch Press
- Capacity: 100 Tons
- Bed Area 80" x 30"
- 10 HP Main Motor
- Punch Die w/ Manual Gauges (to change pattern)
- Air Clutch
- 3-Drum Air Actuated Accumulator
- Allows Rollformer to run continuous during punching sequence
- Heim 7A OBI Cut-Off Punch Press
- Capacity: 70 Tons
- Tooled w/ Flying Cutoff Die
- Air Cylinder Die Return
- (4) Total Dies
- 30' Runout Conveyor
- Dump section, with pins

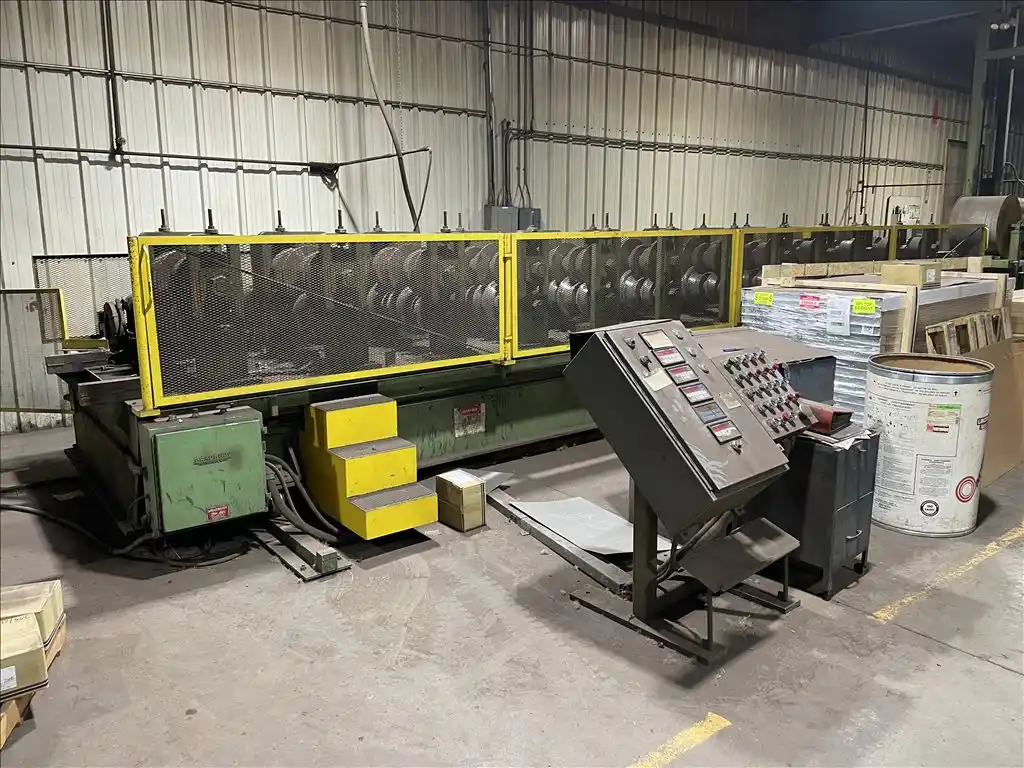

- Complete Control System w/ Operator's Desk
