12" KMT #C-300, Manual Cold Saw, 6.25" Vise Opening, 50 RPM (1 Ph) 33/66 RPM (3 Ph), 3 HP, 220 V (1 Ph) 230/460 V (3 Ph), new

Description

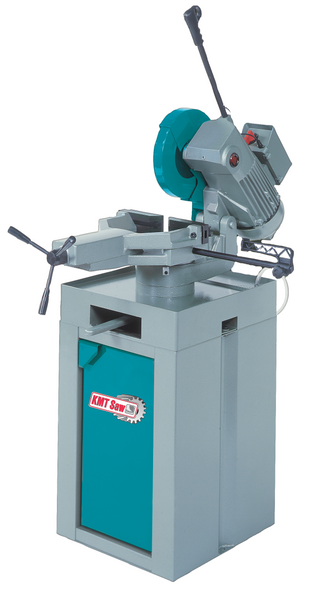

Kalamazoo Machine Tool 12″ Manual Cold Saw, C 300

Inventory # 7847

Model: C 300

Made in Italy

Description:

For tubes, pipes, light structural’s. Hinge type machines are generally not considered production machines, but may be used in production under carefully considered applications

Specifications:

Max. Blade Size: 12″

Capacity:

@ 0°:

Round: 4″

Square: 3 1/2″

Rectangle: 4 3/4″ x 3″

@ 45° Right:

Round: 3″

Square: 2 3/4″

Rectangle: 3″ x 2 3/4″

@ 45° Left:

Round: 3 1/2″

Square: 2 3/4″

Rectangle: 3″ x 2 3/4″

Vise Opening: 6 1/4″

Blade Speed: 50 RPM (1ph) 33 / 66 RPM (3ph)

Motor: 3 HP / 220v / 1ph OR 230v, 460v / 3ph

Standard Features:

Takes up to 12″ blade

Miters up to 45° right and left

Built-in flood coolant

Material stop

Storage base included

Equal clamping on both sides of vise

One 11″ saw blade included

Tool kit

Standard Equipment:

One HSS Blade

Low Voltage Control

Totally Enclosed Worm Gear Transmission

Full Coolant System

Full Blade Guarding

Operators Manual Parts List/Schematics

Mechanical Specifications:

Dimensions: 22″ x 20″ x 38 1/2″ H (Workheight)

Weight: approx. 400 lbs.

Contact us for special pricing and availability

FOB Factory
