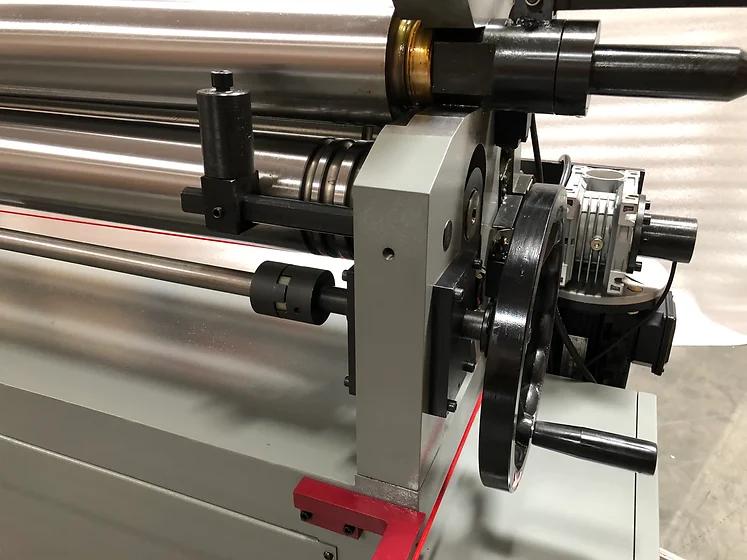

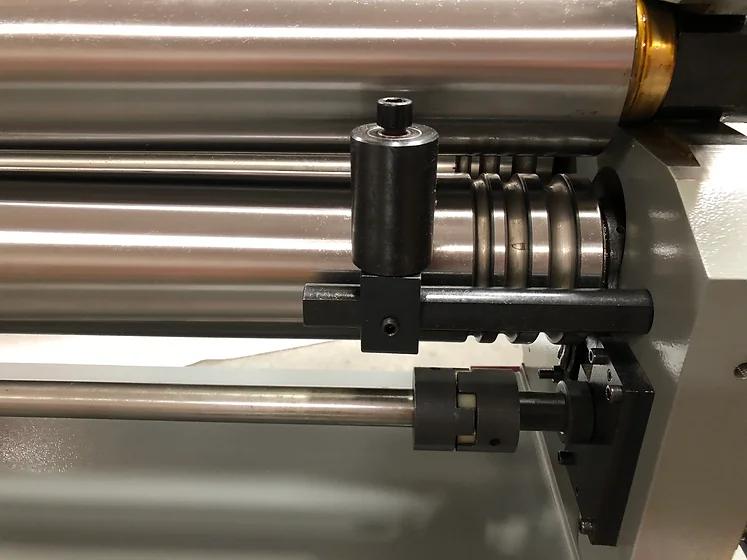

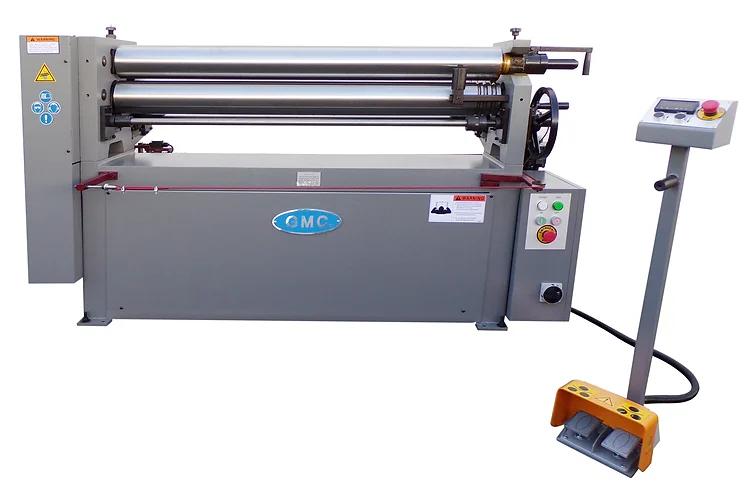

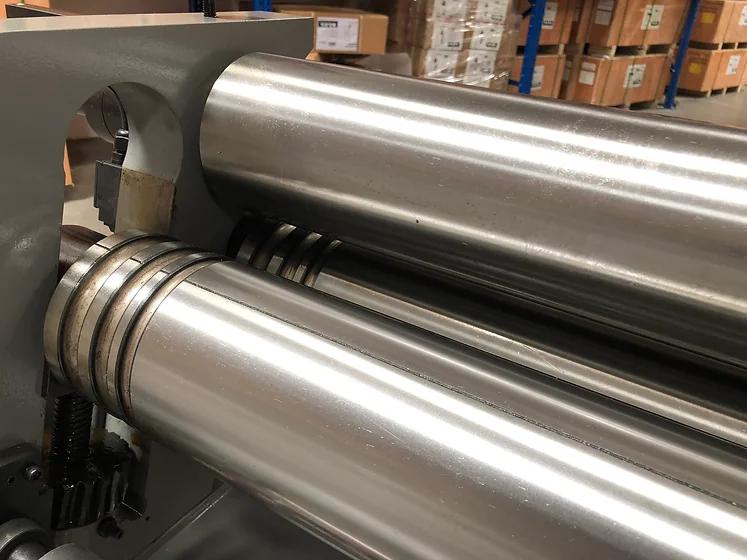

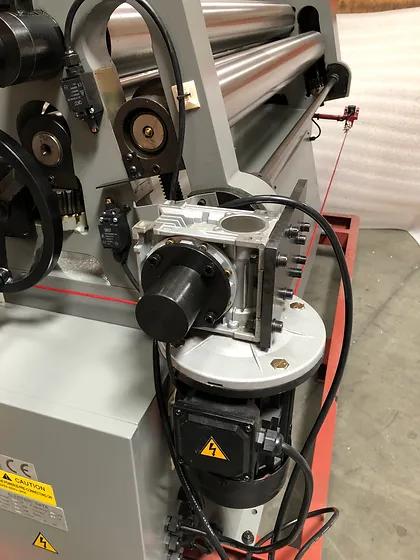

SO 9001 certified Taiwan machines All (3) rolls are hardened rolls, up to 50-52 HRC 3-rollers are driven to perform high accuracy Adjustable cone attachment included 3/8, and 5/8 grooves on rollers One wheel one-side operated for bending roll One wheel one-site operated for pinch roll (E model is powered) Heavy duty casting frame Heavy duty all steel welded construction 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.Quiet running operation Easy swing-out top roller Safety line all around the machine for emergency stop All rolls run forward and reverse Safety type forward/reverse foot pedal Power source 220V, (option: 440V, 3 phase) One year industrial warranty for parts Capacity: Mild Steel Stainless Steel soft aluminum min. thickness 5'1" x 12Ga. 5'1" x 12Ga. 5'1" x 1/4" 26Ga. Roll Dia. 4"Min. Bending Dia. Inch5" Pre-bend inch0. 12"Rolls Speed ft/min20Rolls Opening 1/2"Main Motor3HP 3PH 220V or 440VWeight2,950 lbs. Overall Dimensions 96" x 32" x 52" Length of Rolls: 5' Max Thickness (gauge): 12 gauge # Rolls: 3 Power: 3 hp Roll Diameter: 4"
THE ROLSHEAR 3D5 PLATE BENDER/ROLL IS A MECHANICAL FABRICATION MACHINE THREE ROLLS AND CONFIGURED WITH AN INIT PINCH SYSTEM. THIS PLATE ROLL IS RATED FOR A MAXIMUM CAPACITY OF 10 GAUGE MILD STEEL OVER A 60-INCH LENGTH. THE MACHINE S 5-FOOT LONG ROLLS, EACH WITH A 6-INCH DIAMETER. ROLL ADJUSTMENT FUNCTIONALITY IS SPLIT ...more
Slip Roll50" x14 ga (Mild Steel), 50" x 18 ga (SS), 50" x 10 ga (soft aluminum)50" x 3"26 ga.3.5"201" / minute1/4"5/16", 3/8", 1/2"2 HP, 220V or 440V, Single Phase985 Lbs.68 x 32x 49"H.
