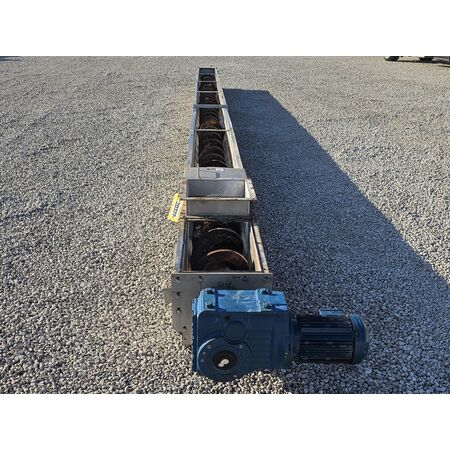

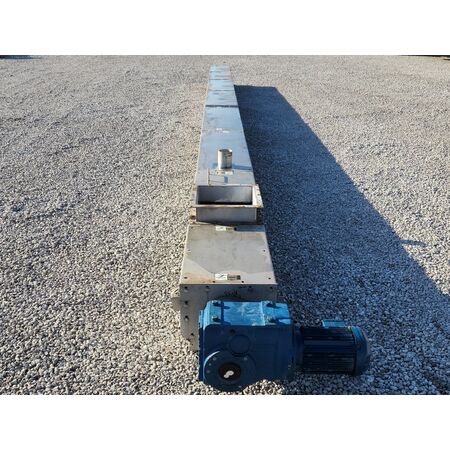

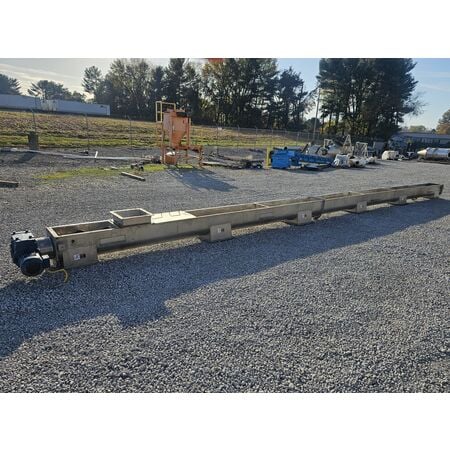

Used Spirac Hollow Shaft Spiral Screw Distributing Conveyor 12" Dia. X 36' L For difficult to transport materials and higher loading/fill rates. 304 stainless steel U-trough with six drop-out flanged discharges. Twin section trough assembly with a 36' length between endplates and bolt-on cover. 12" heavy-duty shaftless auger constructed of high tensile alloy steel. Installed with full length of " thick Duraflo SPX low friction belly liner. 5HP gearmotor drive (230/460V, 60Hz, 3ph). Working speed of the auger is 18RPM. Overall dimensions: 37' Long x 36"wx22" H Weight = 2180 LBS.
Used 12" Dia. Spirac Spiroline Shaftless Spiral Screw Conveyor 36' long, Designed for difficult to transport materials and higher loading/fill rates., 304 stainless steel U-trough with cover and a 16" square inlet chute., Trough is a two-section assembly with a 36'-0" length between endplates. ...more
used twin screw stainless steel hollowscrew dryer. twin 12" diameter x 128" long screws. trough is jacketed and insulated. the trough measures 142" long x 20.5" wide x 16" deep. the trough top has a 13.25" x 16" inlet, 6" x 9" inlet, and grating on the rest of the top. 6" diameter flanged outlet with gate valve. ...more
ITEM 2025: 12″Ø X 12′ Long Screw Conveyor – Inlet End Section [PARTS], All carbon steel construction. The screw auger is a right-hand helicoid, B series (single section). Double flanged style U-trough with full length bolt-on cover. Will need a complete drive assembly, bearing assembly ...more
