For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

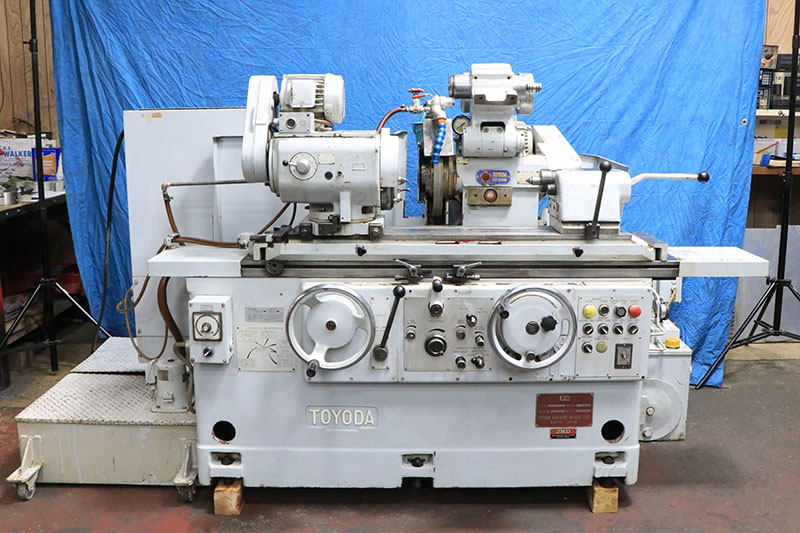

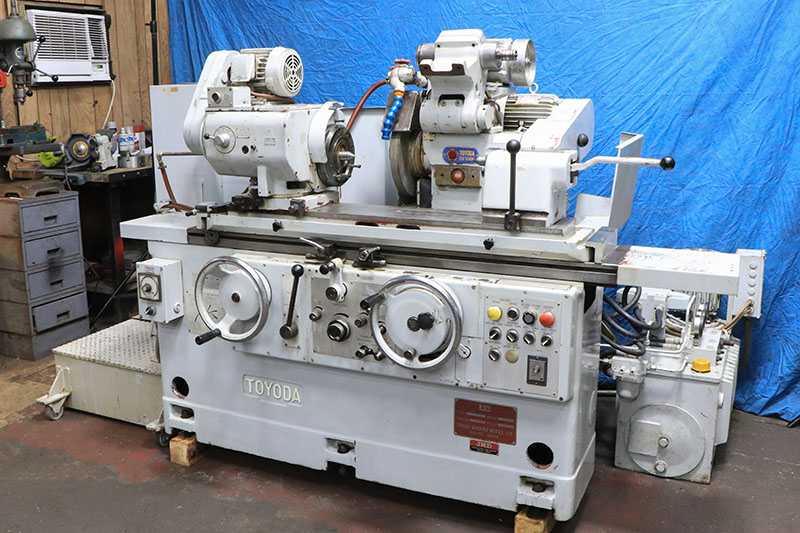

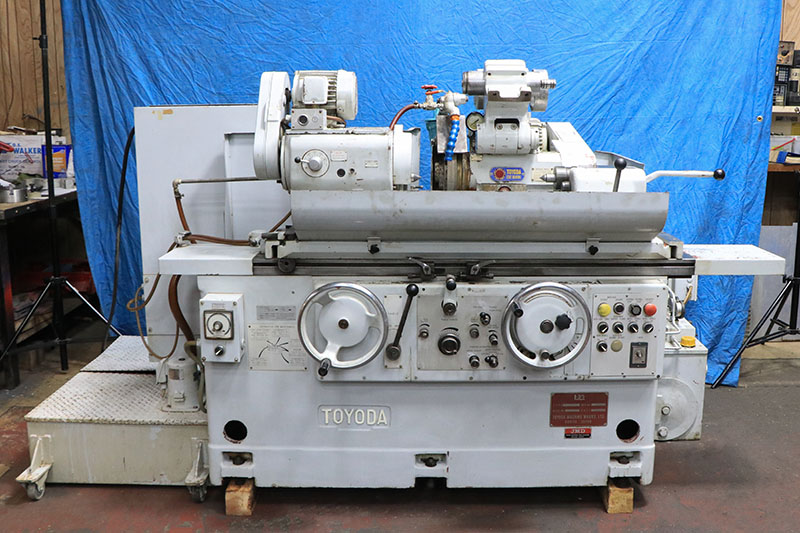

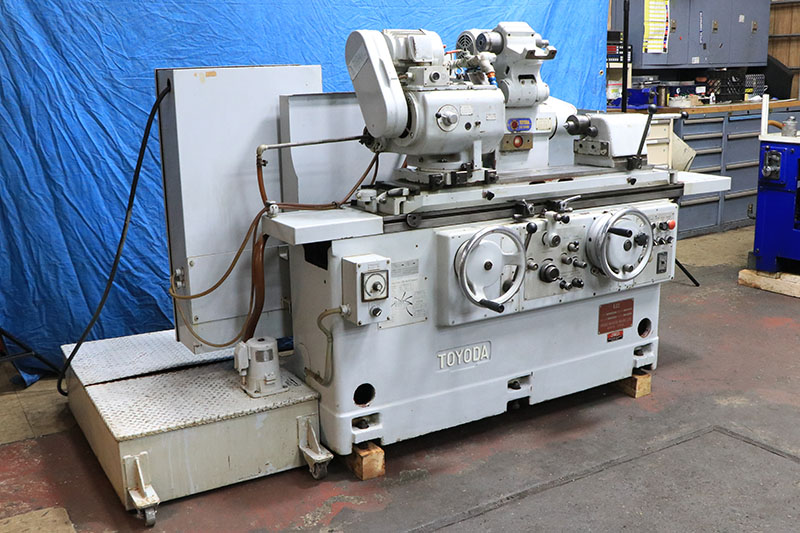

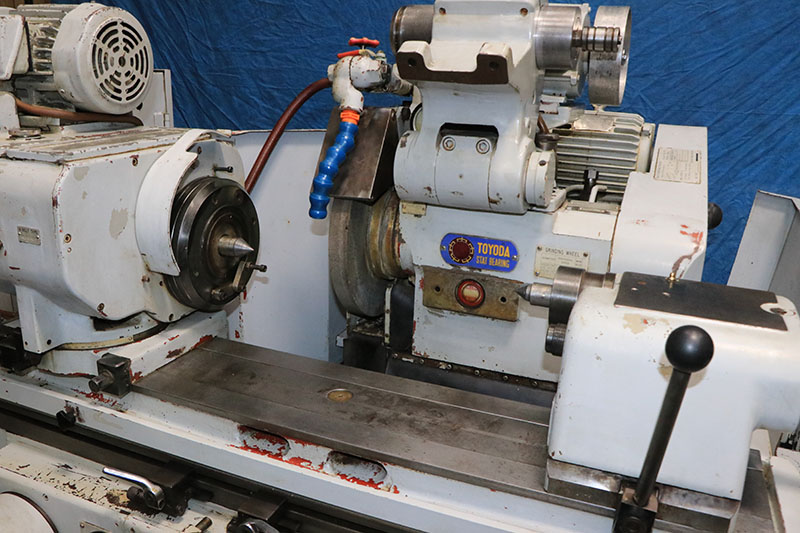

12.6" X 20" TOYODA UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
** THIS IS A HIGH-PRECISION JAPANESE MADE MACHINE TOOL! **
MODEL:GUP32X50… S/N: RB8635… NEW: 1986
MAX. SWING OVER TABLE ................. 12.6"…
DISTANCE BETWEEN CENTERS .............. 20"
MAX. LOAD BETWEEN CENTERS .............″30 LBS.
TABLE:
TABLE SWIVELS, COUNTERCLOCKWISE ....... 12.5 DEG.…
LONGITUDINAL TABLE TRAVERSE SPEED ..... 2" TO 157" IPM
WHEELHEAD:
WHEELHEAD SWIVELS LEFT… RIGHT ........″0 DEG.…
GRINDING WHEEL SIZE ................... 14" X 2" X 5"…
WHEEL SPEEDS (2) ...................... 1650/2150 RPM
TOTOL STROKE .......................... 11.6"
HANDWHEEL INFEED STROKE ............... 6.3"…
ADDITIONAL STROKE BY SLIDING ON…
SUB-SLIDE BASE .......................″.7"…
AUTOMATIC RAPID INFEED STROKE ......... 1.6"…
AUTOMATIC INFEED AT TABLE REVERSALS ... 0.0001" TO .0016"
AUTOMATIC PLUNGE INFEED ............... YES…
AUTO PLUNGE INFEED W/POSITIVE STOP .... 0 TO .0315"…
MOVEMENT PER GRAD. OF HANDWHEEL ....... 0.0001"
MOVEMENT PER TURN OF HANDWHEEL ........ 0.040"
WORKHEAD:…
WORKHEAD SWIVELS, COUNTERCLOCKWISE .... 90 DEG.…
CLOCKWISE ............″0 DEG.…
WORKHEAD SPINDLE TAPER ................ #4 MT…
WORKHEAD, INFINITELY VARIABLE SPINDLE…
SPEEDS ............................... 16 TO 250 RPM
TAILSTOCK SPINDLE CENTER .............. #4 MT…
TAILSTOCK QUILL TRAVEL ................ 1"
APPROX. MACHINE WEIGHT ................ 5,060 LBS.…
APPROX. MACHINE DIMENSIONS ............ 90" X 64"W x 57"H…
MACHINE FEATURES:…

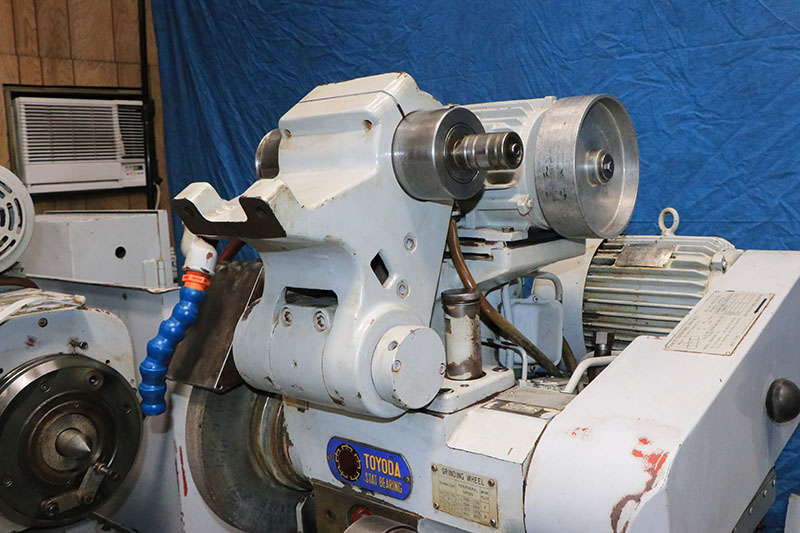

TOYODA…"STAT" HYDROSTATIC WHEELHEAD BEARINGS…
FULLY AUTOMATIC GRINDING CYCLE FEATURING:…
HYDRAULIC TABLE TRAVERSE…
AUTOMATIC INFEED…
AUTOMATIC PLUNGE INFEED…
POWER RAPID WHEELHEAD ADVANCE… RETRACTION… \
SPARKOUT TIMER…
ADJUSTABLE TABLE TARRY…
EXTERNAL HYDRAULIC SYSTEM…
DUAL LIVE/DEAD WORKHEAD SPINDLE
ELECTRICAL SYSTEM CONNECTED ON MACHINE (NOT SEPARATE)…
MOTORS ARE FOR″/60/220-440 VOLT ELECTRICS
EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT WITH (1) I.D. SPINDLE
TWO-POINT STEADY REST
TABLE MOUNTED WHEEL DRESSER
EXTERNAL COOLANT SYSTEM
CENTER IN WORKHEAD
MACHINE IS PRESENTLY WIRED FOR″/60/220 VOLTS
Link to video: https://youtu.be/dDJKigcUo0s?si=Df_lTSPKWMiGVSyp
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** FROM A SHOP THAT DID MOST OF THEIR WORK FOR
THE OAK RIDGE TN NATIONAL LABORATORY **
** EXCELLENT CONDITION… APPEARANCE - ORIGINAL PAINT **
Get Your Price from Machinery Values Inc!
